Description

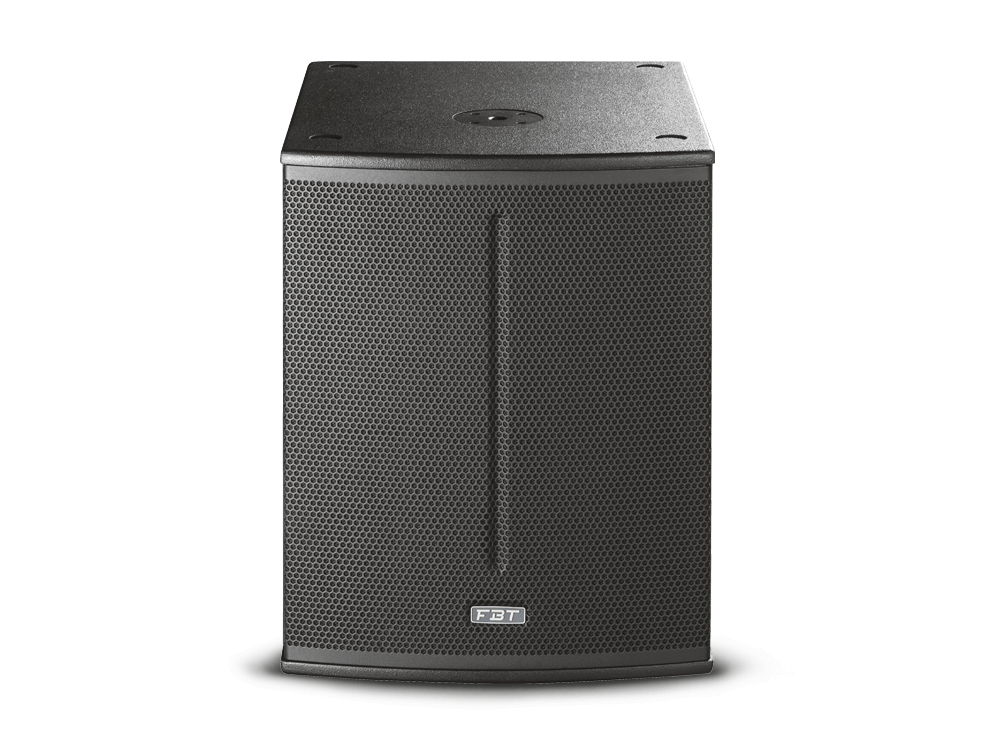

X SUB 115SA is an active 15″ subwoofer with bass-reflex design, engineered to complement the X LITE and X PRO series by extending low-frequency performance in both portable and installed sound systems. It is equipped with a 15″ woofer featuring a 3″ voice coil, powered by a 1200W Class D amplifier, delivering up to 135 dB SPL and a frequency response from 42 Hz to 120 Hz.
The built-in DSP includes 4 presets (2 responses with 2 different cut-off options), allowing flexibility for different system configurations. The control panel features stereo combo XLR/Jack inputs and outputs, stereo XLR HP filter outputs, level control, preset selector, phase reverse switch (0°/180°), and protection/limit LEDs.
Constructed from 15 mm birch plywood with a scratch-resistant black finish, X SUB 115SA includes M20 top-mounted stand adapter, two ergonomic aluminum handles, and optional 100 mm transport wheels. Suitable for fixed installations, live events, and touring.
Technical Specifications
| Code | 44146 |
| Configuration | bass reflex |
| Built-in amplifier LF/HF | 1200W |
| Built-in amplifier peak LF/HF | --- |
| Frequency response | 38Hz - 120Hz -6dB |
| Low Frequency woofer | 18” / 3” coil |
| Maximum SPL cont/peak | 136dB half space |
| Dispersion | Omnidirectional |
| Input impedance | 22 kOhm |
| Crossover Frequency | --- |
| AC Power requirements | 600W |
| Input connector | XLR with loop |
| Power cord | 5m / 16.4 ft |
| Net Dimension (WxHxD) | 510 x 655 x 630 mm / 20 x 25.7 x 24.8 inch |
| Net Weight | 39.8 kg / 87.7 lb |
| Transport Dimension (WxHxD) | 785 x 815 x 685 mm / 30.9 x 32.1 x 26.9 inch |
| Transport Weight | 47.5 Kg / 104.7 lb |
