Description

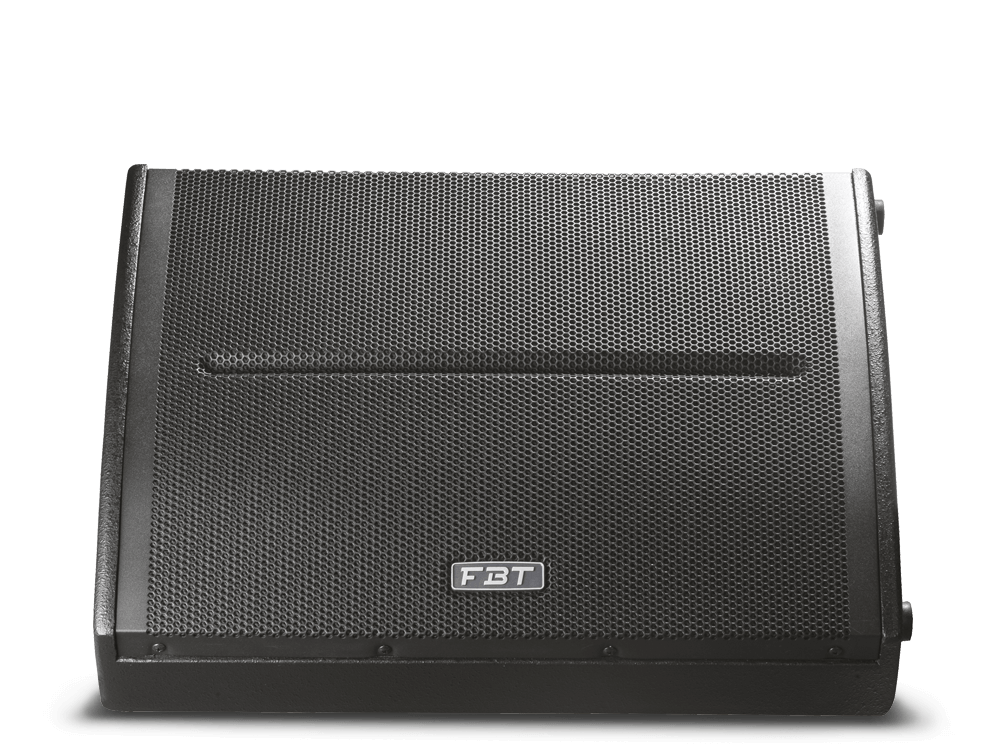

X PRO 112MA is a professional active stage monitor from the X PRO series, featuring a redesigned electronic section that enhances power output and adds new functionality. The speaker integrates a 12″ woofer with a 2.5″ voice coil and a 1″ compression driver with 1.4″ voice coil, mounted on an 80° x 50° horn. The Class D bi-amplification delivers 1200W LF + 300W HF, reaching a max SPL of 129 dB and a frequency response of 54 Hz – 20 kHz.
The control panel offers three input channels: one XLR mic/line, one selectable stereo line input (jack/XLR), and one Bluetooth 5.0 channel with pairing LED. It includes 4 DSP presets, high-pass filter, dual mic/line selectors, and an XLR output with CH1/mix link. A new power unit with auto-switching PSU and intelligent cooling system keeps operating temperatures low and ensures silent performance.
Built in plywood with a scratch-resistant finish, the enclosure includes two integrated handles and a 35 mm pole socket for free-field use. Ideal for FOH monitoring, small stage side-fills, DJ booths, and installations.
Technical Specifications
| Code | 43723 |
| Configuration | 2 way |
| Built-in amplifier LF/HF | 1200 / 300W |
| Built-in amplifier peak LF/HF | --- |
| Frequency response | 54Hz - 20KHz |
| Low Frequency Woofer | 12''- 2.5'' coil |
| High Frequency driver | 1'' - 1.4'' coil |
| Maximum SPL cont/peak | 124 / 129dB |
| Dispersion | 80° |
| Input impedance | 22 kOhm |
| AC Power requirements | 500W |
| Input connector | XLR IN/OUT JACK ST |
| Power cord | 5m / 16.4 ft |
| Net Dimension (WxHxD) | 558 x 330 x 467 mm / 21.9 x 12.9 x 18.3 inch |
| Net Weight | 16.2 Kg / 35.7 lb |
| Transport Dimension (WxHxD) | 540 x 675 x 425 mm / 21.2 x 26.5 x 16.7 |
| Transport Weight | 19.7 Kg / 43.4 lb |
