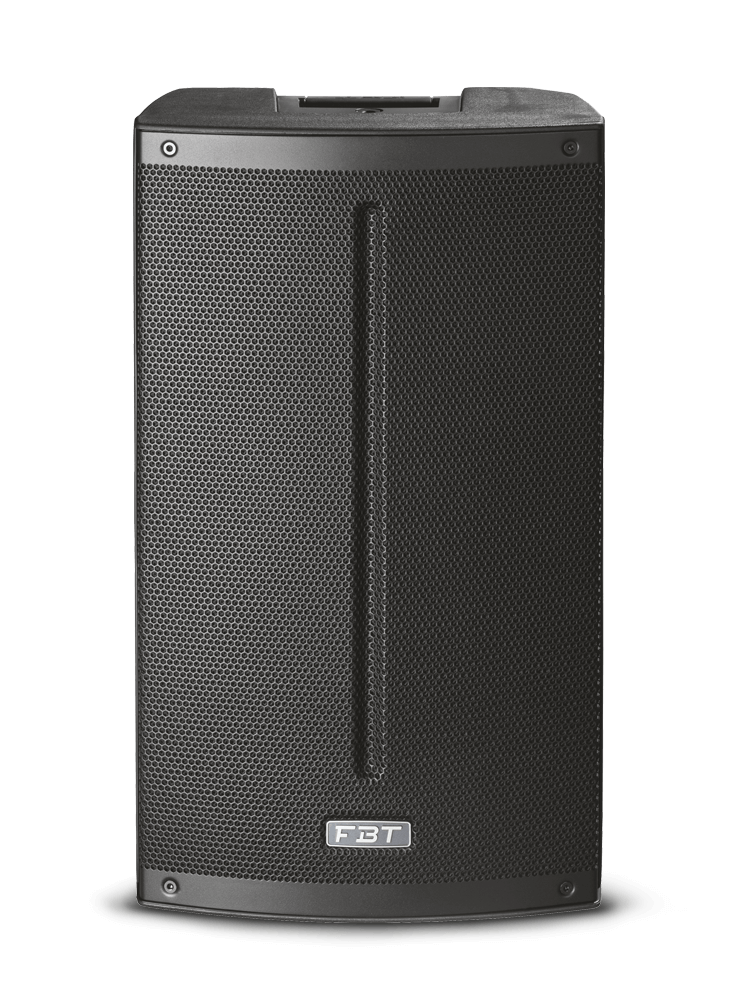

The X LITE 115 is a passive 2-way speaker designed for versatile sound reinforcement in portable and installed applications. Housed in a gas-injected polypropylene cabinet with steel grille, it features a 15″ woofer with 2.5″ voice coil and a 1″ compression driver with 1.4″ voice coil, delivering a peak SPL of 127.5 dB and a frequency response from 50 Hz to 20 kHz. The asymmetrical enclosure allows use as a floor monitor, while four M10 rigging points and a 35mm pole socket ensure flexible mounting. The speaker is equipped with two Neutrik NL4 speakon connectors for input and link.
Technical Specifications
| Code |
46169 |
| Configuration |
2 ways |
| Recommended amplifier |
400W |
| Long Term power |
200W |
| Short term power |
800W |
| Nominal impedance |
8Ohm |
| Frequency response |
50 Hz - 20kHz -6dB |
| Low Frequency woofer |
15'' - 2.5'' coil |
| High frequency driver |
1'' - 1.4'' coil |
| Sensitivity (@1W/1m) |
98dB |
| Maximum SPL cont/peak |
124.5 / 127.5dB |
| Dispersion |
90° x 60° H x V |
| Crossover Frequency |
1.6kHz |
| Recommended HP filter |
HP 40Hz - 12/24dB oct. |
| Recommended external filter |
FBT DSP Processor |
| Input connector |
2 x Speakon NL4 |
| Net Dimension (WxHxD) |
433 x 706 x 400 mm / 17 x 27.8 x 15.7 inch |
| Net Weight |
18.8 Kg / 41.4 Lb |
