NEW | INSTALLED | X 40 | TWO-WAY PROFESSIONAL SPEAKER | Technical Specifications | 142 dB max SPL
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
50 Hz - 20000 Hz |
| Max SPL @ 1m |
142 dB |
| Horizontal coverage angle |
110° |
| Vertical coverage angle |
60° |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
1200 W RMS |
| Peak Power Handling |
4800 W PEAK |
| Protections |
Dynamic active mosfet |
| Crossover Frequencies |
750 Hz |
| Recommended Amplifiers |
XPS 16K, XPS 16KD |

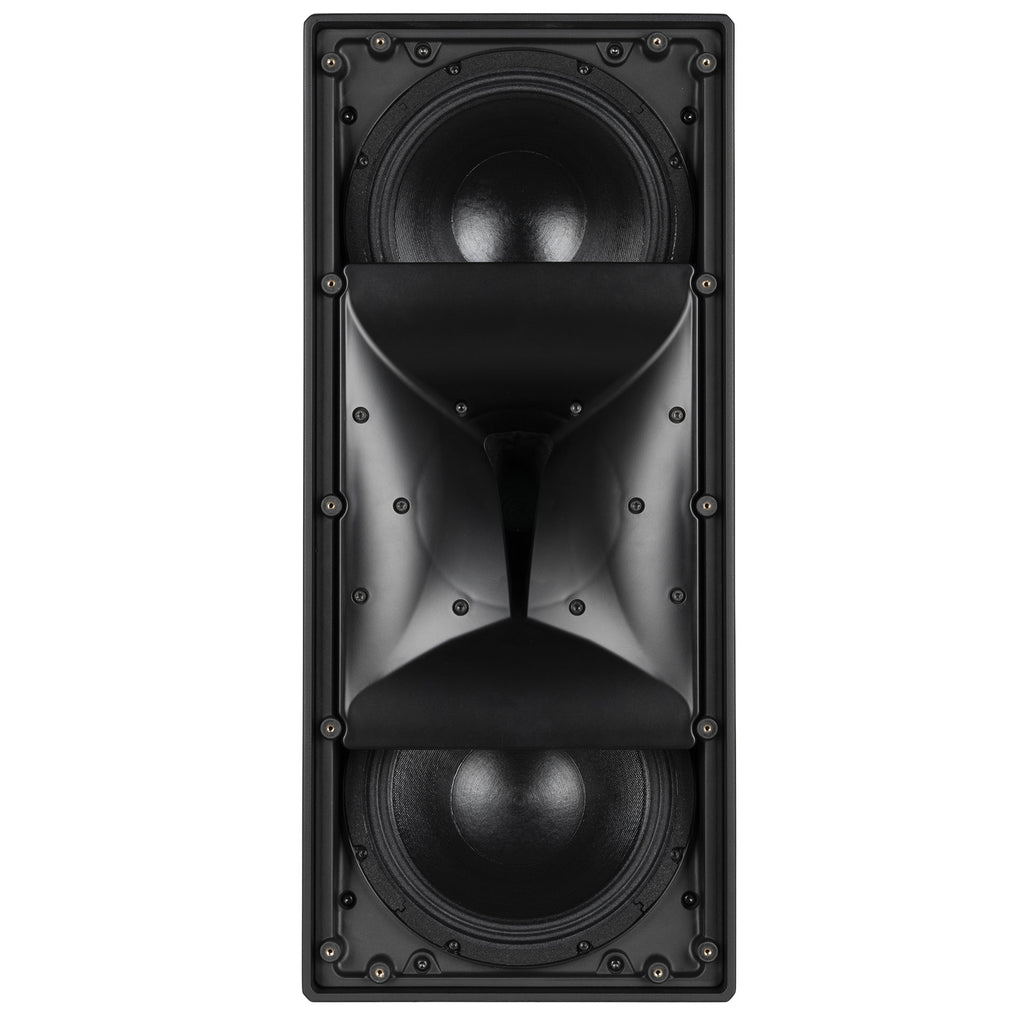

| Transducers |
| Compression Driver |
1 x 1.4'' neo, 4.0'' v.c |
| Woofer |
2 x 10'' neo, 3.0'' v.c |
| Input/Output section |

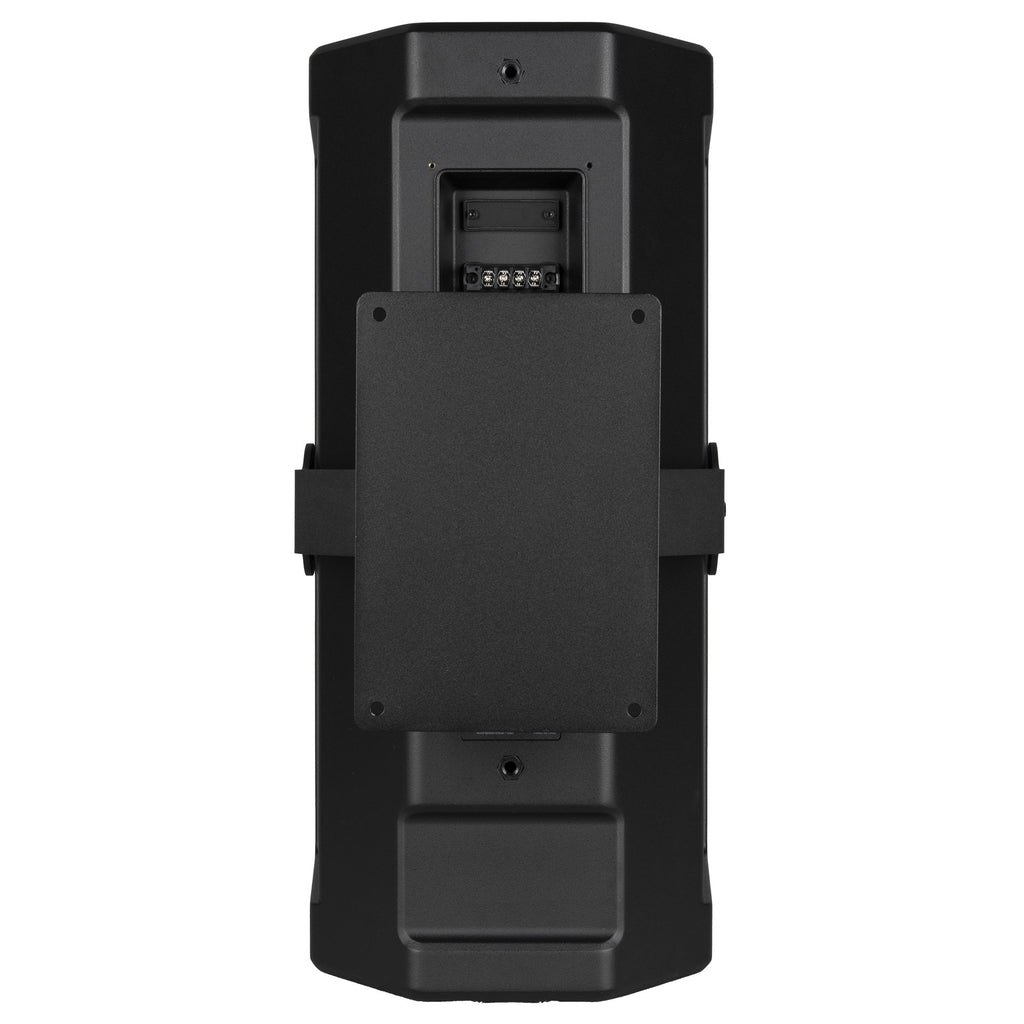

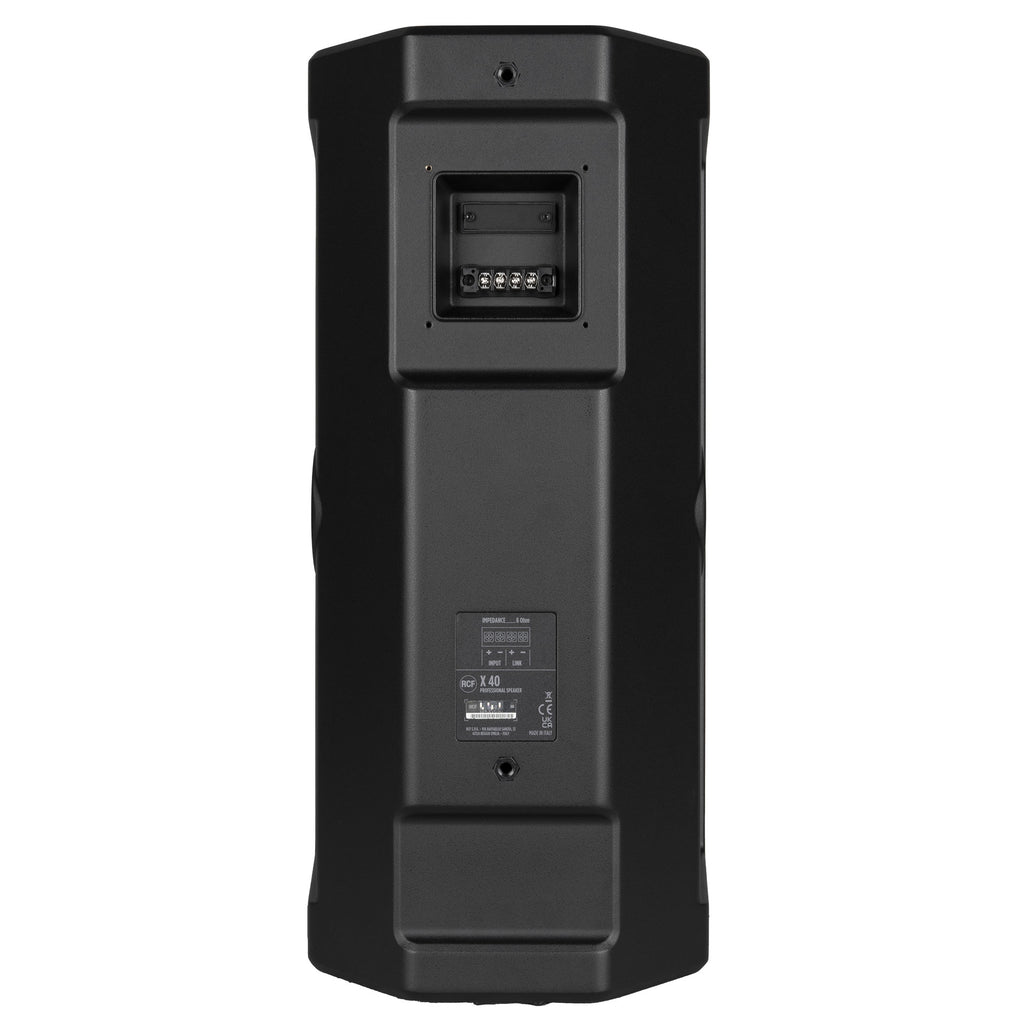

| Input connectors |
Screw Terminals |
| Output connectors |
| Standard compliance |
| IP protection grade |
IP 55 |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Structural Polyurethane |
| Hardware |

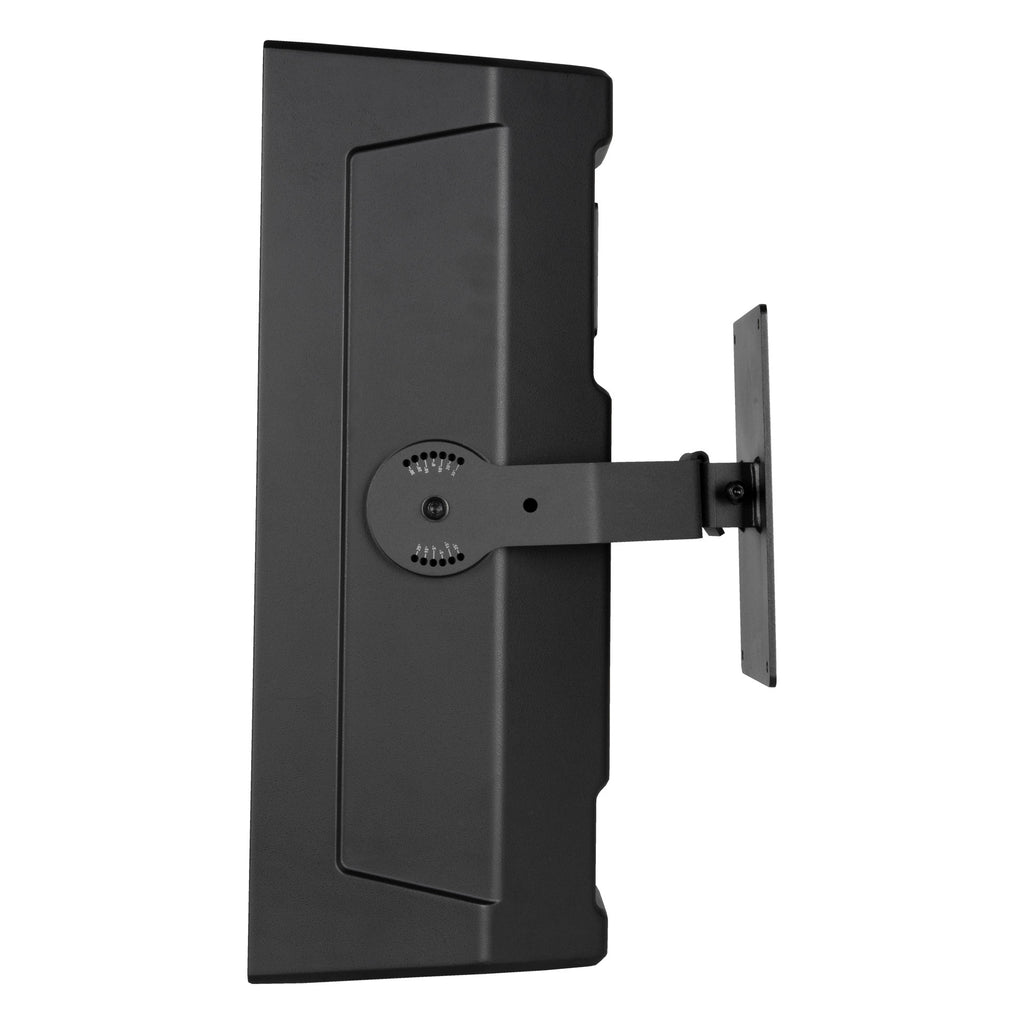

Wall mount vertical bracket included |

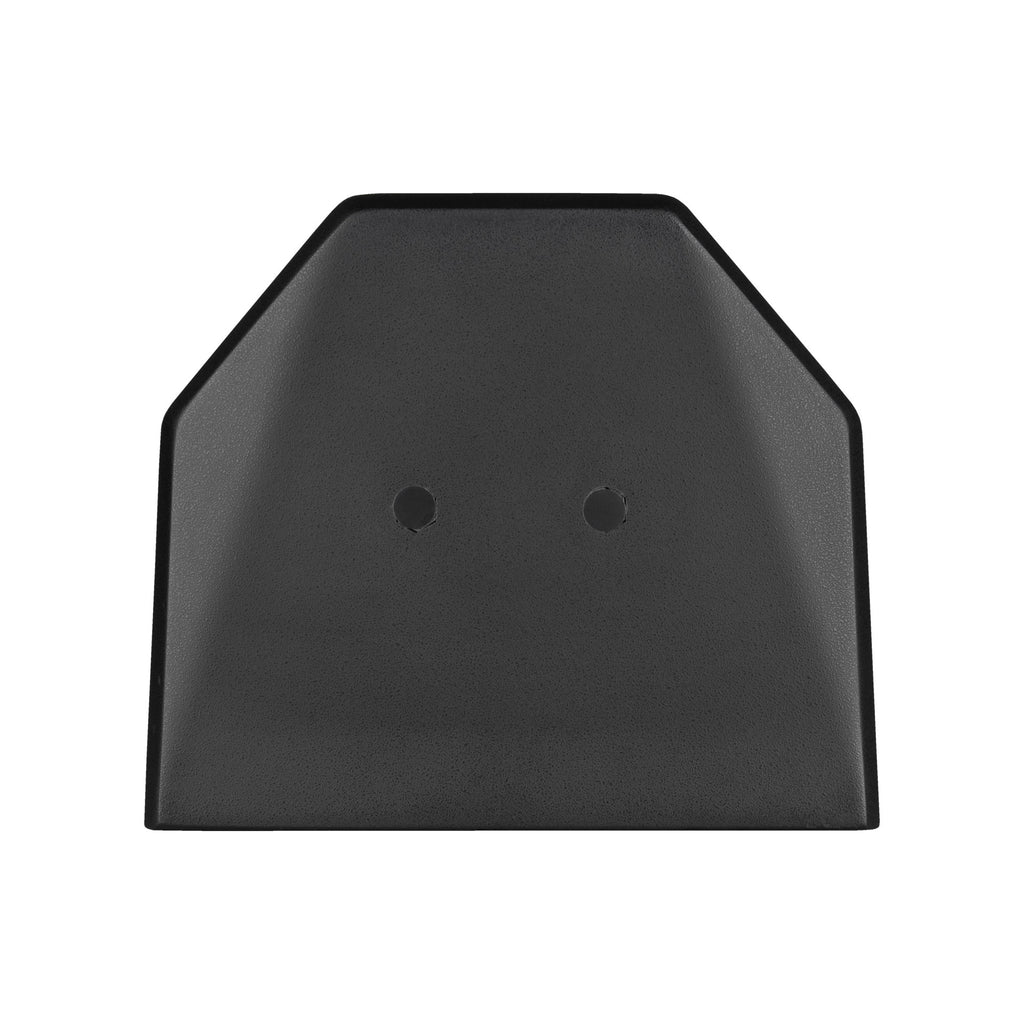

| 2 x M10 (top) - 2 x M10 (back) |
Grille |
| Aluminum with water-repellent protection |
Color |
| Black - RAL 9005 |
| Size / Weight |
| Height |
710 mm / 27.95 inches |
| Width |
311 mm / 12.24 inches |
| Depth |
270 mm / 10.63 inches |
| Weight |
25 kg / 55.12 lbs |
| Shipping information |
| Package Height |
310 mm / 12.2 inches |
| Package Width |
841 mm / 33.11 inches |
| Package Depth |
338 mm / 13.31 inches |
| Package Weight |
28.2 kg / 62.17 lbs |
