NEW | INSTALLED | X 08 | TWO-WAY PROFESSIONAL SPEAKER | Technical Specifications | 128 dB max SPL
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
128 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
400 W RMS |
| Peak Power Handling |
1600 W PEAK |
| Protections |
Dynamic Active Mosfet |
| Crossover Frequencies |
2000 Hz |
| Recommended Amplifiers |
XPS 16K, XPS 16KD, DMA 504 |

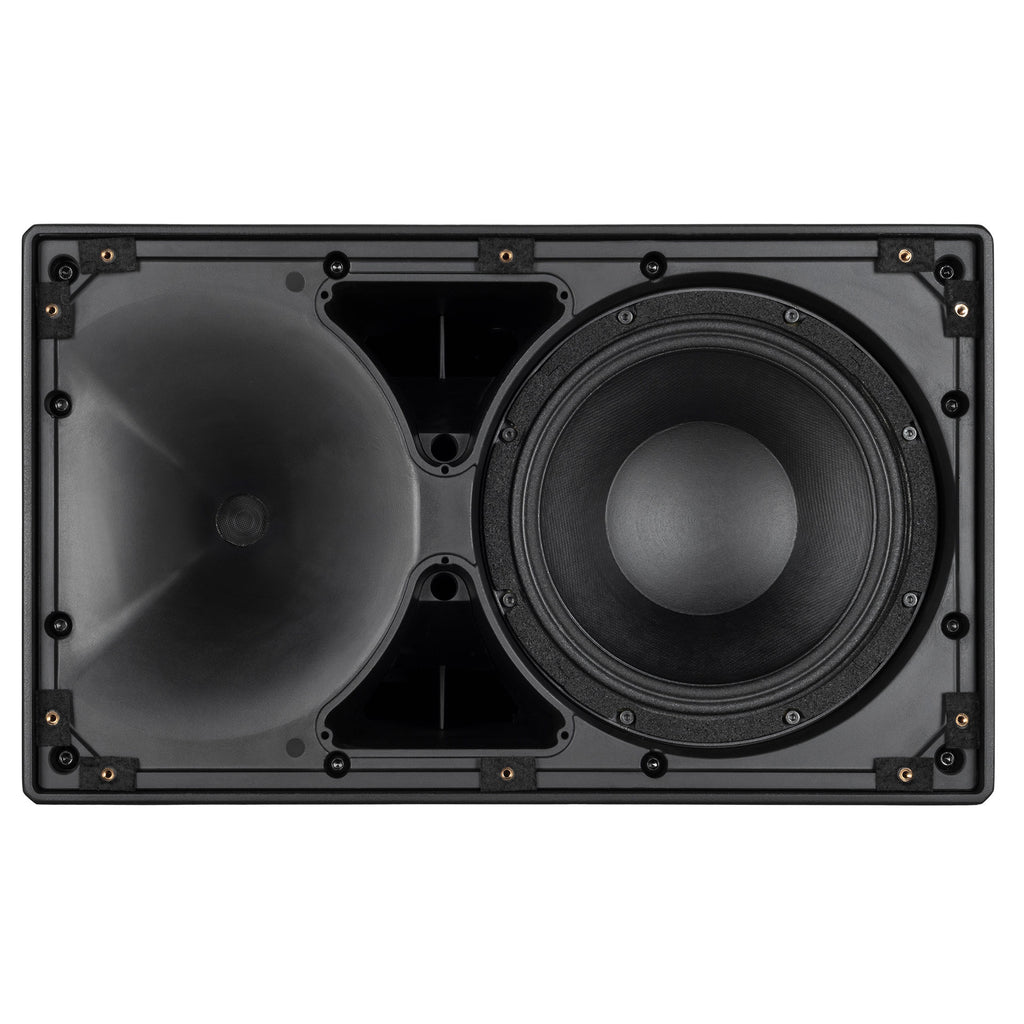

| Transducers |
| Compression Driver |
1 x 1.0'' neo, 1.75'' v.c |
| Woofer |
1 x 8'' neo, 2.5'' v.c |
| Input/Output section |

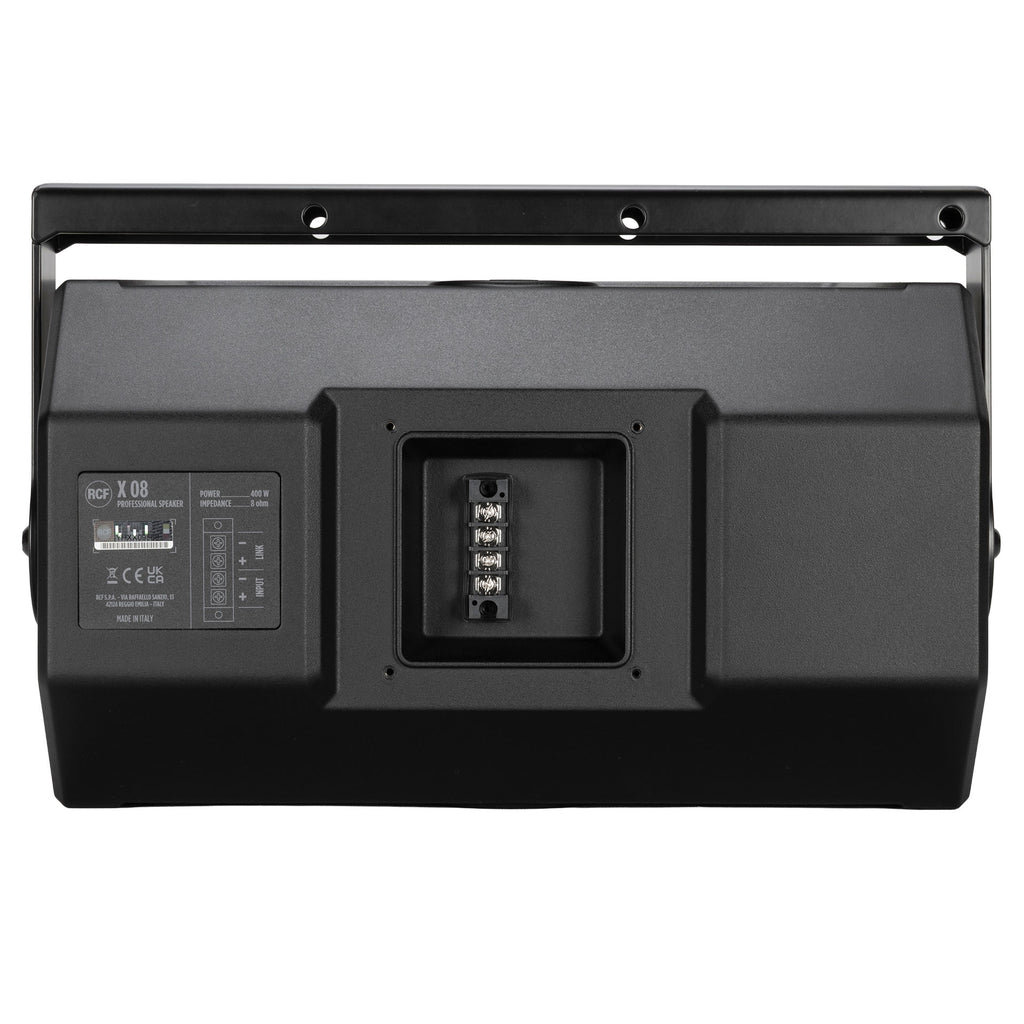

| Input connectors |
Screw Terminals |
| Output connectors |
| Standard compliance |
| IP protection grade |
IP 55 |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Structural Polyurethane |

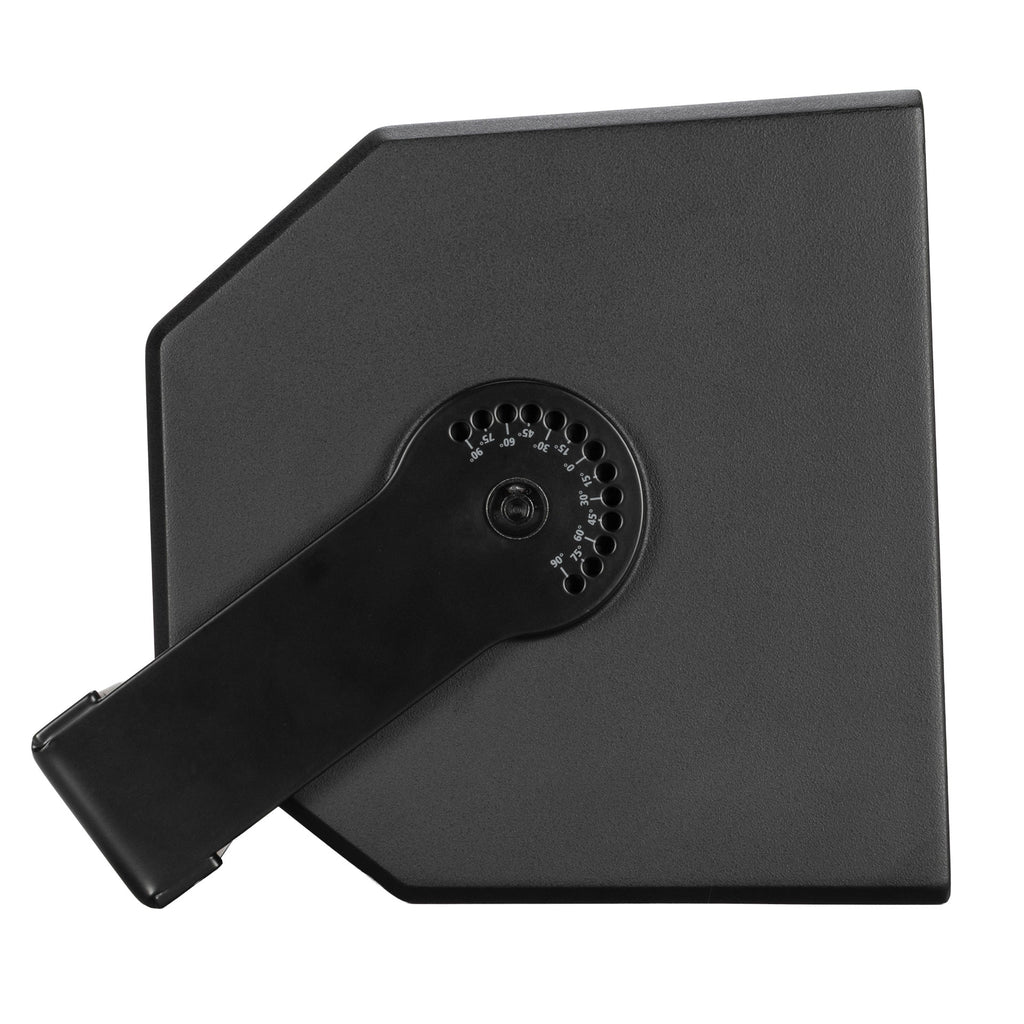

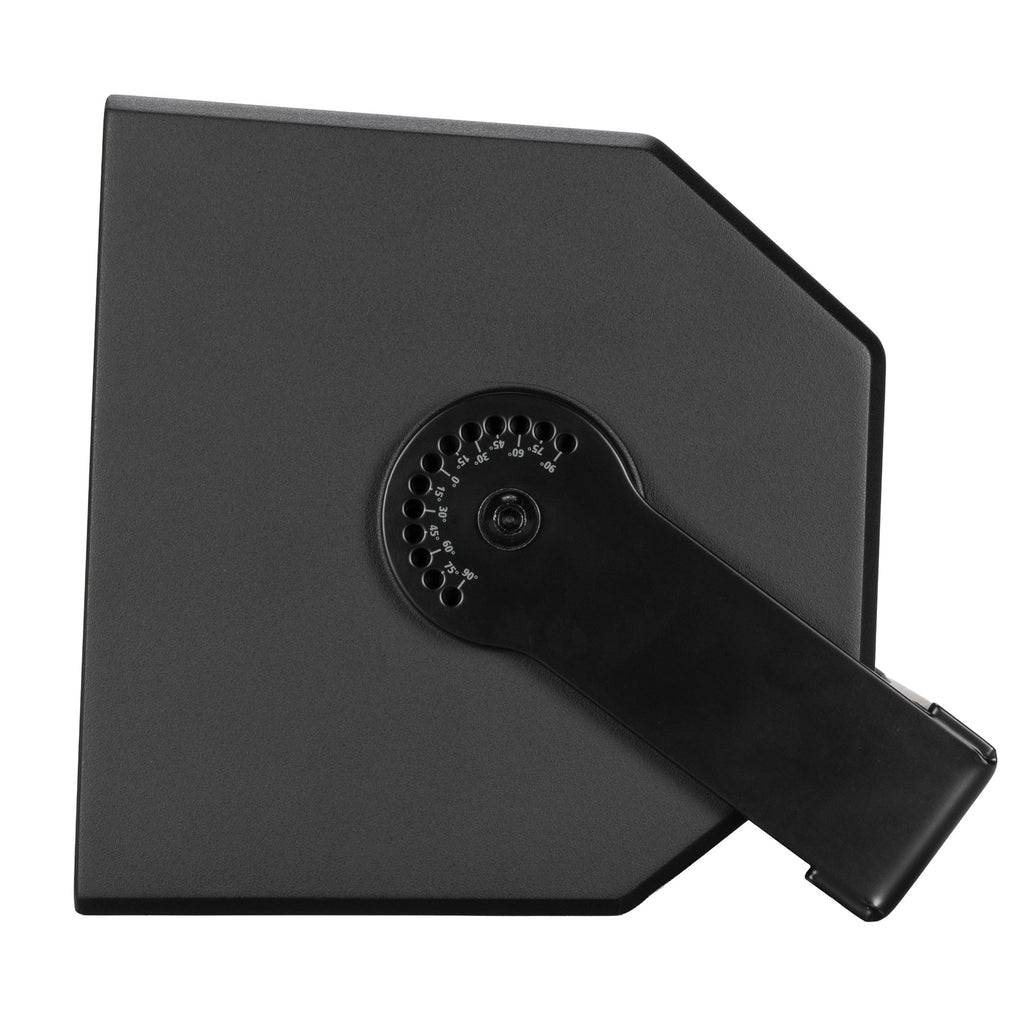

| Hardware |
Horizontal bracket included |
| 2 x M10 (top-bottom) |
2 x M10 (sides) |

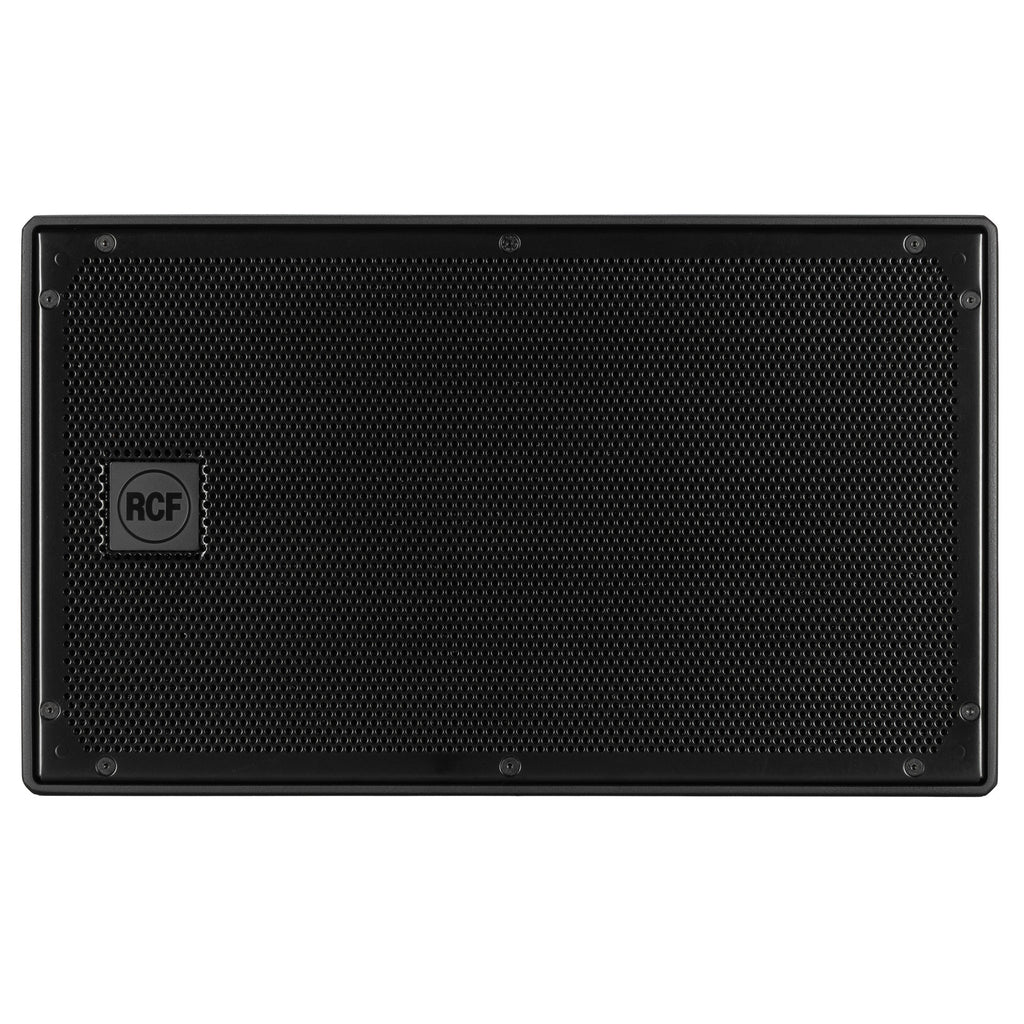

| Grille |
Aluminum with water-repellent protection |
| Color |
Black - RAL 9005 |
| Size / Weight |
| Height |
260 mm / 10.24 inches |
| Width |
436 mm / 17.17 inches |
| Depth |
251 mm / 9.88 inches |
| Weight |
9.95 kg / 21.94 lbs |
| Shipping information |
| Package Height |
310 mm / 12.2 inches |
| Package Width |
500 mm / 19.69 inches |
| Package Depth |
290 mm / 11.42 inches |
| Package Weight |
13.5 kg / 29.76 lbs |
