Description

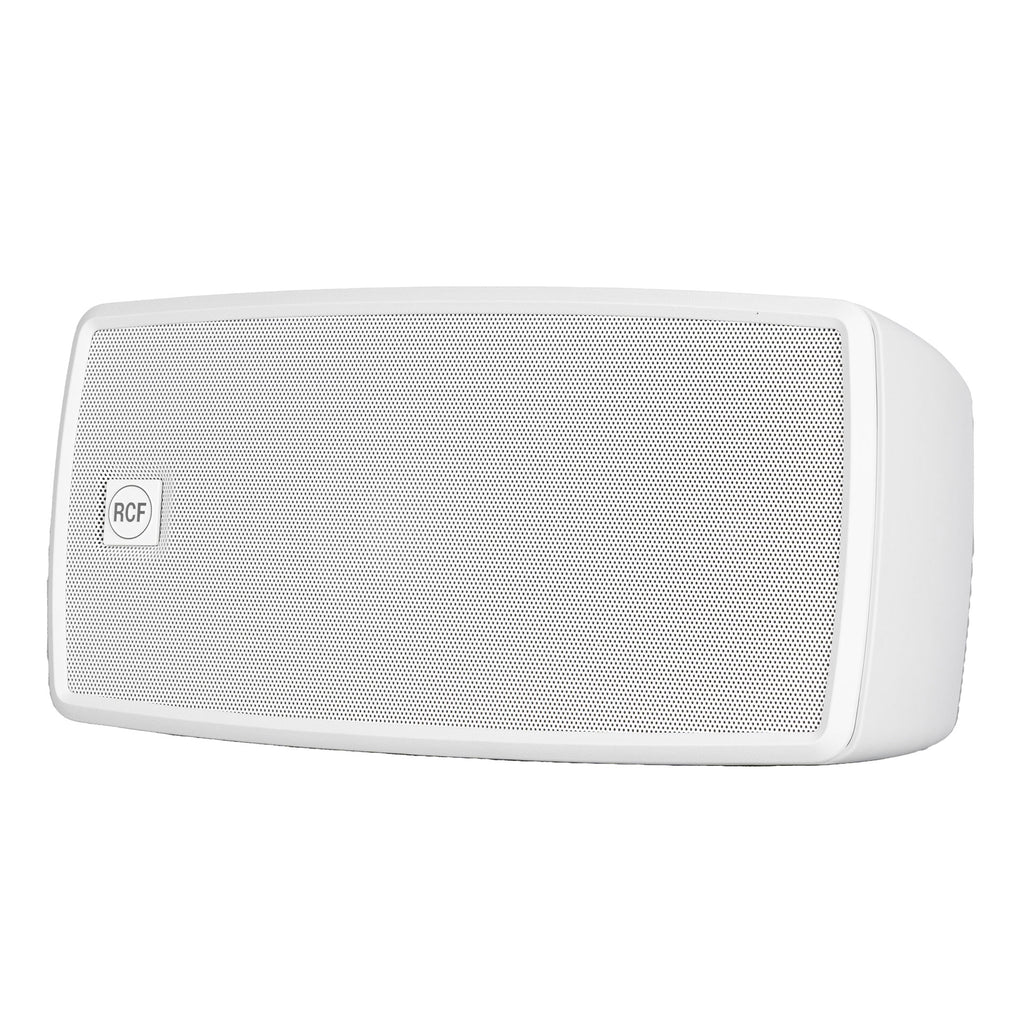

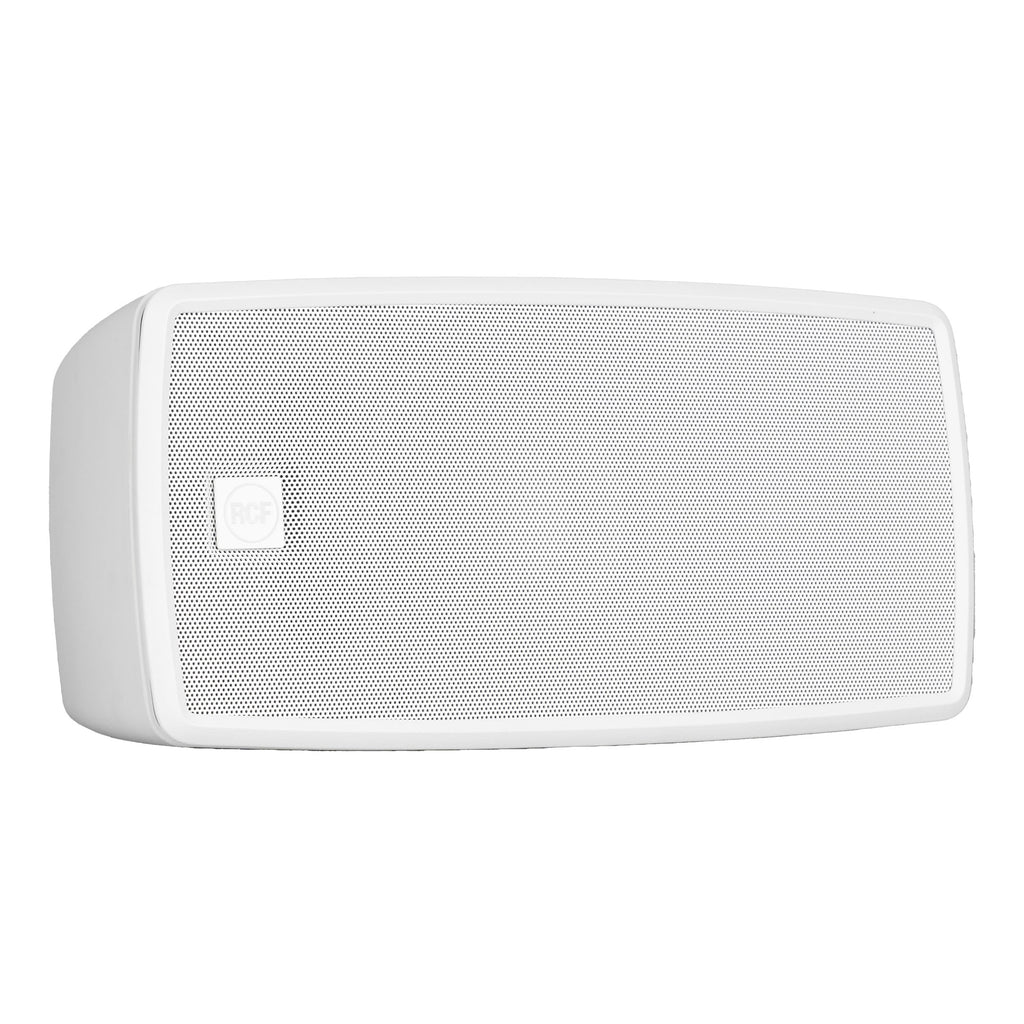

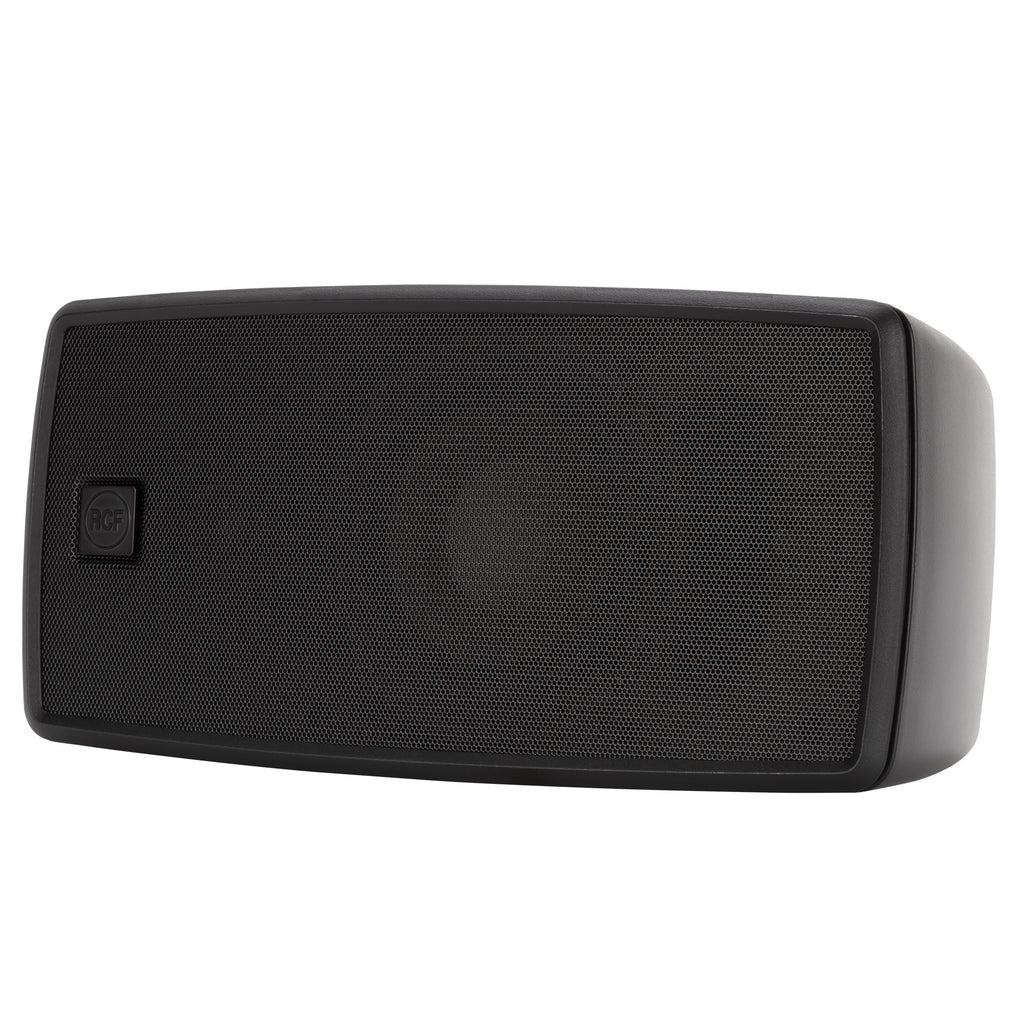

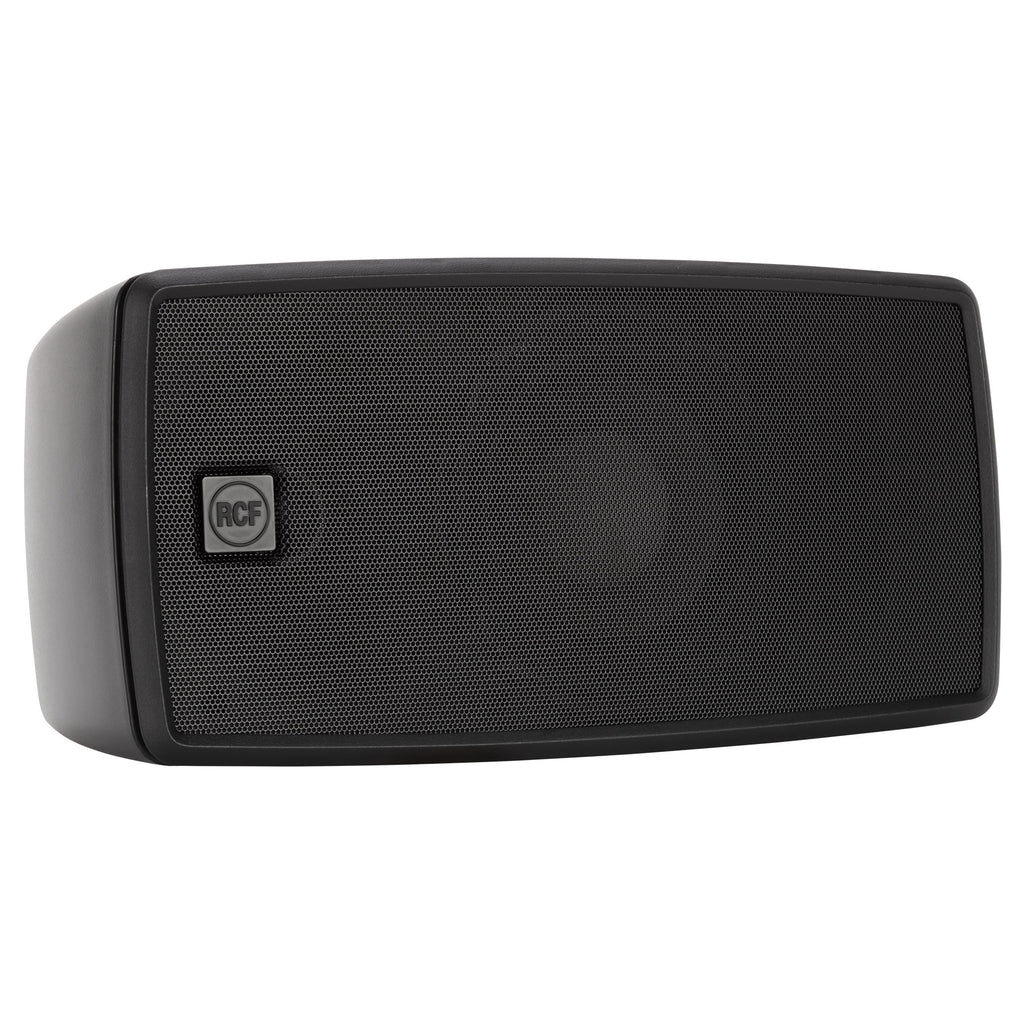

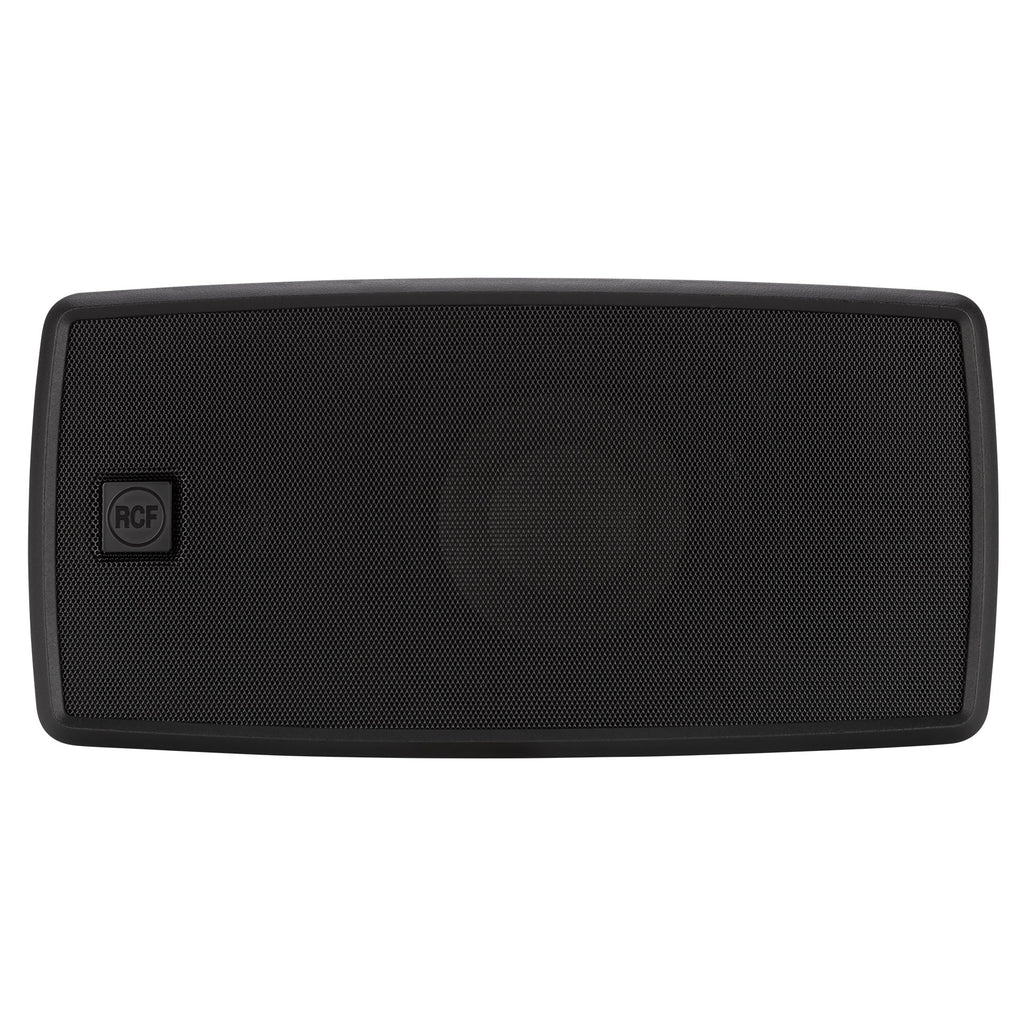

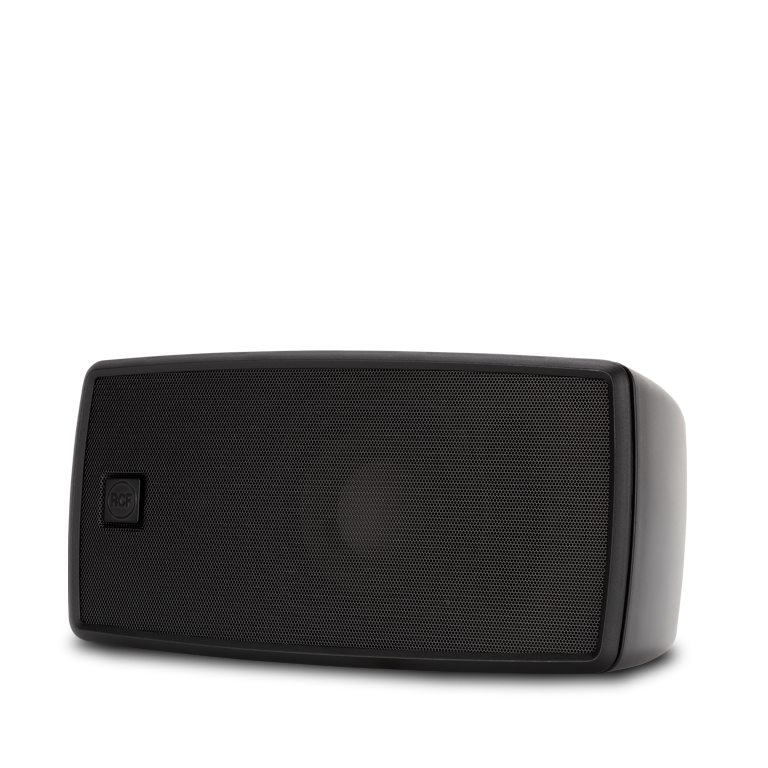

WMR 50T is a multipurpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 50T pairs any building's aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally quickly connect it without the need for any tooling.
Features
- 40W RMS power handling
- 110 dB max SPL
- 80 ÷ 20000 Hz frequency range
- 140° x 100° constant directivity coverage angle
- 5" high power woofer
- 1" neodymium dome tweeter
- Self-extinguishing plastic cabinet and aluminum front grille
- Connection board integrated into the wall support
- 4 pole EUROBLOCK connector (audio input and parallel link output)
- IP55 protection grade
Multipurpose sound
Music nurtures engagement and improves the feeling of hospitality provided by the environment. With a wide conical coverage angle of 140° x 100°, WMR speakers feature a two-way configuration with a bass-reflex cabinet design, ideal for both speech and music reproduction. All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
Uncompromised performance
Quality components and careful acoustic design make the WMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces. Their extra-wide directivity significantly reduces the number of speakers and installation points.
Smooth installation

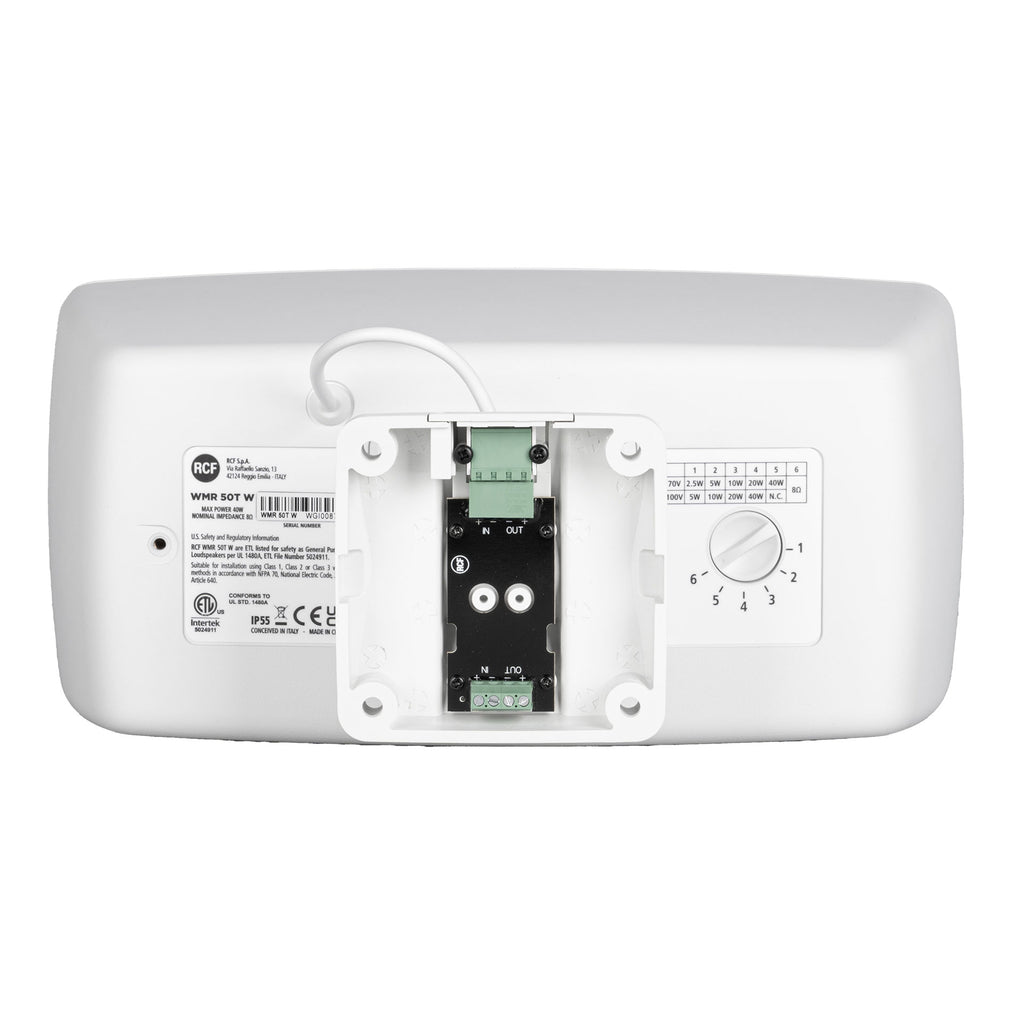

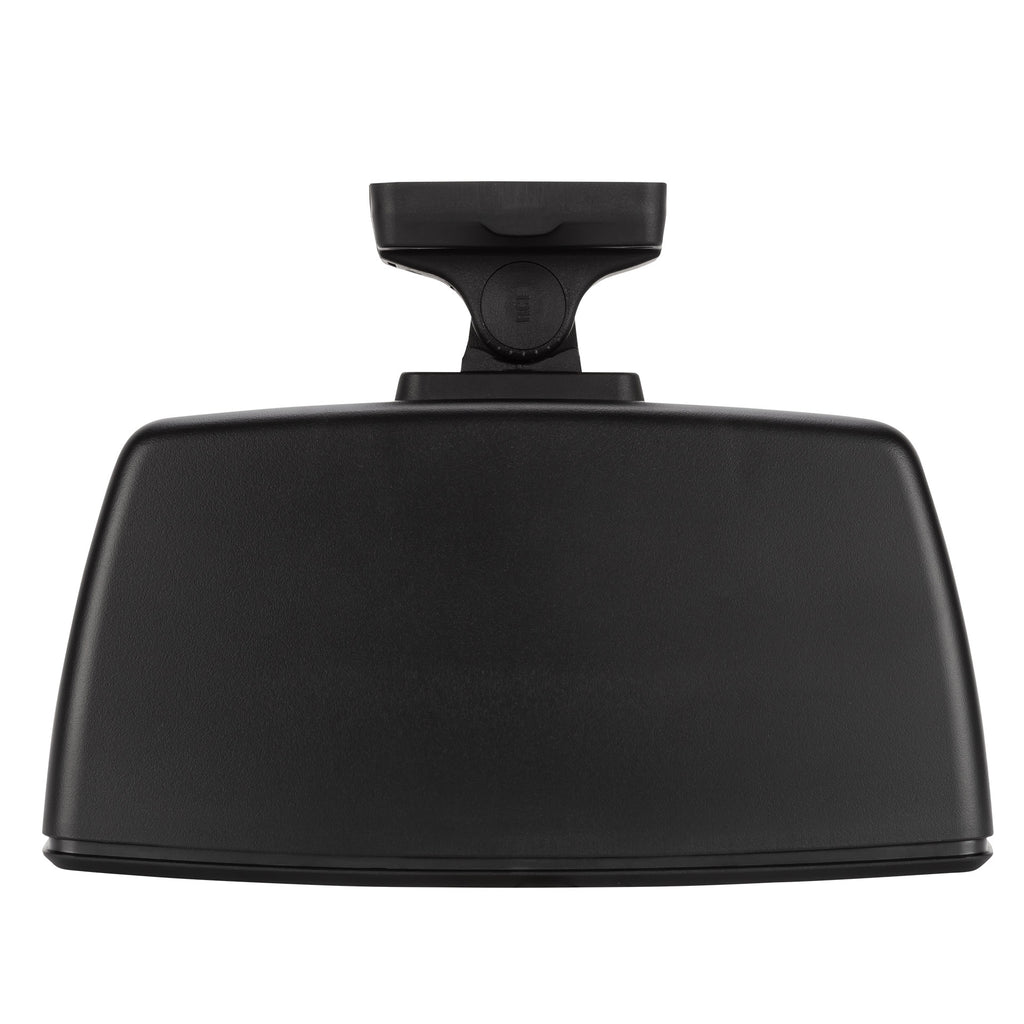

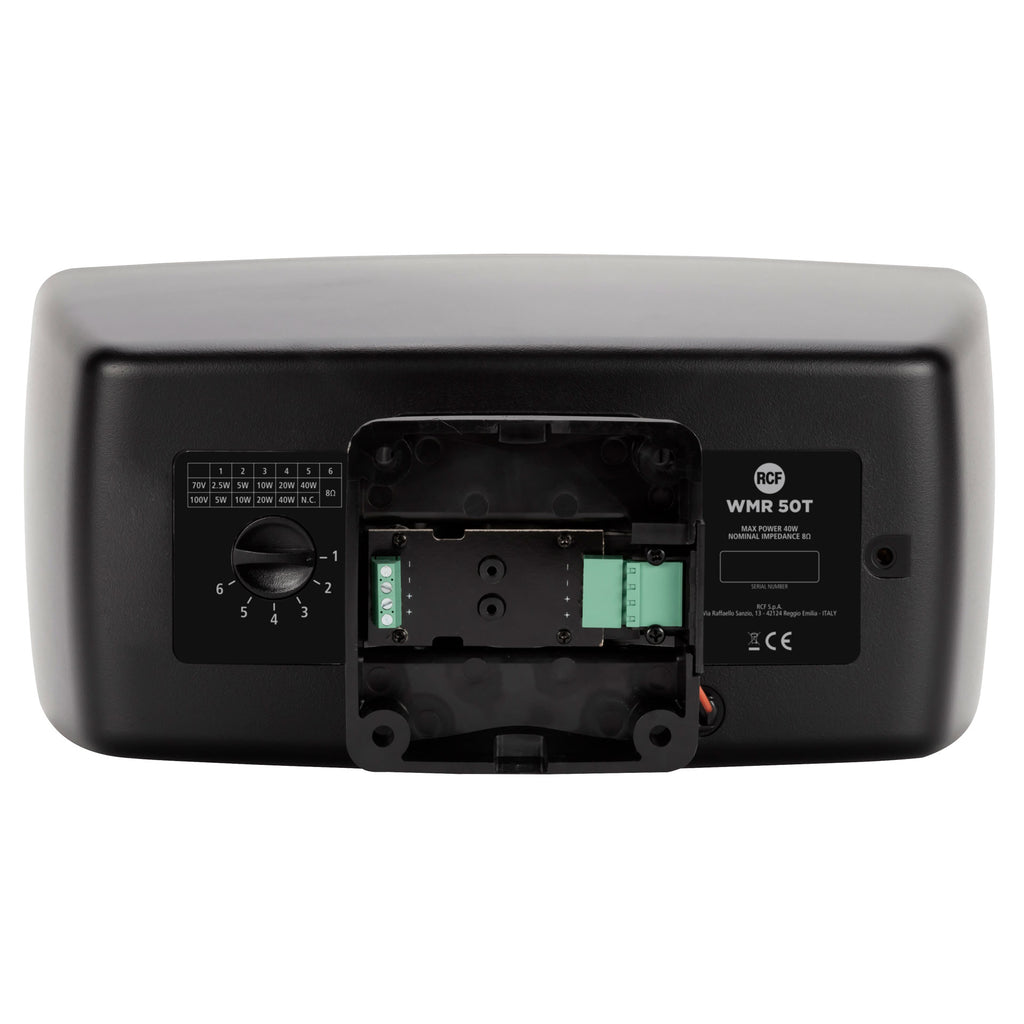

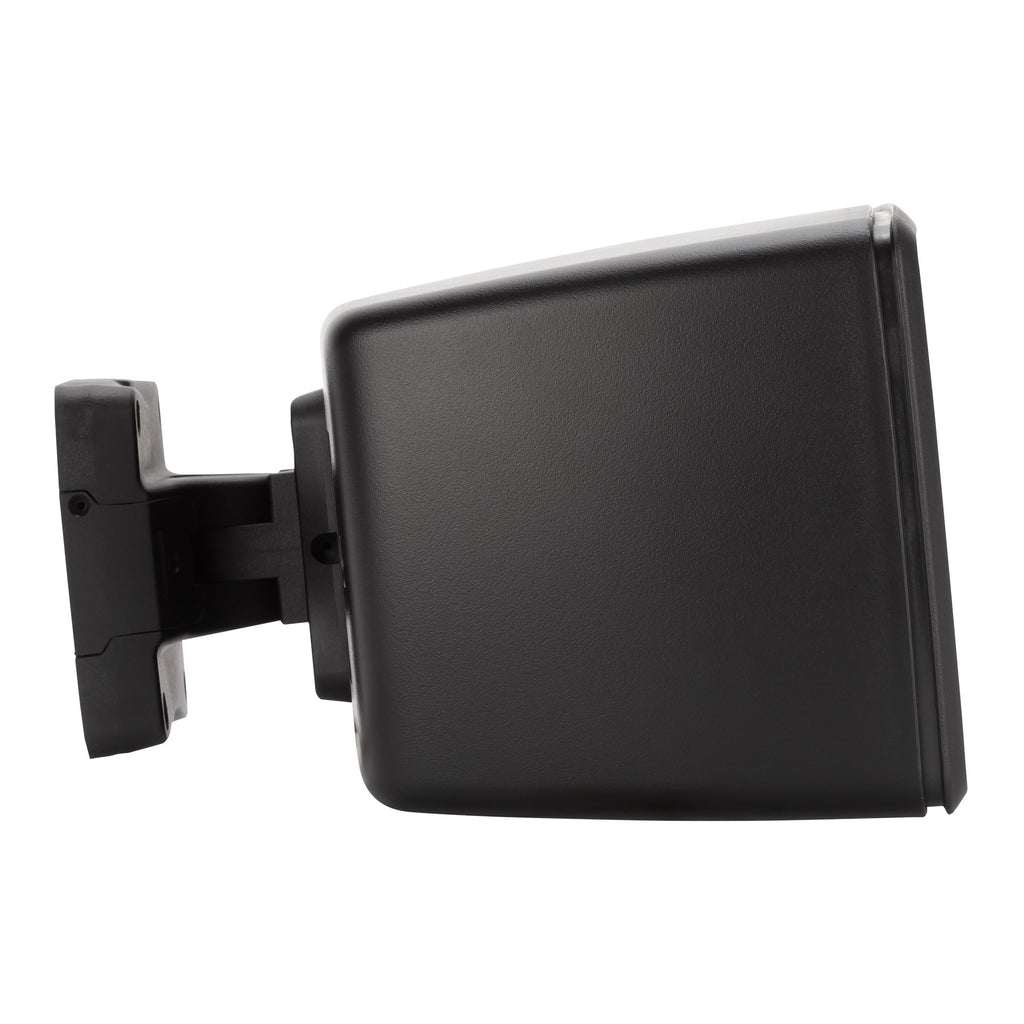

Housed in a compact self-extinguishing plastic cabinet, all models feature Euroblock inputs, a line transformer for 70V-100V systems, and quick and easy installation. The connection panel is embedded inside the wall mount support, for both ease of installation and elegance. The stepped swivel mount is fast to configure and secure.
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 80 Hz - 20000 Hz |
| Max SPL @ 1m | 110 dB |
| Horizontal coverage angle | 140° |
| Vertical coverage angle | 100° |
| System Sensitivity | 88 dB |
| Power section | |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 40 W RMS |
| Peak Power Handling | 160 W PEAK |
| Protections | Bulb lamp |
| Crossover Frequencies | 2500 |
| Recommended Amplifiers | XPS SERIES, KPS SERIES, DMA SERIES |
| Transducers | |
| Dome Tweeter | 1 x 1.0'' neo, 1.0'' v.c |
| Woofer | 1 x 5.0'', 1.0'' v.c |
| Input/Output section | |
| Input connectors | Euroblock |
| Output connectors | Euroblock |
| Constant Voltage Transformer | 70/100 V |
| Power selection 1 | 40 W - 250 ohm |
| Power selection 2 | 20 W - 500 ohm |
| Power selection 3 | 10 W - 1000 ohm |
| Power selection 4 | 5 W - 2000 ohm |
| Power selection 5 | 2.5 W - 4000 ohm |
| Standard compliance | |
| IP protection grade | IP 55 |
| Safety agency | CE compliant, UL 1480A |
| Physical specifications | |
| Cabinet/Case Material | ABS |
| Hardware | Wall mount bracket |
| Grille | Steel |

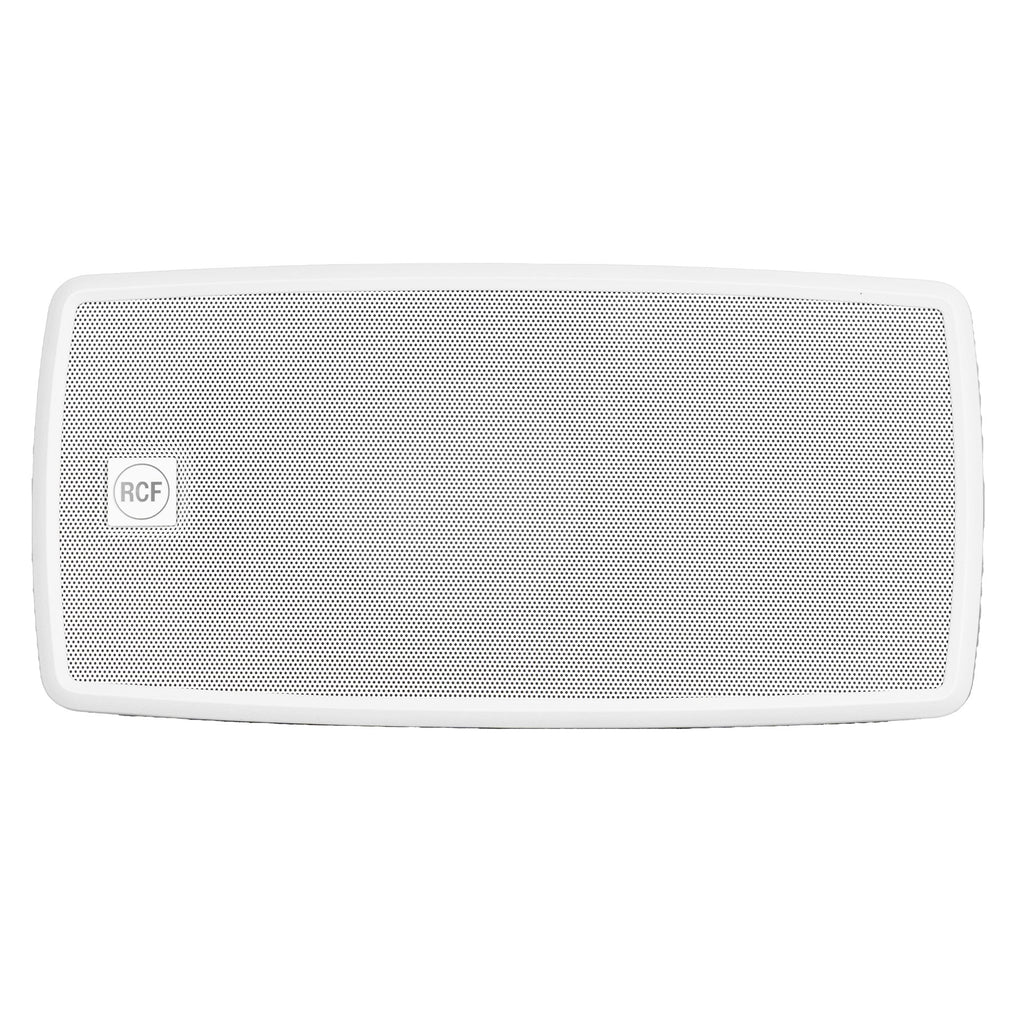

| Color | Black - RAL 9005, White - RAL 9003 |
| Size / Weight | |
| Height | 349 mm / 13.74 inches |
| Width | 170 mm / 6.69 inches |
| Depth | 253 mm / 9.96 inches |
| Weight | 4.2 kg / 9.26 lbs |
| Shipping information | |
| Package Height | 278 mm / 10.94 inches |
| Package Width | 418 mm / 16.46 inches |
| Package Depth | 308 mm / 12.13 inches |
| Package Weight | 5.3 kg / 11.68 lbs |
