Description

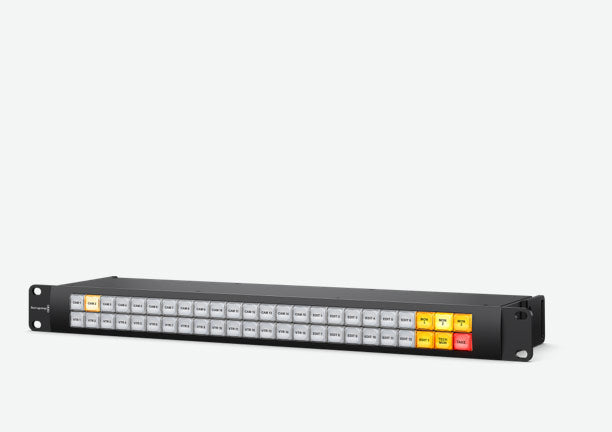

48 button control panel for XY or single destination control. Supports ethernet.
Blackmagic Videohub 12G The new Blackmagic Videohub 12G-SDI video routers let you connect all your equipment without creating a complex cable mess! Blackmagic Videohub routers support 12G-SDI so they allow you to connect and route any combination of SD, HD and Ultra HD on the same router at the same time. Plus they have zero latency so are perfect for live production and broadcast! The design features an elegant front panel with LCD for labels and even live video, shortcut buttons and a machined metal spin knob with soft rubber coating that lets you browse video sources. Ethernet is also included so you can remotely control the router using a range of external hardware or software control panels.
Blackmagic Videohub 12G eliminates cable mess because you can plug all your SDI equipment into the router, then do connections electronically! You don't need complex system diagrams for your studio because you can connect any video input to any video output, or even a single video input to multiple video outputs. This means monitors can view any source in the studio! You get total flexibility to handle constant change or even emergencies. It lets you use multiple HyperDeck recorders for redundant mastering. Or you can route video to multiple streaming processors for all broadcast platforms. Blackmagic Videohub 12G is also great for adding extra inputs to an ATEM switcher!
Front Back Blackmagic Videohub 10x10 12G Advanced 12G-SDI 10x10 zero latency video router supports any combination of SD, HD and Ultra HD on the router at the same time. Features control panel, SDI re-clocking and external Ethernet control.
Medium 20x20 model zero latency 12G-SDI video router supports any combination of SD, HD and Ultra HD on the router at the same time. Features control panel, re-clocking and external Ethernet control.
Large 40x40 model zero latency 12G-SDI video router supports any combination of SD, HD and Ultra HD on the router at the same time. Features control panel, re-clocking and external Ethernet control.
Massive 80x80 model zero latency 12G-SDI video router supports any combination of SD, HD and Ultra HD on the router at the same time. Features control panel, re-clocking and external Ethernet control.
Specifications
Connections
- Ethernet: RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
- RS-422: In and Out (for future implementation)
- Computer Interface: USB-C for configuration and software updates.
- Power: 100 - 240 AC
IP Video Compliance
- Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
- NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
- NMOS IS-05 Connection Management: v1.1.2
- NMOS BCP-002-01: Natural Grouping
- NMOS BCP-004-01: Receiver capabilities
Power Requirements
- Power Fail Protection: Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
- Power Supply: Internal 100 - 240 V AC
Environmental Specifications
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
Physical
- Weight: 3.09 lb
- Dimensions: 20" x5 1/4"x3 1/2"
