Description

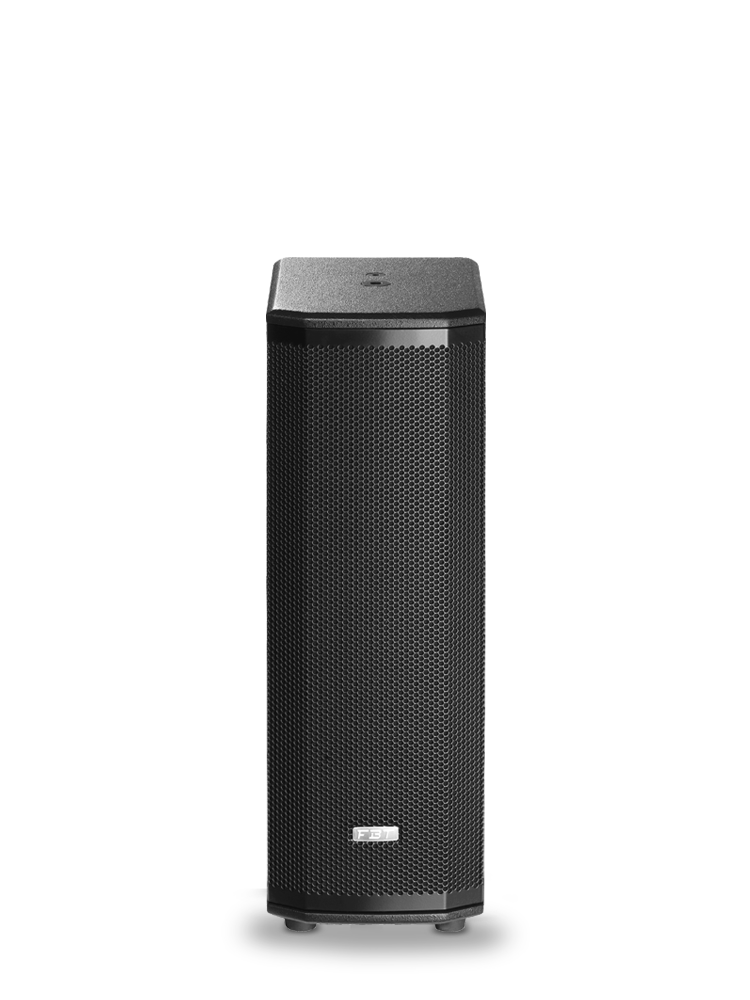

VENTIS 206 is a 2 way, bass reflex passive point source crafted with a birch plywood cabinet, scratch resistant enclosure and internal bracing. Recommended amplifier 400W RMS. Rotatable horns for optimal horizontal or vertical sound dispersion angle. The 70° H x 50° V coverage of this 2 woofers 6.5″ LF / 1″ HF point source delivers in the listening area up to 123/127 dB SPL. Frequency response from 75Hz to 20kHz. Built-in passive crossover with soft-trip protection for the LF woofer and HF driver. B&C compression drivers and FBT’s own custom, long excursion woofers.
Flexible mounting hardware and different accessories for ease of installation. Equipped with 1.38″ pole mount socket. 45° sloped profile for unobtrusive placement on-stage as a monitor. The integrated rear handle makes the Ventis 206 easy to carry and safe to install. In addition, Ventis 206 offers a mounting bracket (optional). VENTIS206 can be deployed as a front fill, an under-balcony fill, as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer.
Technical Specifications
| Code | 40679 |
| Configuration | 2 way |
| Recommended amplifier | 400W RMS |
| Long Term power | 200W |
| Short term power | 800W |
| Nominal impedance | 8 Ohm |
| Frequency response | 75Hz - 20KHz -6dB |
| Low Frequency woofer | 2 x 6.5'' - 1.5'' coil |
| High frequency driver | 1'' - 1.4'' coil |
| Sensitivity (@1W/1m) | 97 dB |
| Maximum SPL cont/peak | 123 / 127 dB |
| Dispersion | 70° x 50° rotatable HxV |
| Crossover Frequency | 2kHz |
| Recommended HP filter | 60 - 24dB oct |
| Recommended external filter | FBT DSP Processor |
| Input connector | 2 x Speakon NL4 |
| Net Dimension (WxHxD) | 190 x 560 x 260 mm / 7.4 x 22 x 10.2 inch |
| Net Weight | 12.1 Kg / 26.6 lb |
