Description
The UA864 antenna provides wideband RF coverage in a low-profile enclosure that easily mounts on a wall or ceiling. The neutral white housing allows the antenna to blend into corporate or classroom settings, and is paintable to match interior colour schemes. The 4-position selectable gain switch provides attenuation and boost settings to optimise the antenna performance for varying transmitter distances and cable run lengths.
- Up to 100 degrees coverage pattern (3dB beam width, region dependent)
- Four-position RF gain switch with pad/boost (-20, -10, 0, +10 dB)

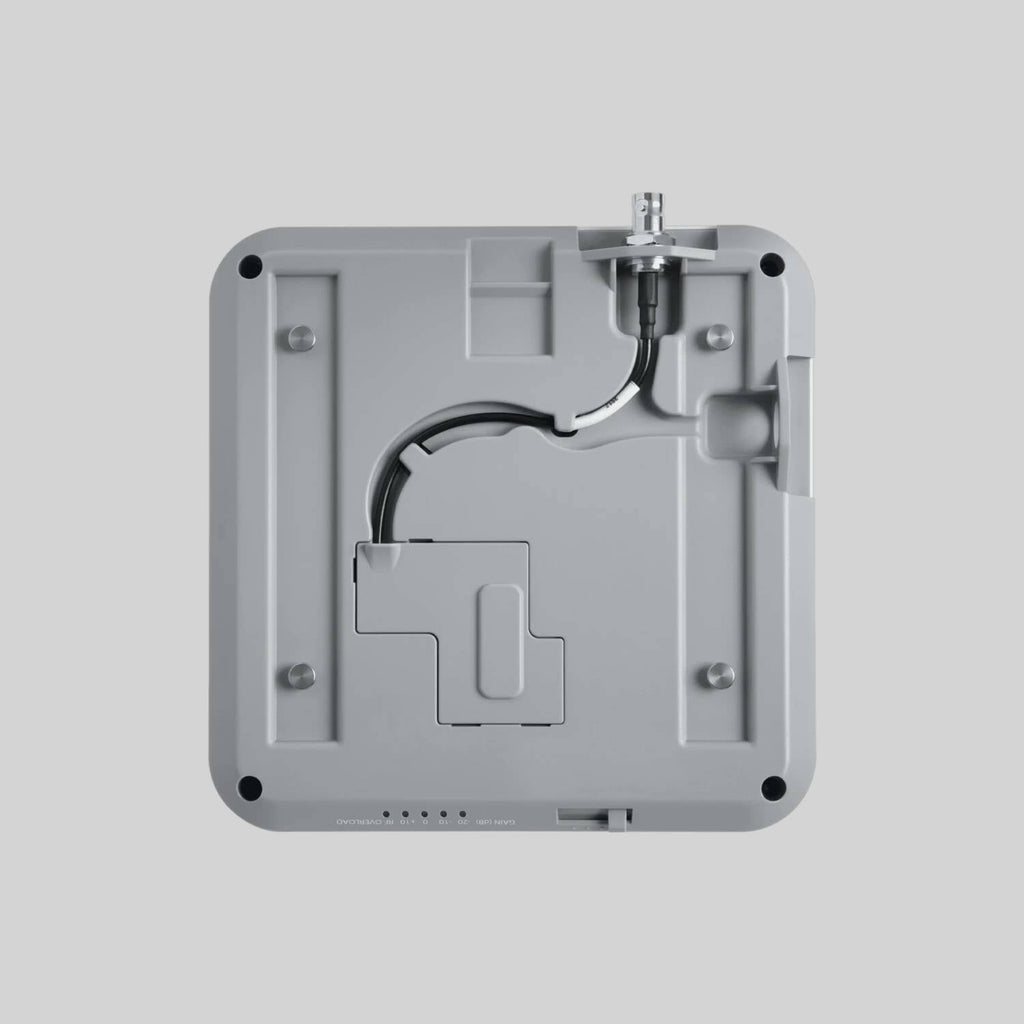

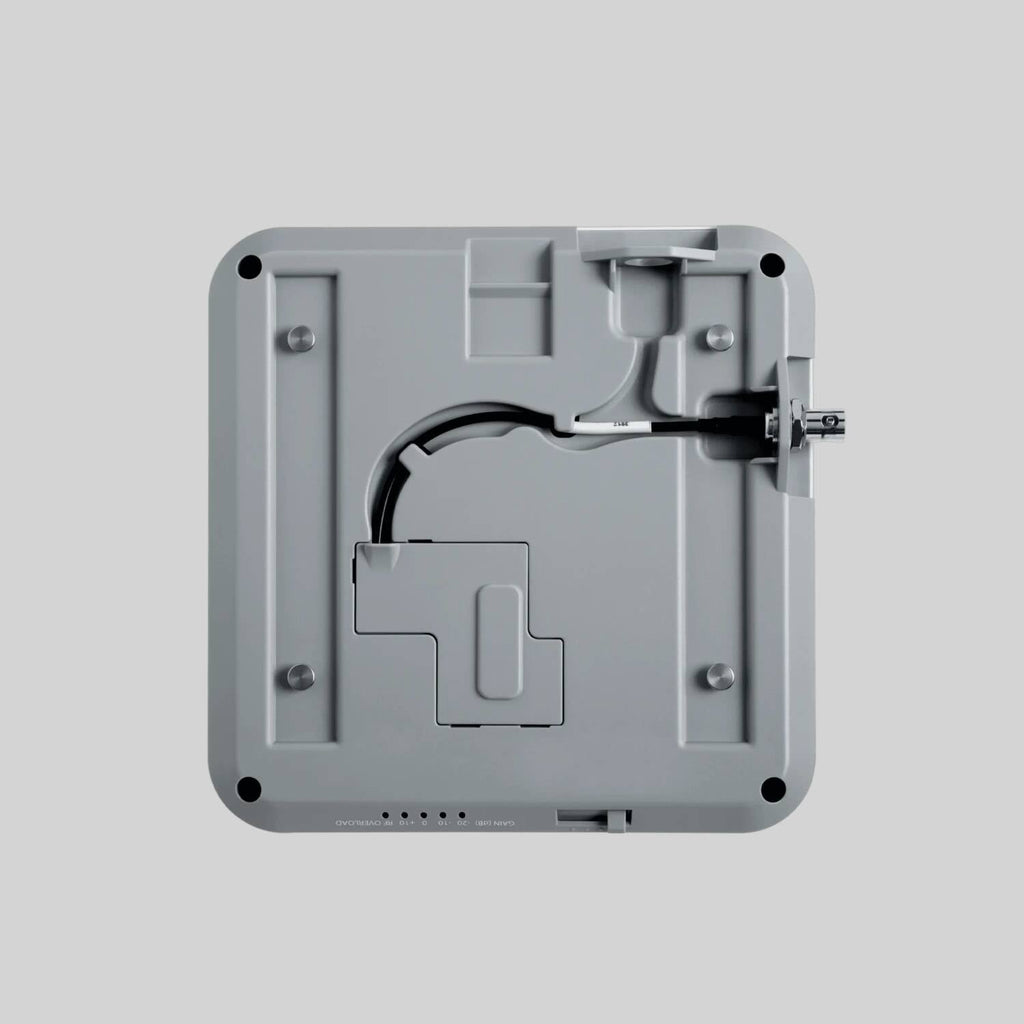

- Attached BNC cable for surface or through-wall cable routing options
- Low-profile design

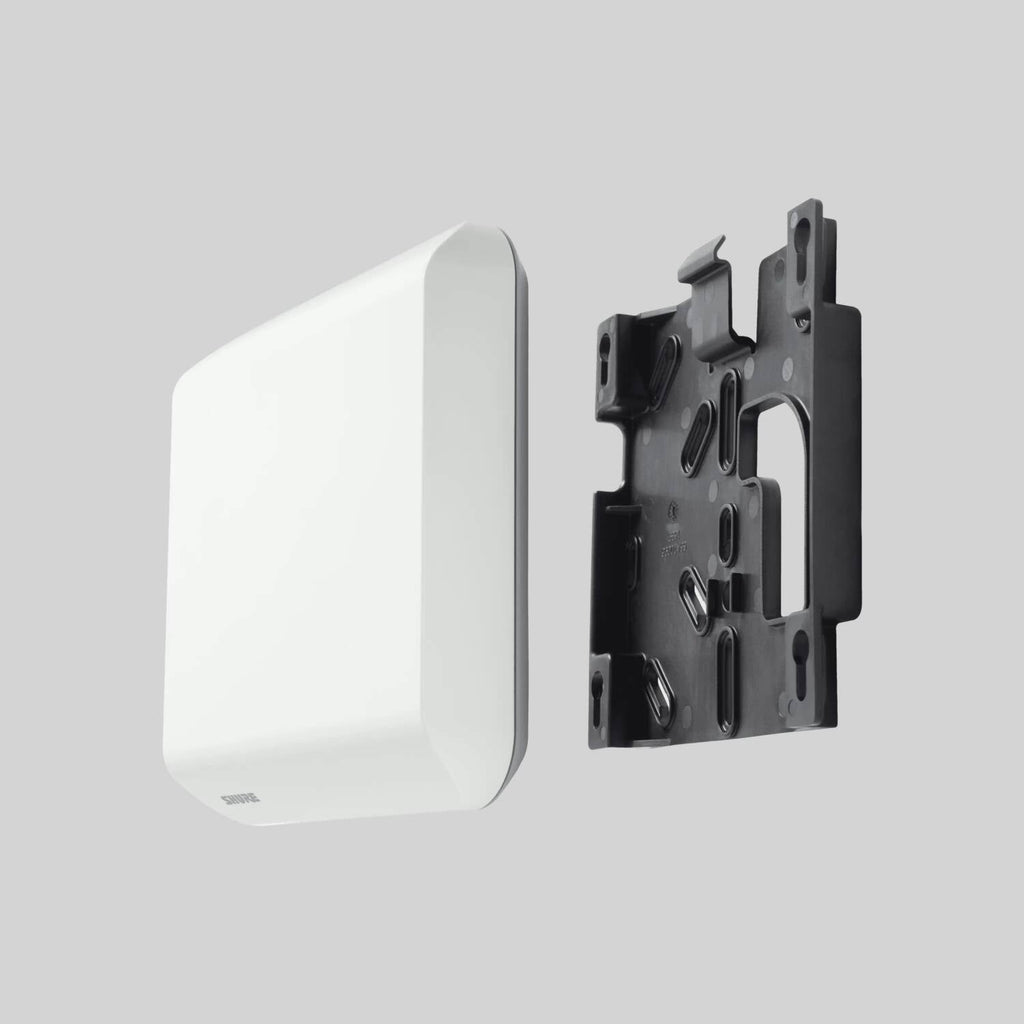

- Metal surface mounting capability

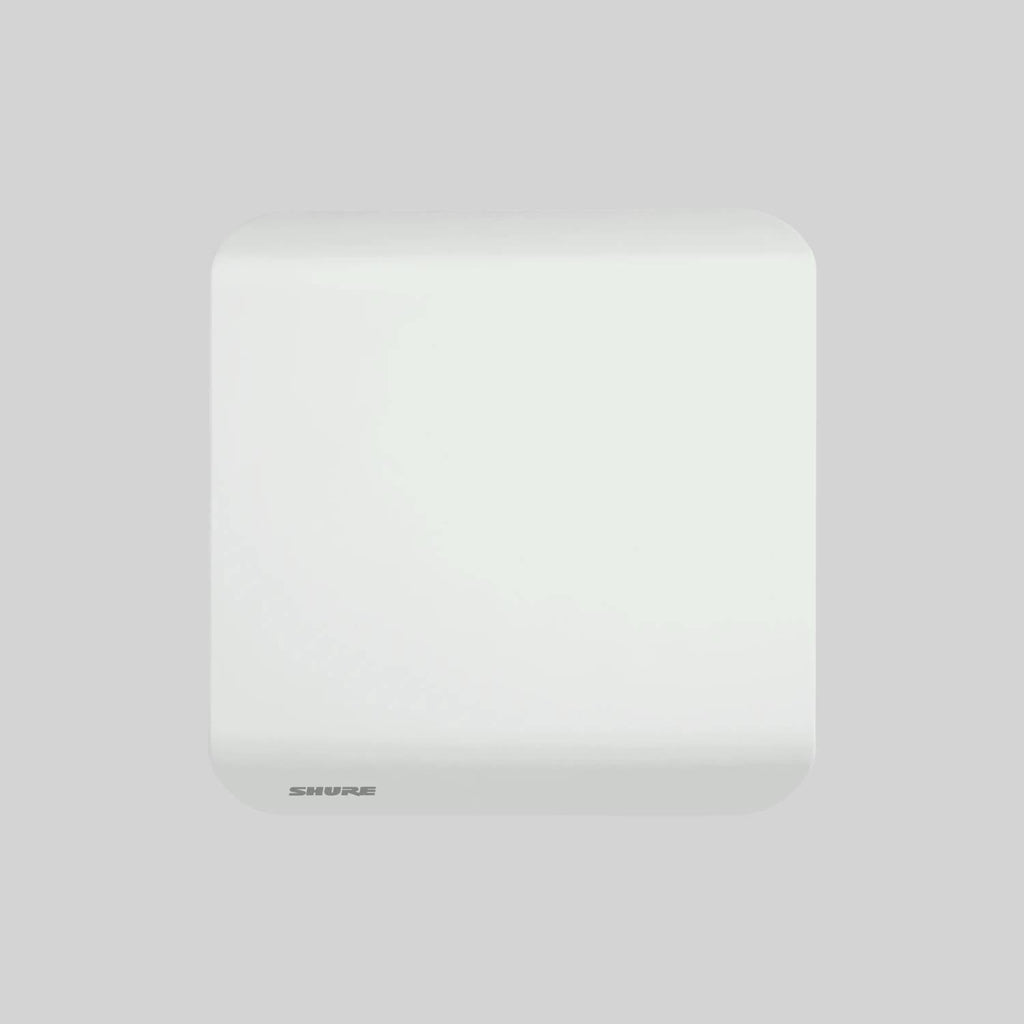

- Neutral white, paintable housing
Dimensions and Weight
- Width: 6.929 in (176.0 mm)
- Height: 6.929 in (176.0 mm)
- Depth: 2.008 in (51.0 mm)
- Weight: 1.074 lb (487 g)
