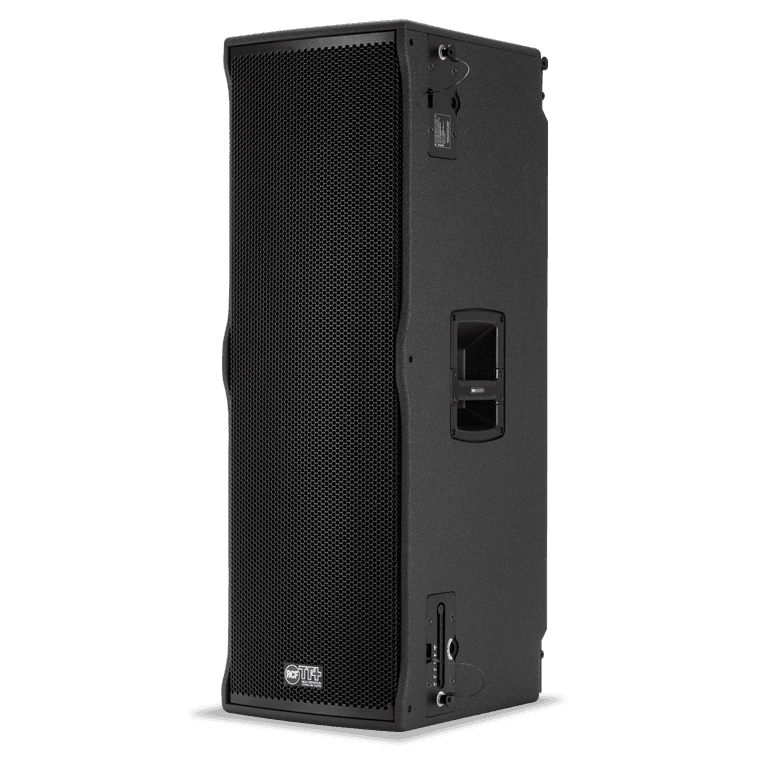

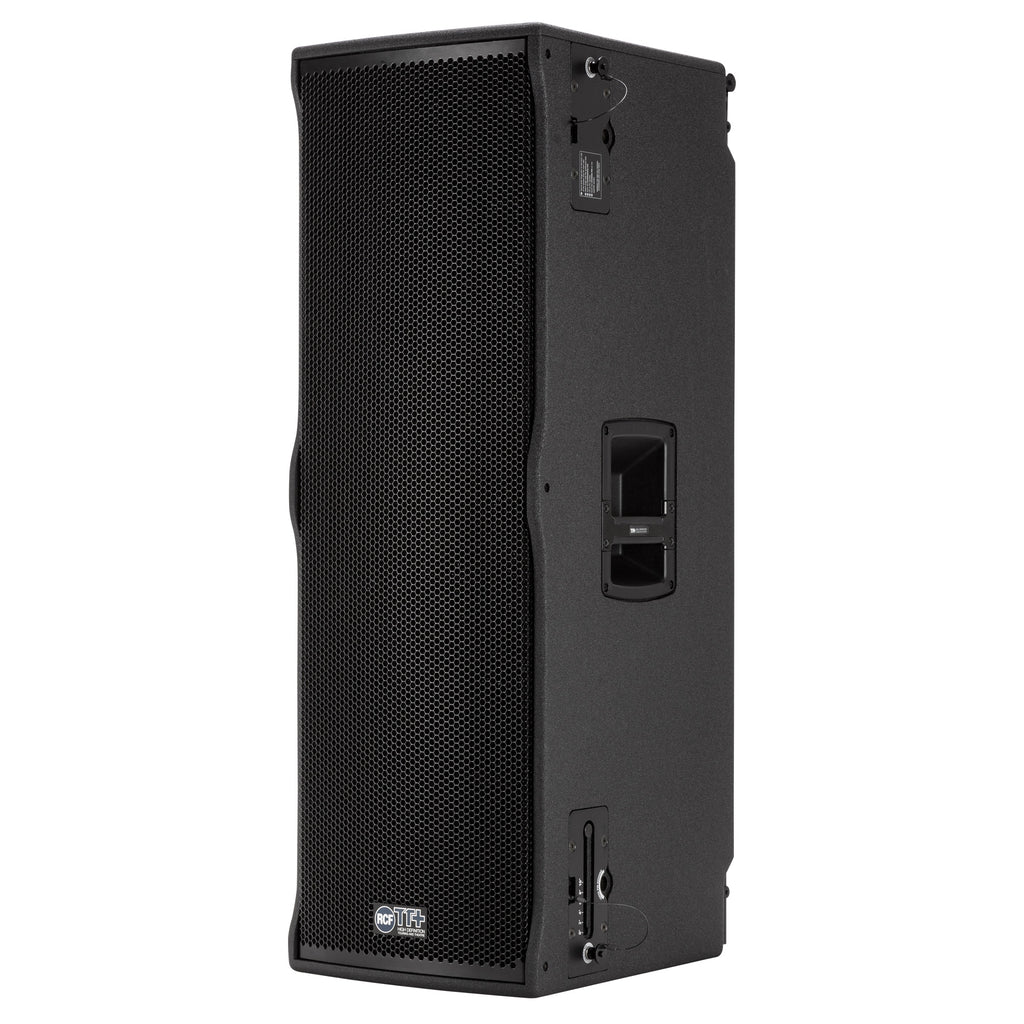

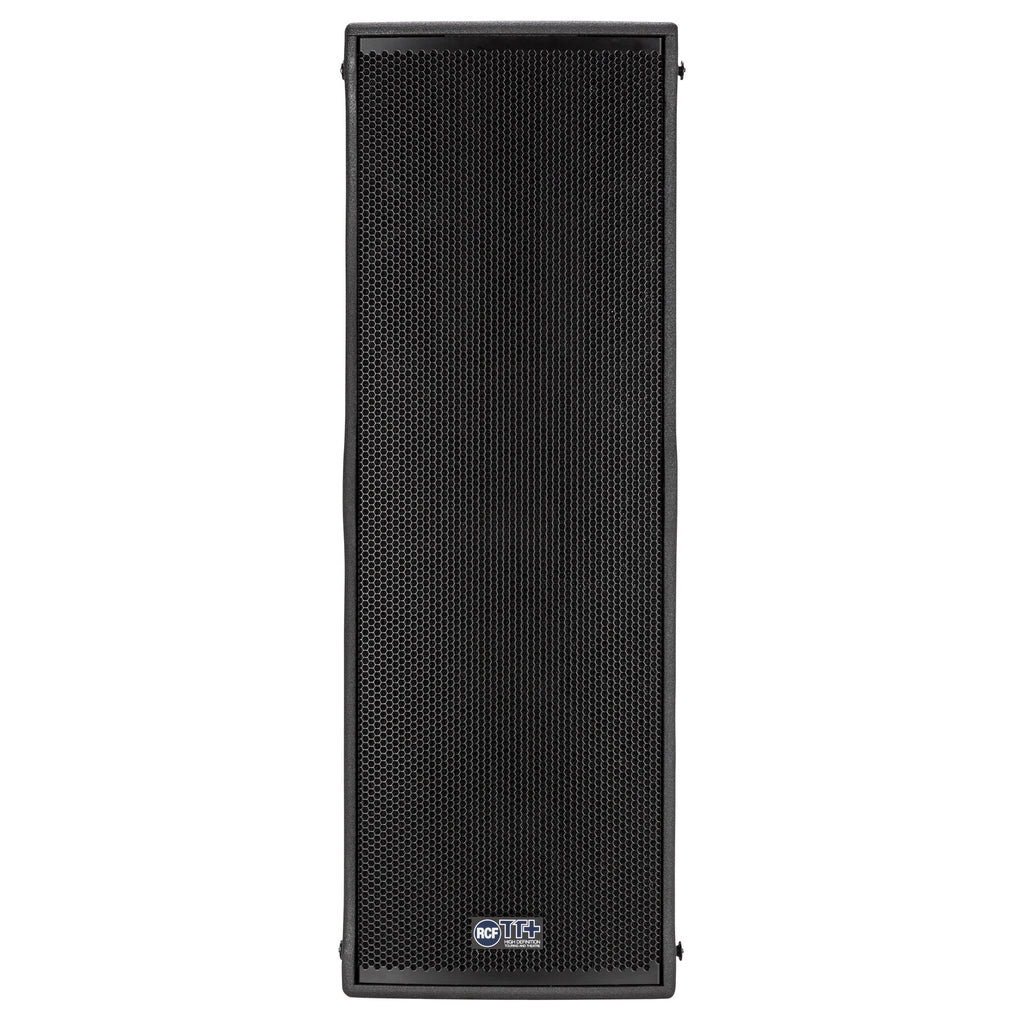

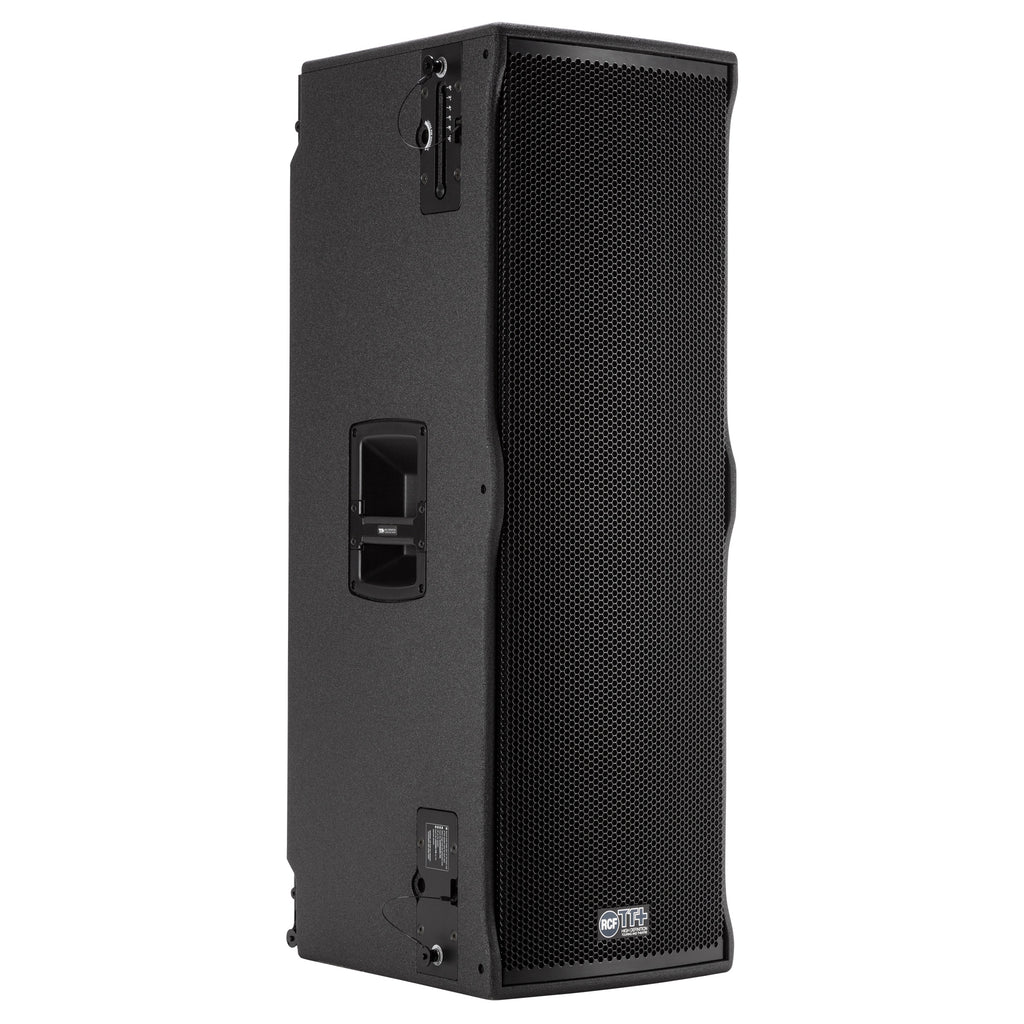

RCF TTL 6-A Active Three-Way Line Array Module

The TTL6-A is a high power, three way, active line source engineered to deliver high fidelity output for use indoors and outdoors, for medium to large spaces. TTL6-A provides all the advantages of line array technology, such as high direct sound, increased range and a uniform level distribution, with additional ease of use. It is the preferred sound set-up for stacked systems and when a wider dispersion is required. The 3-way TTL6-A line source is equipped with 2 x 12" low frequencies woofers, 4 x 6.5" midranges and a 3.0" voice coil compression driver with wave-guide for distinctive homogenous directivity. The integration of four channels of digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

Features

• RDNet remote control
• 4 x Class D amplifier, 2200 Watt total power
• Premium-quality DSP with optimized phase response
• 1.4" neo compression driver, 3.0" voice coil with a waveguide
• 4 x 6.0" neo midranges
• 2 x 12" neo woofers
• 139 dB max SPL
• Maximum output, perfect audio fidelity

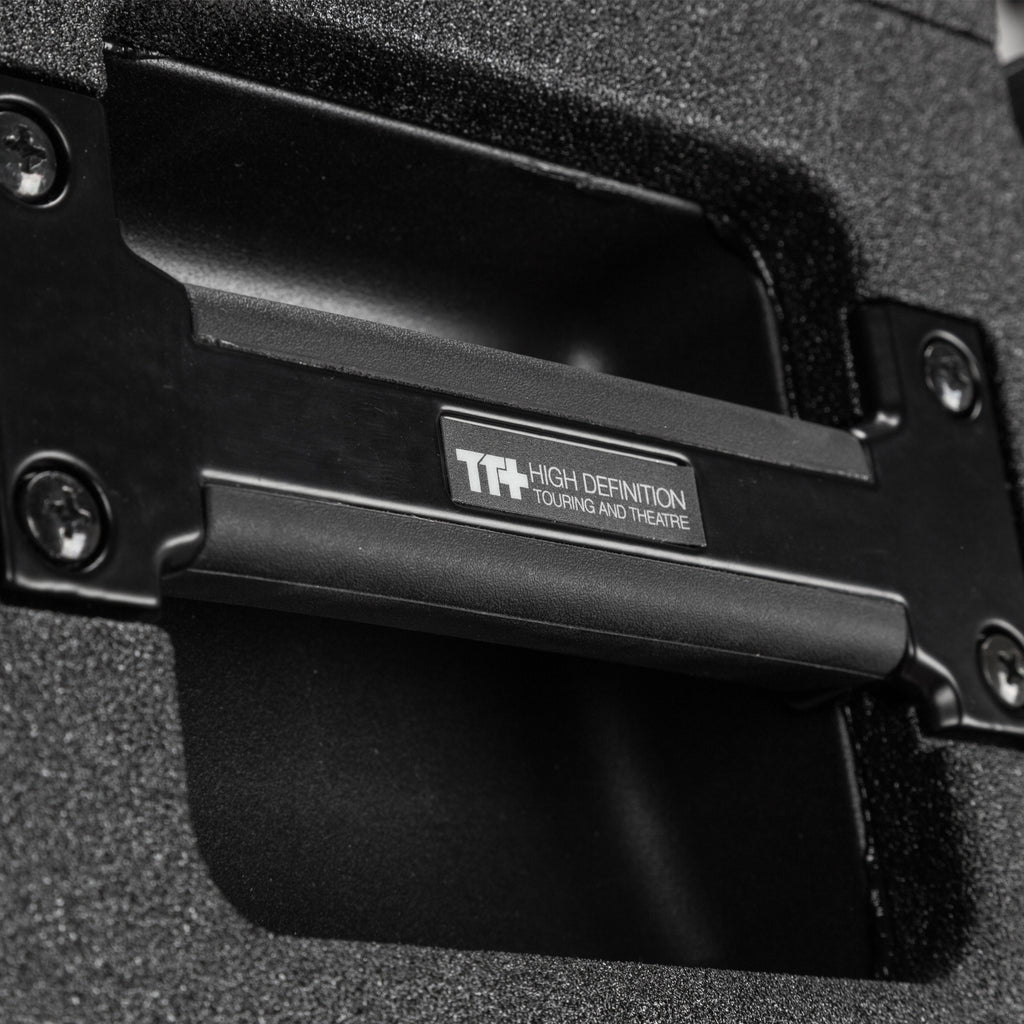

• Tour grade cabinet and mechanics
• 90°x 30°

NETWORKED CONTROL AND MUCH MORE

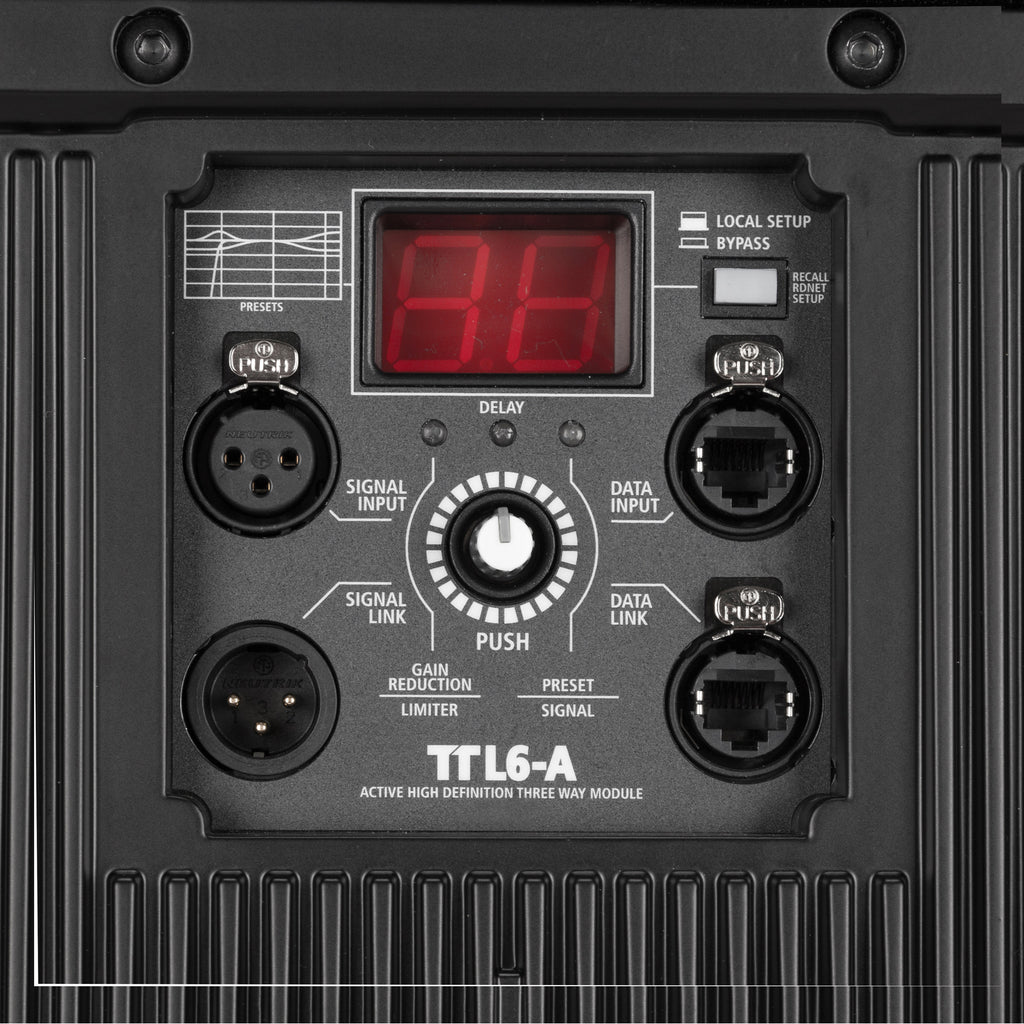

RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package. Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

Active advantage

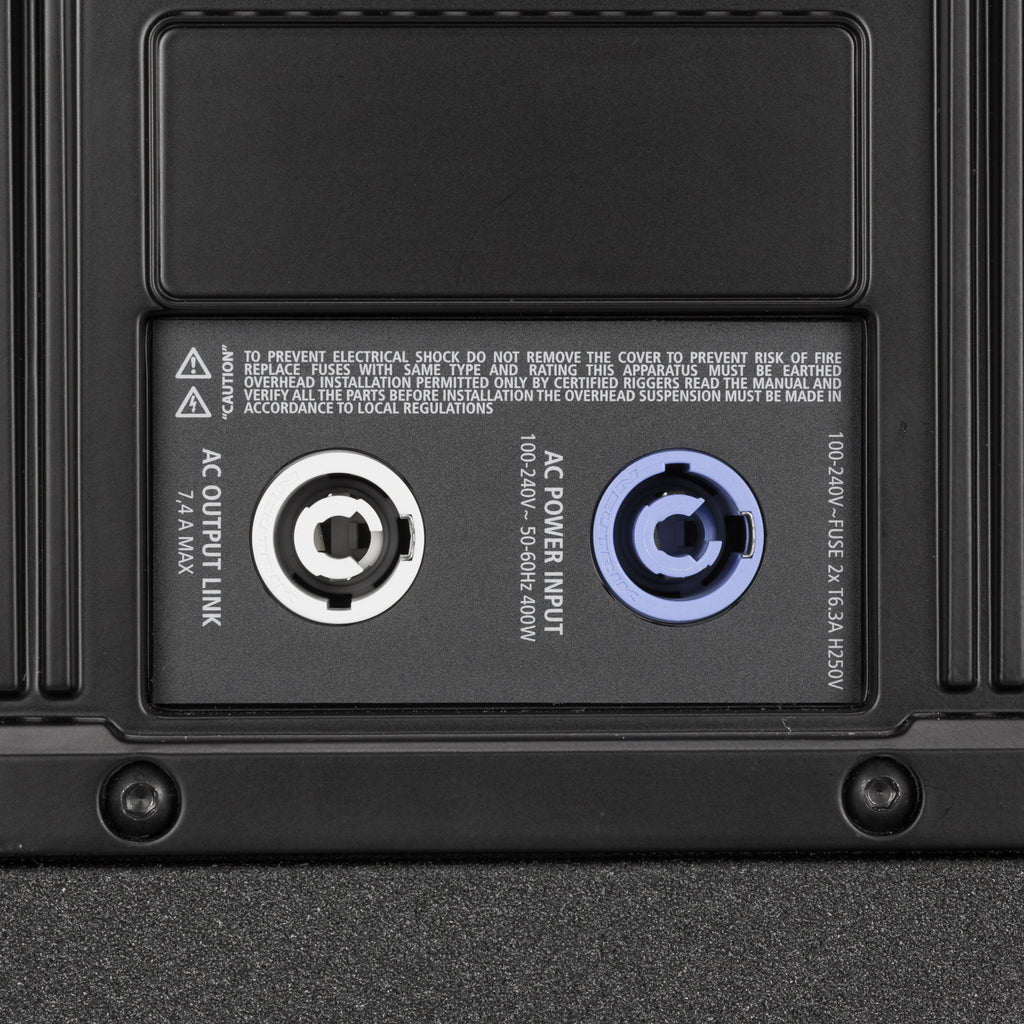

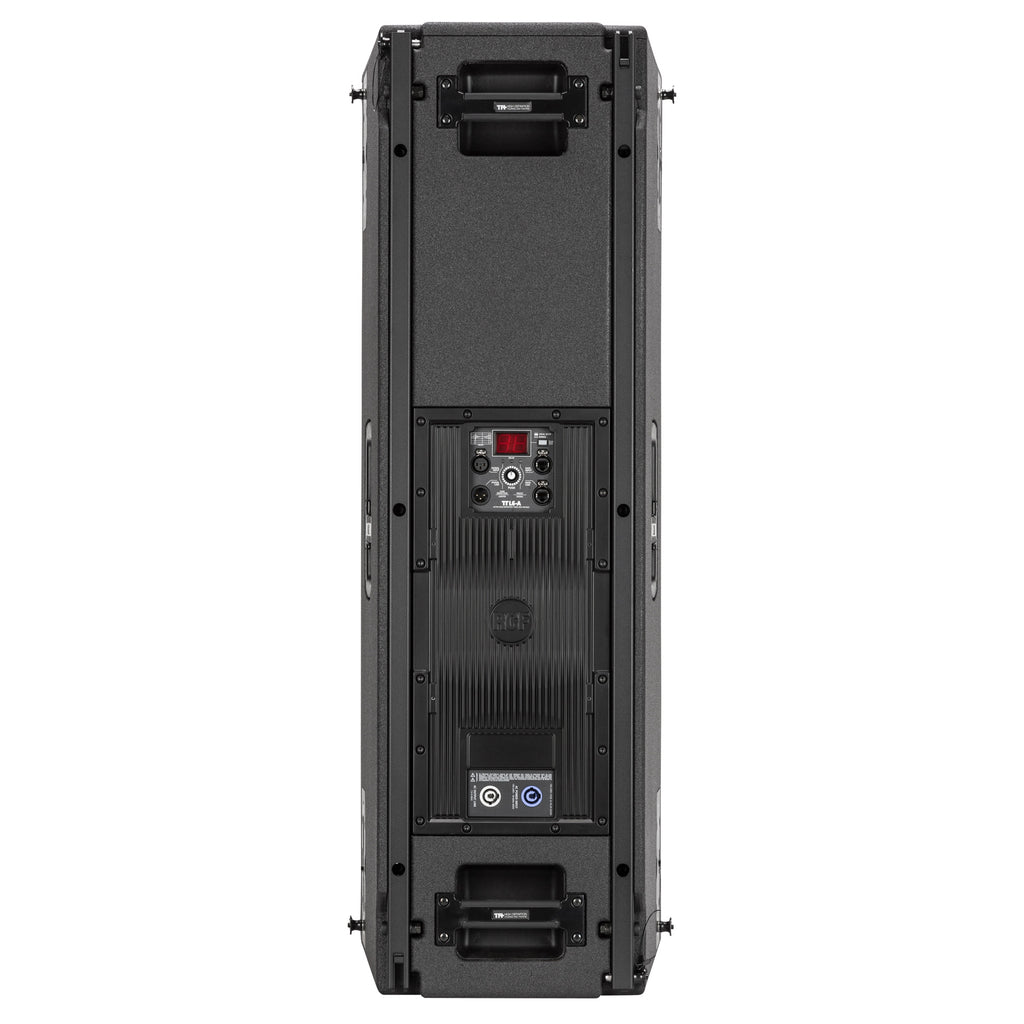

An active sound system means having the power amplifier on-board of the cabinet. This brings some advantages: Reduced setup time Daisy chain signal and power connection of the entire system or by groups No additional amplifier rack(s), saving space in the truck The sound quality and performance are optimized to the individual components inside the speaker The RDNet Networked Control can monitor each component of the system

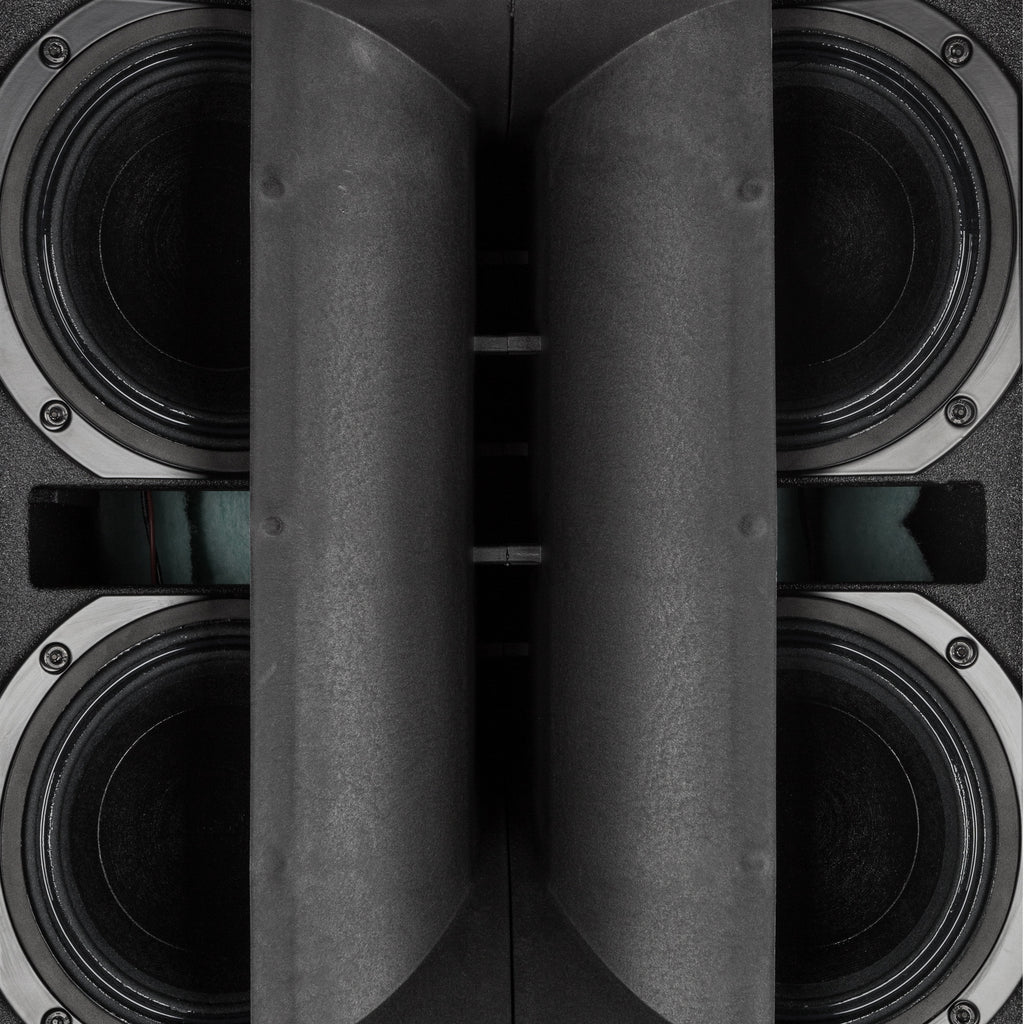

Unique horn's design

The vertically asymmetrical horn's design accurately projects the sound energy and avoids unwanted reflections. This design allows to configure two perfectly cascading TTL 6-A, for an excellent control of directional characteristics. Intelligibility is significantly increased in difficult acoustic environments.

RCF precision transducers

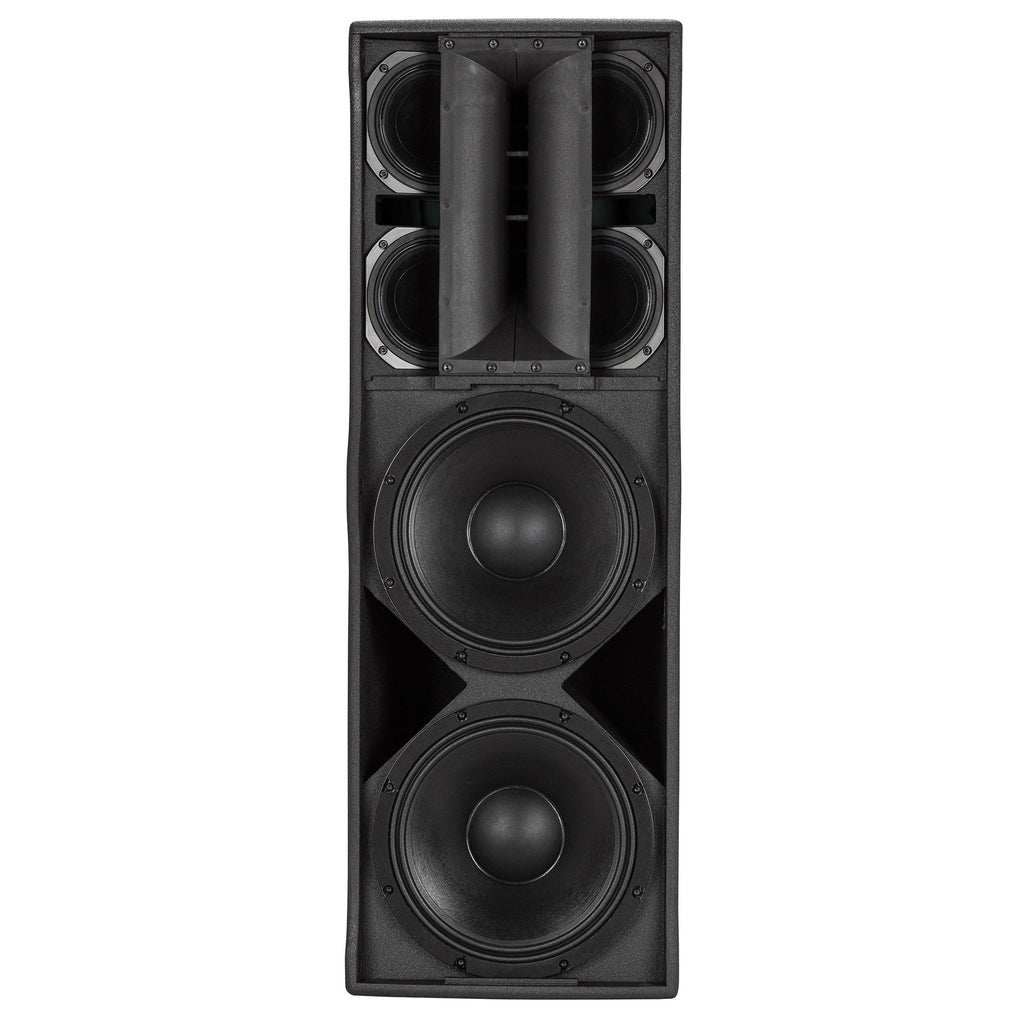

Low frequencies - 2 x 3.0" voice coil neodymium 12" woofers Mid frequencies - 4 x 2.0" voice coil 6.0" neodymium midranges High frequencies - The ND840 large-format neodymium compression driver with 1.4'' exit throat delivers one of the key advantages of the TTL 6-A: the 3.0" voice coil allows a crossover point of 800Hz and therefore this driver can produce almost all of the vocal range. This allows better coverage and superior efficiency.

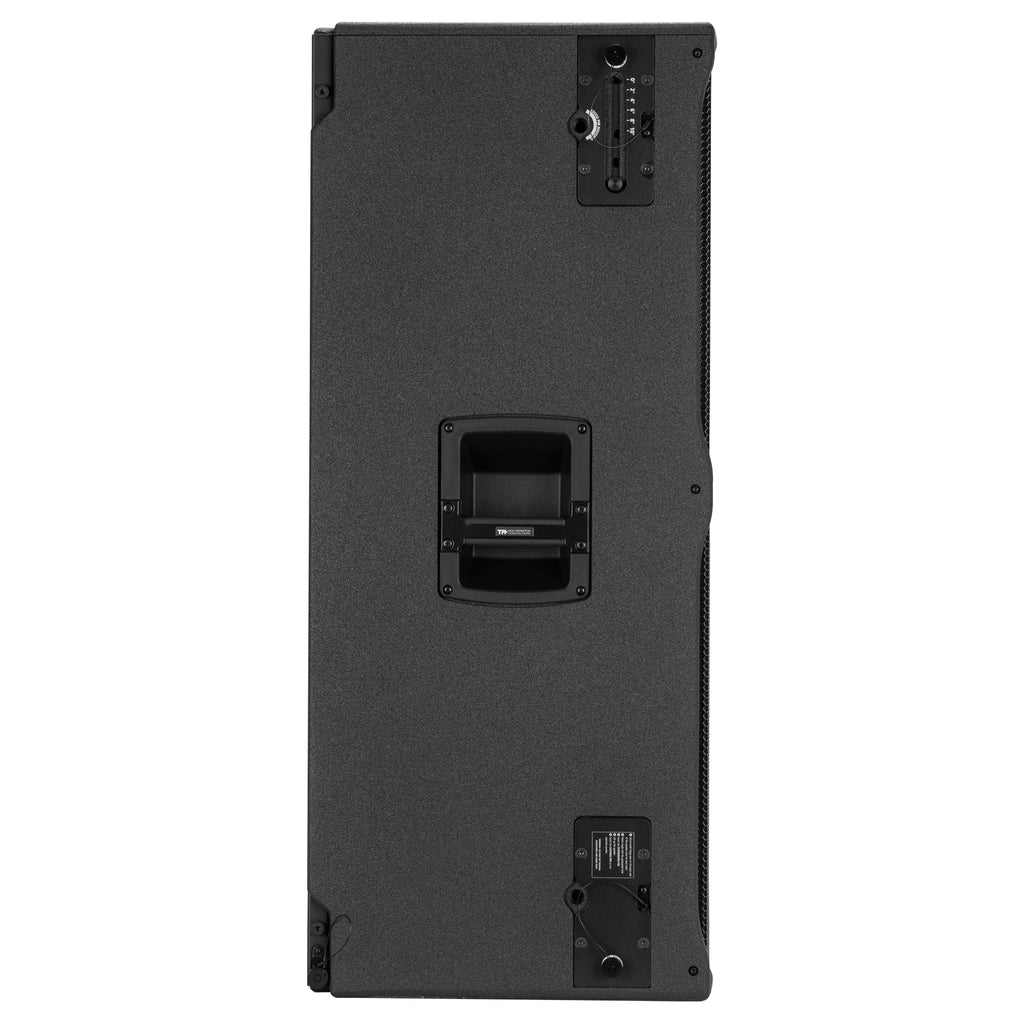

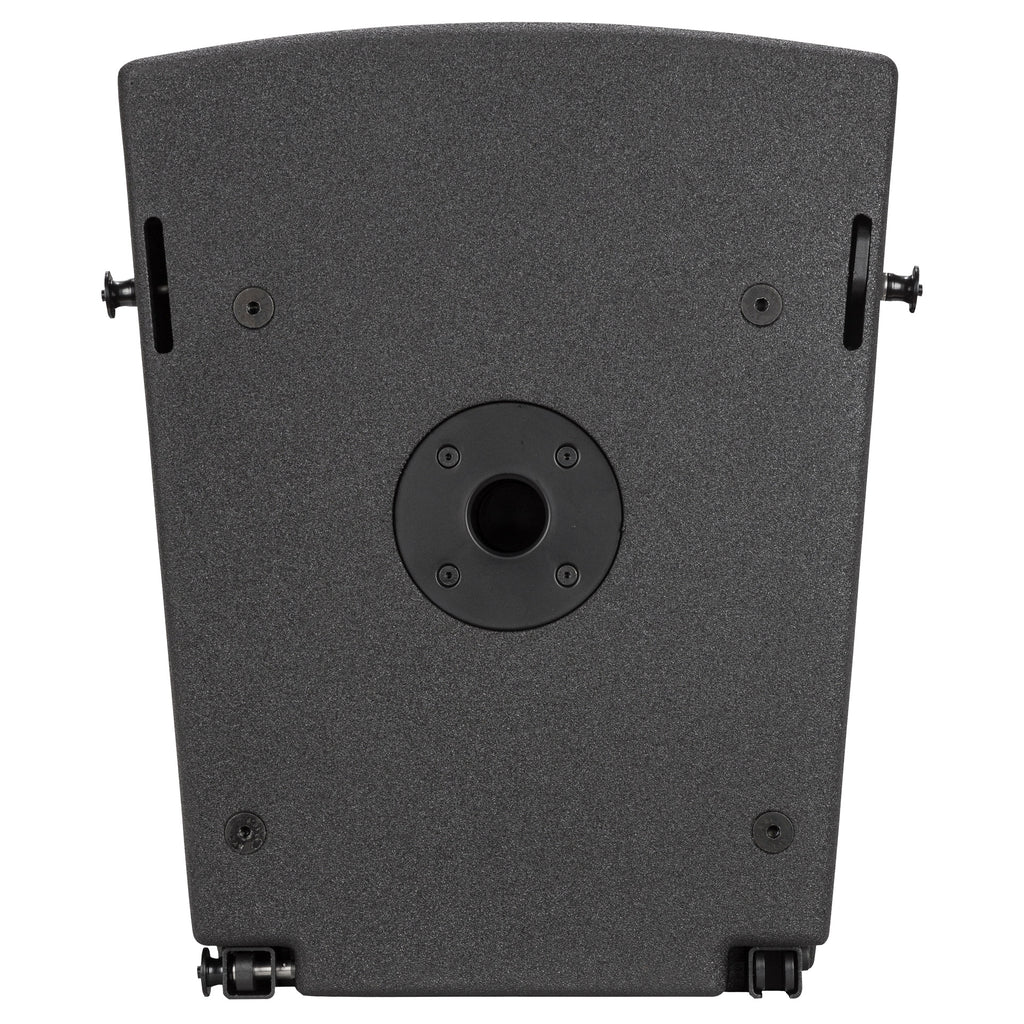

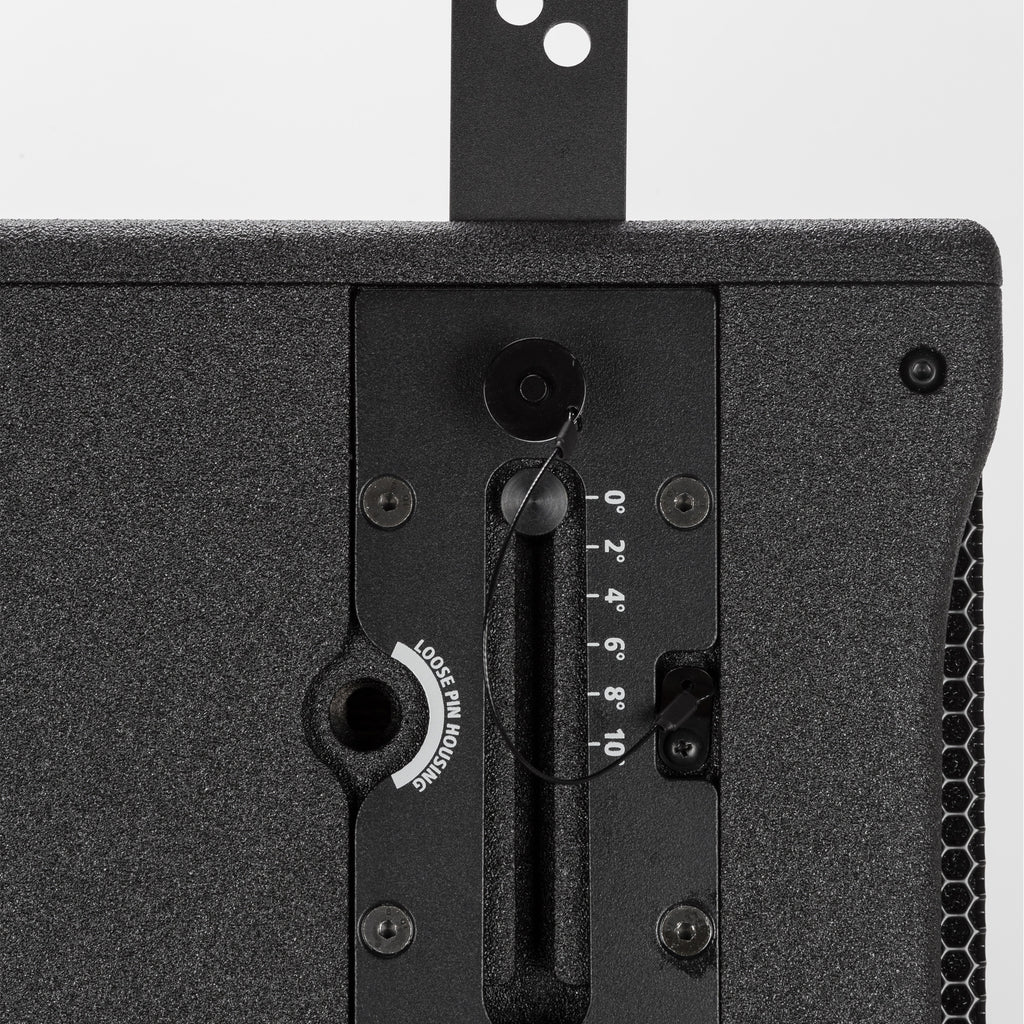

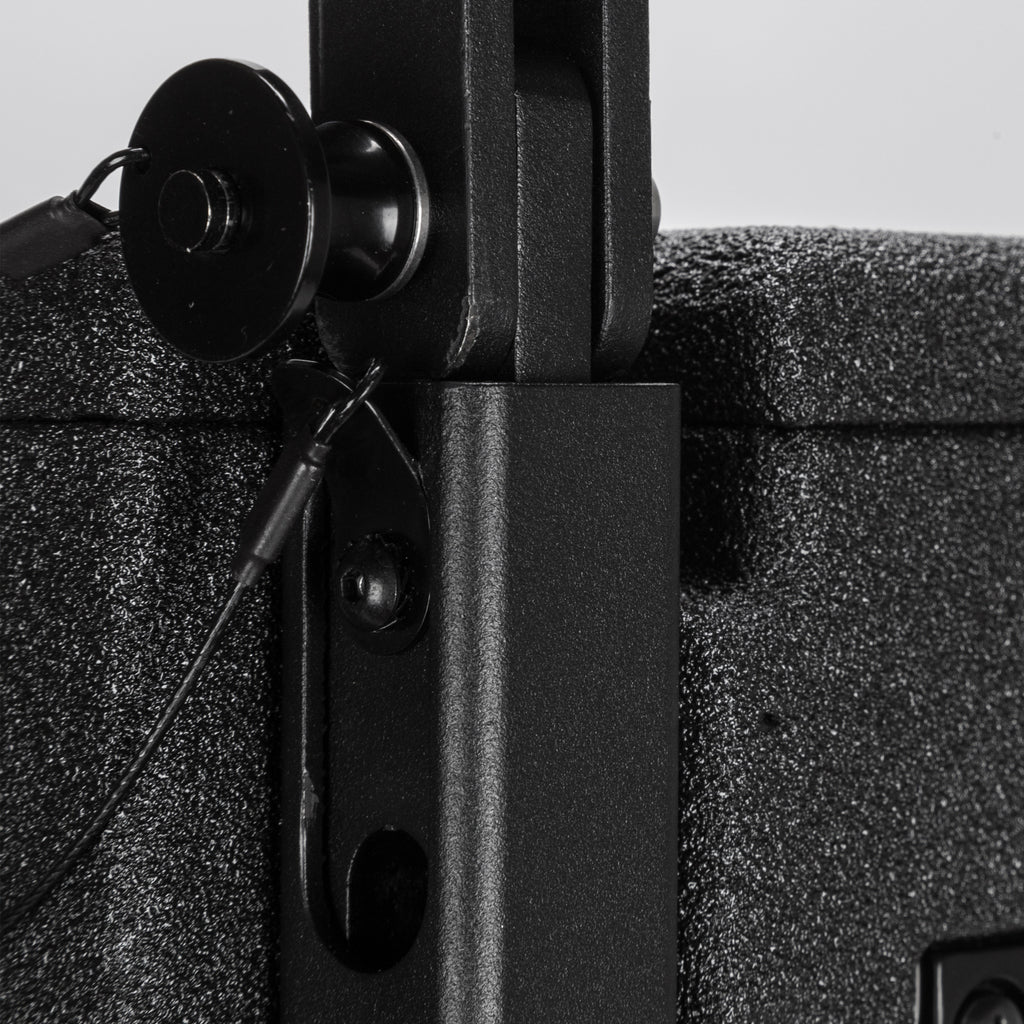

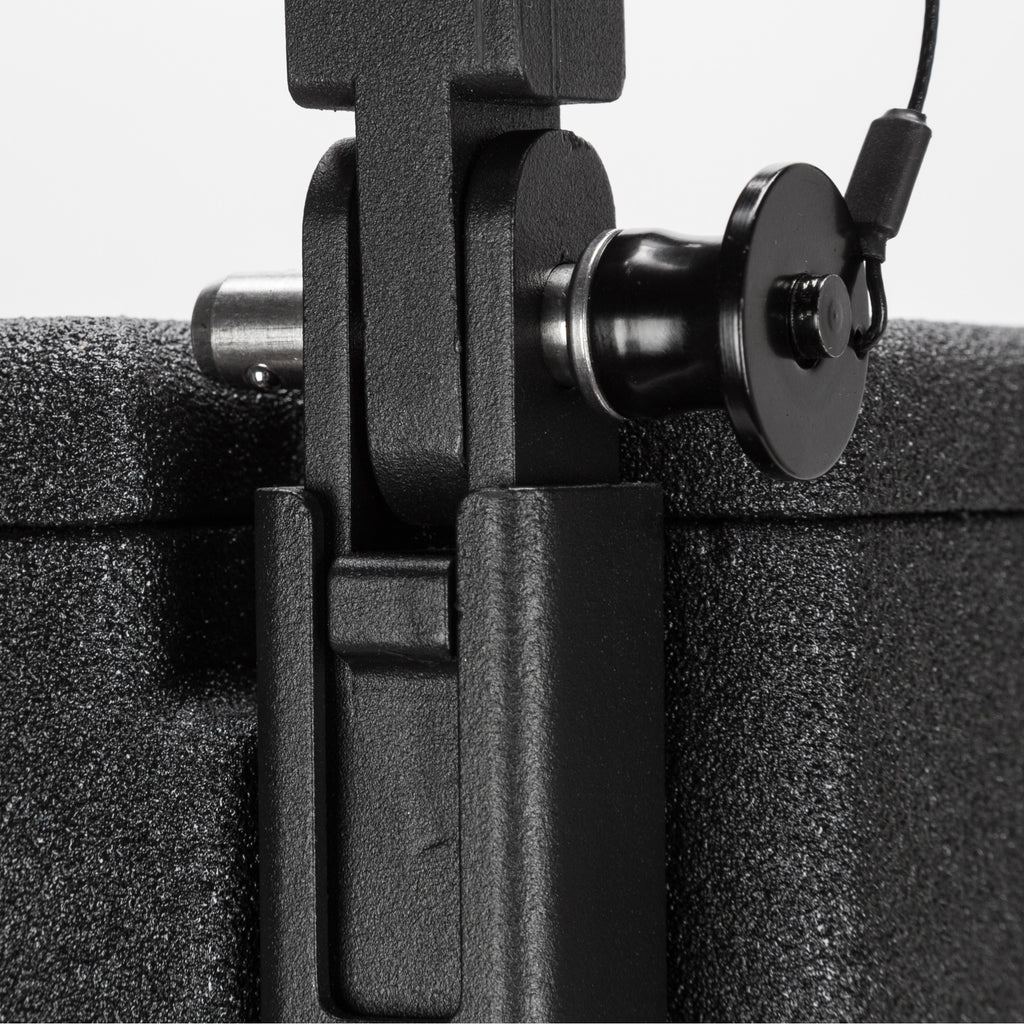

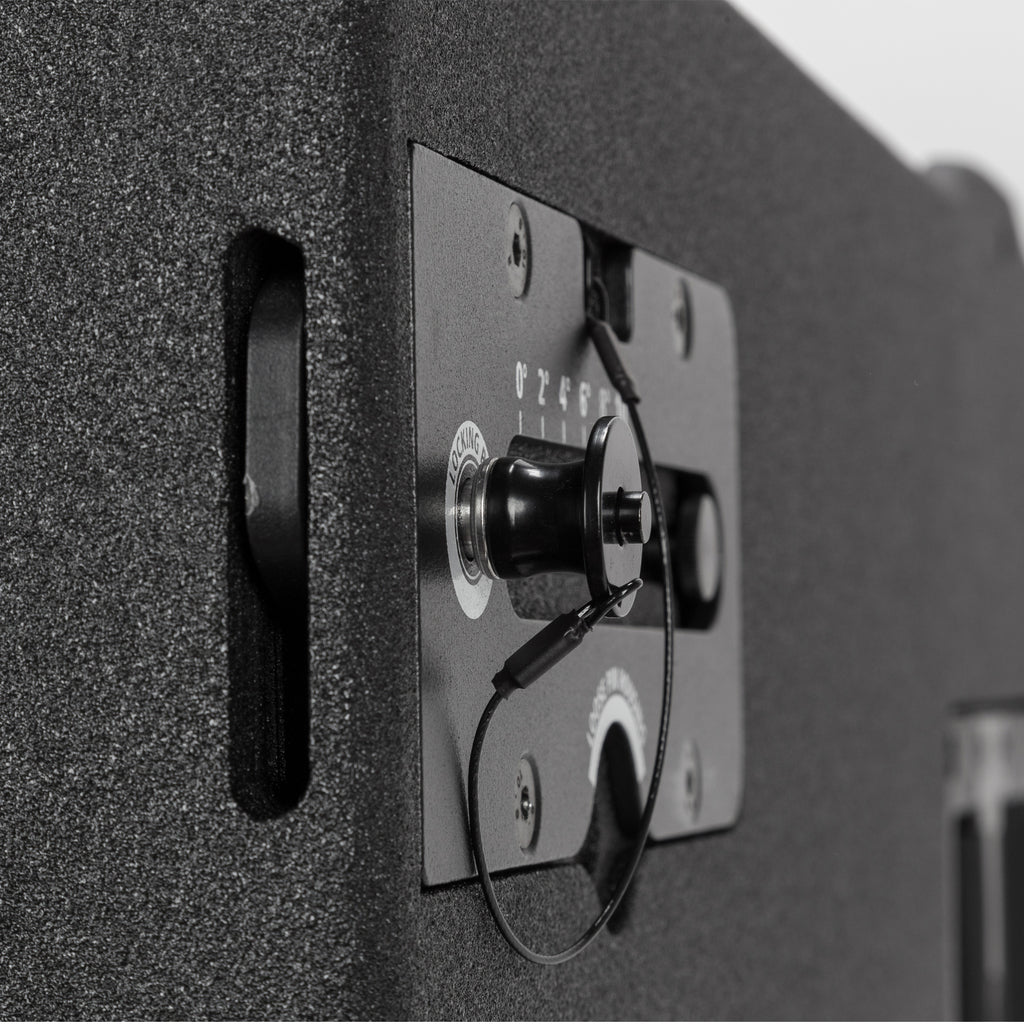

Easy to handle, fly and install

The TTL 6-A is a versatile line array module allowing multiple installation options. Use it as a single speaker, as a large PA system or in combination with a subwoofer - the choice depends on the applications.

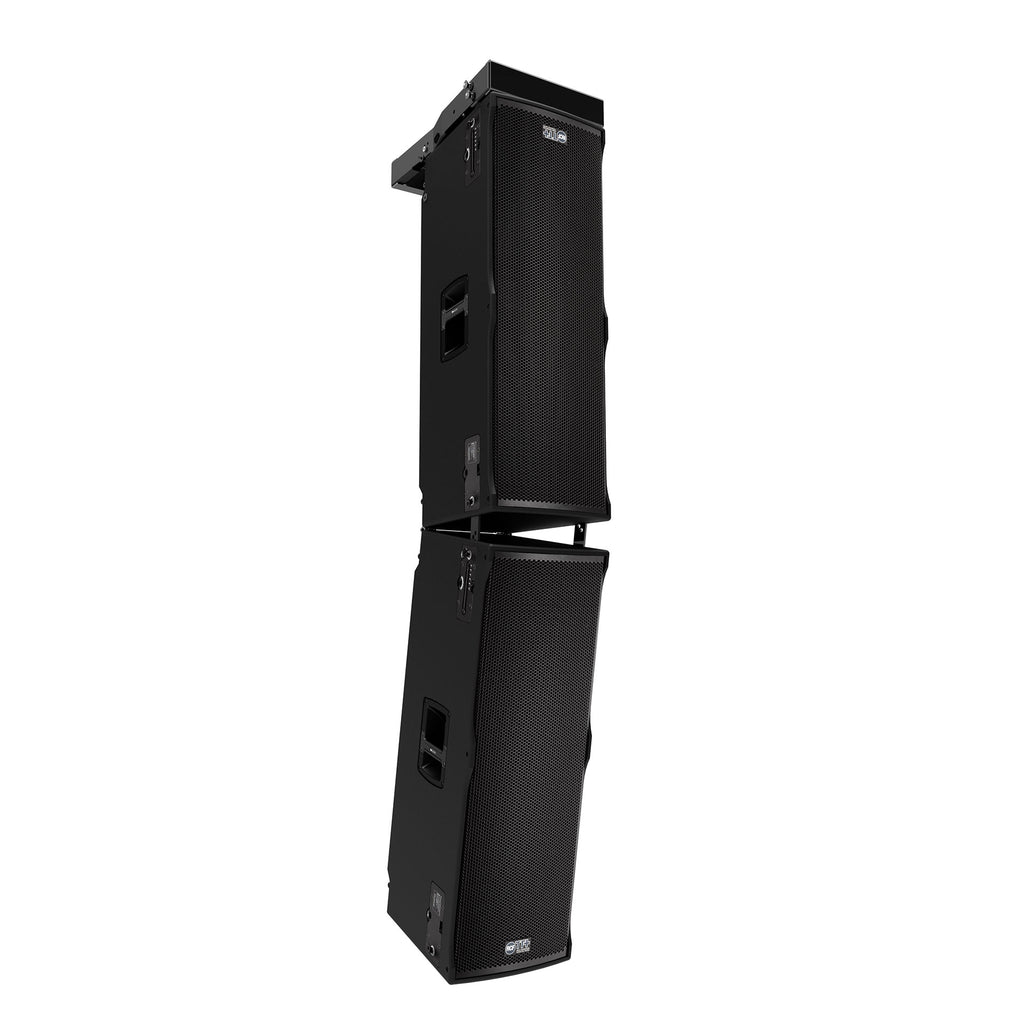

2 X SUSPENDED STRAIGHT - Very High SPL, Expanded vertical coverage 2 X SUSPENDED CURVED - Very Long Throw, Focused vertical coverage 1 X SUSPENDED - High SPL 30°, Constant Coverage 1 TTL 6-A + 1 SUBWOOFER TTS 36- Portable Sound - Live Sound - DJs - Live Clubs 2 X TTL6-A STRAIGHT + 2 X BASS MODULE TTL6-AS- Large Live Sound Event 2 X TTL6-A CURVED + 2 X BASS MODULE TTL6-AS - Large Live Sound Event

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Specifications
