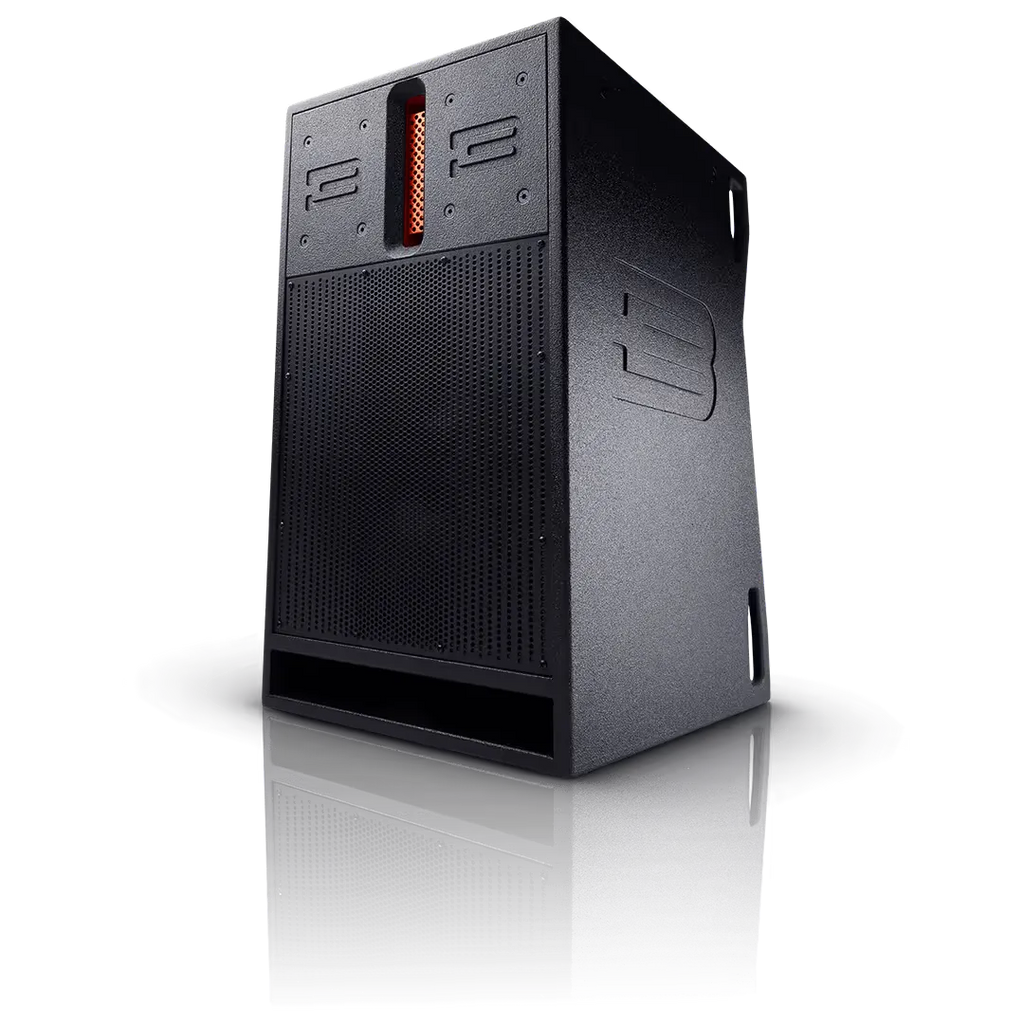

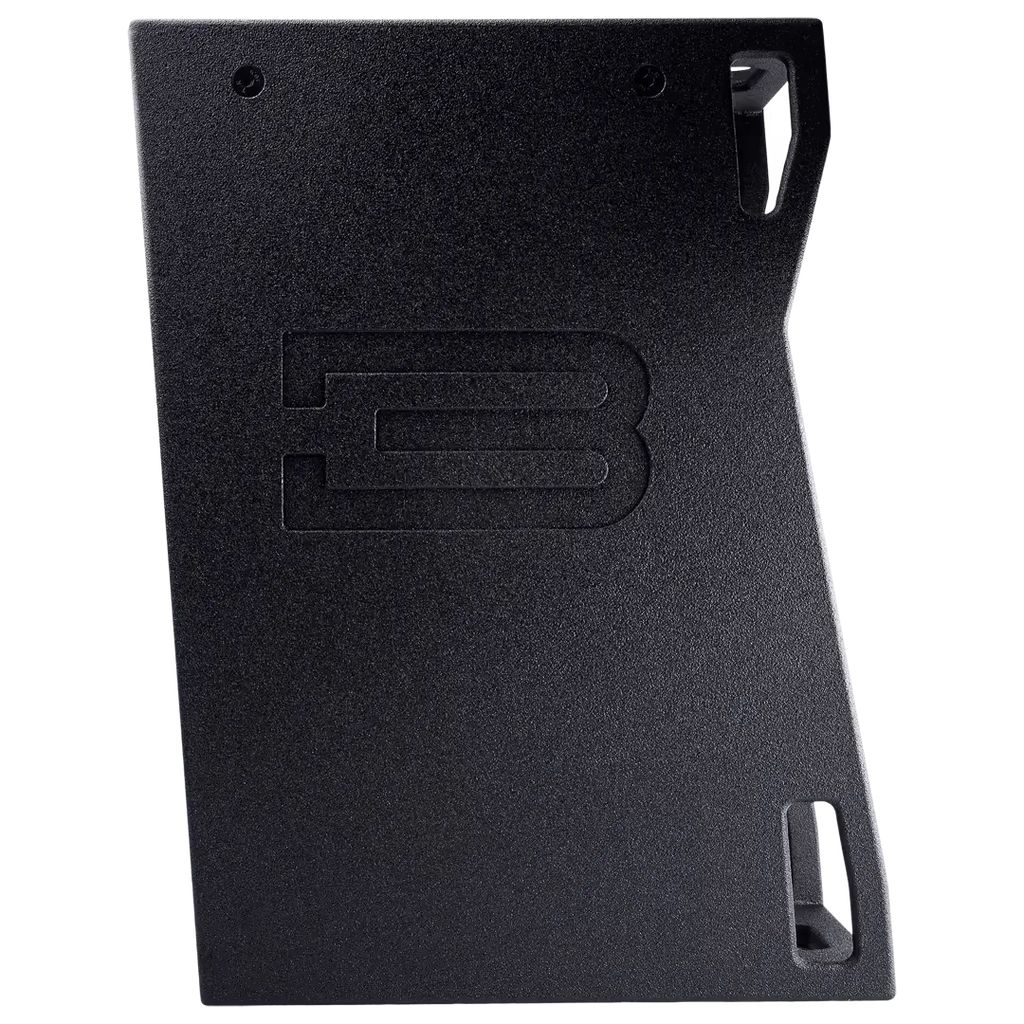

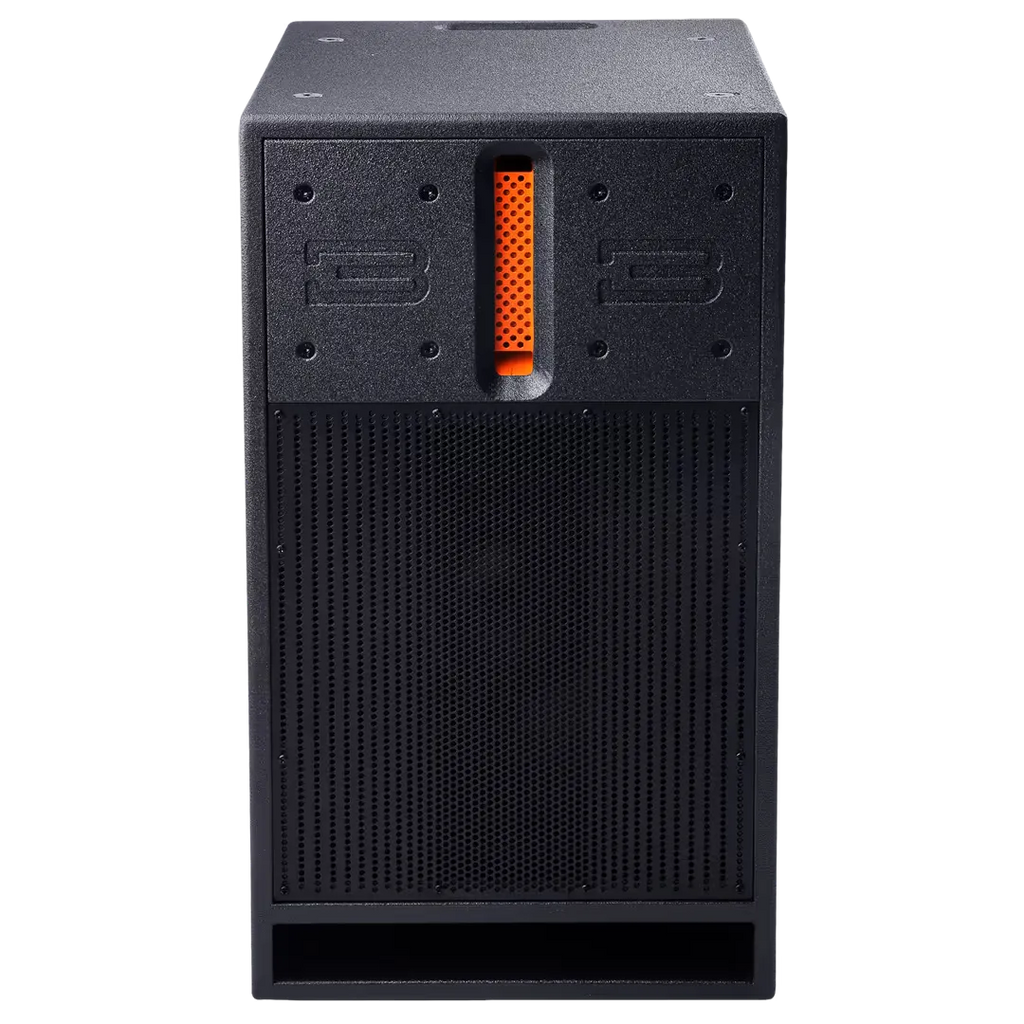

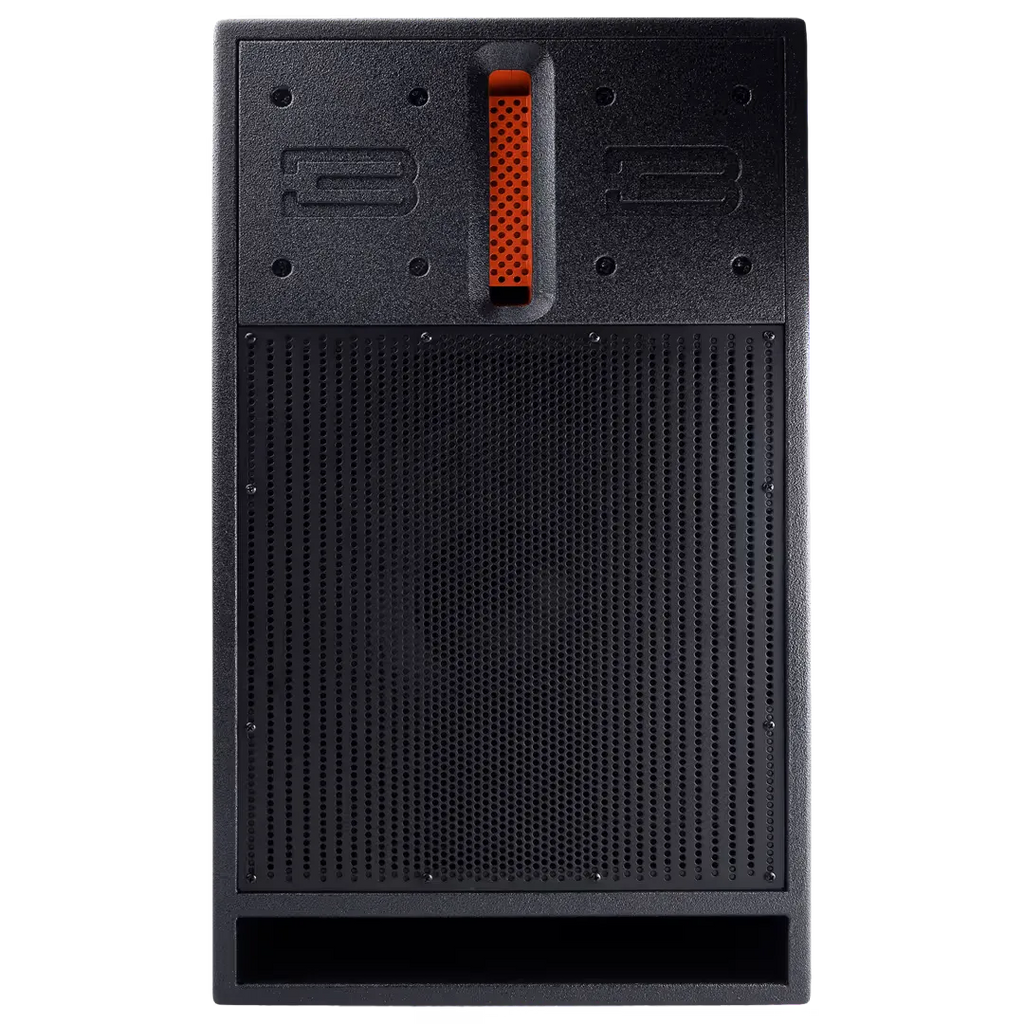

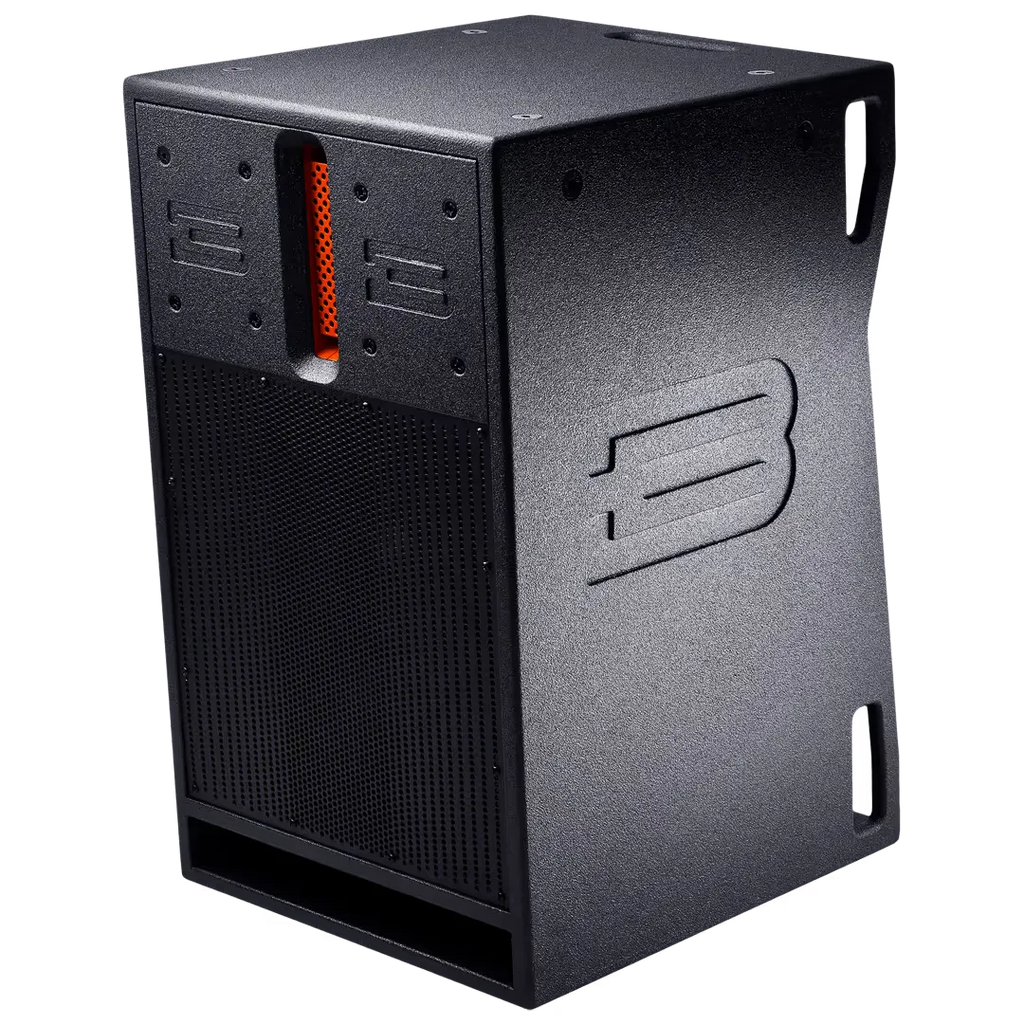

BassBoss DV12-MK3 — Single 12" Powered Loudspeaker

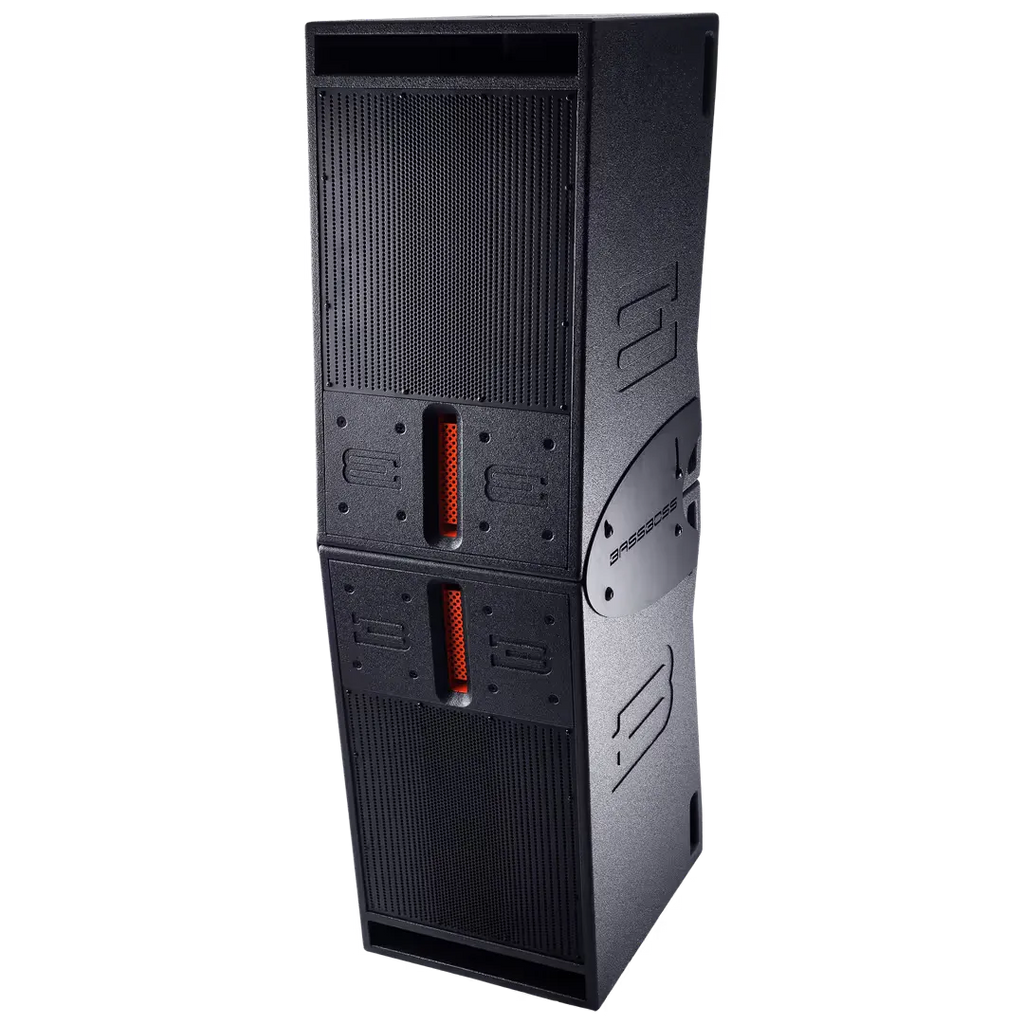

The ultimate portable powerhouse on a pole. Wide 120° horizontal, tight 20° vertical coverage. Built-in 4° downward angle. Same amplifier, DSP, and tweeter as the flagship MFLA line array. Works best at 5.5–8 feet high. Can be vertically arrayed for line-array performance.
Key Features
- 3200W Class D bi-amplified (2400W LF / 800W HF)
- Frequency Response: 45Hz – 19kHz (±3dB)
- Max Sustained Output: 128 dB SPL | Peak: 134 dB SPL
- 120°x20° dispersion | Built-in 4° down-angle
- Same amp, tweeter & DSP as MFLA flagship line array
- 96kHz DSP with 8 onboard presets | Up to 100 via ControlBASS

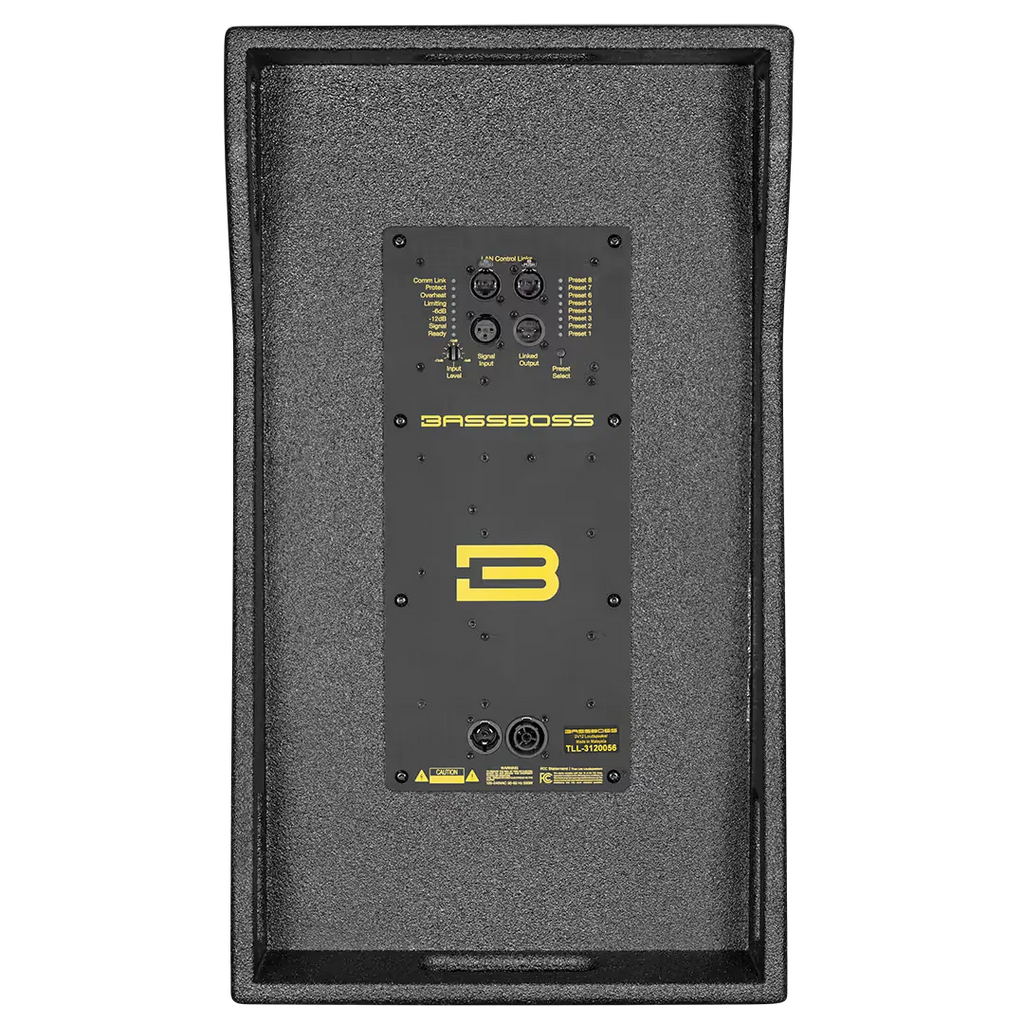

- IP65-rated Neutrik powerCON True1 TOP connectors
- Universal voltage: 100–240V AC auto-sensing
- 8 M10 fly points | 35mm steel pole socket
Specifications
| Amplification |
3200W Class D, 2-channel (2400W LF / 800W HF) |
| LF Driver |
12" neodymium, 4" voice coil |
| HF Driver |
3" diaphragm compression driver, 1.4" throat isophasic waveguide |
| Frequency Response |
45Hz – 19kHz (±3dB) |
| Max Sustained SPL |
128 dB @ 1m half-space |
| Dispersion (HxV) |
120° x 20° |
| Enclosure |
Vented, 15mm birch plywood, dado joinery |
| Dimensions (HxWxD) |
24.63" x 14.5" x 19.1" (62.6 x 36 x 48.5 cm) |
| Net Weight |
63 lbs (28 kg) |
| Shipping Weight |
74 lbs (33 kg) |
| Voltage |
100–240V AC, 50–60Hz |
| Part Number |
BB-DV12-MK3 |
