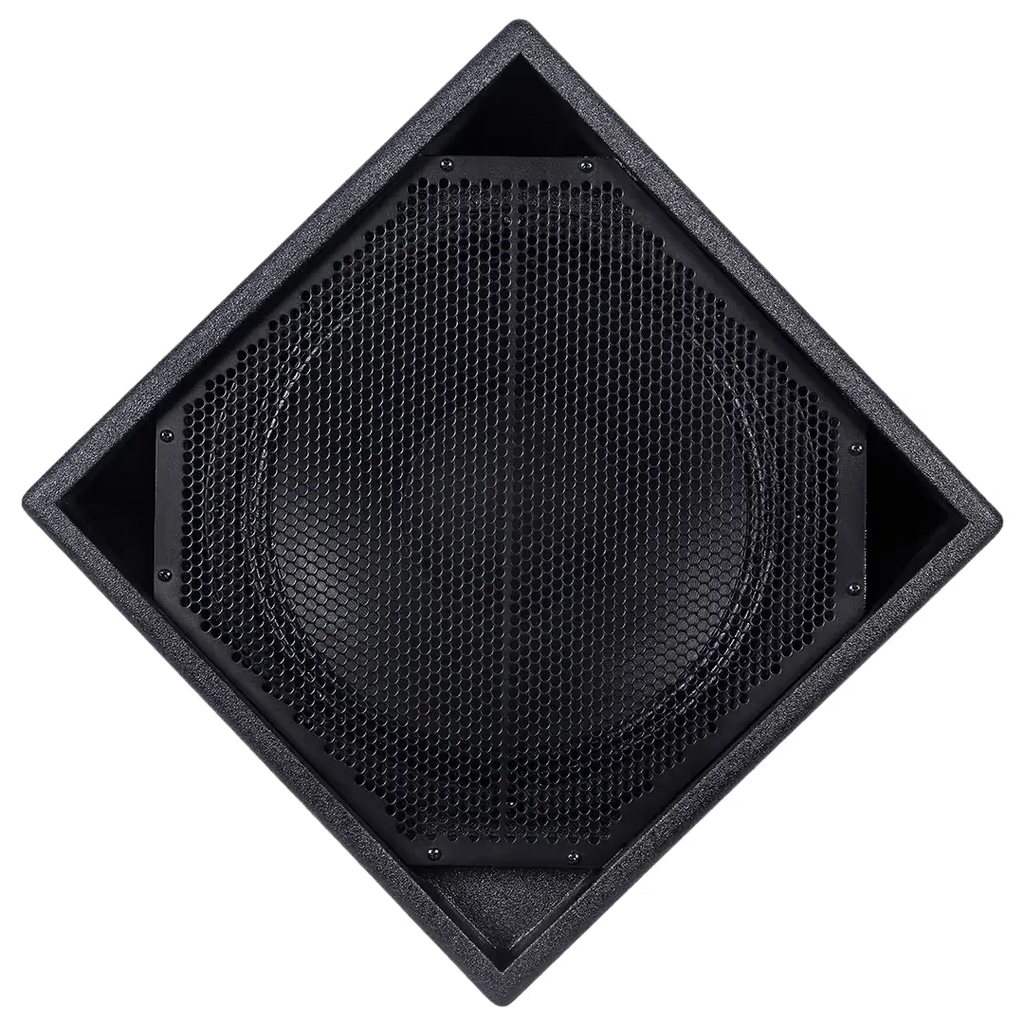

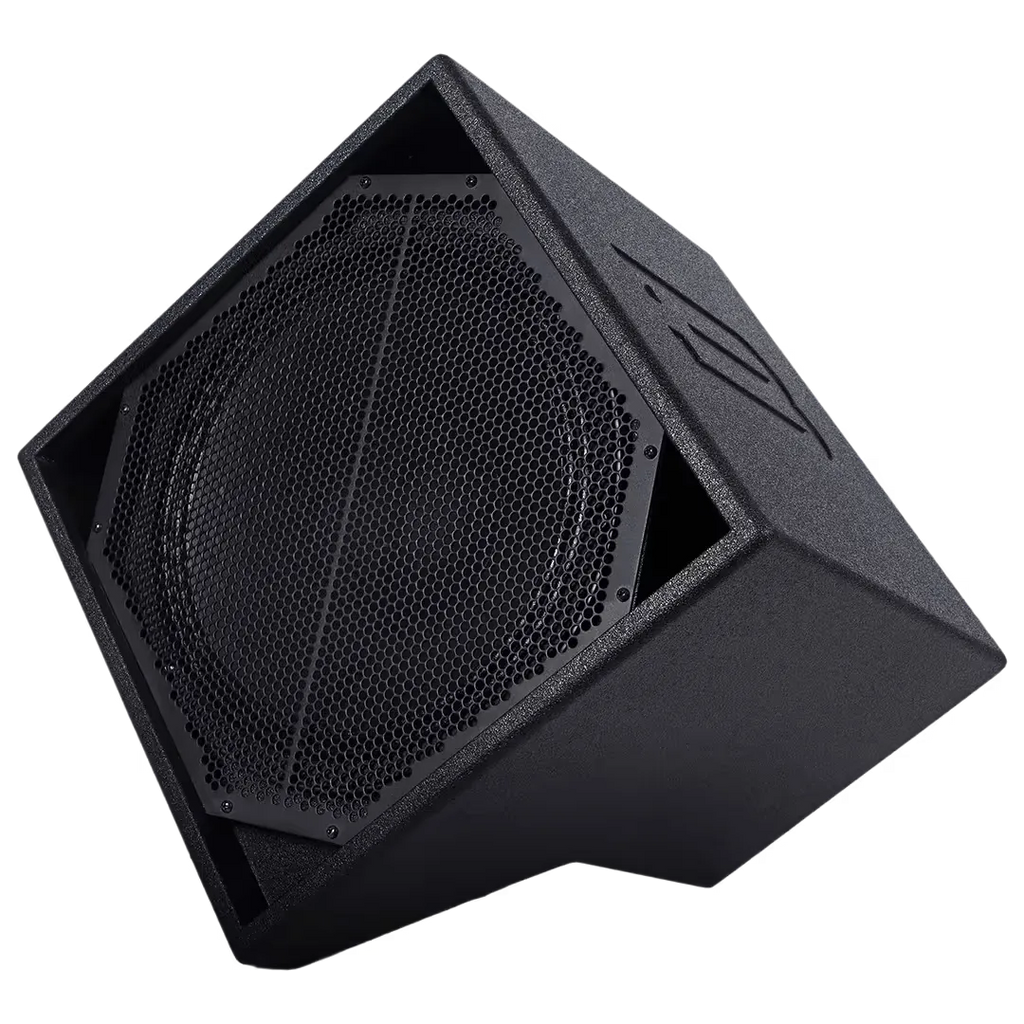

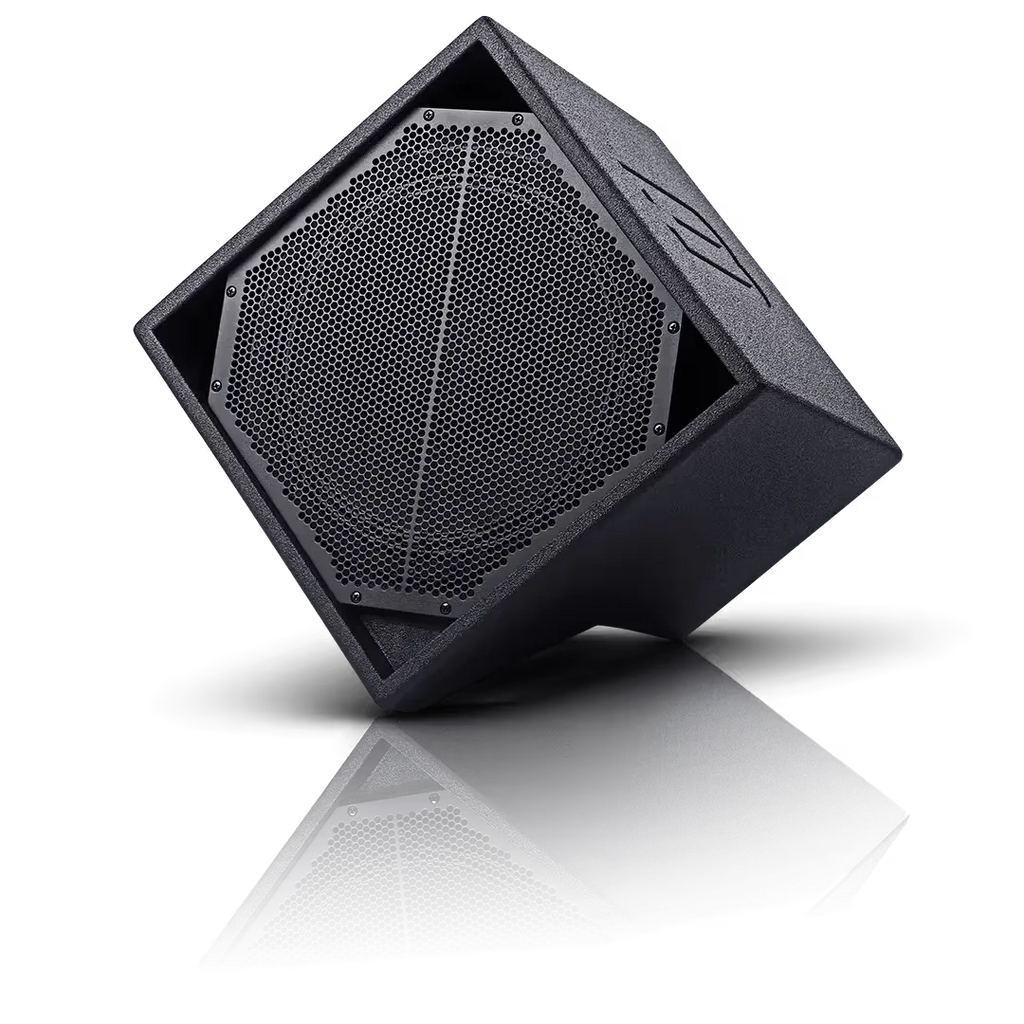

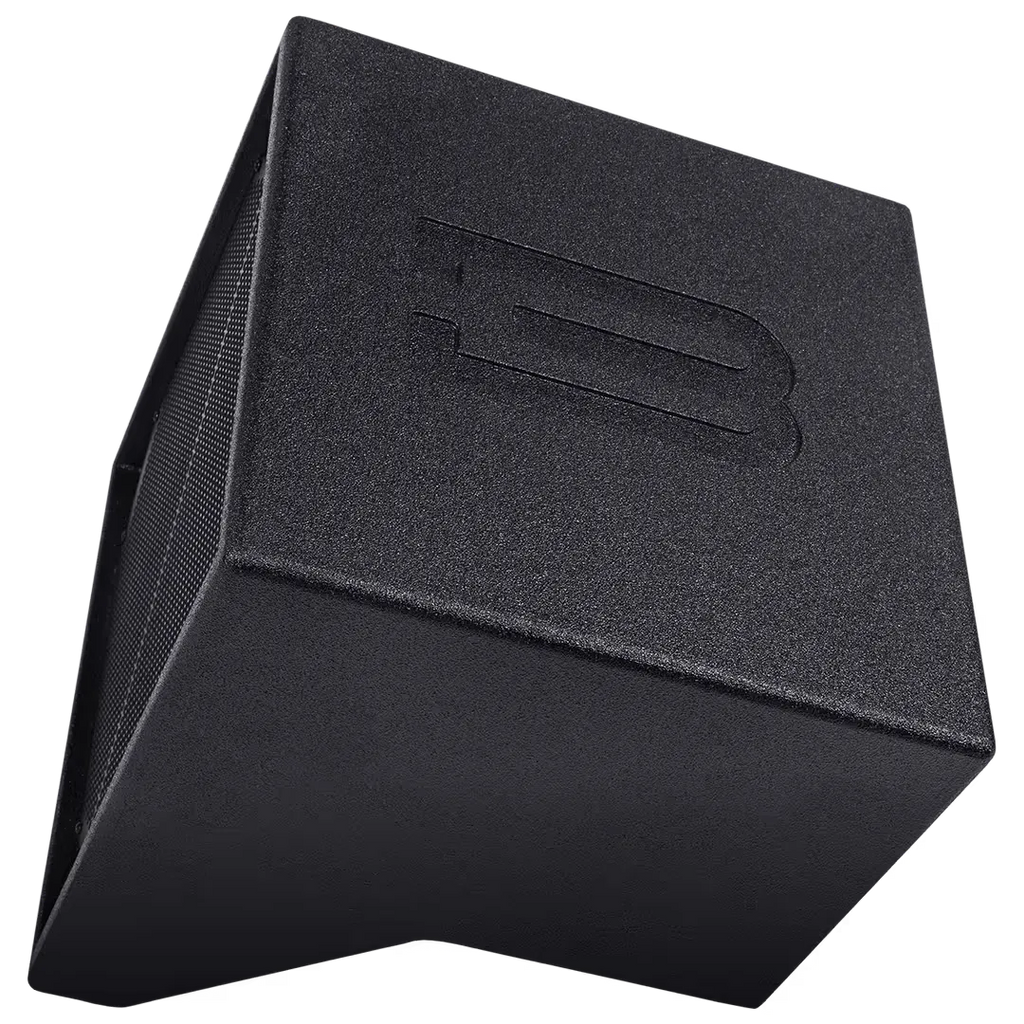

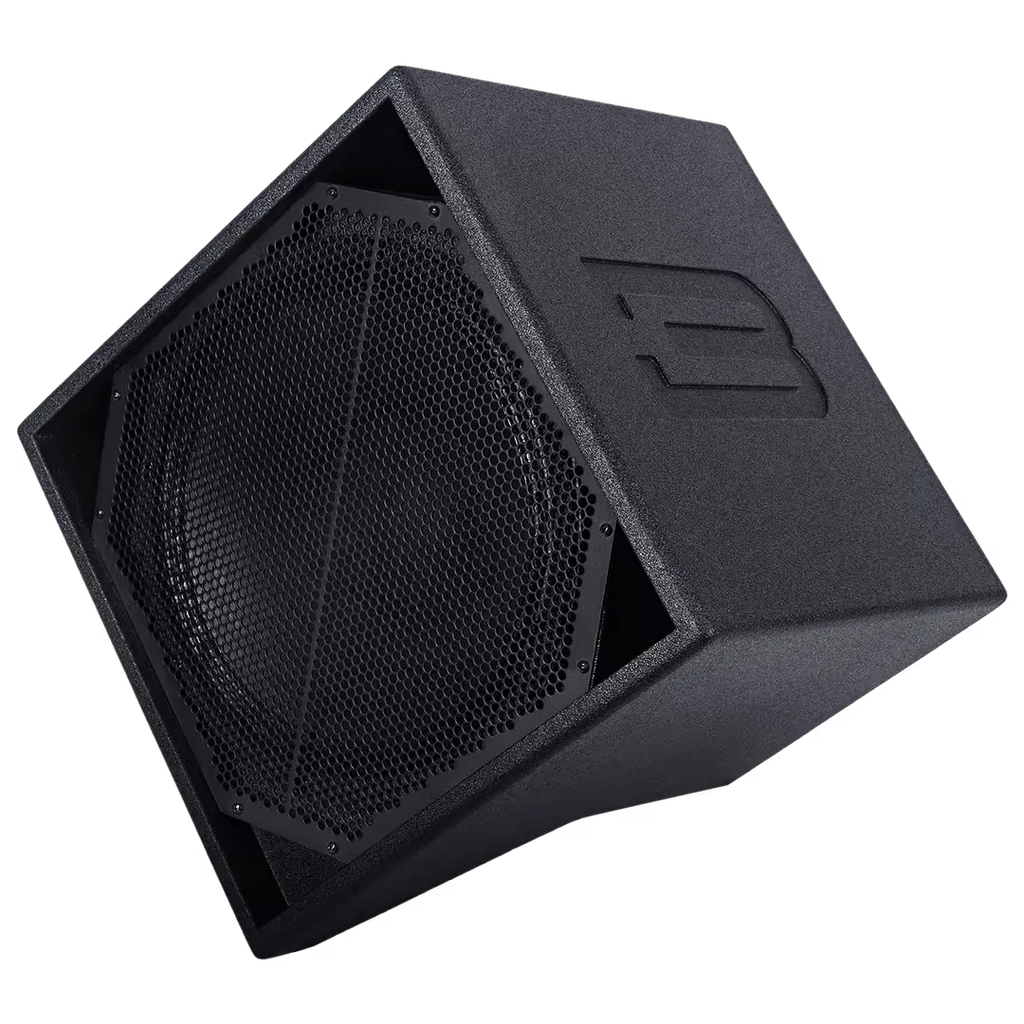

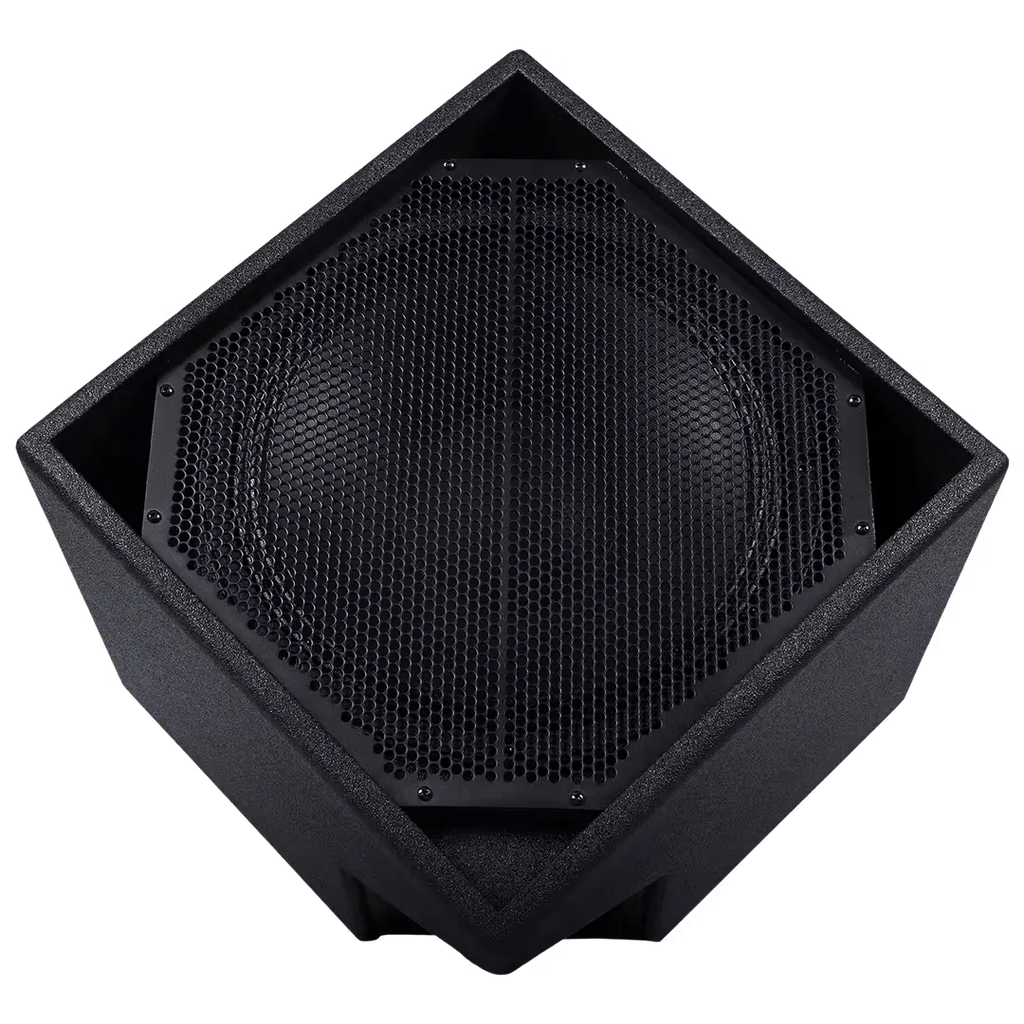

BassBoss DiaMon MK3 — Single 12" Coaxial Powered Loudspeaker
Tiny but fierce. A 12" coaxial point-source where the tweeter fires through the center of the woofer — just 14" square. As loud as any 12" 2-way satellite but dramatically more compact. Pairs with any BASSBOSS sub to create a full-range system that punches well above its weight.
Key Features
- 1200W Class D bi-amplified | 80°x80° conical dispersion
- Frequency Response: 50Hz – 19kHz (±3dB, full-range)
- Max Sustained Output: 123 dB SPL | Peak: 126 dB SPL
- 12" coaxial driver — tweeter fires through woofer pole piece
- 96kHz DSP with 8 onboard presets | Up to 100 via ControlBASS
- IP65-rated Neutrik powerCON True1 connector
- Universal voltage: 100–240V AC auto-sensing
- Optional ceiling/wall mount brackets available
Specifications
| Amplification |
1200W Class D, 2-channel (800W LF / 400W HF) |
| LF Driver |
12" neodymium, 3" voice coil |
| HF Driver |
3" diaphragm compression driver through 80° conical waveguide |
| Frequency Response |
50Hz – 19kHz (±3dB) |
| Max Sustained SPL |
123 dB @ 1m half-space |
| Dispersion (HxV) |
80° x 80° conical |
| Enclosure |
Sealed, 18mm & 15mm birch plywood, dado joinery |
| Dimensions (HxWxD) |
14" x 14" x 13.5" |
| Net Weight |
30 lbs (13.5 kg) |
| Shipping Weight |
35 lbs (16 kg) |
| Voltage |
100–240V AC, 50–60Hz |
| Part Number |
BB-DIAMON-MK3 |
