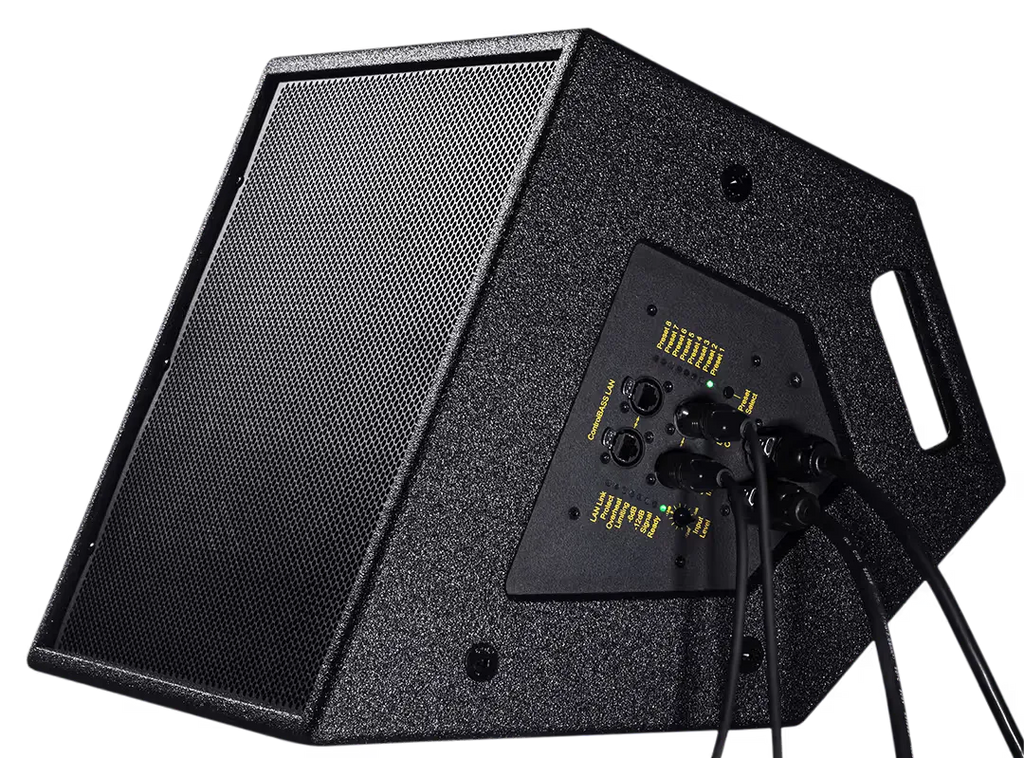

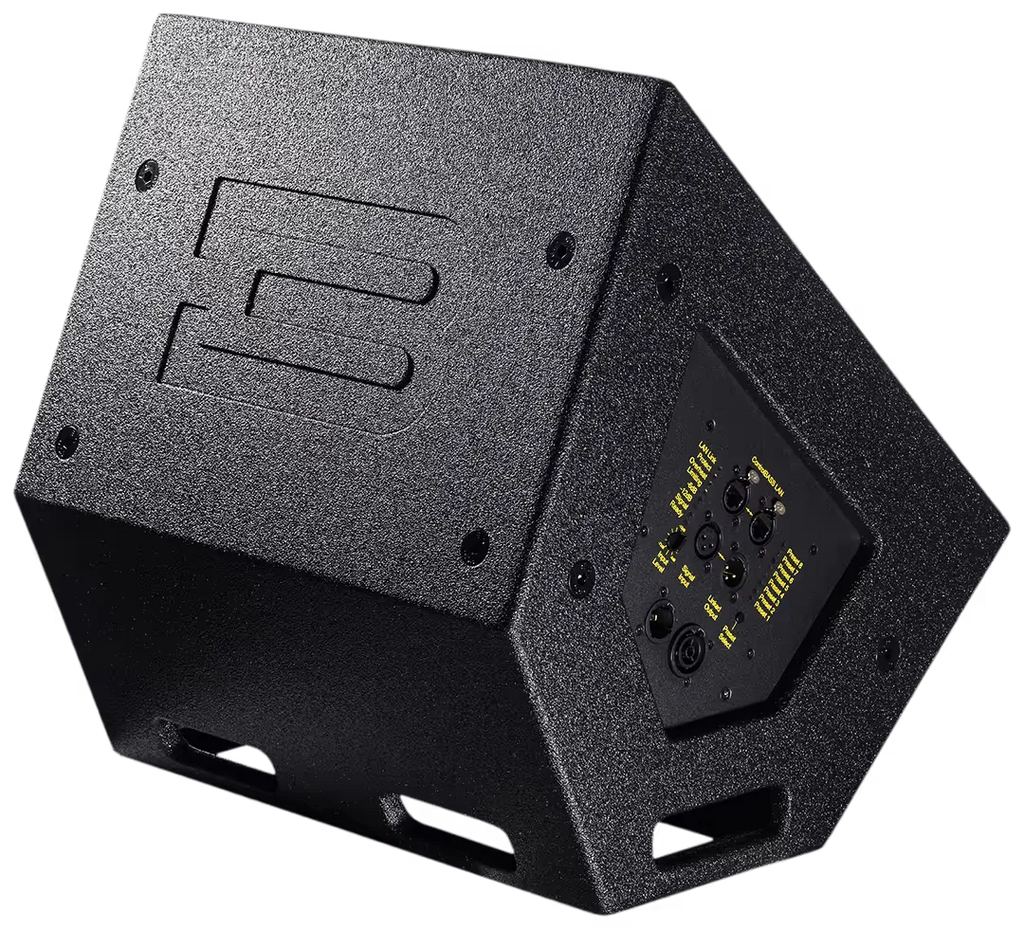

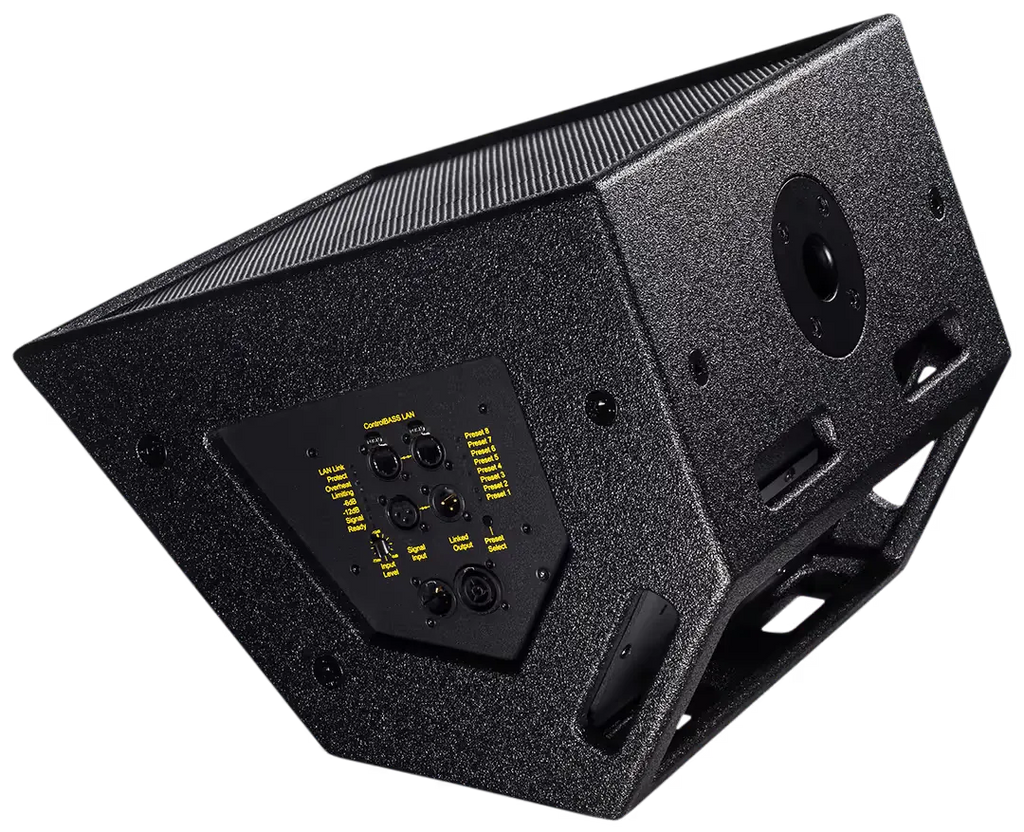

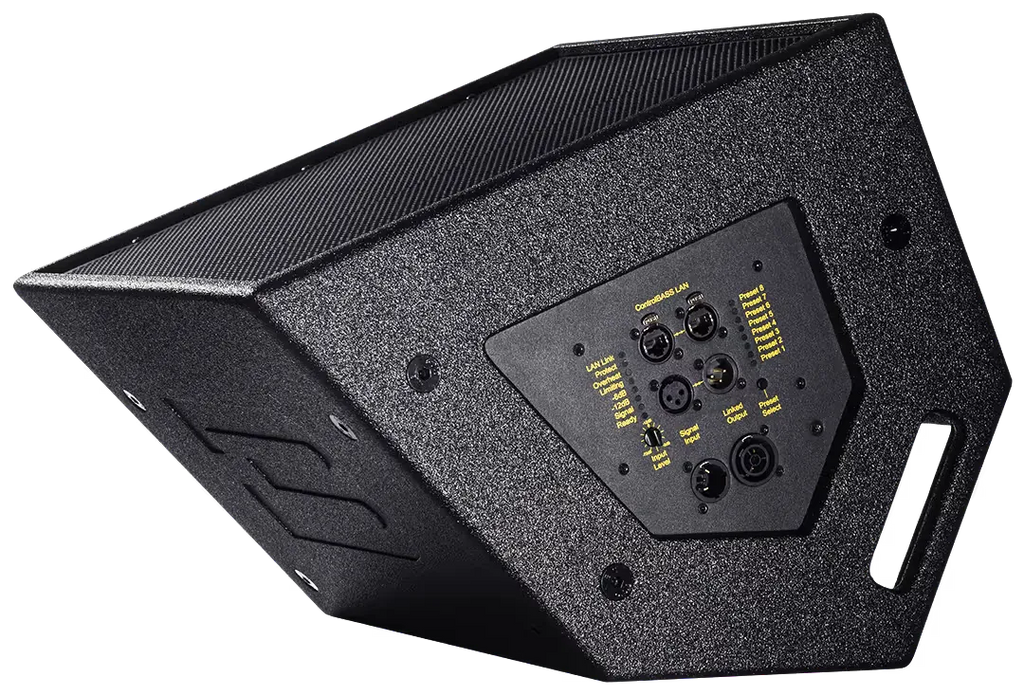

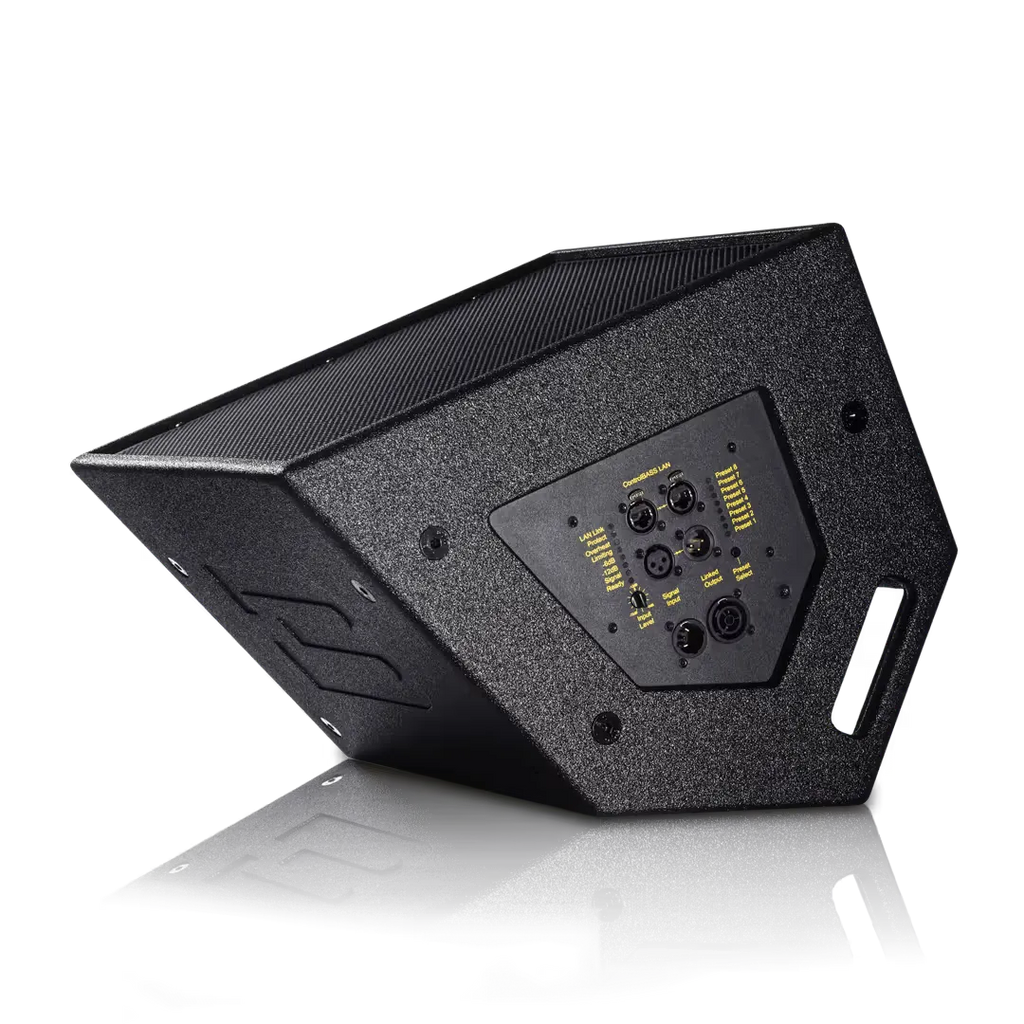

BassBoss CCM12-MK3 — 12" Coaxial Powered Monitor
The CCM12-MK3 is a 12" bi-amped wedge monitor with 3" voice coils on both the low and high frequency drivers. The high frequency driver is loaded onto a 1.4" throat horn with an 80-degree conical pattern. Sealed birch plywood enclosure with 4 integrated handles. Pick your position, load the right preset, play.
Key Features
- 1200W Class D bi-amplified | 80°x80° conical dispersion
- Frequency Response: 50Hz – 19kHz (±3dB)
- Max Sustained Output: 123 dB SPL | Peak: 126 dB SPL
- 96kHz DSP with 8 onboard presets | Up to 100 via ControlBASS

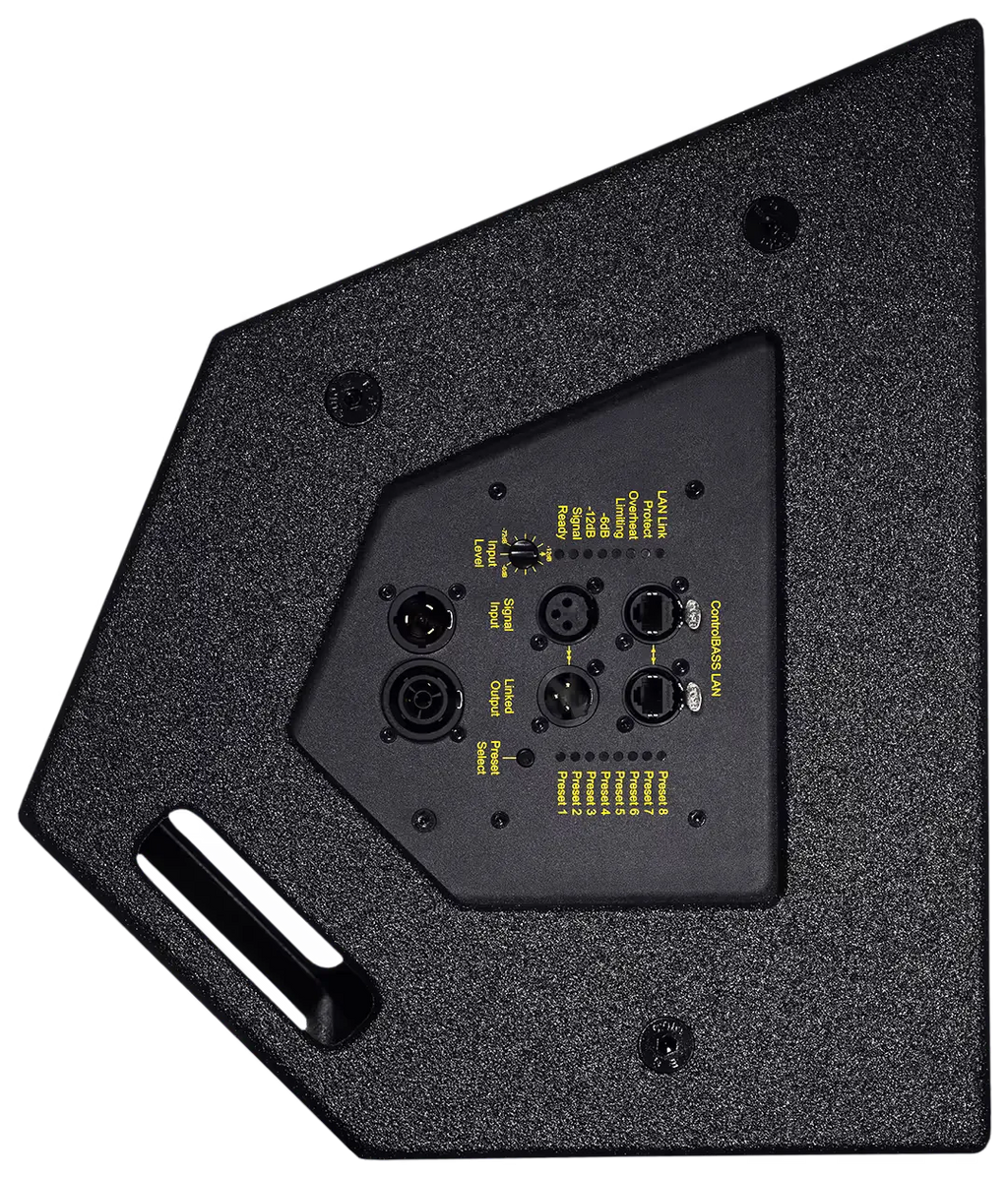

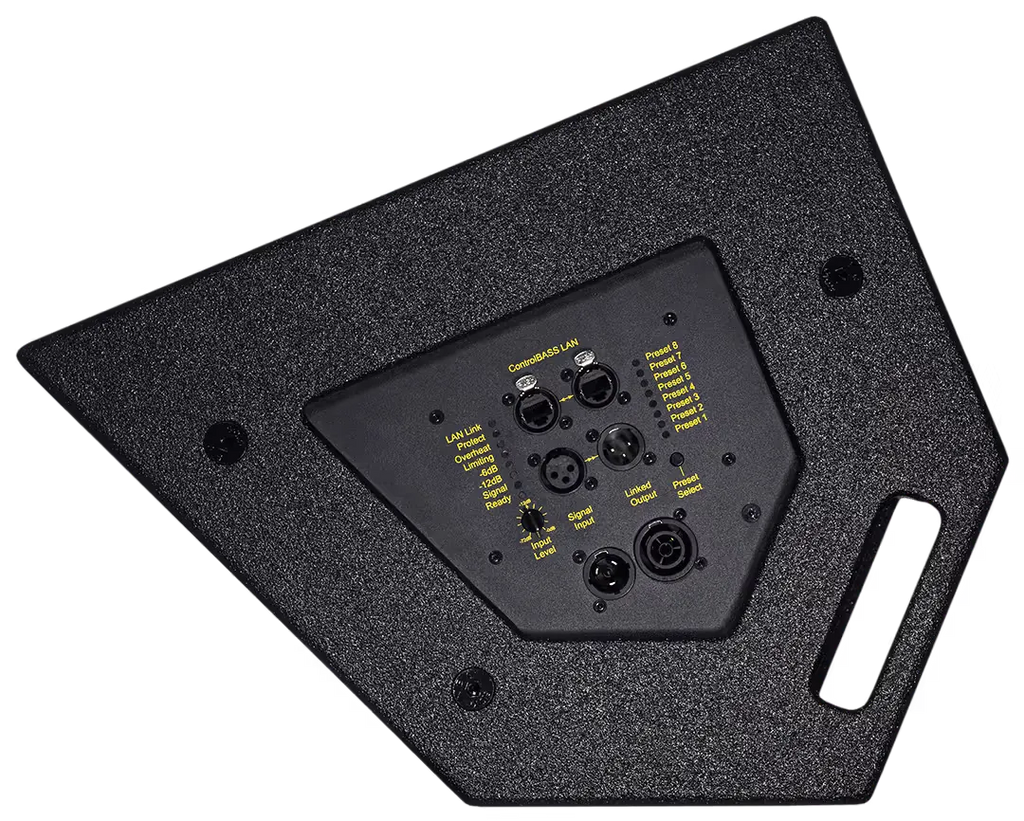

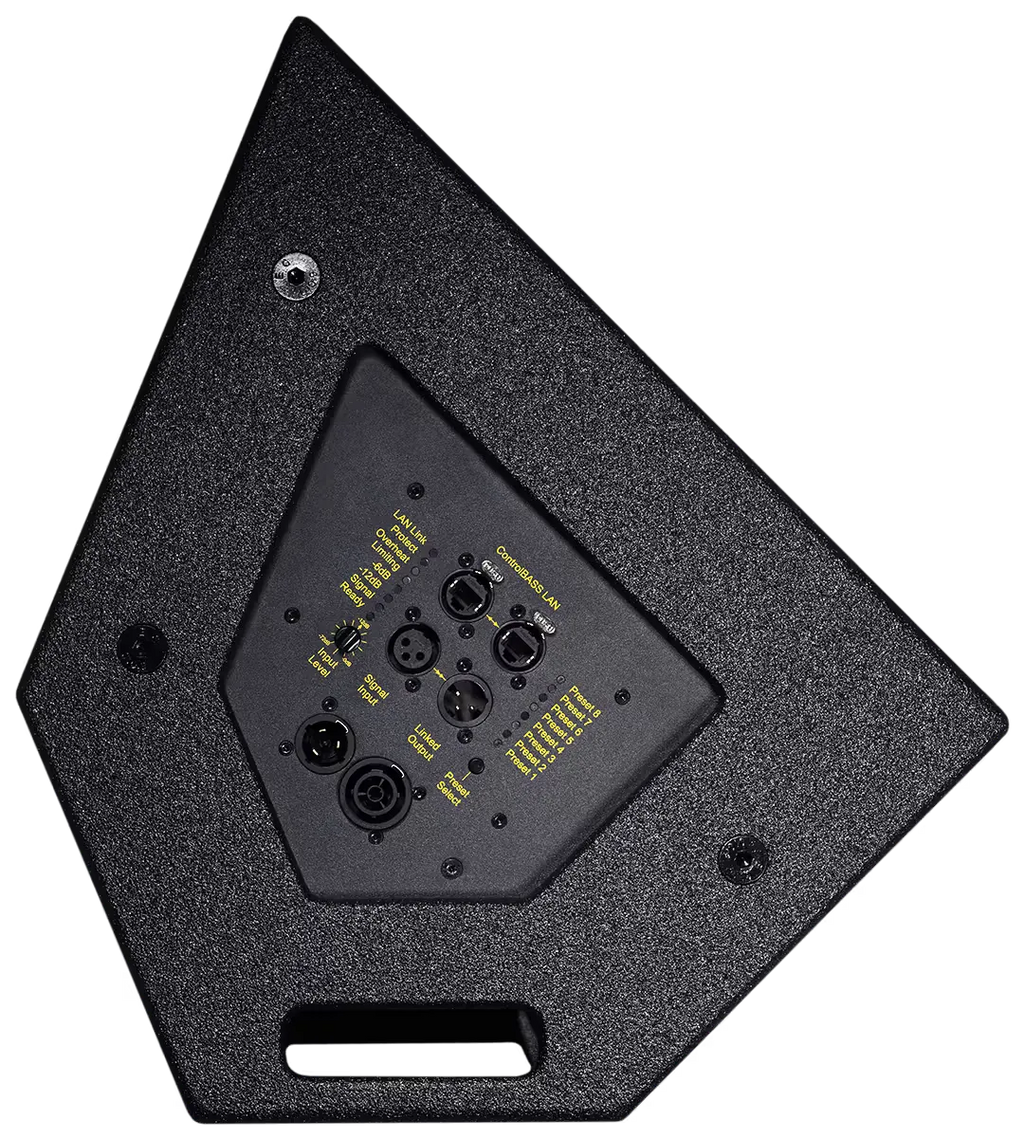

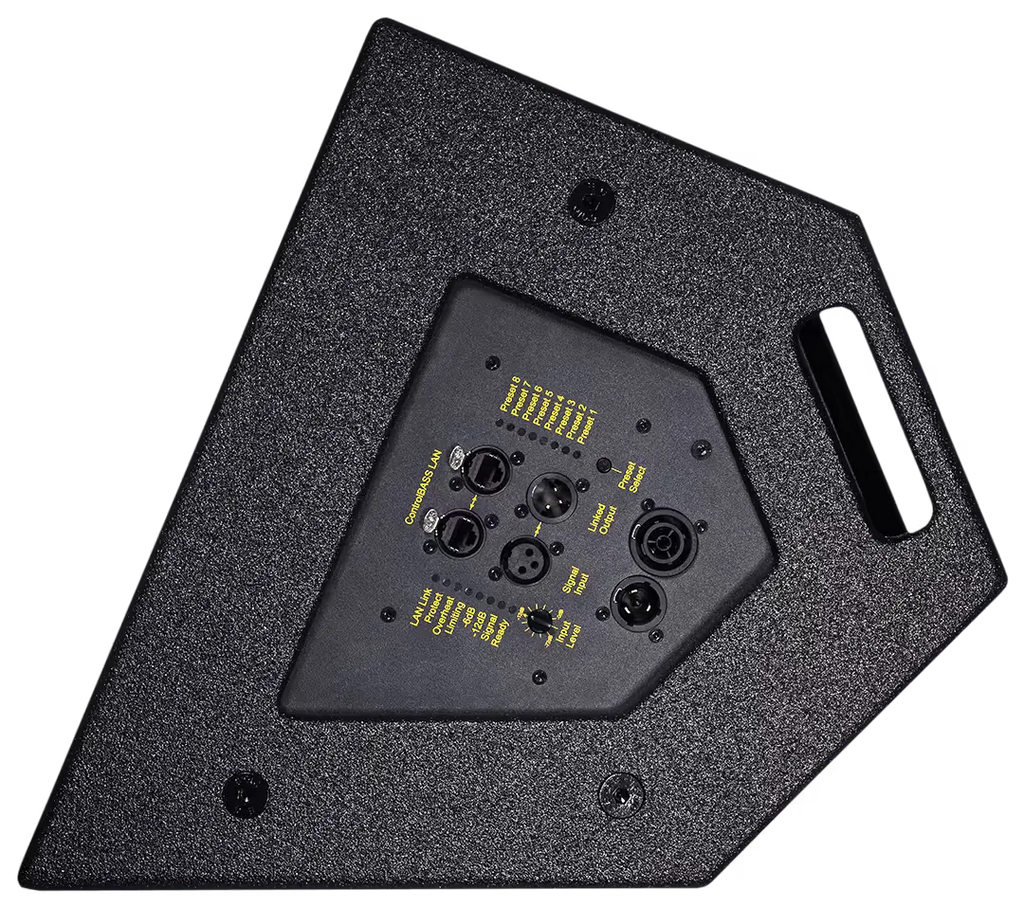

- IP65-rated Neutrik powerCON True1 TOP connectors
- Universal voltage: 100–240V AC auto-sensing
- Sealed birch plywood enclosure | Polyurea exterior coating
- Adjusts to 3 angles: standing, seated, table/pole mount
- 12 fly points for ceiling/wall mounting
Specifications
| Amplification |
1200W Class D, 2-channel |
| LF Driver |
12" neodymium, 3" voice coil |
| HF Driver |
3" diaphragm compression driver, 1.4" throat 80° conical horn |
| Frequency Response |
50Hz – 19kHz (±3dB) |
| Max Sustained SPL |
123 dB @ 1m half-space |
| Dispersion (HxV) |
80° x 80° conical |
| Enclosure |
Sealed, 15mm birch plywood, dado joinery |
| Dimensions (HxWxD) |
14" x 14" x 11" (35.5 x 35.5 x 28 cm) |
| Net Weight |
30 lbs (13.5 kg) |
| Shipping Weight |
35 lbs (16 kg) |
| Voltage |
100–240V AC, 50–60Hz |
| Part Number |
BB-CCM12-MK3 |
