EtherWAN TG103H-0800, Hardened Unmanaged 8-Port Gigabit Ethernet Switch

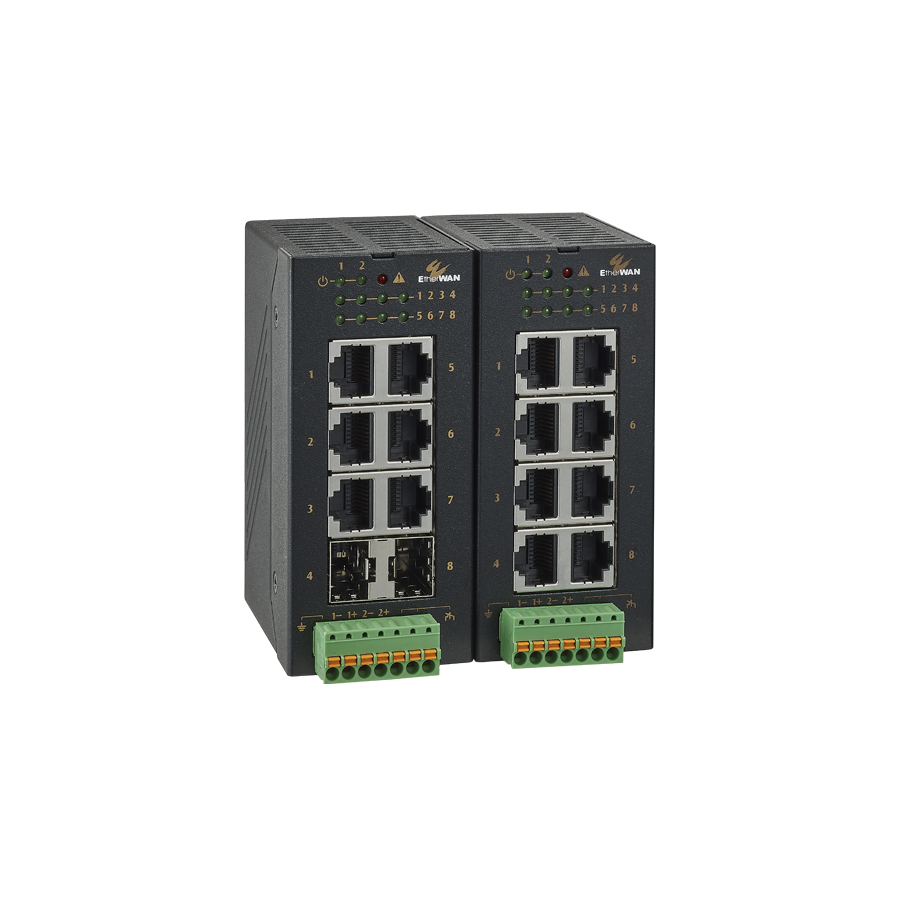

EtherWAN's OttoE Series is a hardened unmanaged Gigabit Ethernet switching platform, designed for easy deployment in harsh environments with limited space. The OttoE Series is an economic easy-to-use device, which provides essential industrial Ethernet networking functionality. It supports 9 to 55VDC redundant power input, and also provides relay alarm for power failure. The OttoE is equipped with eight Fast/Gigabit Ethernet ports, or a combination of Fast/Gigabit Ethernet copper ports and two 100 or 100/1000 Mbps dual rate SFP ports for long distance connectivity. This versatile switch features full/half-duplex auto-negotiation and auto MDI/MDIX operation, allowing for convenient connection of a variety of network devices. QoS (Quality of Service) support allows for traffic prioritization and effective management of resources. A rugged, DIN rail mountable metal housing provides security and easy installation (mounting kit is included).

Highlights

• Range of Operating Temperatures: Supports Hardened Grades
• SFP Connectivity: Up to two 100/1000BASE SFP option
• High Reliability: Fanless design
• Quality of Service: PROFINET (TG100H), EtherNet/IP

Specifications

• Ethernet: 10/100/1000BASE-TX: 8 or 6 ports; 100/1000BASE-SFP: 0 or 2 ports
• Alarm Contact: One relay output with current 0.5A@30V
• LED Indicators: Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red); Per Port: Link/Activity (Green)
• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/FX; IEEE 802.3az Energy Efficient Ethernet; IEEE 802.1p Quality of Service (QoS); IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-SX/1000BASE-LX
• Forward/Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps; 1,488,100pps for 1000Mbps
• Packet Buffer Memory: 1.5M bits (TG100H)
• Processing Type: Store-and-Forward; Auto Negotiation; Half-duplex back-pressure; Auto MDI/MDIX
• Address Table Size: 4K MAC (TG100H)
• Casing Material: Metal
• IP Rating: IP30

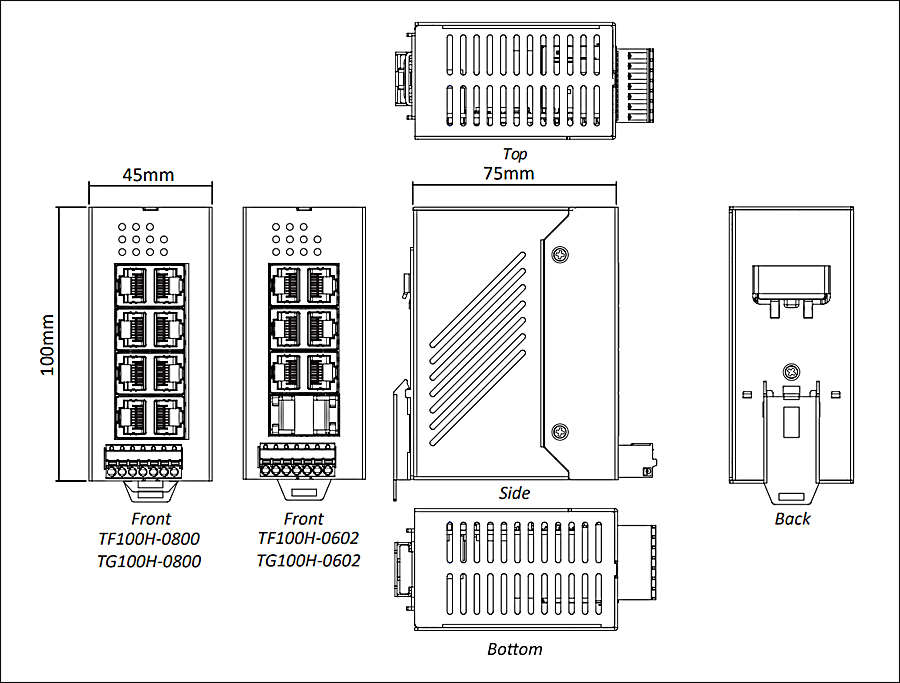

• Dimensions: 45 x 75 x 100mm (W x D x H) (1.77" x 2.95" x 3.94")
• Weight: 336g (0.74lbs)
• Installation Type: DIN-Rail (Top hat type 35mm) mounting
• Power Input: 9-55VDC (Terminal Block)
• Power Consumption: 5.55W max. (TG100H)
• Protection: Reverse Polarity Protection
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 5% to 95% (non-condensing)
• ISO: Manufactured in ISO-9001 facility
• EMI: FCC Part 15 Class A; VCCI Class A; EN 61000-6-4; ICES-003; EN 55032
• EMS: EN 61000-6-2; EN 61000-4-2 (ESD); EN 61000-4-3 (Radiated RFI); EN 61000-4-4 (Burst); EN 61000-4-5 (Surge); EN 61000-4-6 (Induced RFI); EN 61000-4-8 (Magnetic field)
• Safety: UL 61010
• Environmental Test Compliance: IEC 60068-2-6 Fc (Vibration); IEC 60068-2-27 Ea (Shock); FED STD 101C Method 5007.1 (Free fall w/package)
• Industrial: EN 50121-4
• Traffic: NEMA TS2
• Warranty: Limited Lifetime (www.etherwan.com/support/warranty-policy)
• What's Included: Device: Ethernet switch; Installation: Mounting brackets, screws; Documentation: Quick install guide
• Model: TG100H-0800 = 8-port 10/100/1000BASE-TX Hardened Unmanaged Ethernet Switch; TG100H-0602 = 6-port 10/100/1000BASE-TX + 2-port 100/1000BASE SFP Hardened Unmanaged Ethernet Switch
• Optional Accessories: SFP Modules = 100/1000BASE SFPs available for the TG100H
