Blackmagic Teranex Mini SDI to DisplayPort 8K HDR, Advanced 8K DisplayPort monitoring solution with dual on-screen scope overlays, HDR, 33 point 3D LUTs and monitor calibration in all HD, Ultra HD and 8K formats up to 4320p60

Advanced 8K DisplayPort monitoring solution with dual on-screen scope overlays, HDR, 33 point 3D LUTs and monitor calibration in all HD, Ultra HD and 8K formats up to 4320p60.

Teranex Mini 8K HDR Advanced 8K monitoring solution with dual on-screen scope overlays, HDR, 33 point 3D LUTs and monitor calibration! Teranex Mini 8K HDR is an advanced 8K monitoring solution for large screen televisions, video projectors and DisplayPort monitors. Unlike basic converters, Teranex Mini 8K HDR can use third party calibration probes to accurately align connected displays for precise color. There are 2 on-screen scopes that can be selected between WFM, Parade, Vector and Histogram. Teranex Mini SDI to HDMI 8K HDR is perfect for film studios and broadcasters who need professional but affordable color accurate monitoring, while Teranex Mini SDI to DisplayPort 8K HDR also works with the latest 8K DisplayPort monitors. You also get an elegant design with color LCD for monitoring and control of settings!

Teranex Mini 8K HDR has been designed for any broadcast, live production or feature film work where you need large color accurate SDI monitoring. Perfect for accurate grading monitoring for DaVinci Resolve, you can unload CPU and GPU processing, as both models draw the 3D LUTs and scopes for you. That's important when using heavy 8K formats. When you use an Apple Pro Display XDR with Teranex SDI to DisplayPort 8K HDR, you can even select from the monitor's built in color profiles so that you can accurately match the color space and gamma to the SDI input for precise color grading. Teranex Mini SDI to HDMI 8K HDR is also great when using large televisions for multi view on switchers such as ATEM Constellation 8K so each view is large enough to check focus. You can even use quad split to build large video walls from multiple monitors. Imagine building giant 8K video walls at concerts and theaters!

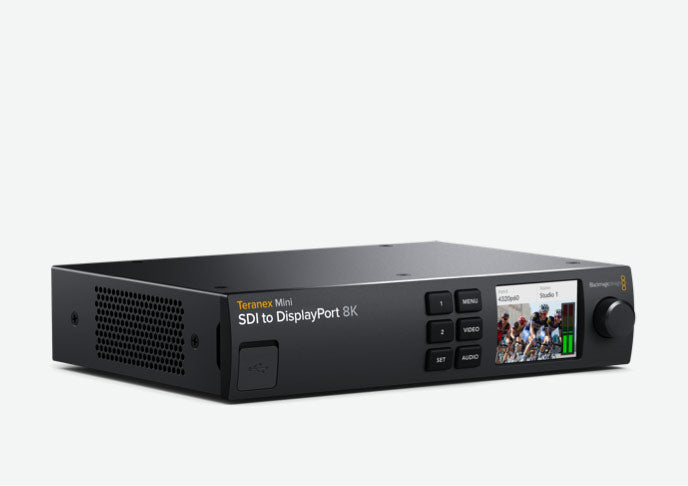

The innovative design is much better than regular converters as you can rack mount the converter if needed. The front panel feels elegant when placed on a desktop plus it includes buttons and a color display for video monitoring with audio meters and video standard. The rear panel has Quad Link 12G-SDI for HD, Ultra HD as well as up to 8K formats. The Teranex Mini SDI to HDMI 8K HDR has 4 HDMI outputs allowing use with 8K televisions that feature quad HDMI inputs. The Teranex Mini SDI to DisplayPort 8K HDR has a USB-C style connection for monitors such as the Apple Pro Display XDR, and 2 full size DisplayPort connections for regular computer monitors. The built-in scaler will ensure the video input standard is scaled to the native resolution of the connected DisplayPort monitor. Or, use the built-in pixel-by-pixel mode to view unscaled HD or 4K content. Plus, both models feature down conversion for using 8K sources on Ultra HD or HD televisions and monitors! You can even convert between 2SI and Square Division all automatically. There's also AC power, analog audio HiFi out and a front panel USB connection for use with monitor calibration probes.

Teranex Mini 8K HDR has everything for the latest HDR workflows. All that's required is to connect an HDMI display or DisplayPort monitor to get HDR SDI monitoring. Static metadata PQ and Hybrid Log Gamma (HLG) formats in the VPID are handled according to the ST2108-1, ST2084 and the ST425 standards. Teranex Mini 8K HDR models handle ST425 which defines 2 new bits in the VPID to indicate transfer characteristic of SDR, HLG or PQ. Plus the ST2108-1 standard defines how to transport HDR static or dynamic metadata over SDI. There is also support for ST2082-10 for 12G SDI, as well as ST425 for 3G-SDI sources. Both Rec.2020 and Rec.709 color space are supported, and 100% of the DCI-P3 format.

Two fully independent on screen scopes are included so compliance with broadcast standards is easy when doing critical high end work. Scopes are overlaid on screen so you can customize position, size and opacity. You can select from a range of scopes, including waveform for displaying luminance levels of your input signal. The vectorscope display allows you to see the intensity of color at 100% SDI reference levels. You also get RGB and YUV parade displays which are ideal for color correction and checking for illegal levels. Histogram shows the distribution of white to black detail in your images and highlights or shadows clipping.

Teranex Mini SDI to HDMI 8K HDR and Teranex Mini SDI to DisplayPort 8K HDR both include the same high quality 33 point 3D LUTs as used in the film industry. 3D LUTs are perfect for recreating the look of old style film stocks, or they can be used to compensate for the colorimetry of the connected display. It's even possible to calibrate the connected display by connecting a third party USB color probe and Teranex Mini 8K HDR will analyze the monitor and generate a 3D LUT to correct for color differences between displays. Two independent 3D LUTs can be loaded and you can select between them from the front panel. Plus 3D LUTs use standard file formats so you can load LUTs generated by software such as DaVinci Resolve.

Specifications

Connections

• SDI Video Inputs: 4 x 12G-SDI HD/2K/4K/8K auto switching. Dual and quad link 12G-SDI for 8K only.
• SDI Video Outputs: 4 x 12G-SDI loop output.
• DisplayPort Video Outputs: 2 x full size DisplayPort connectors Single used for 4K video and both used for uncompressed 8K video.
• Analog Audio Outputs: 2 channels analog audio via RCA connectors.
• Embedded Audio Support: 16 channels of embedded audio on all SDI loop outputs and 8 channels on the DisplayPort outputs.
• Multi Rate Support: 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G-SDI, 2SI Quad Link 12G-SDI, Square Division Quad Link 12G-SDI.
• Updates and Configuration: Front USB-C or Ethernet.
• Reclocking: Yes

Standards

• SD Video Standards: None
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division
• 8K DCI Video Standards: 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
• SDI Video Rates: SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB.

DisplayPort Output Standards

• SD Video Standards: None
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 5K and 6K Display Standards: Based on the EDID of the DisplayPort Monitor.
• 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
• DisplayPort Color Space: REC 709, REC 2020
• DisplayPort Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test.

Scopes

• Scopes: Waveform, RGB/YUV Parade, Vector, Histogram
• Viewing Modes: Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules.

HDR

• Conversion: Output can be set to SDR, HLG or PQ

Software

• Software Control: Mac OS X and Windows software upgrade via USB-C or Ethernet.
• Internal Software Upgrade: Via included updater application.

Settings Control

• Settings Control: 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display.

Power Requirements

• Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
• Power Consumption: 35 Watts
• Operational Voltage Range: 100 - 240V AC

Environmental Specifications

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 3.0 lb
