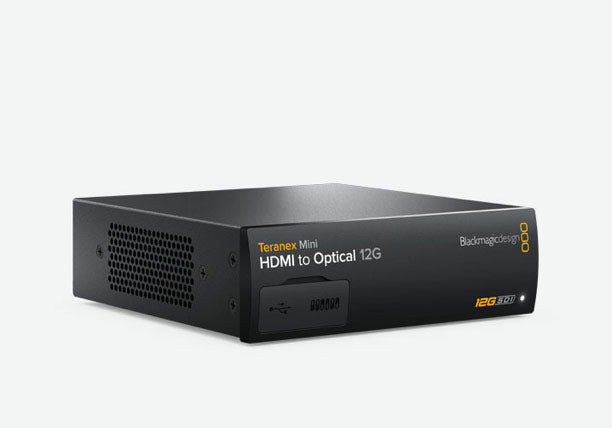

Blackmagic Teranex Mini HDMI to Optical 12G, Convert from HDMI to optical fiber SDI in all SD, HD and Ultra HD formats up to 2160p60

Convert from HDMI to optical fiber SDI in all SD, HD and Ultra HD formats up to 2160p60.

Next generation mini converters with better technology and features!

Introducing Teranex Mini, the next generation 12G-SDI converters with award winning Teranex quality and support for all SD, HD and Ultra HD formats up to 2160p60! All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power! Teranex Mini features a user upgradable front panel that includes a color display and user controls so you can quickly monitor video and change settings right from the front of the converter! You get all of the same great features of regular mini converters and so much more!

The world's most versatile converters!

The all new Teranex Mini converters make building facilities and supporting all different types of video equipment easier than ever before. Teranex Mini is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what's being converted on the screen! They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks, plus they have professional XLR audio connections for connecting to mixers and other audio gear! You can even use them in editing and color grading suites to drive big screen displays and projectors!

Reinventing the Mini Converter The first mini converter you don't have to hide! Teranex Minis are so small that you can use them like regular mini converters such as hiding them in cable ducts, behind equipment and attached to televisions for monitoring. Teranex Mini's new flexible design lets you use them on the desktop where you can see them, or rack mount them in larger broadcast systems. Unlike regular mini converters, you get full size professional XLR audio connections built into the converters, plus each converter has an ethernet connection so they can be administered remotely. You get mini switches so you can change settings instantly or, when you're doing mission critical work, you can add the optional front panel to see exactly what you're converting.

Rack Mountable The world's first 12G-SDI rack mount converters! Card based rack converters are expensive, cannot handle high SDI speeds such as 12G-SDI and you have to buy an entire rack chassis even if you only want to install one converter. Teranex Minis can be rack mounted in combinations of one or more and you can take them out and use them non rack mounted whenever you need! You get built in AC power and ethernet on every converter so there's no single point of failure. Unlike card based converters, you can walk up and change settings from the front panel, monitor the video going through each converter, and you can also manage them remotely over ethernet! Because they're so small you can mount them in the front or the rear of an equipment rack or road case.

Specifications

Connections

• SDI Video Inputs: Optional 3G/6G/12G Optical SFP input.
• SDI Video Outputs: 1 x 12G-SDI.
• HDMI Video Inputs: 1 x HDMI 2.0 type A connector with support for 2160p60.
• Optical Fiber Connection (optional): Optional 3G/6G/12G optical SFP output.
• Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI HDMI video input.
• Analog Audio Inputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
• Digital Audio Inputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
• Embedded Audio Support: 16 channels.
• Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
• Updates and Configuration: USB and Ethernet.
• Reclocking: Yes

Optical Output Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
• SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
• SDI Video Sampling: 4:2:2 and 4:4:4.
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
• SDI Color Space: REC 601, REC 709

HDMI Input Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
• HDMI Color Space: REC 601, REC 709
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Software

• Software Control: Mac and Windows software upgrade via USB or Ethernet.
• Internal Software Upgrade: Via included updater application.

Settings Control

• Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
• Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

• Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
• Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
• Power Consumption: 16 Watts
• Operational Voltage Range: 100 - 240V AC

Environmental Specifications

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 1.84 lb
