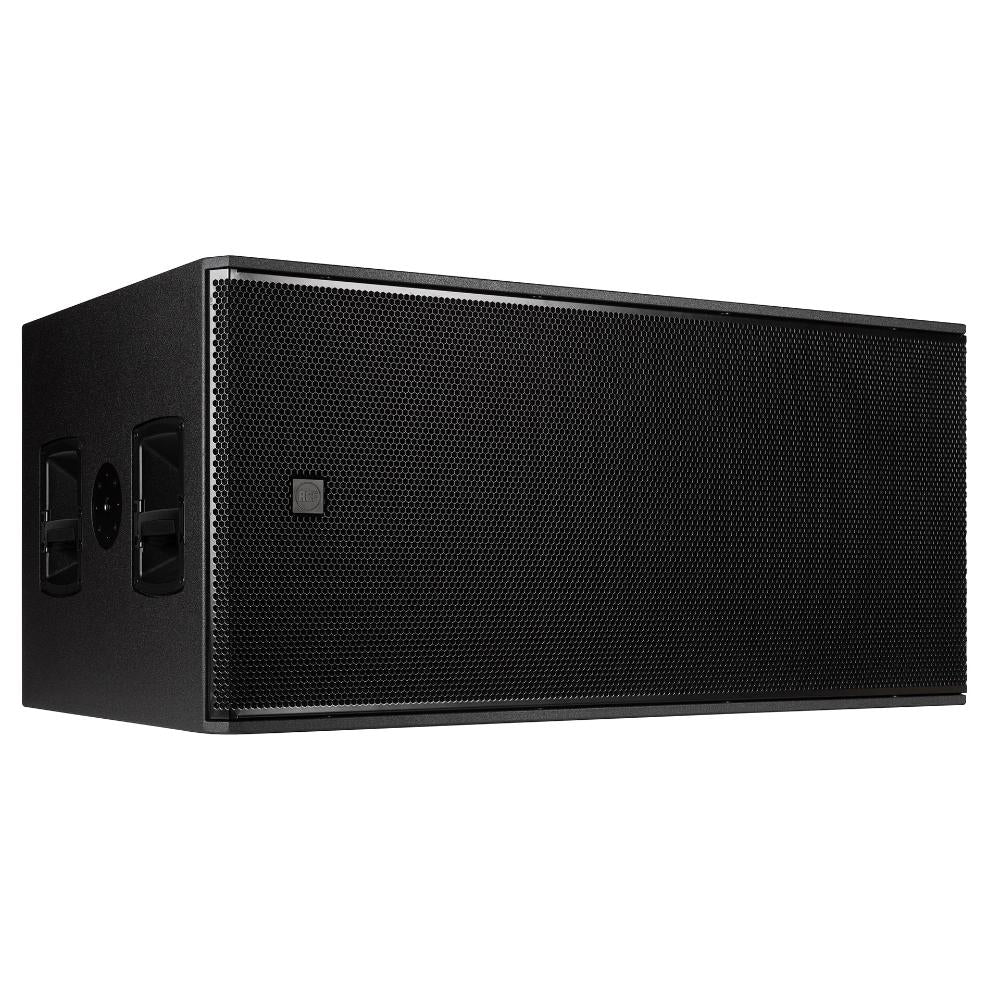

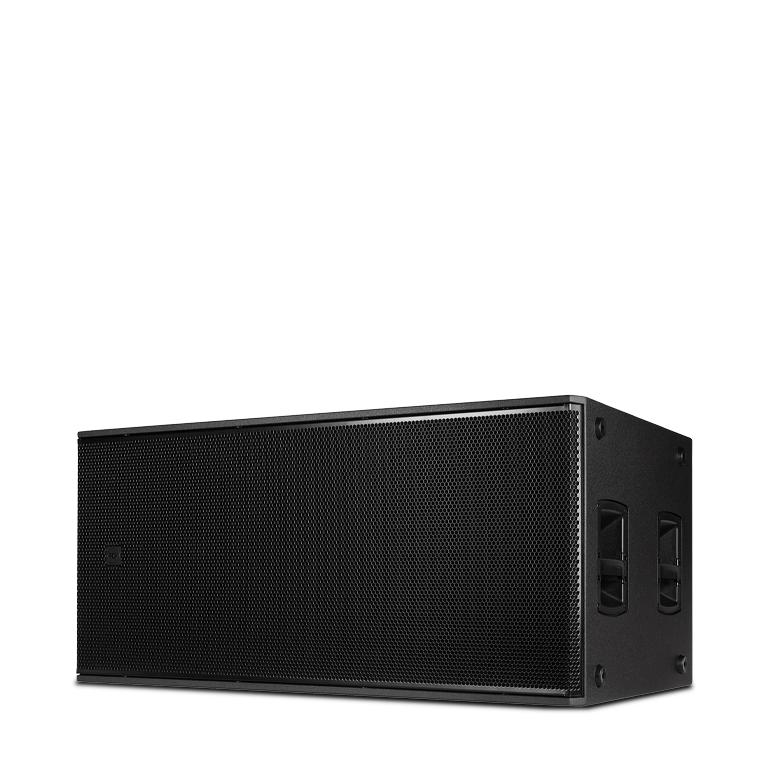

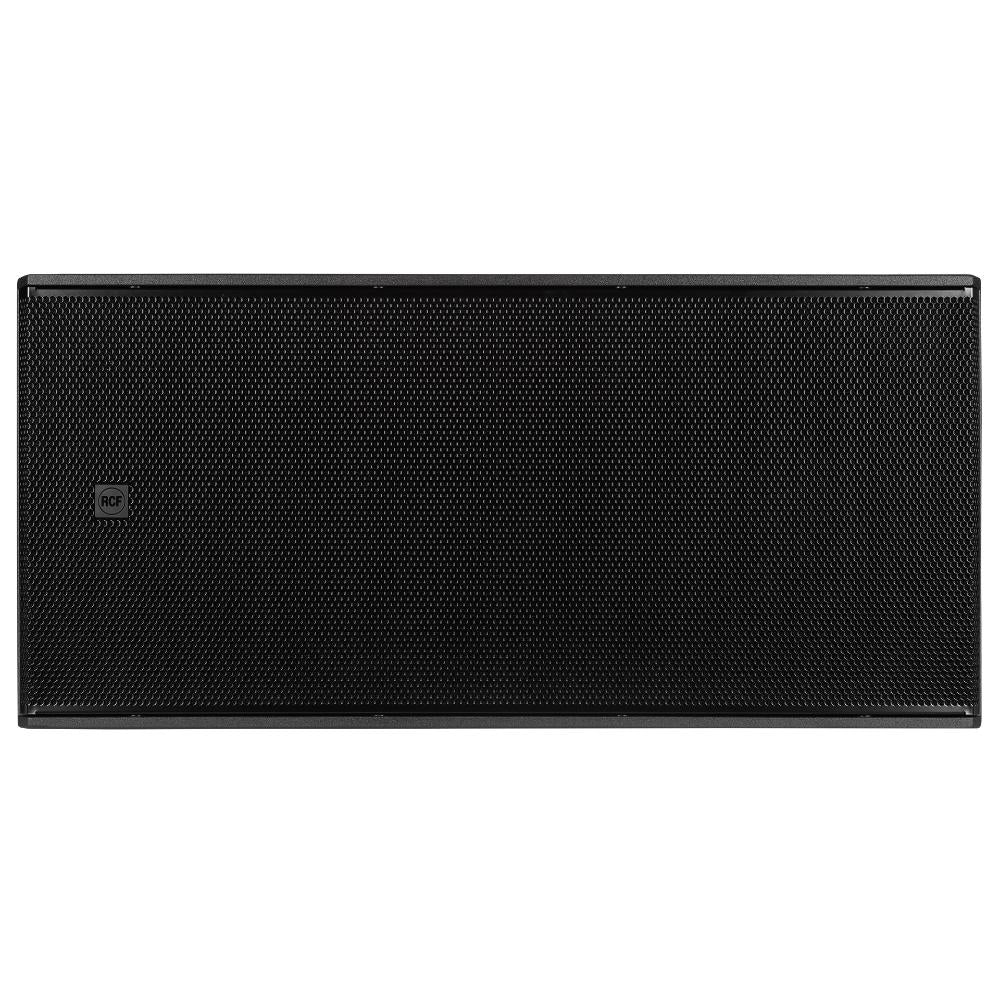

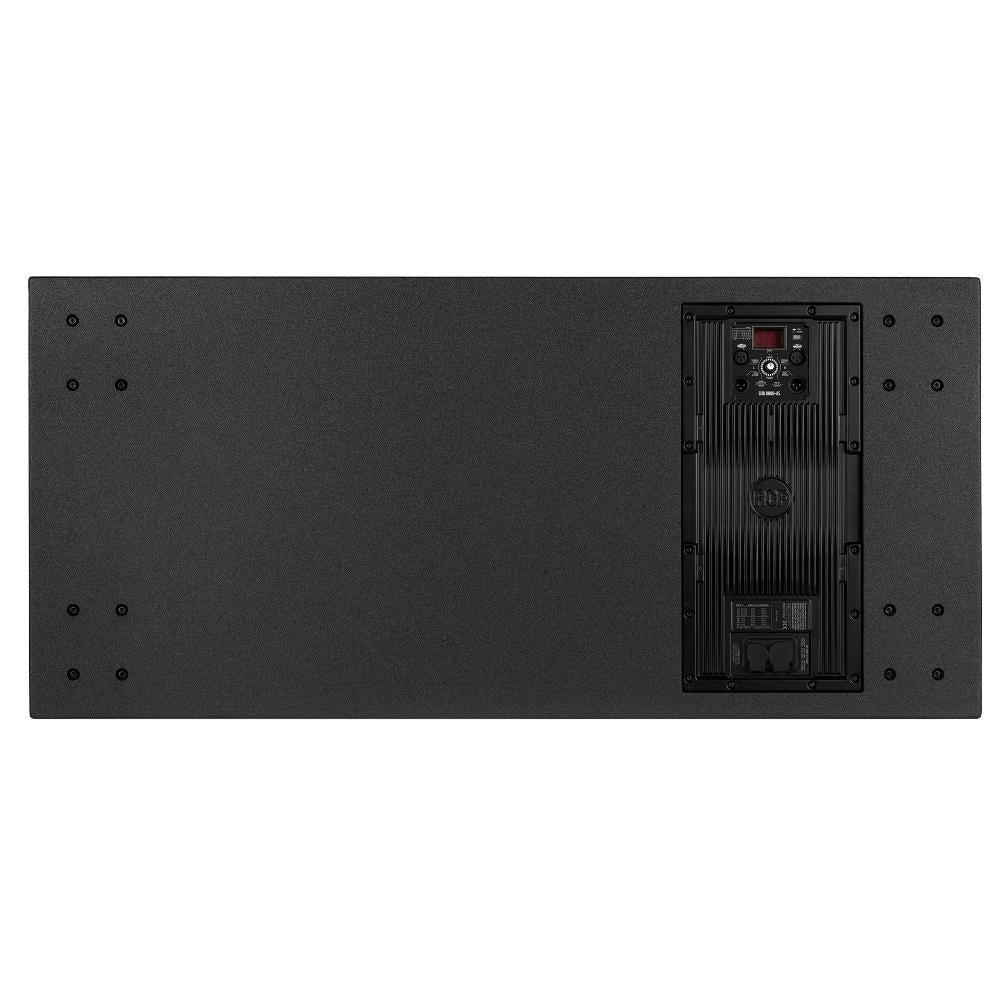

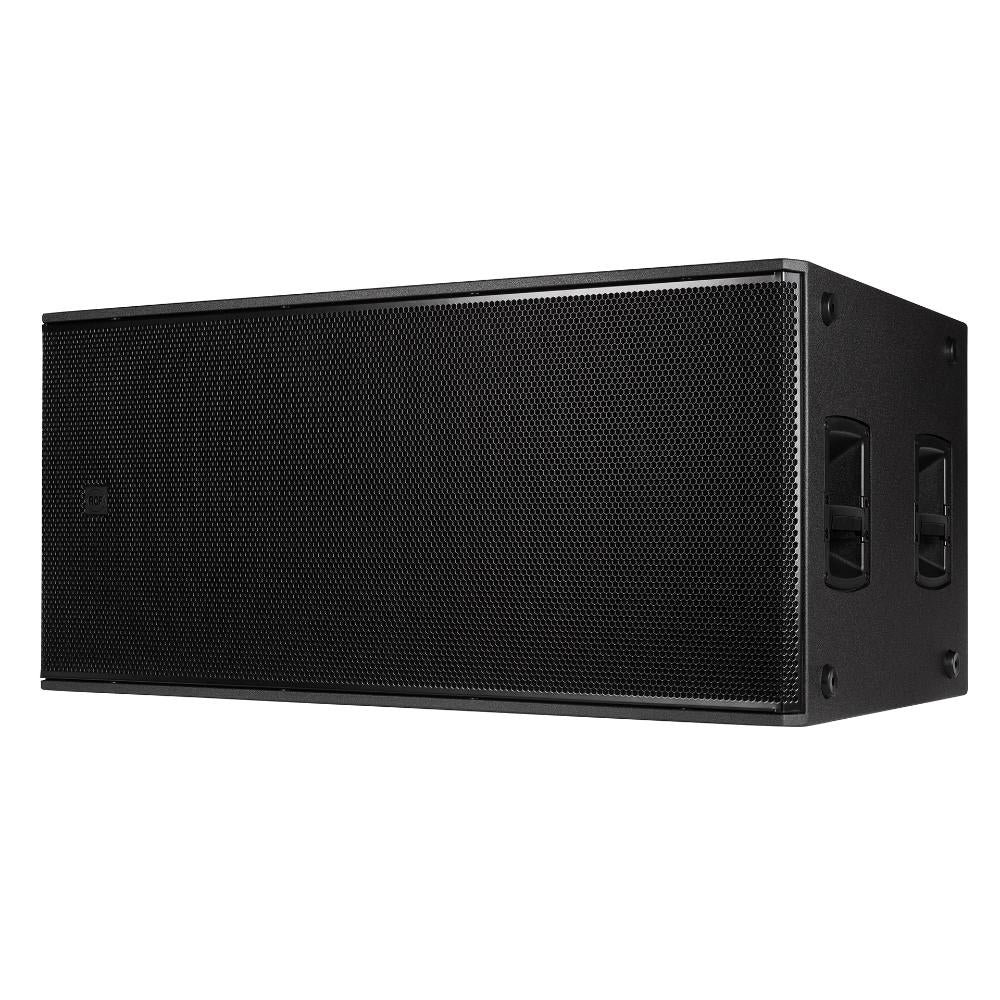

ARCHIVED | TOURING | SUB 9004-AS | ACTIVE HIGH POWER SUBWOOFER | 136 dB SPL Max | 2800 W power rating
Technical Specifications
| Acoustical specifications |
| Frequency Response |
30 Hz - 400 Hz |
| Max SPL @ 1m |
136 dB |
| Transducers |
| Woofer |
1 x 18'' neo, 4.0'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| +4 dBu |
| Processor section |
| Hi-Pass Frequencies |
35 Hz, 50 Hz |
| Low-Pass Frequencies |
Variable from 50 Hz to 400 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Fast Limiter |
| Controls |
| Gain, Eq., Preset Switch, Output Delay |
Onboard |
| Power section |
| Total Power |
2800 W Peak, 1400 W RMS |
| Cooling |
Forced |
| Connections |
| Powercon IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
2xM20 |
| Handles |
2 Side |
| Pole mount/Cap |
M20 thread |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
700 mm / 27.56 inches |
| Width |
558 mm / 21.97 inches |
| Depth |
Weight |
| 57 kg / 125.66 lbs |
| Shipping information |
| Package Height |
770 mm / 30.31 inches |
| Package Width |
Package Depth |
| 630 mm / 24.8 inches |
Package Weight |
| 61.8 kg / 136.25 lbs |
