NEW | TOURING | SUB 9029-AS | HIGH POWER DUAL 19" ACTIVE SUBWOOFER | Technical Specifications | 142 dB Max SPL
Technical Specifications
| Acoustical specifications |
| Frequency Response |
25 Hz - 200 Hz |
| Max SPL @ 1m |
142 dB |
| Transducers |
| Woofer |

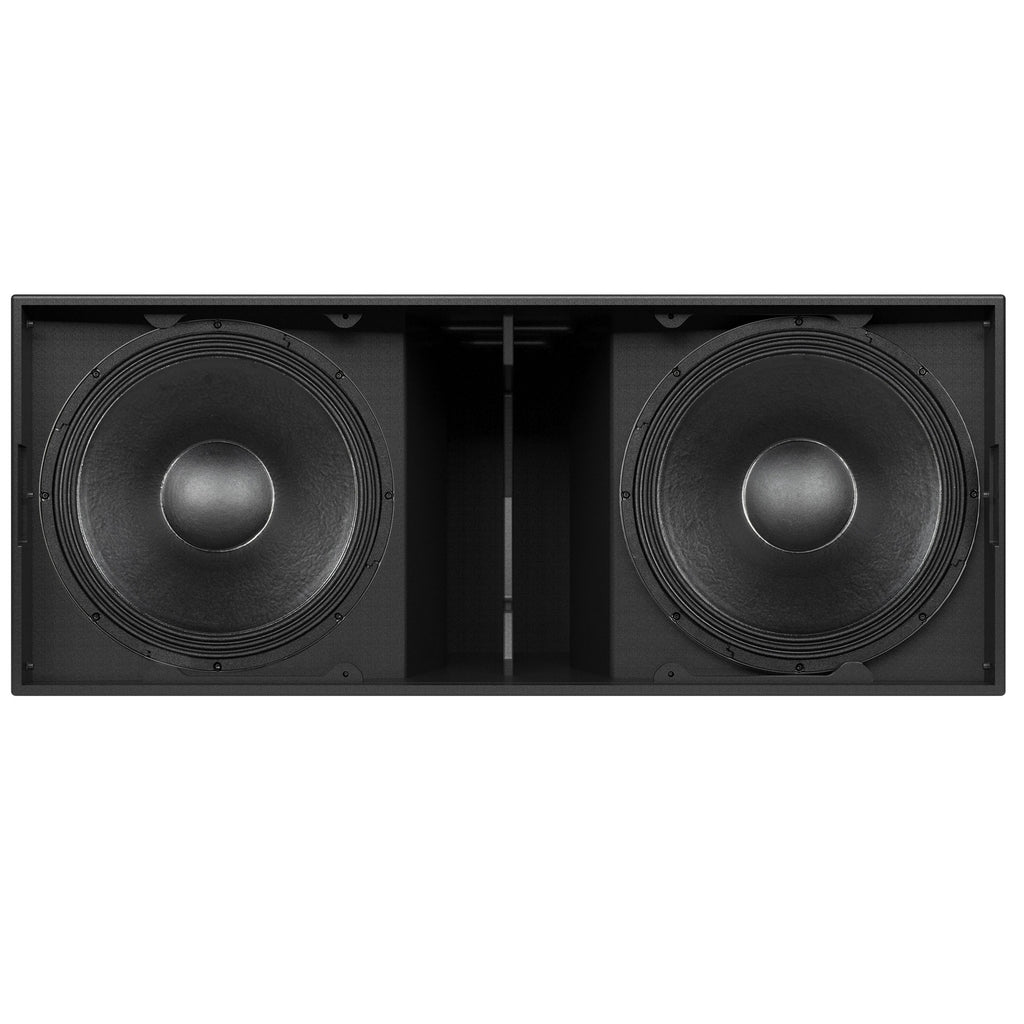

2 x 19'' neo, 4.0'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |

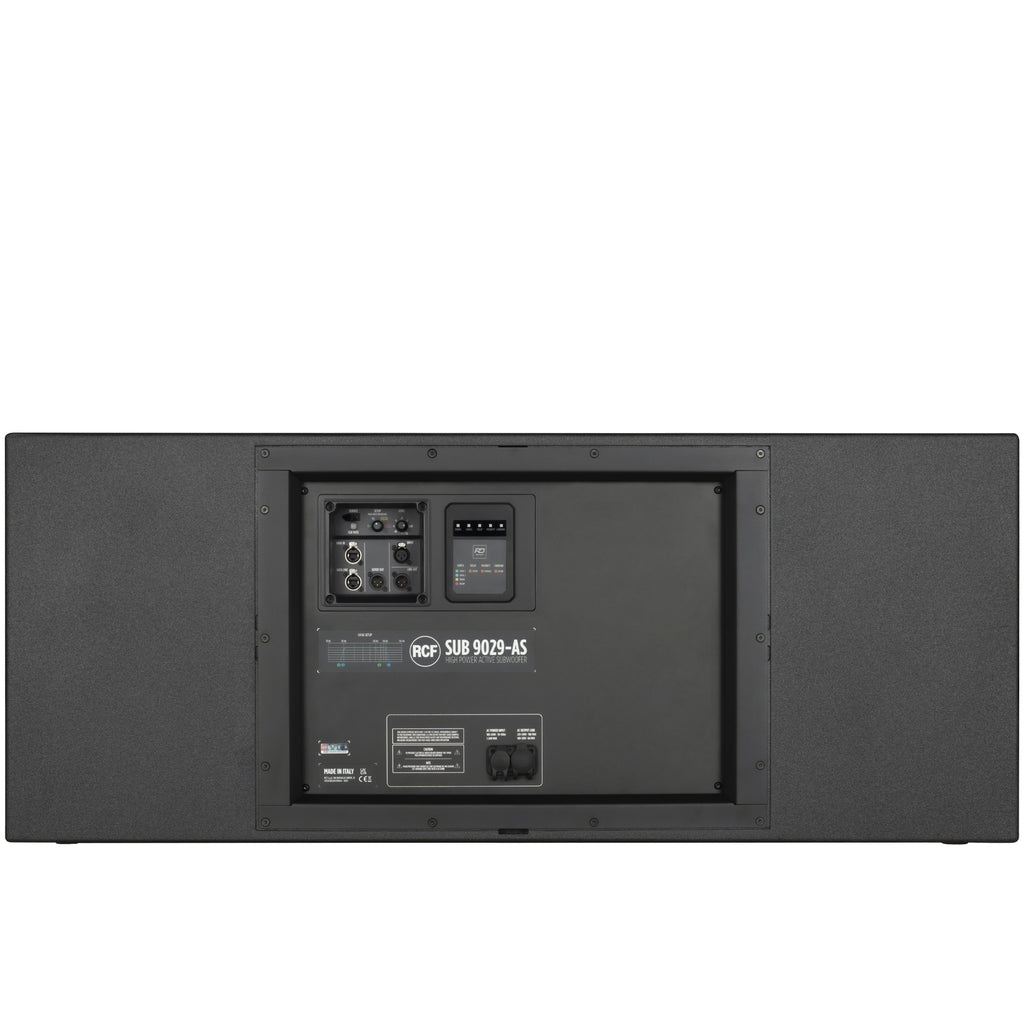

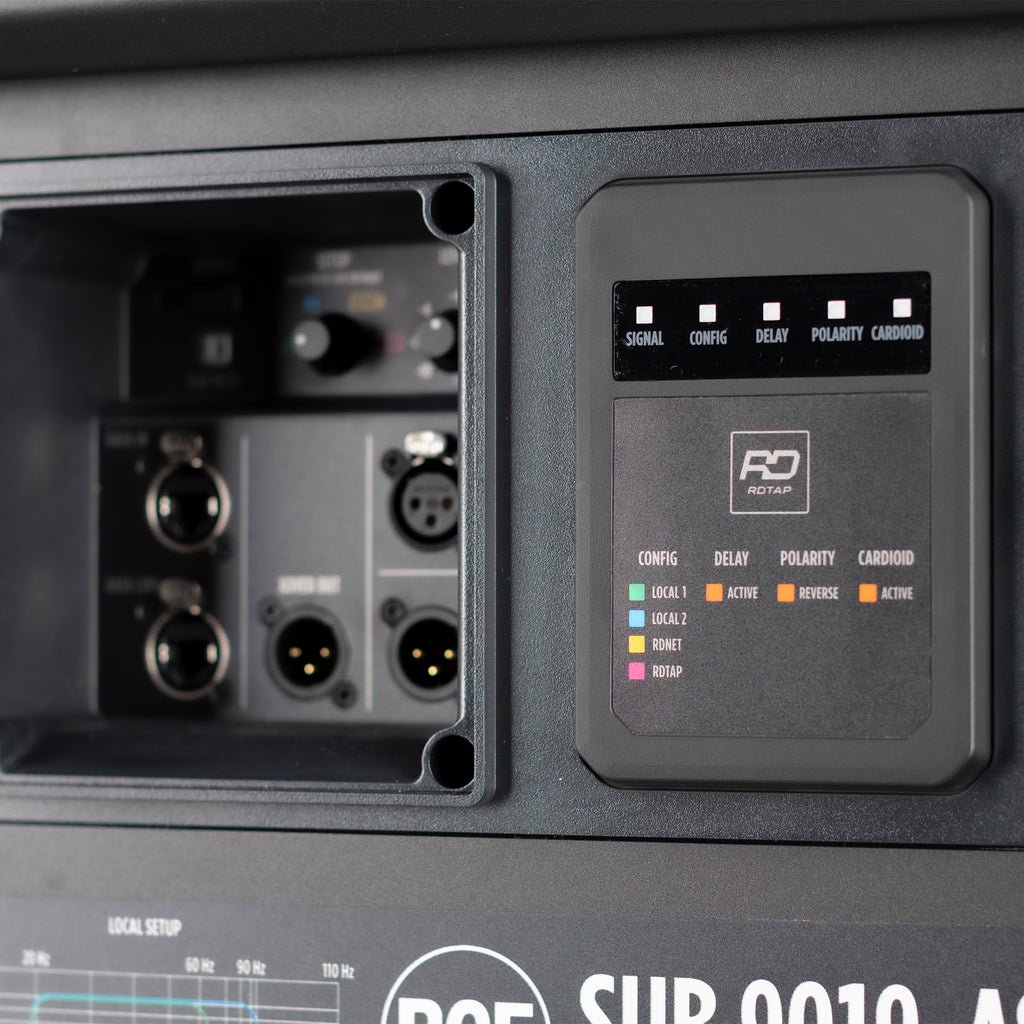

| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Protections |
Thermal |
| Limiter |
Soft Limiter |

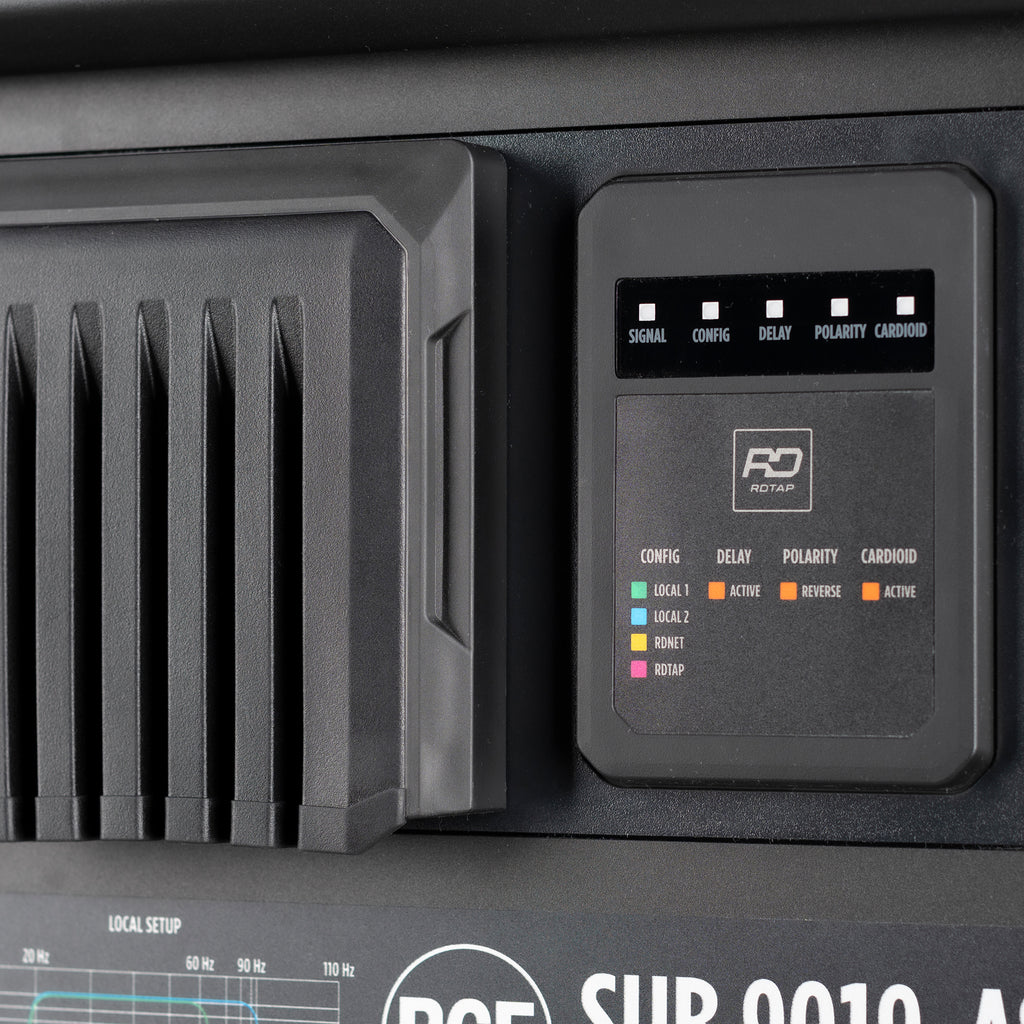

| Controls |
| MUTE, VOL, PRESETS, RDTAP |
Onboard |
| Power section |
| Total Power |
8000 W Peak |
| Cooling |
Convection/Forced |
| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
2 x M20 pole mount accessories |

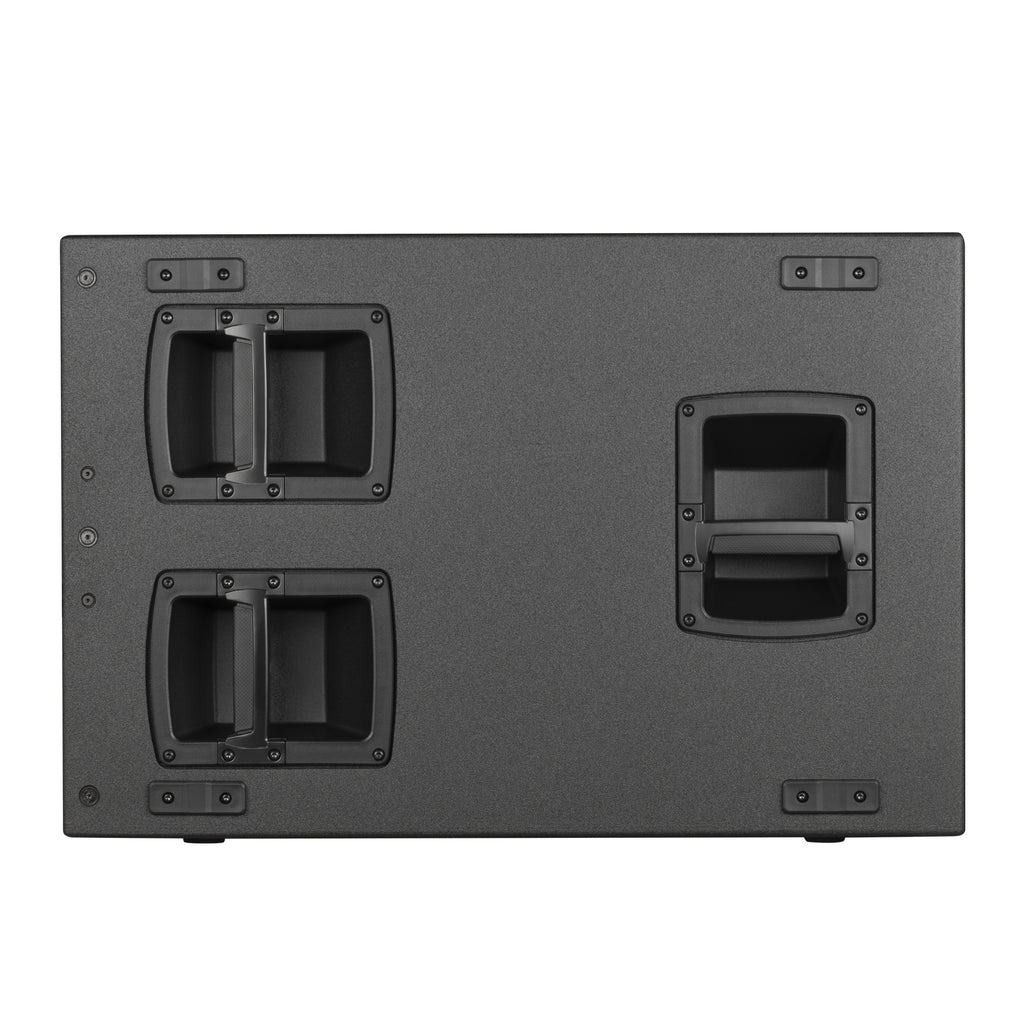

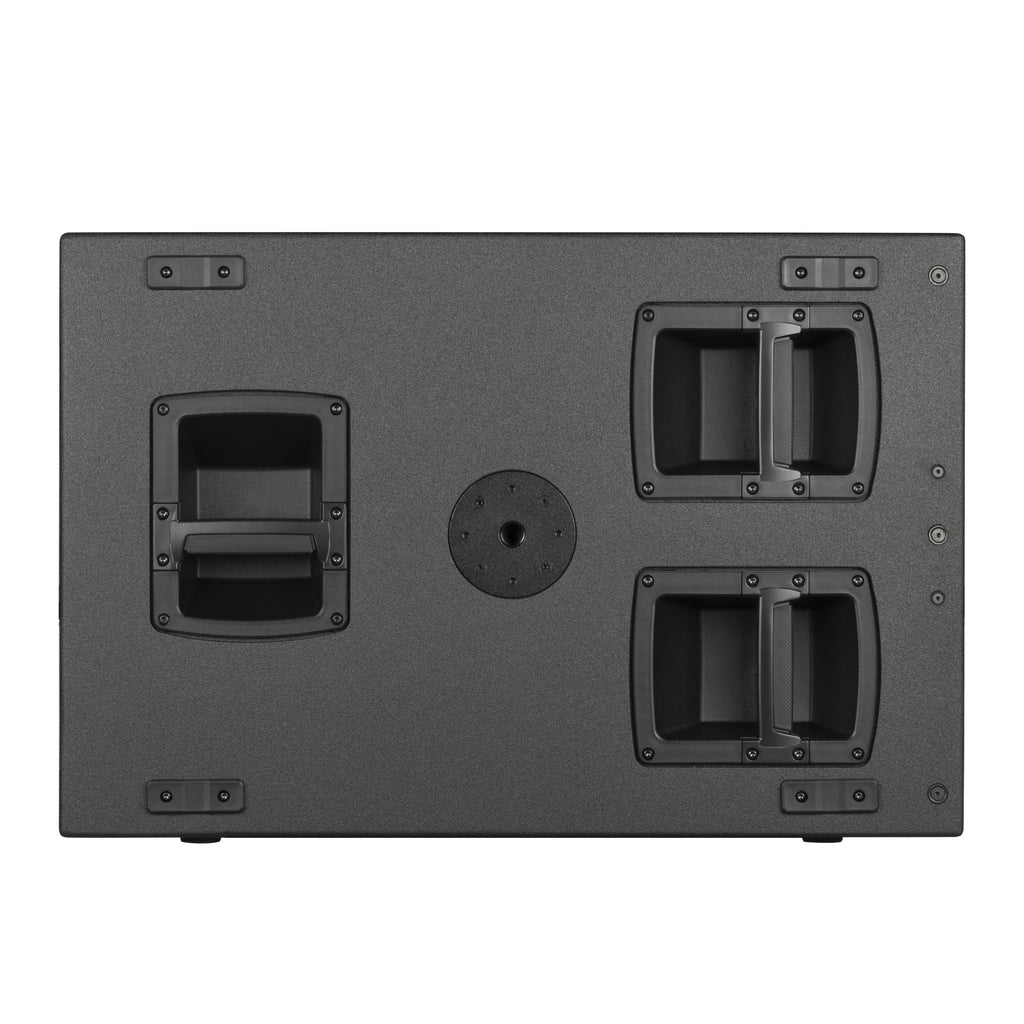

| Handles |
3 handle per side |

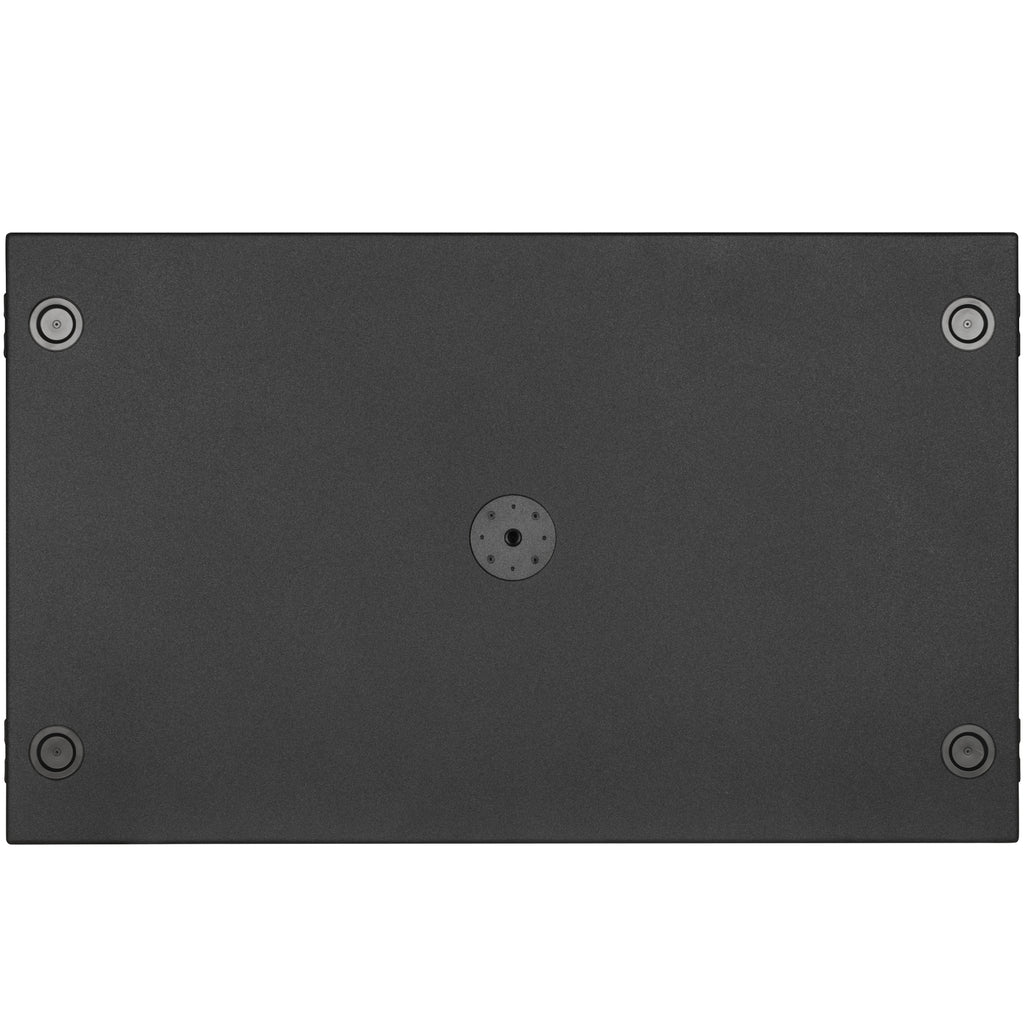

| Pole mount/Cap |
M20 thread |

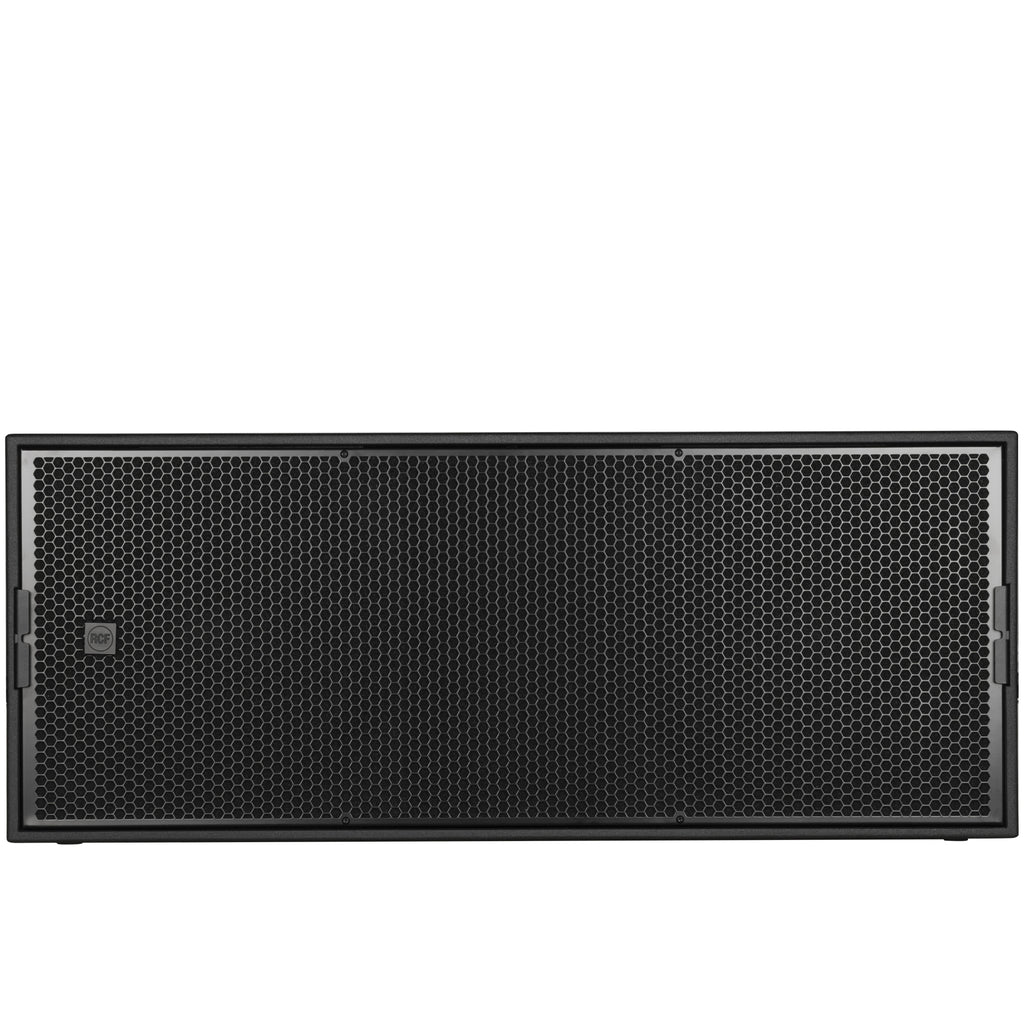

| Grille |
Steel with clothing |
| Color |
Black |
| Size / Weight |
| Height |
533 mm / 20.98 inches |
| Width |
1310 mm / 51.57 inches |
| Depth |
785 mm / 30.91 inches |
| Weight |
93 kg / 205.03 lbs |
| Shipping information |
| Package Height |
570 mm / 22.44 inches |
| Package Width |
830 mm / 32.68 inches |
| Package Depth |
1350 mm / 53.15 inches |
| Package Weight |
98 kg / 216.05 lbs |
