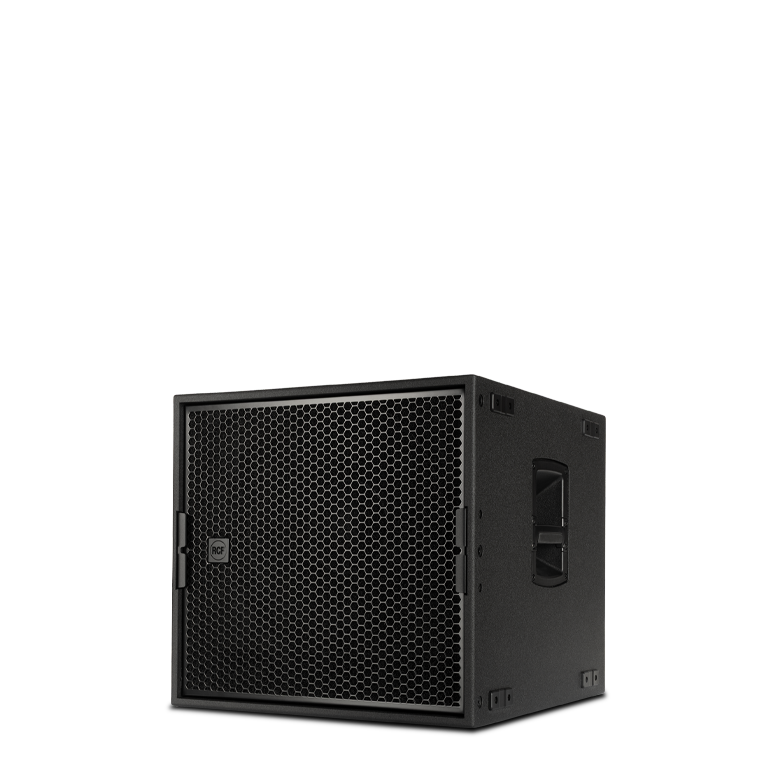

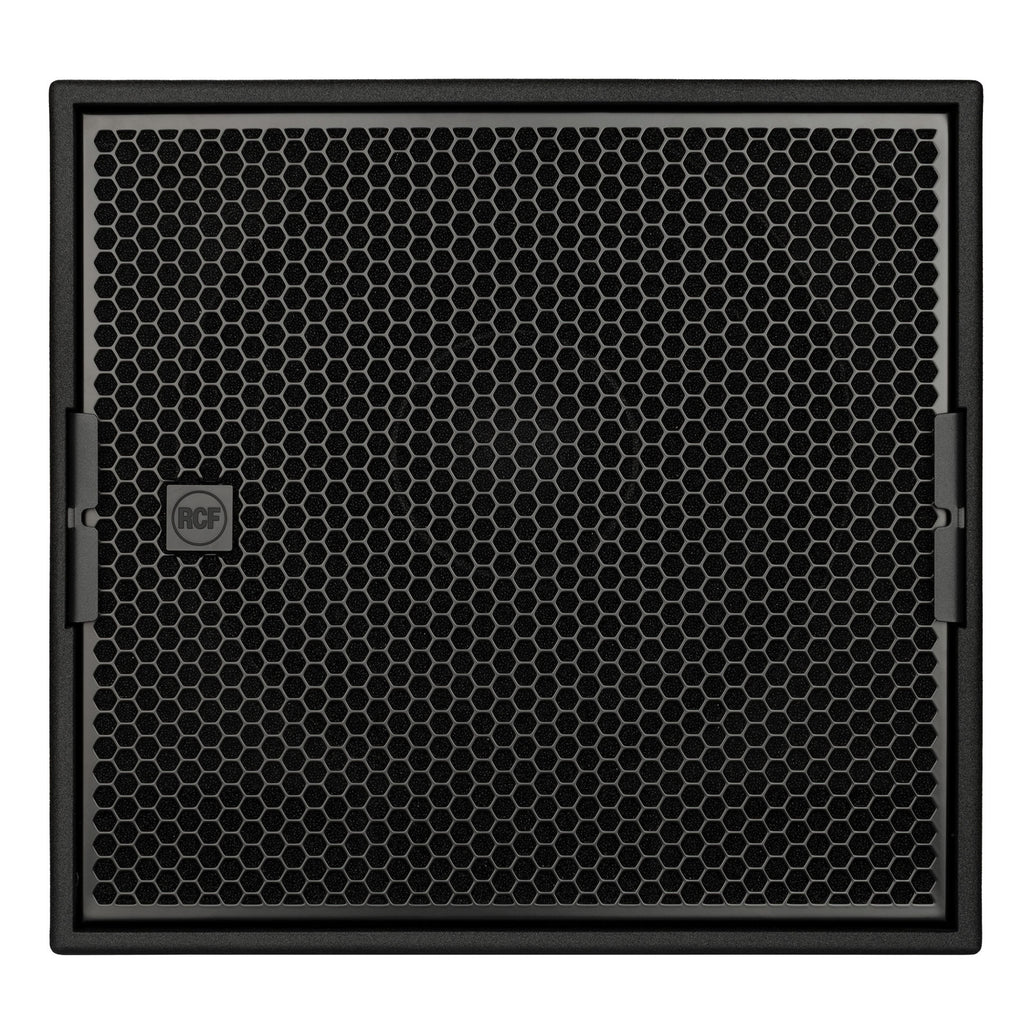

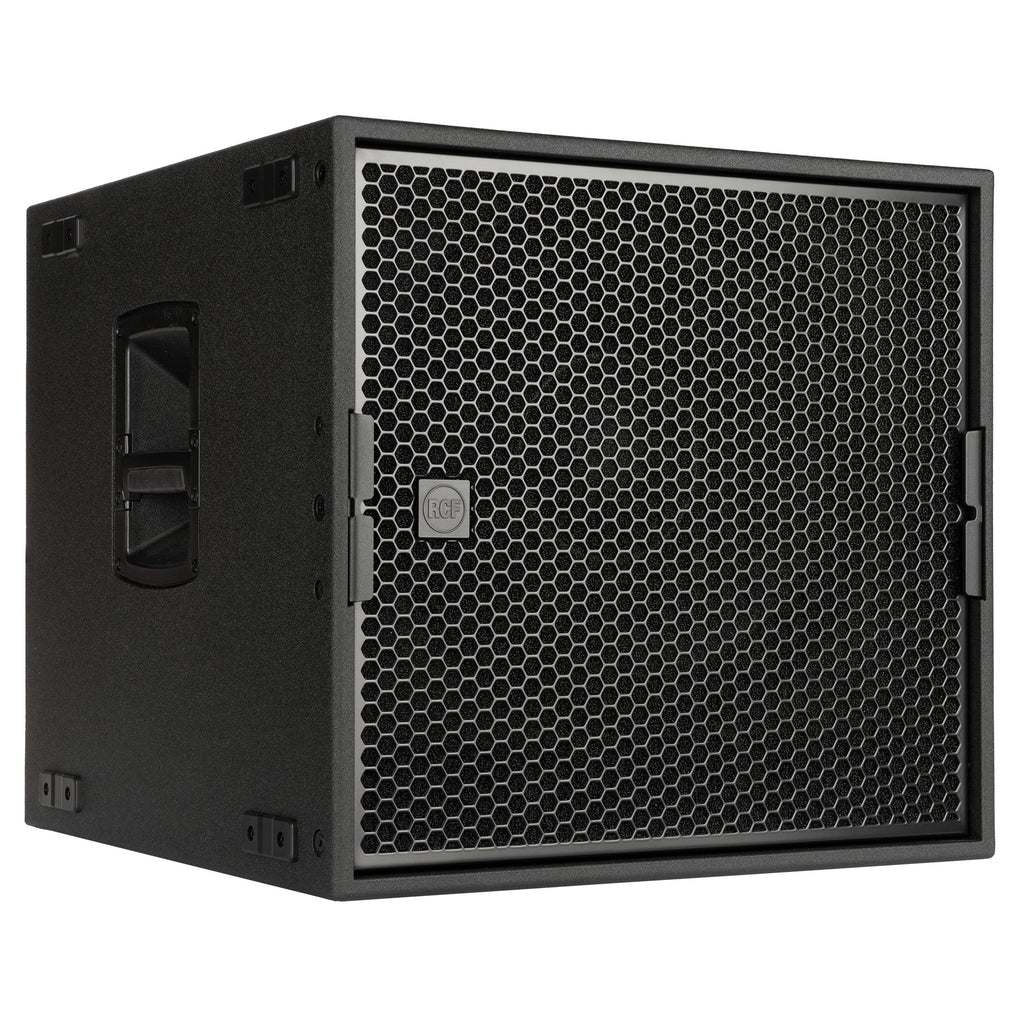

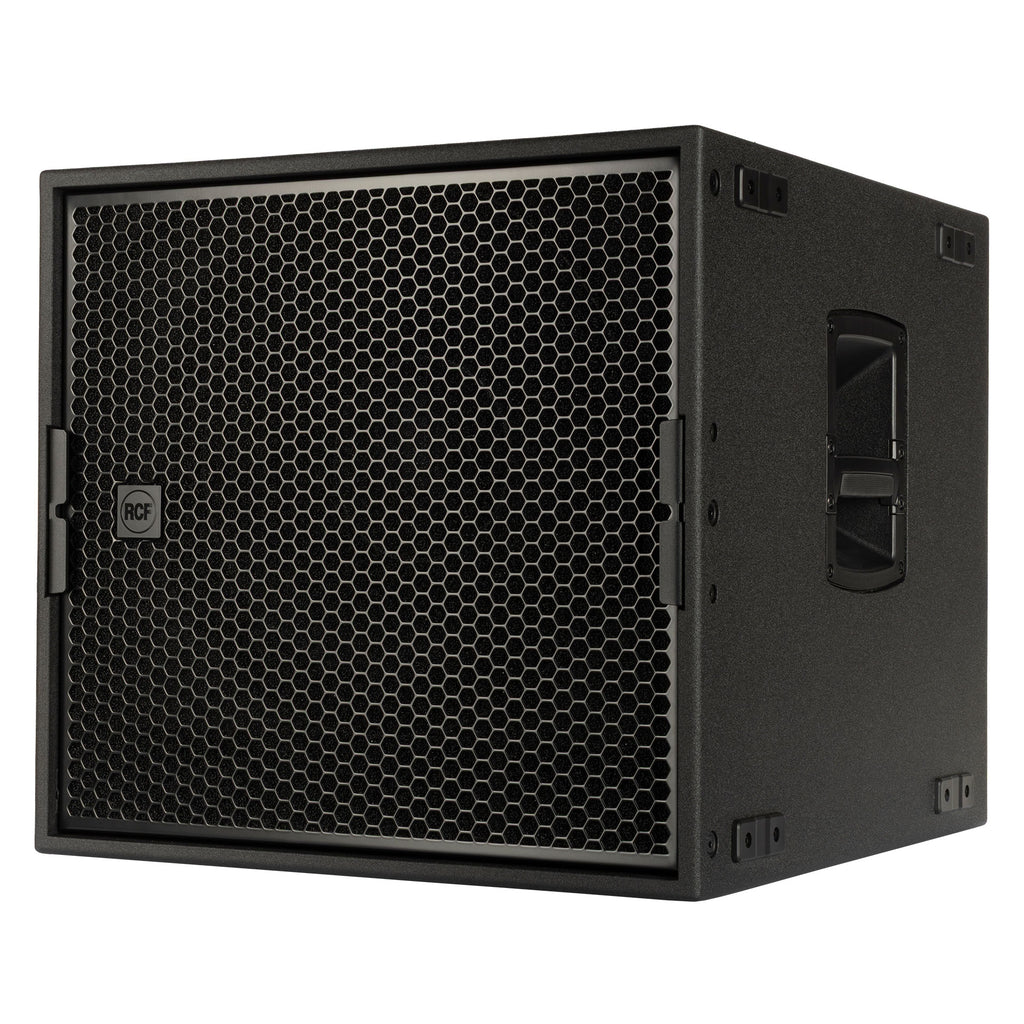

NEW | TOURING | SUB 9016-AS | HIGH POWER 16" ACTIVE SUBWOOFER | Technical Specifications | 137 dB Max SPL
Technical Specifications
| Acoustical specifications |
| Frequency Response |
30 Hz - 200 Hz |
| Max SPL @ 1m |
137 dB |
| Transducers |
| Woofer |
1 x 16'' neo, 4.0'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |

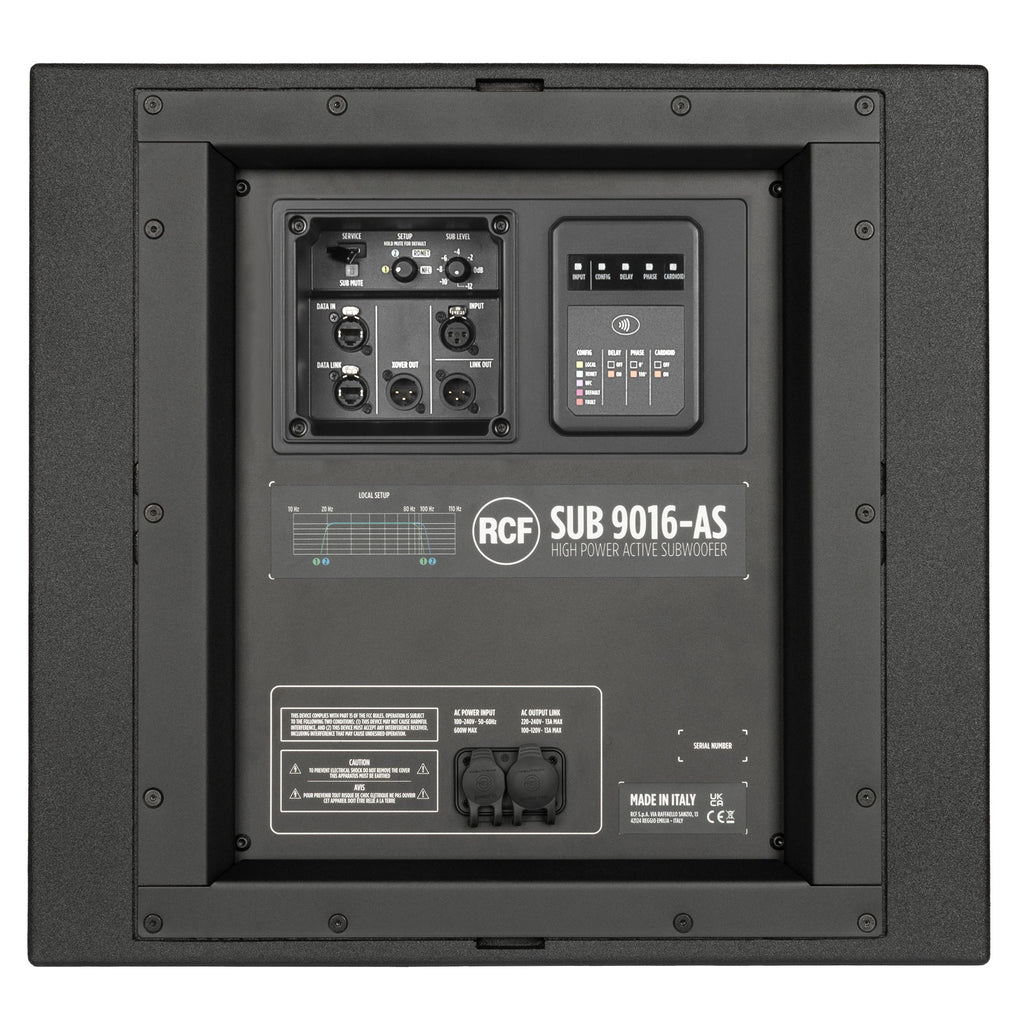

| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Protections |
Thermal |
| Limiter |
Soft Limiter |
| Controls |
| MUTE, VOL, PRESETS, RDTAP |
Onboard |
| Power section |
| Total Power |
4000 W Peak |
| Cooling |
Convection/Forced |
| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
2 x M20 pole mount accessories |

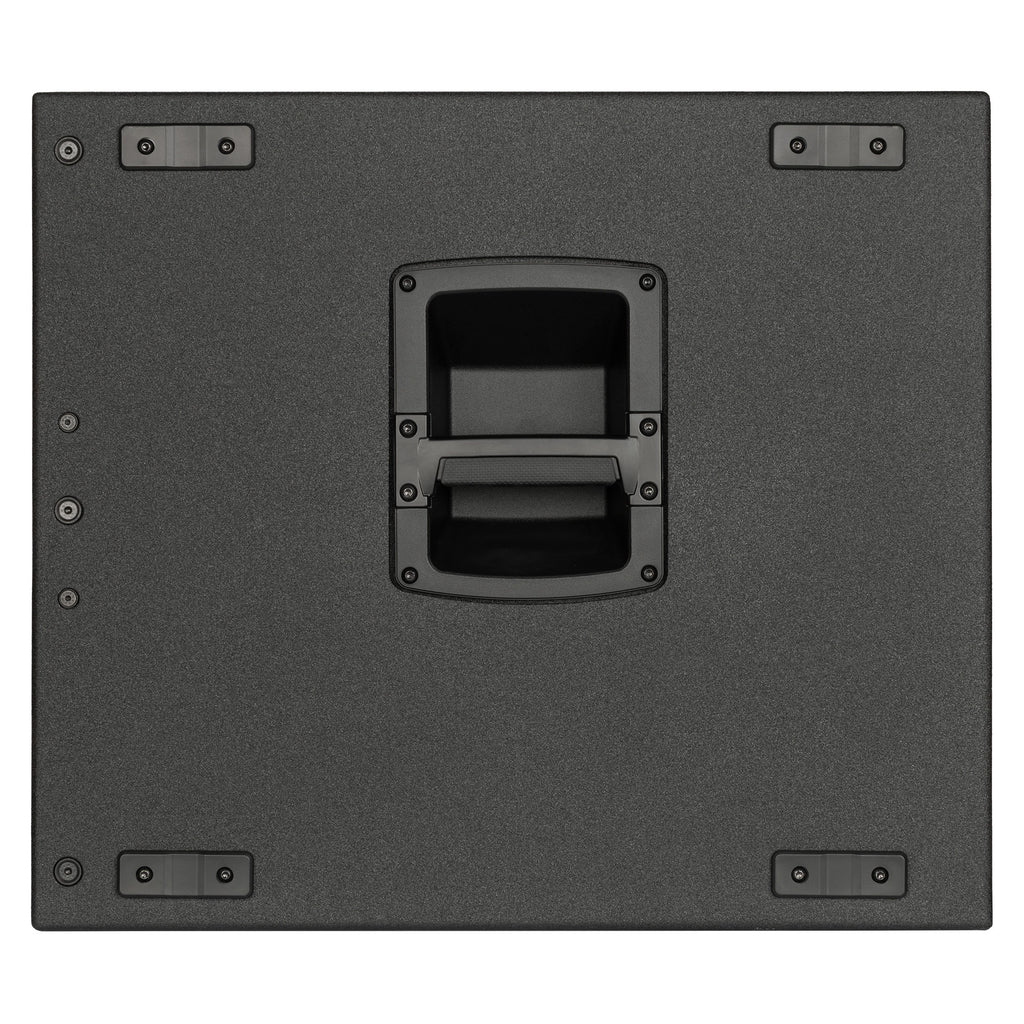

| Handles |
1 handle per side |

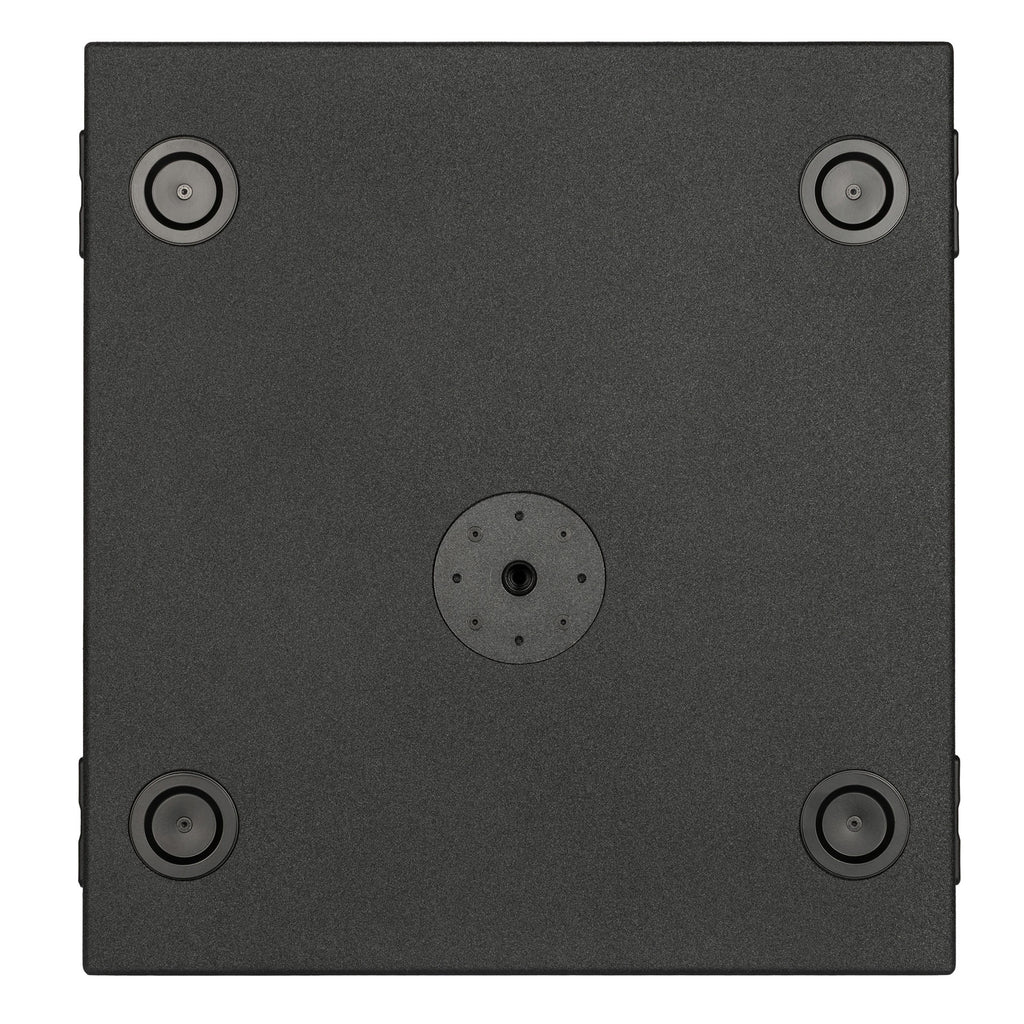

| Pole mount/Cap |
M20 thread |
| Grille |
Steel with clothing |
| Color |
Black |
| Size / Weight |
| Height |
533 mm / 20.98 inches |
| Width |
570 mm / 22.44 inches |
| Depth |
600 mm / 23.62 inches |
| Weight |
45 kg / 99.21 lbs |
| Shipping information |
| Package Height |
560 mm / 22.05 inches |
| Package Width |
595 mm / 23.43 inches |
| Package Depth |
647 mm / 25.47 inches |
| Package Weight |
50 kg / 110.23 lbs |
