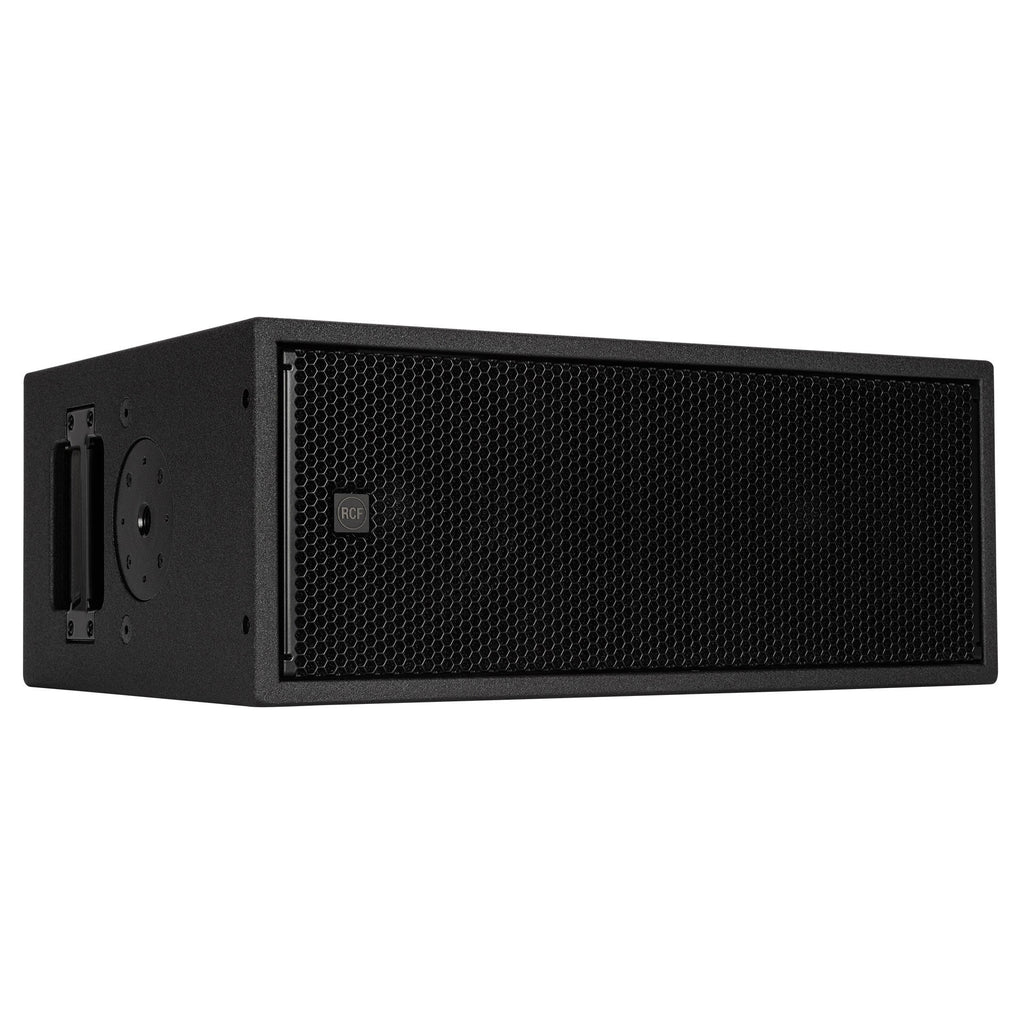

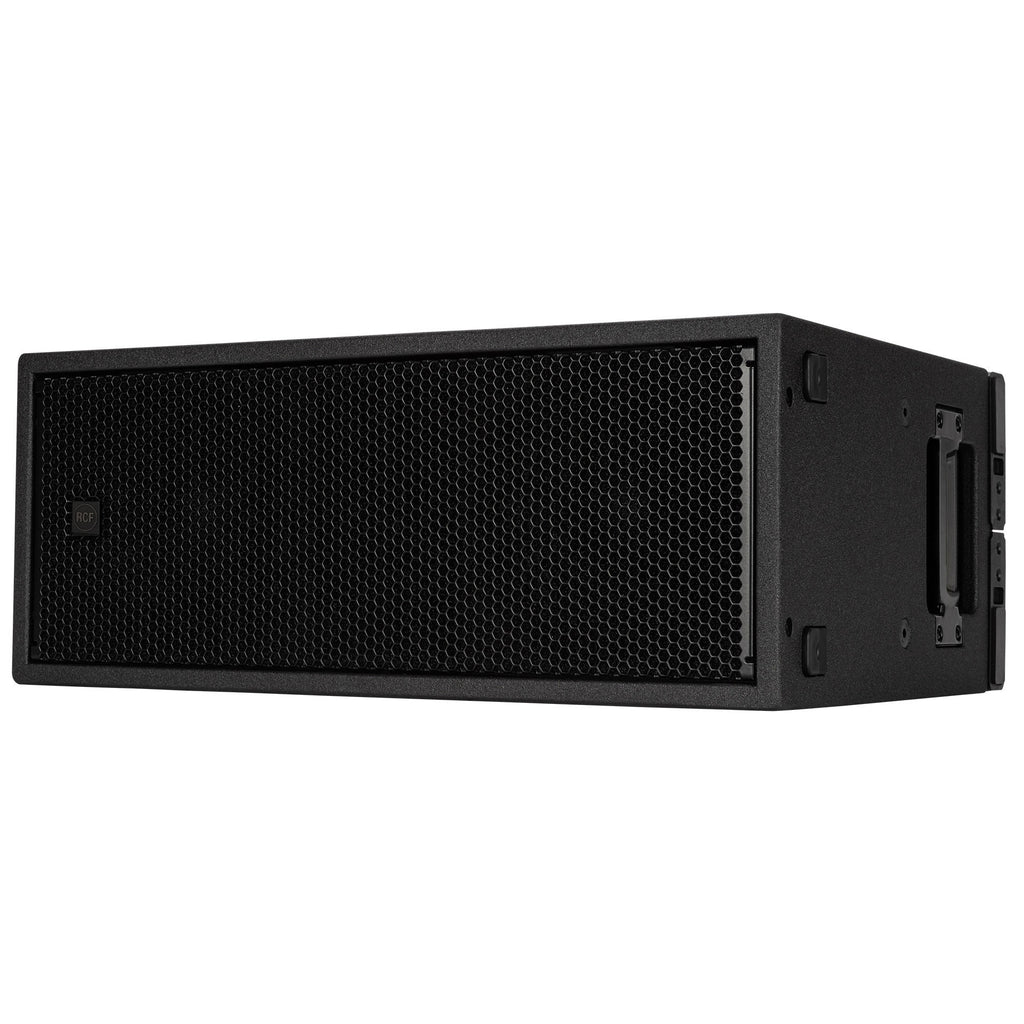

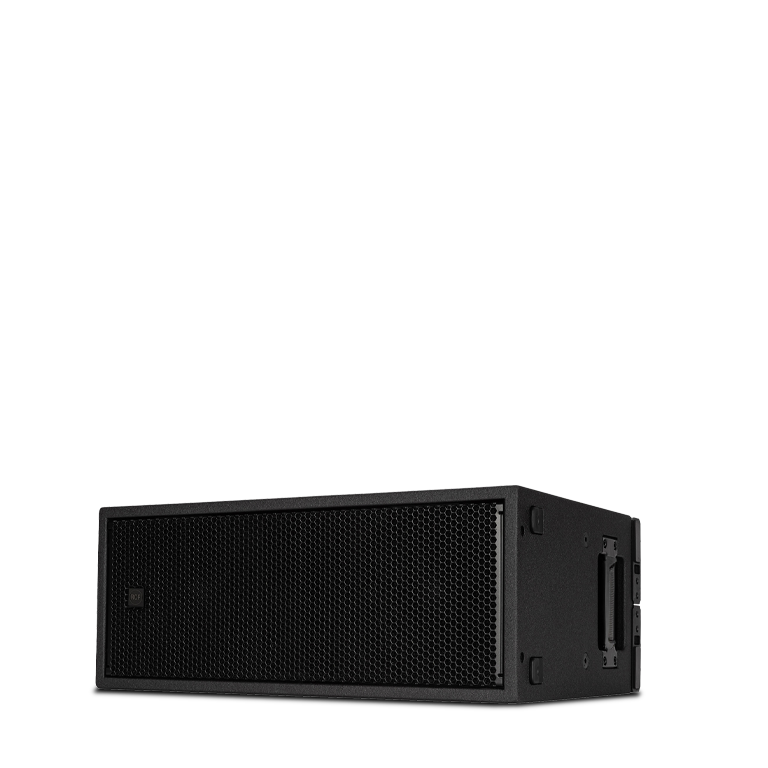

TOURING | SUB 808-AS | HIGH-PERFORMANCE ACTIVE SUBWOOFER | Technical Specifications | 129 dB max SPL | 40 Hz to 400 Hz frequency range
Technical Specifications
| Acoustical specifications |
| Frequency Response |
40 Hz - 400 Hz |
| Max SPL @ 1m |
129 dB |
| Transducers |
| Woofer |
2 x 8'' neo, 2.5'' v.c |

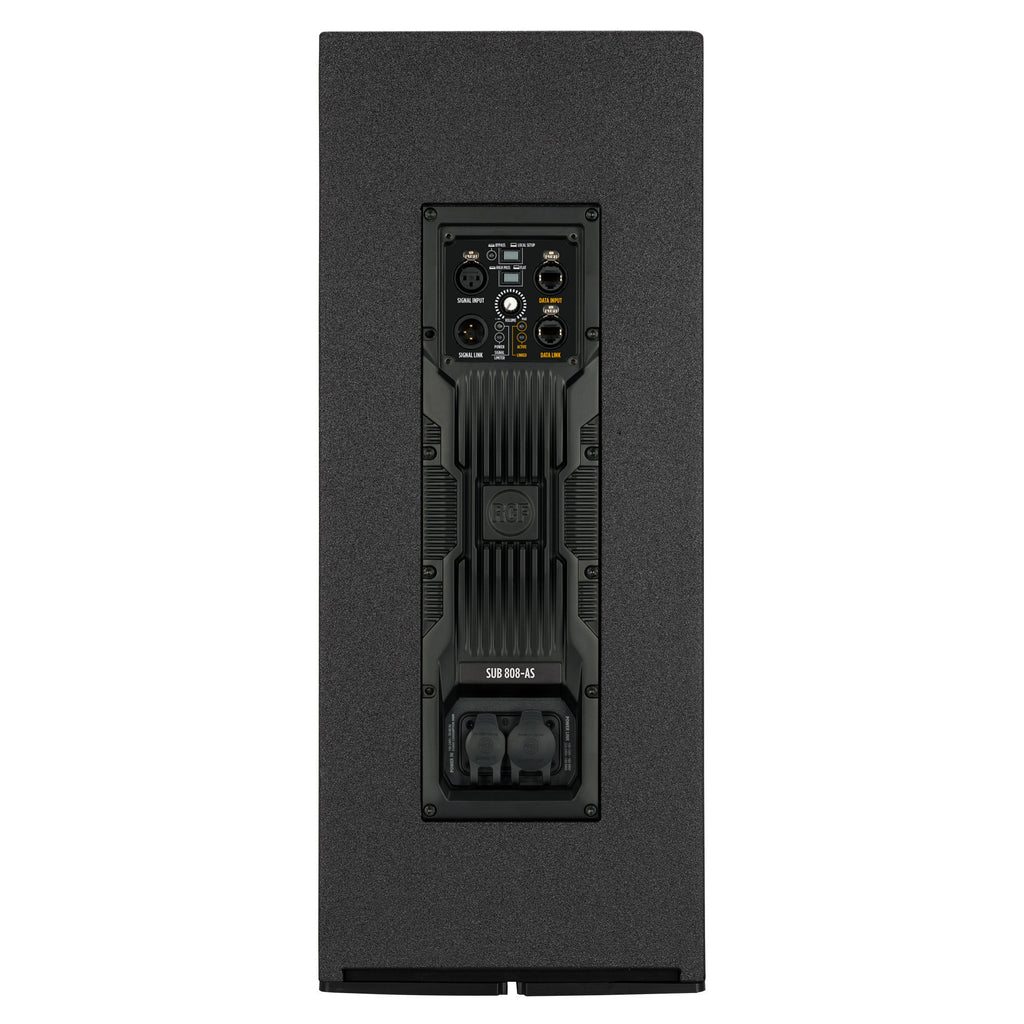

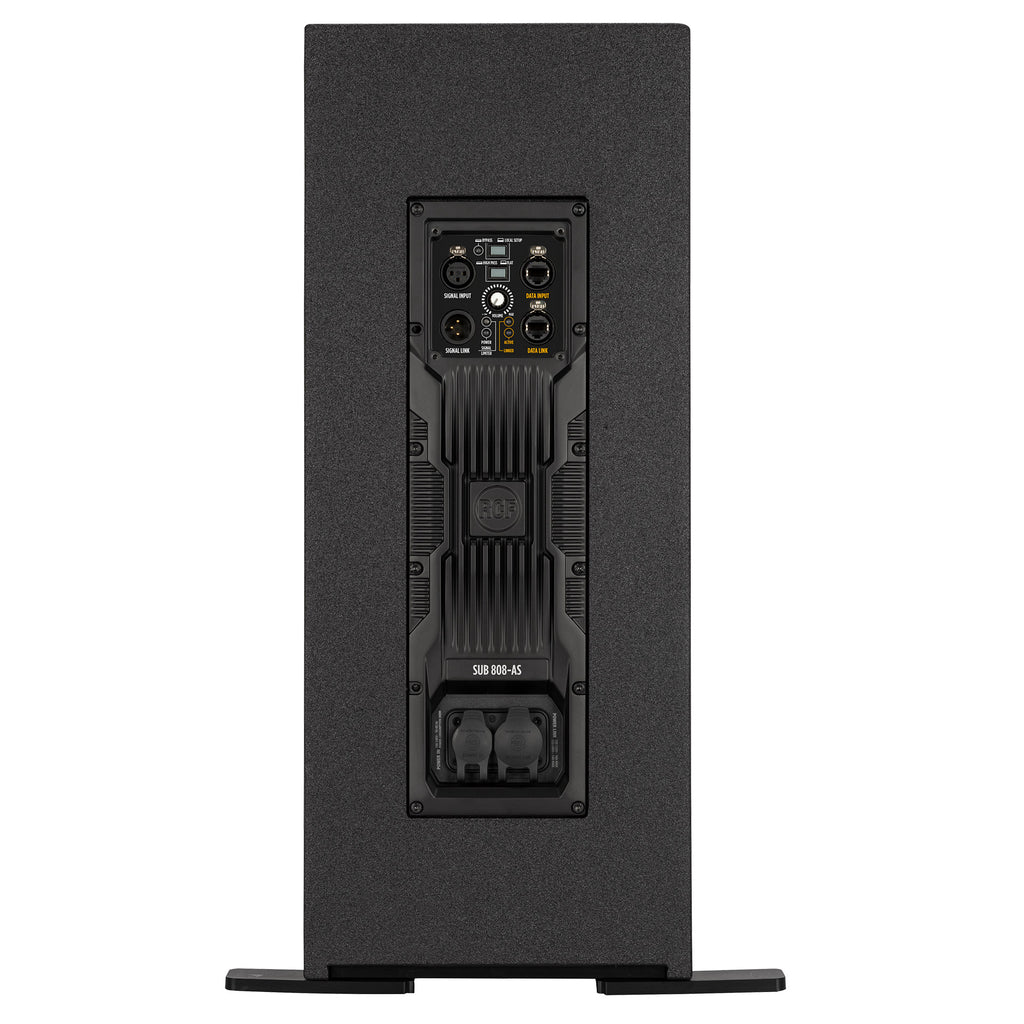

| Input/Output section |
| Input signal |
bal/unbal |

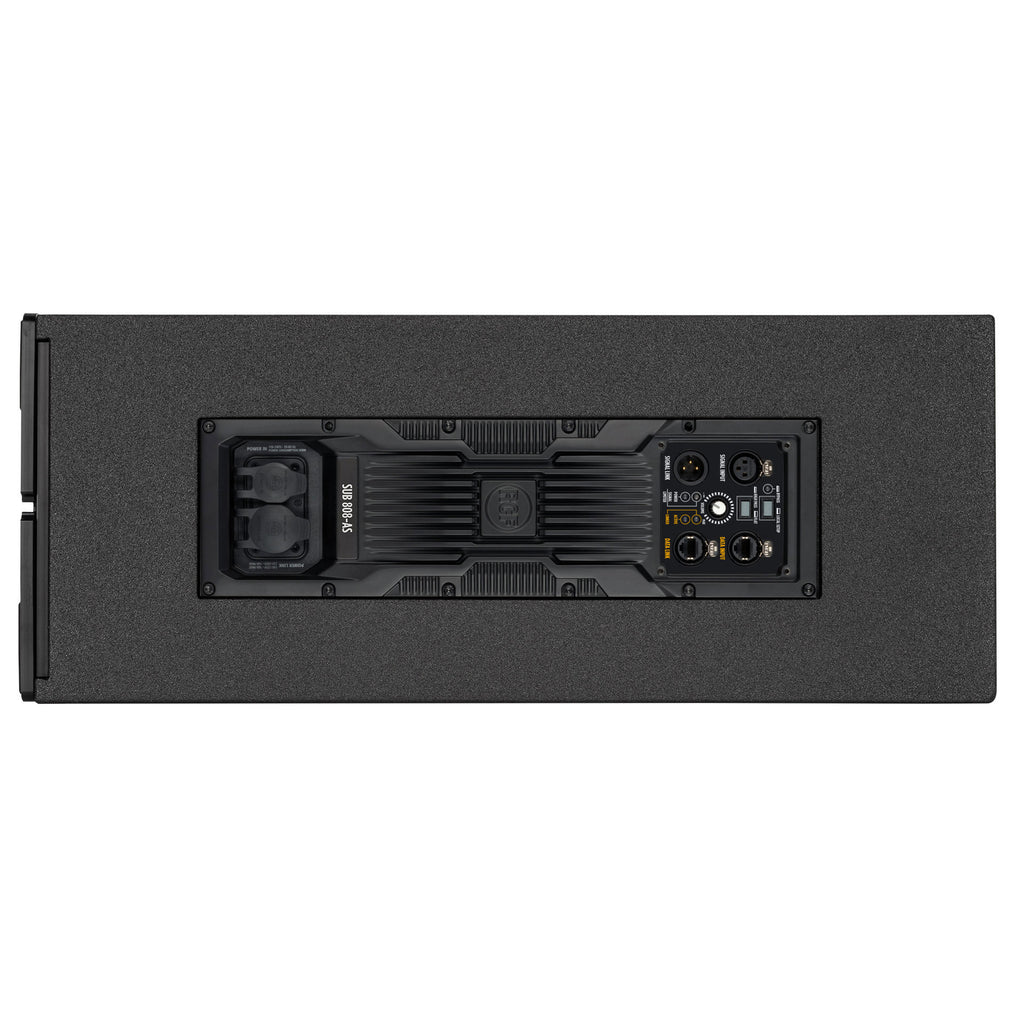

| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Protections |
Excurs. |
| Limiter |
Fast Limiter |
| Controls |
| Volume |
Onboard |
| Power section |
| Total Power |
2000 W Peak |
| Low frequencies |
Cooling |
| Convection |
| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
2X M20 TOP AND SIDE |
| 8X M10 2X SIDE |
Handles |
| 1 X SIDE |
Pole mount/Cap |
| 35 mm insert |

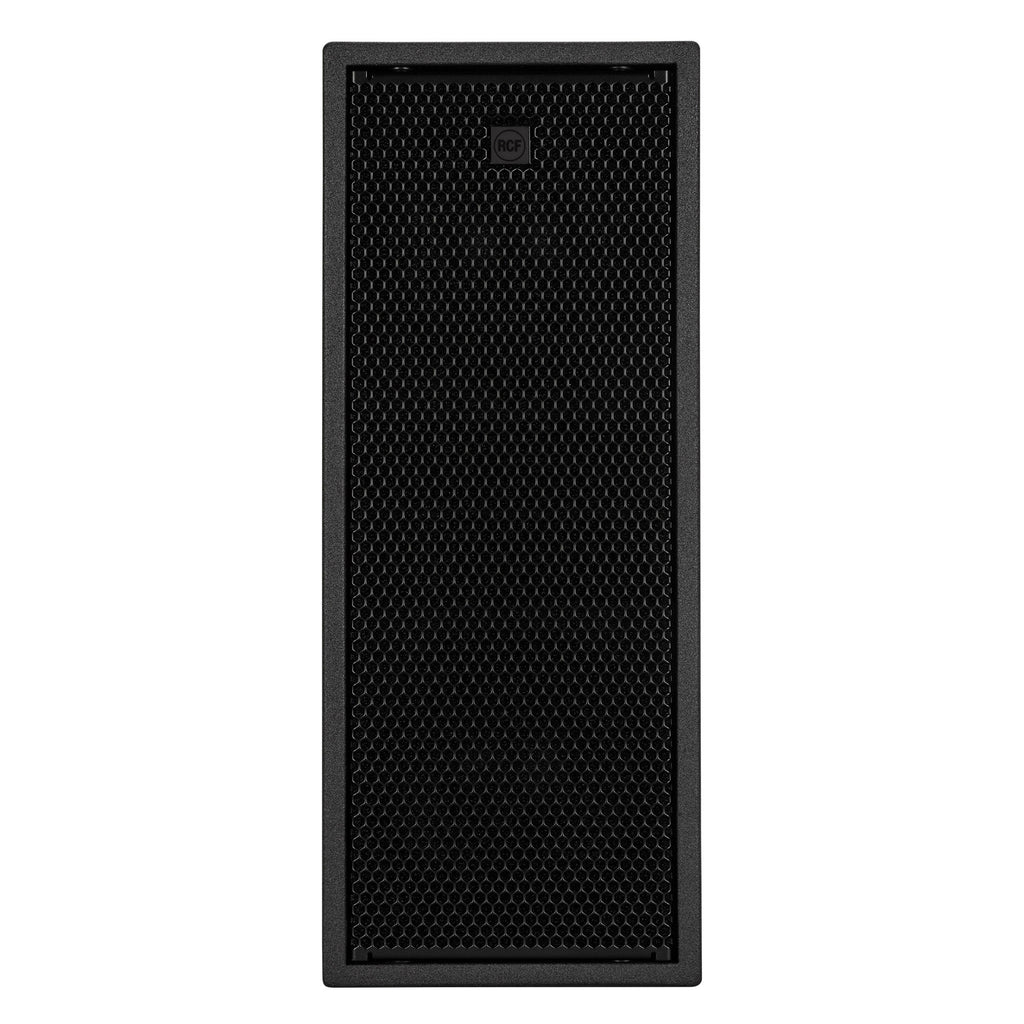

Grille |
| Steel with clothing |

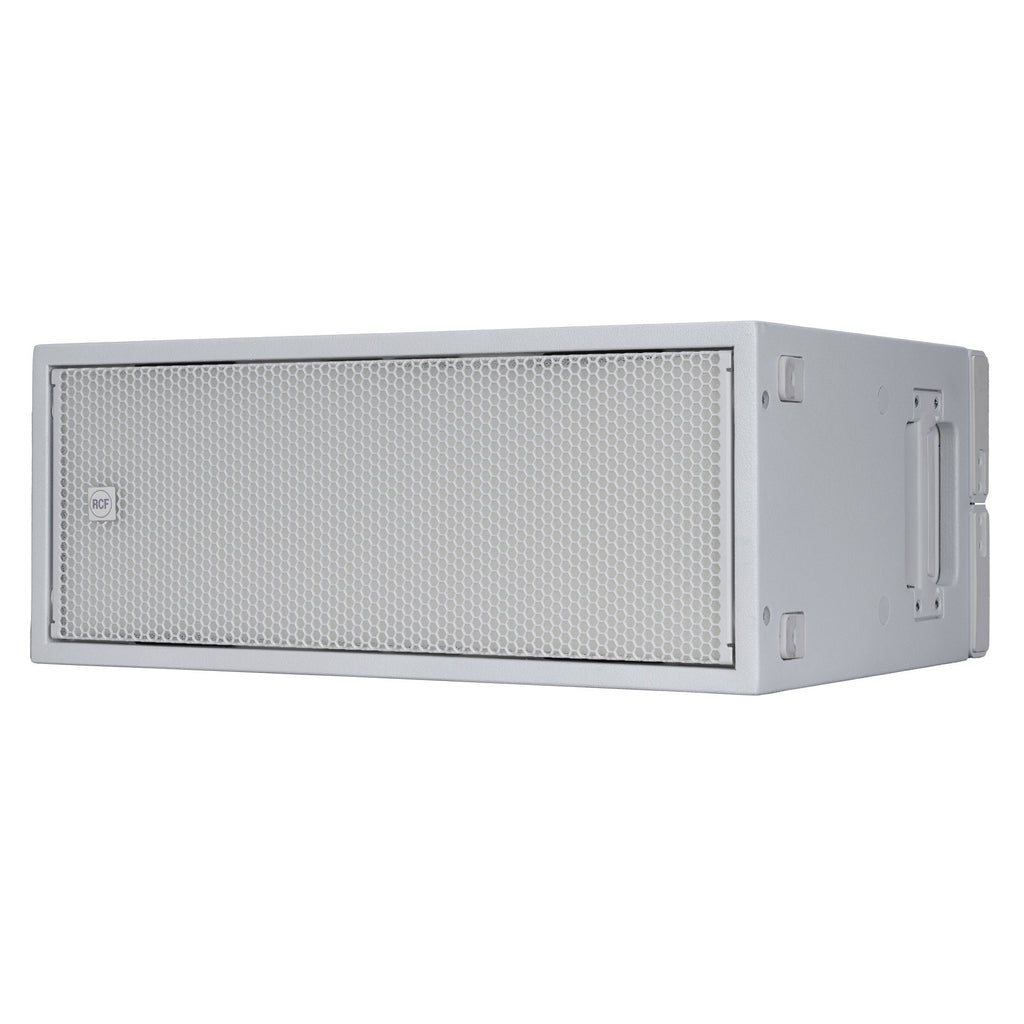

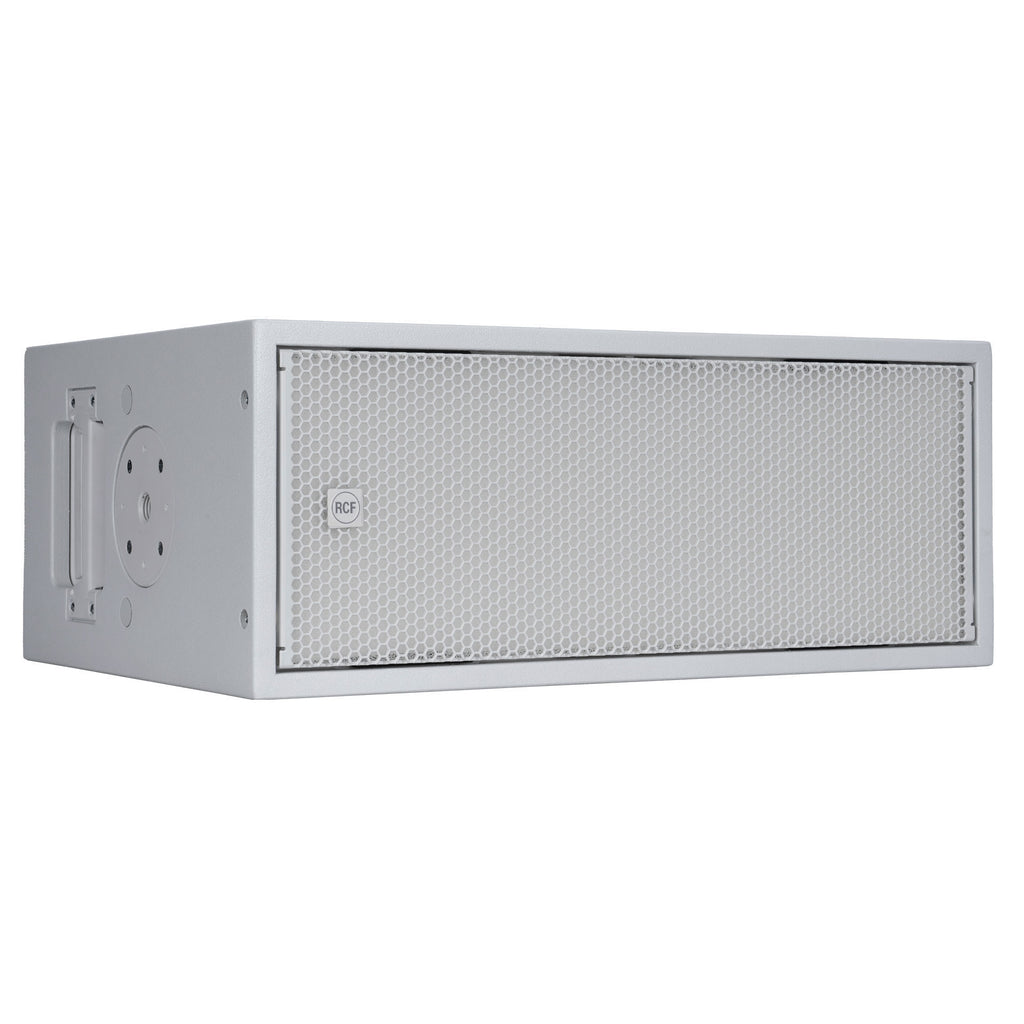

Color |
| Black, White |
| Size / Weight |
| Height |
243.5 mm / 9.59 inches |
| Width |
603.5 mm / 23.76 inches |
| Depth |
430 mm / 16.93 inches |
| Weight |
20 kg / 44.09 lbs |
| Shipping information |
| Package Height |
290 mm / 11.42 inches |
| Package Width |
480 mm / 18.9 inches |
| Package Depth |
650 mm / 25.59 inches |
| Package Weight |
21 kg / 46.3 lbs |
