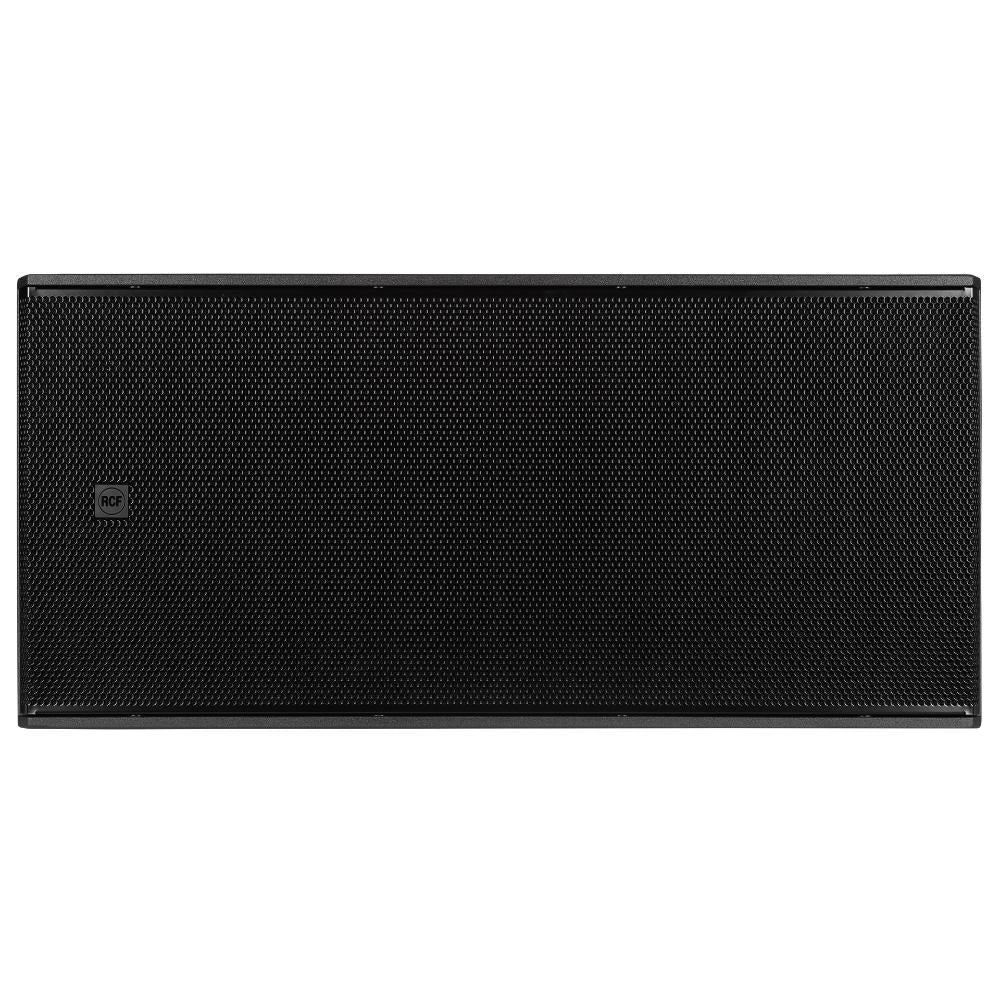

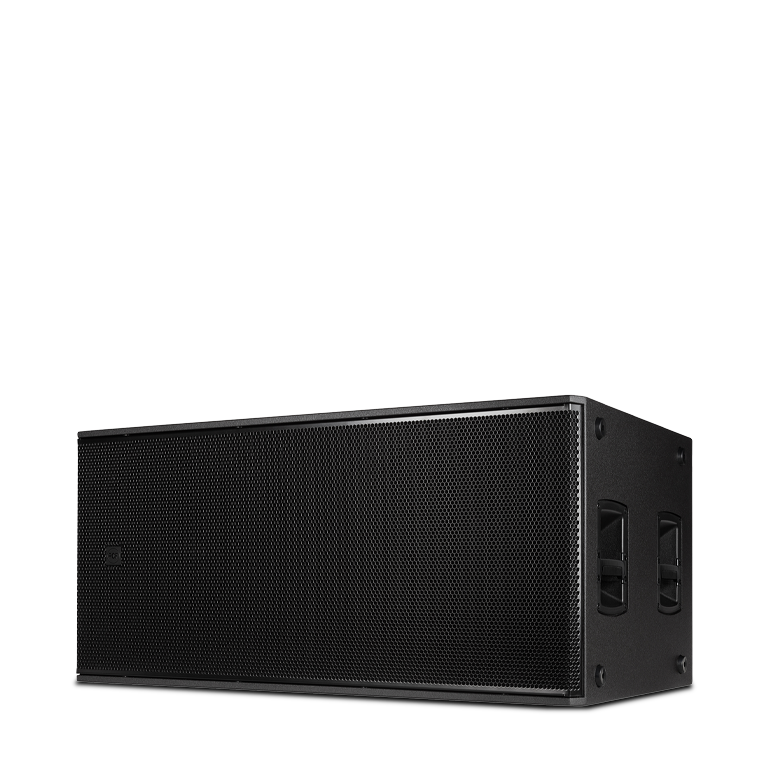

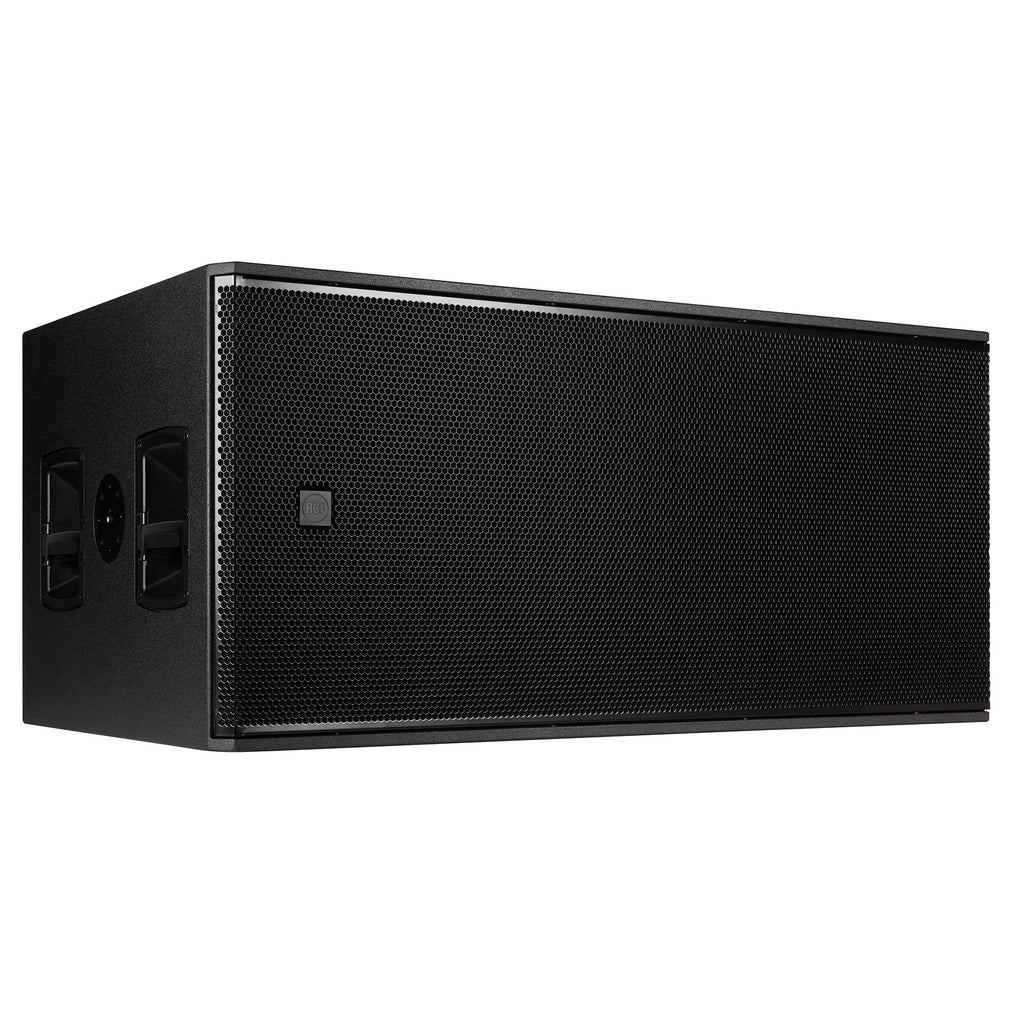

TOURING | SUB 8008-AS | PROFESSIONAL POWERED DUAL 18" SUBWOOFER | Up to 137 dB Sound Pressure Level | 4400W Class-D Bi-Amplification | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response |
30 Hz - 120 Hz |
| Max SPL @ 1m |
137 dB |
| Transducers |

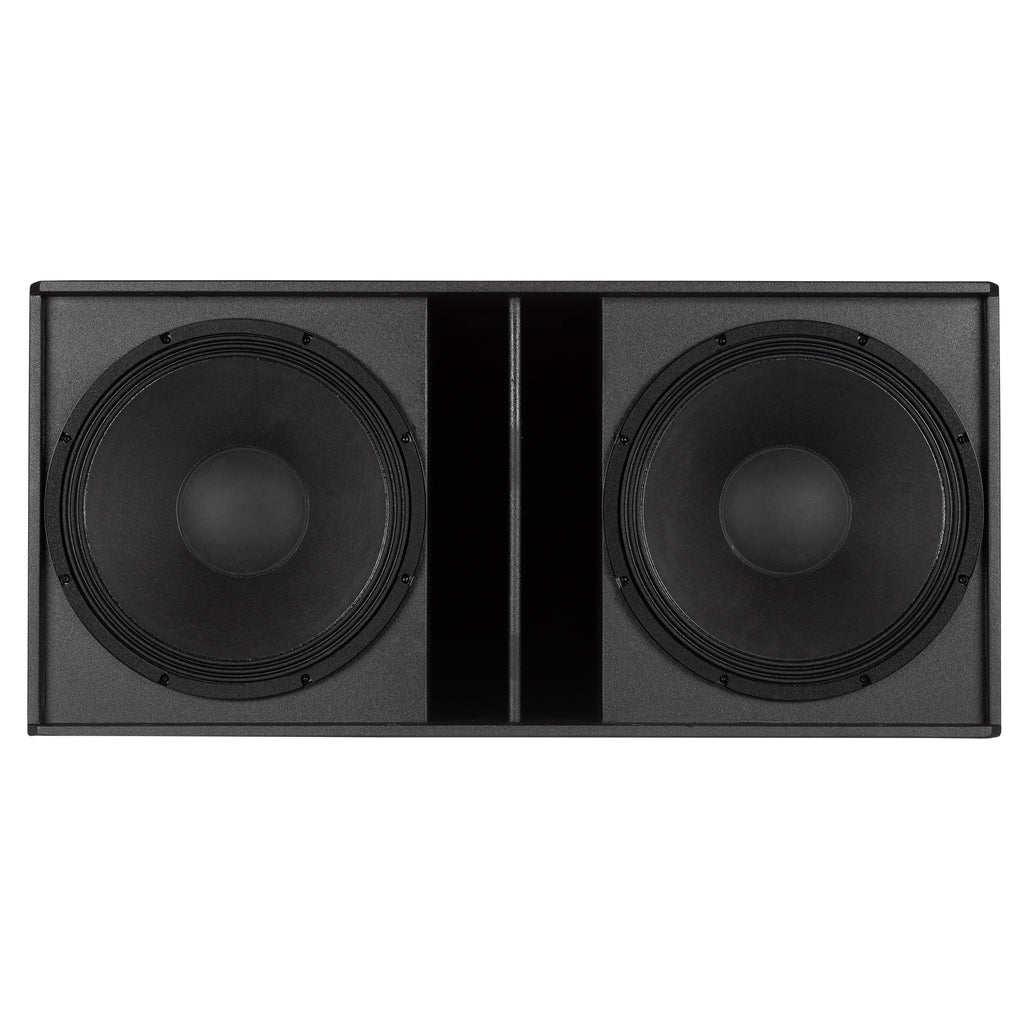

| Woofer |
2 x 18'', 4.0'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
Selectable |
| Protections |
Thermal, Excurs., RMS |
| Limiter |
Soft Limiter |
| Controls |
| Xover, Phase switch, Deep/Punch, Output Delay Setting |
| Power section |
| Total Power |
4400 W Peak |
| Low frequencies |
Cooling |
| Convection/Forced |

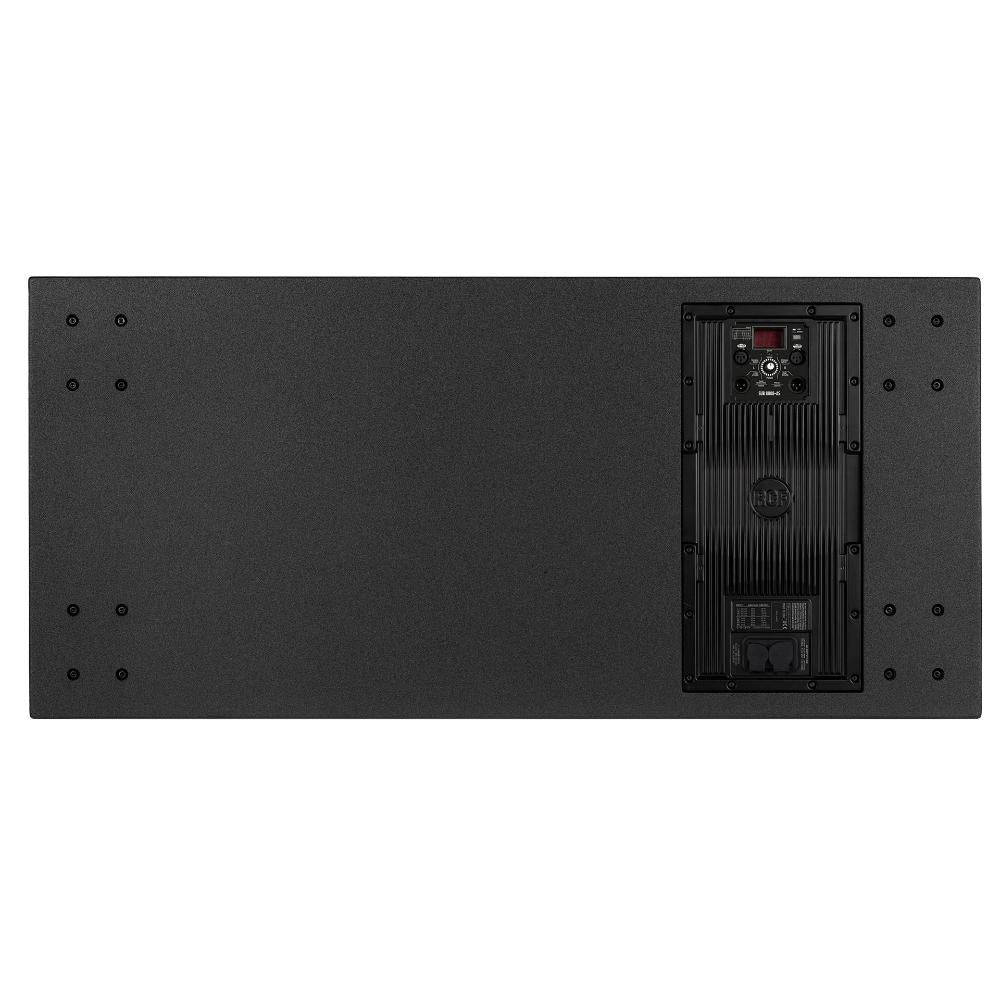

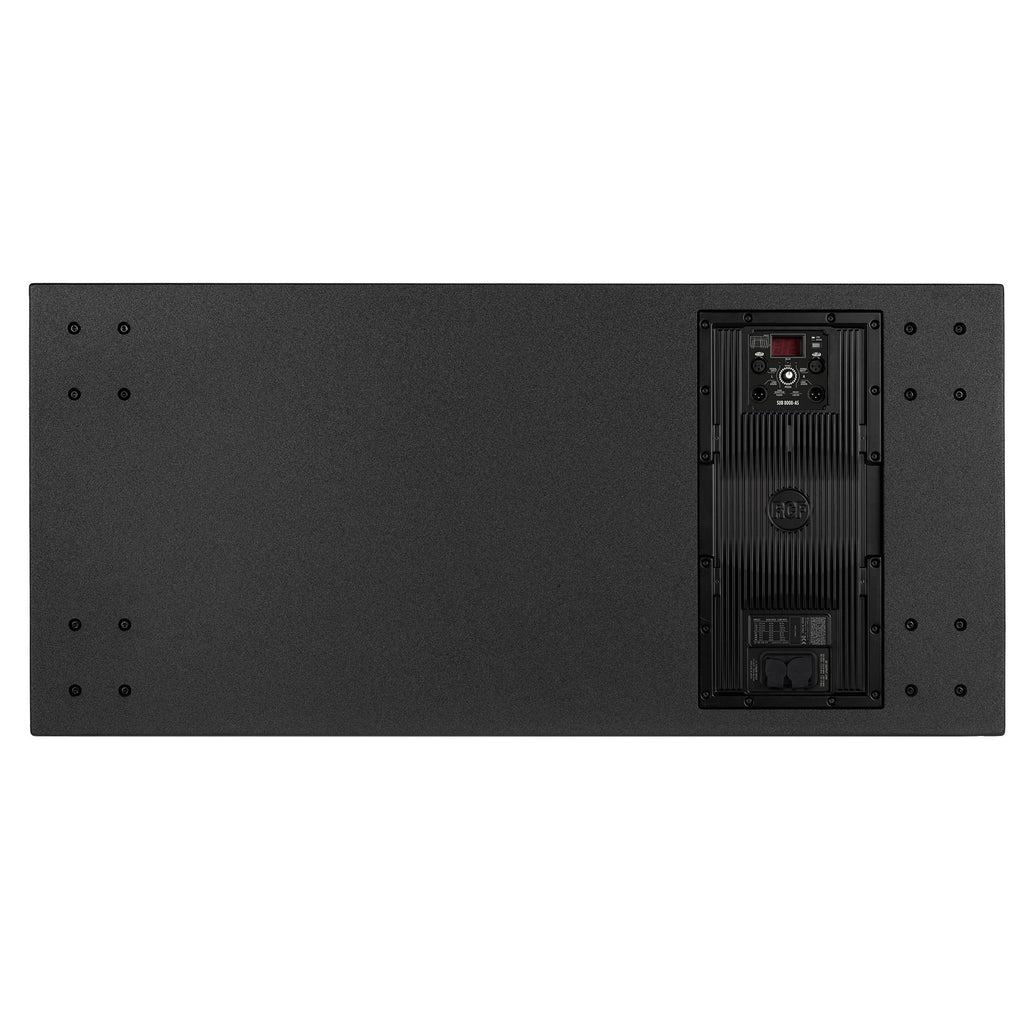

| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
2 x M20 |

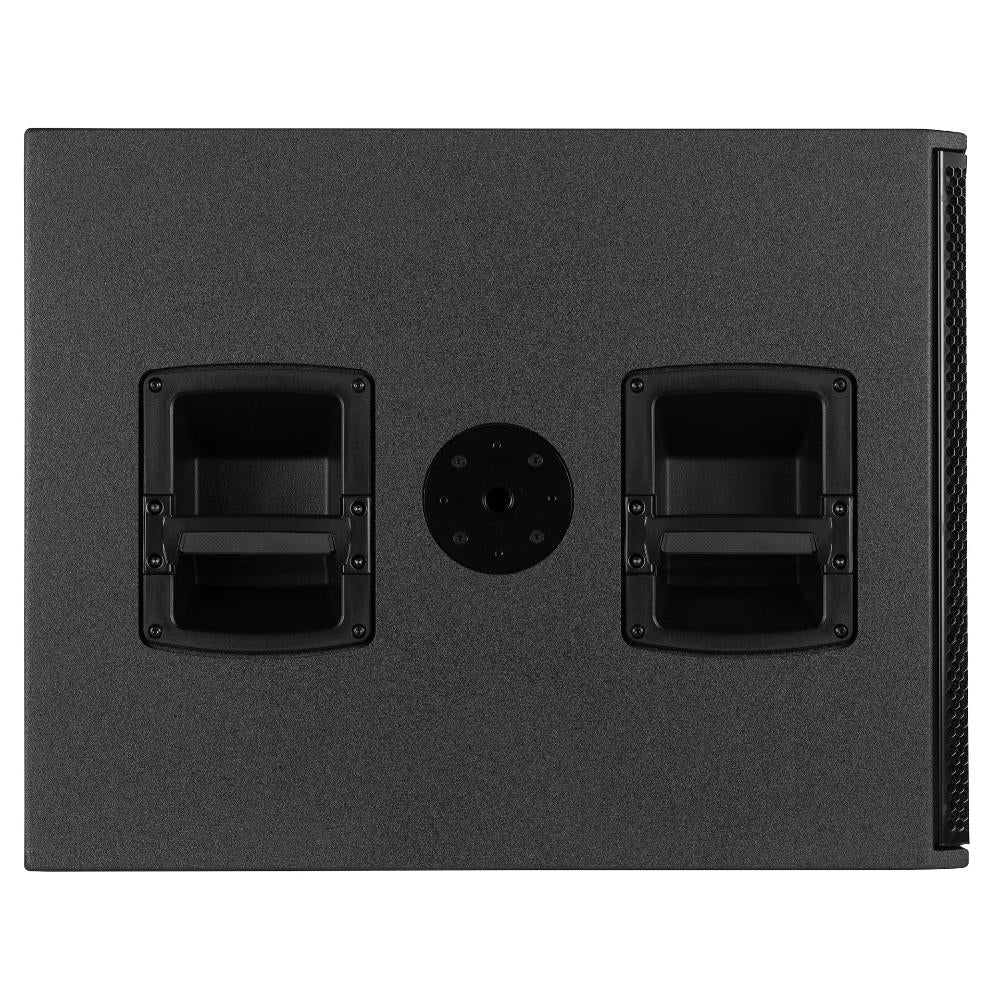

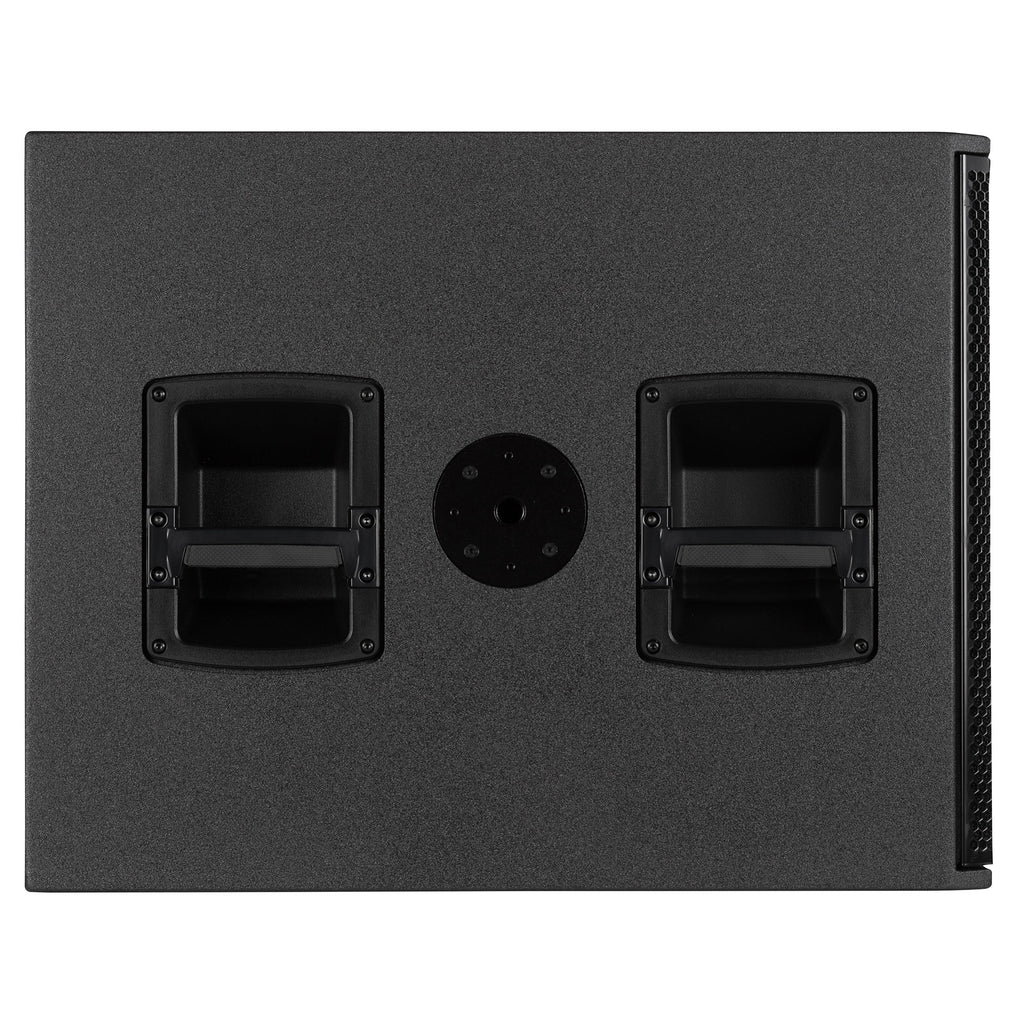

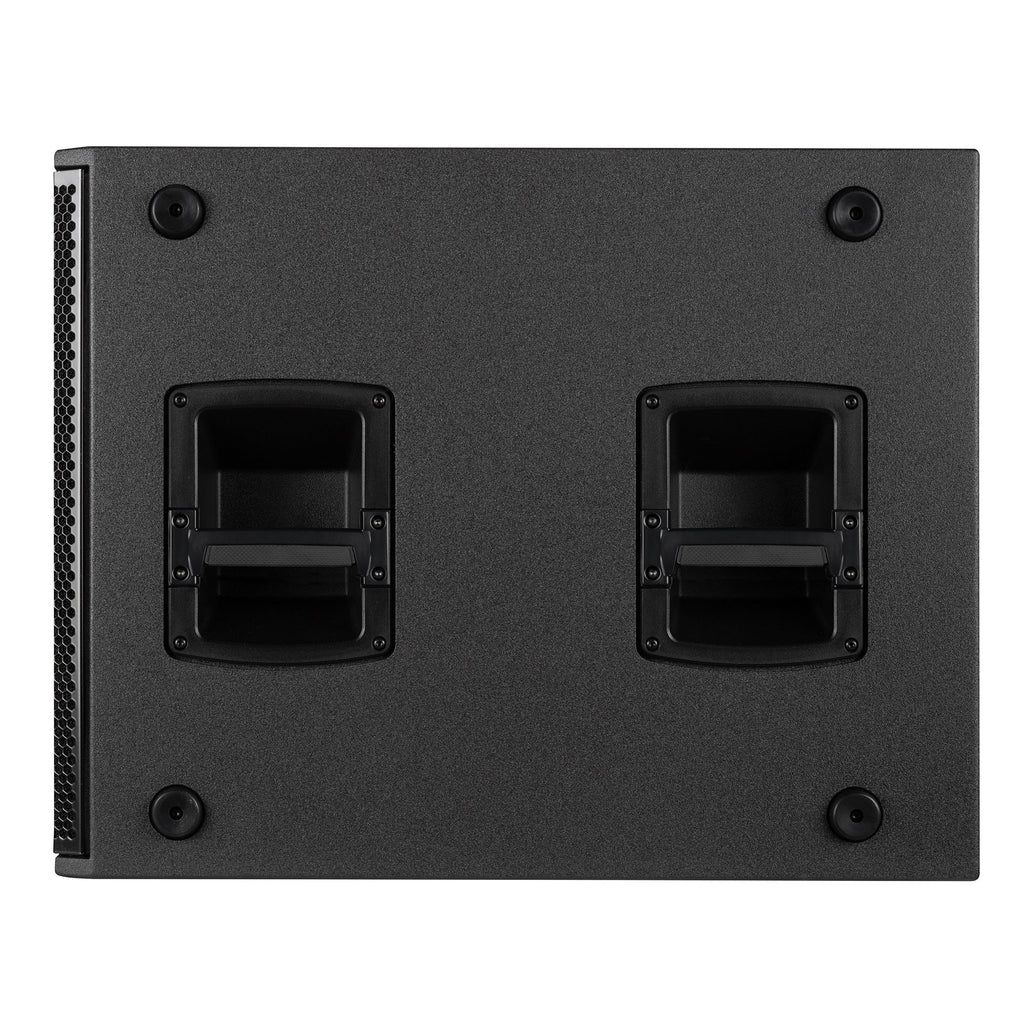

| Handles |
2 x side |

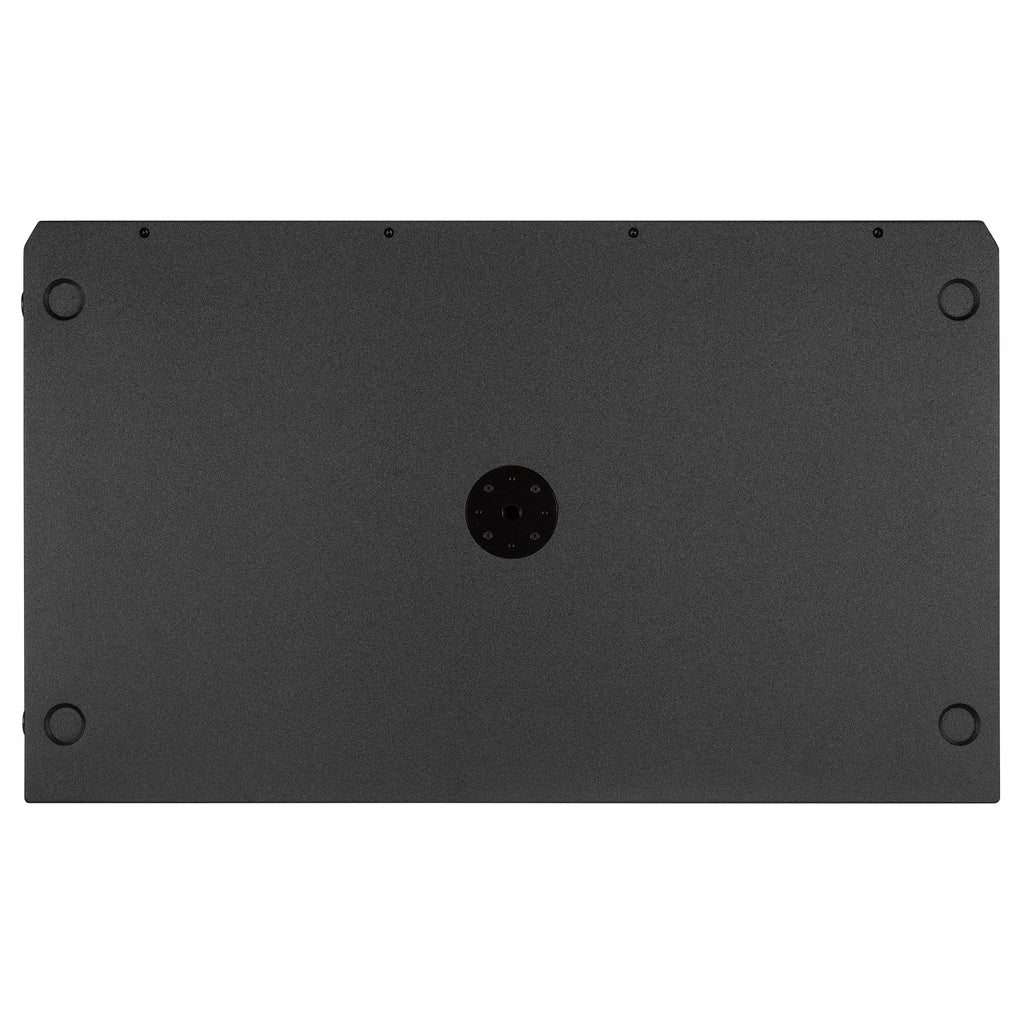

| Pole mount/Cap |
M20 thread |

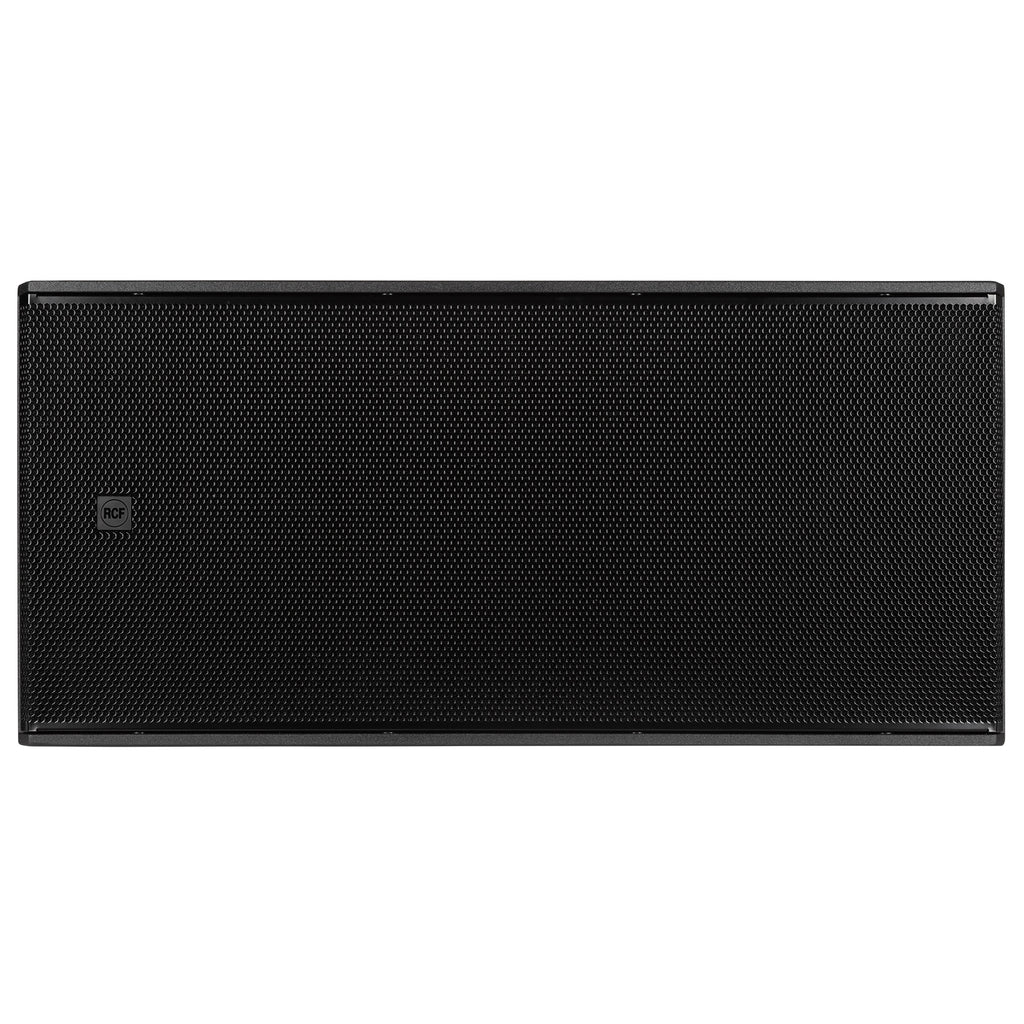

| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
550 mm / 21.65 inches |
| Width |
1180 mm / 46.46 inches |
| Depth |
700 mm / 27.56 inches |
| Weight |
80 kg / 176.37 lbs |
| Shipping information |
| Package Height |
600 mm / 23.62 inches |
| Package Width |
1370 mm / 53.94 inches |
| Package Depth |
900 mm / 35.43 inches |
| Package Weight |
86 kg / 189.6 lbs |
