Description

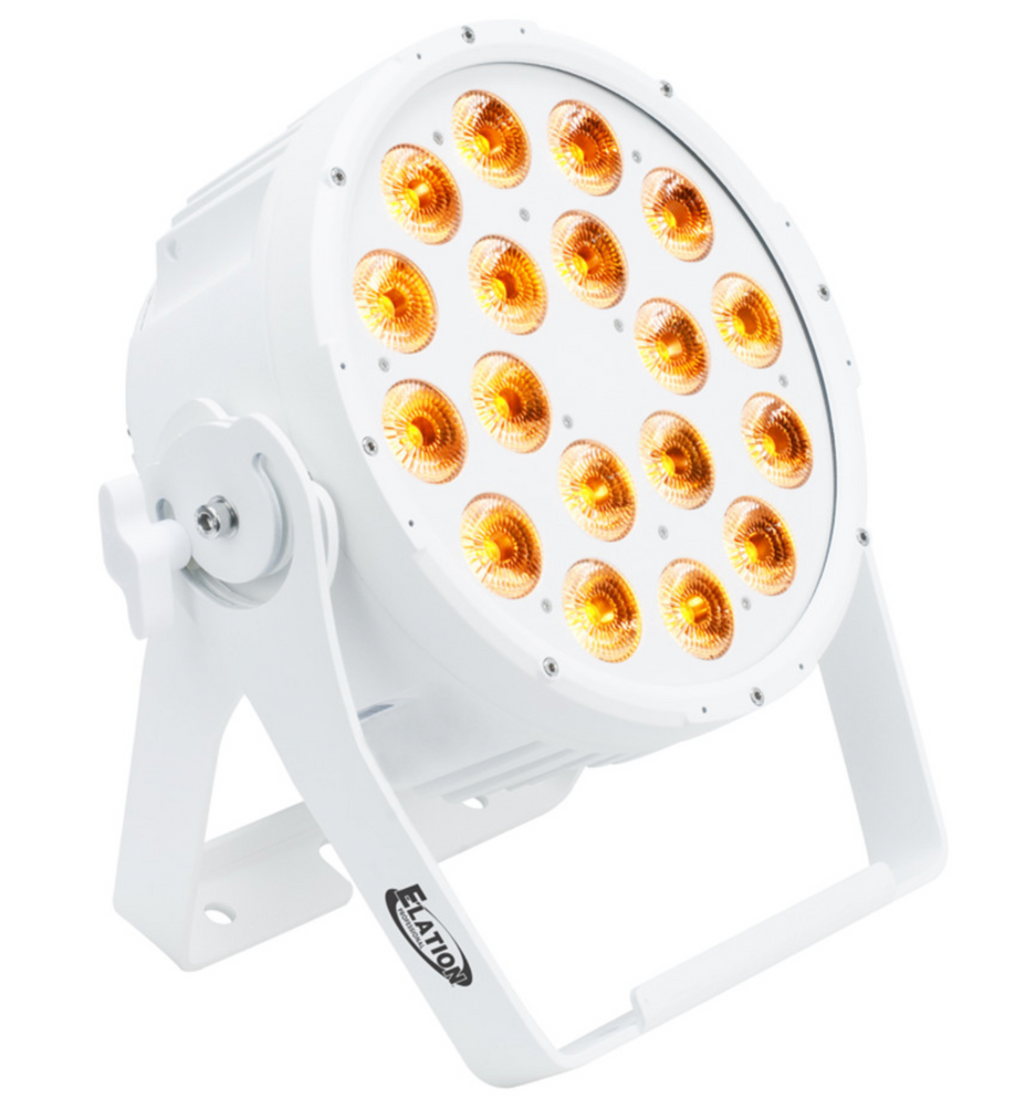

The IP65 outdoor rated SIXPAR 300WMG includes the same features as the standard SIXPAR 300IP model but with a special added White Marine Grade exterior coating designed for marine/coastal environment installations.
Featuring (18) 12W 6-in-1 RGBAW+UV LEDs producing a 23° beam angle, internal color and color chase macros, electronic strobe and variable dimming curve modes, manual and DMX-512 control, RDM (remote device management) support, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminum white marine grade coated exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
Features:
Specifications:
SOURCE
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
24,500 LUX 2,276 FC @3.3' (1m) (15° Full On)
EFFECTS
Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros
CONTROL / CONNECTIONS
Manual and DMX-512 Control
(4) DMX Channel Modes (6 / 7 / 8 / 12)

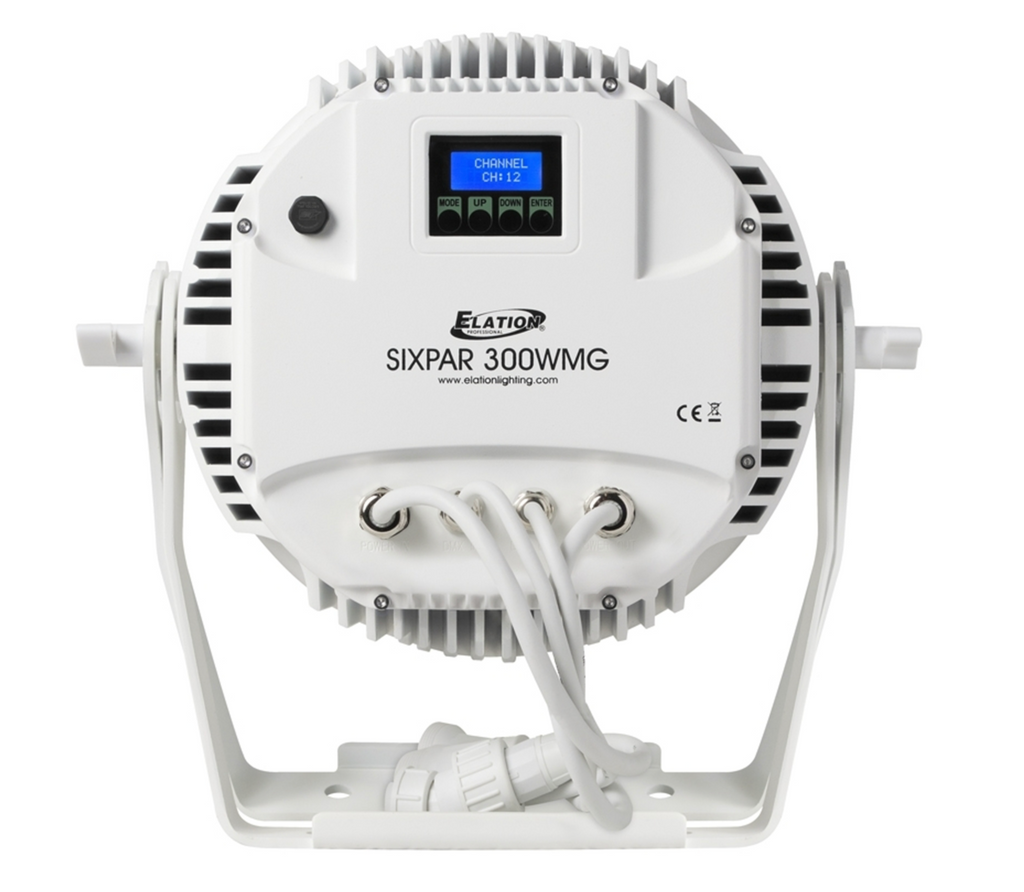

(4) Button Touch LCD Menu Display
Proprietary IP Rated 3pin DMX In/Out Cables Attached
Proprietary IP Rated 3pin Power In/Out Cable Attached
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.4” (365mm)
Width: 4.9” (125mm)
Vertical Height: 14.4” (365mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
220W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS

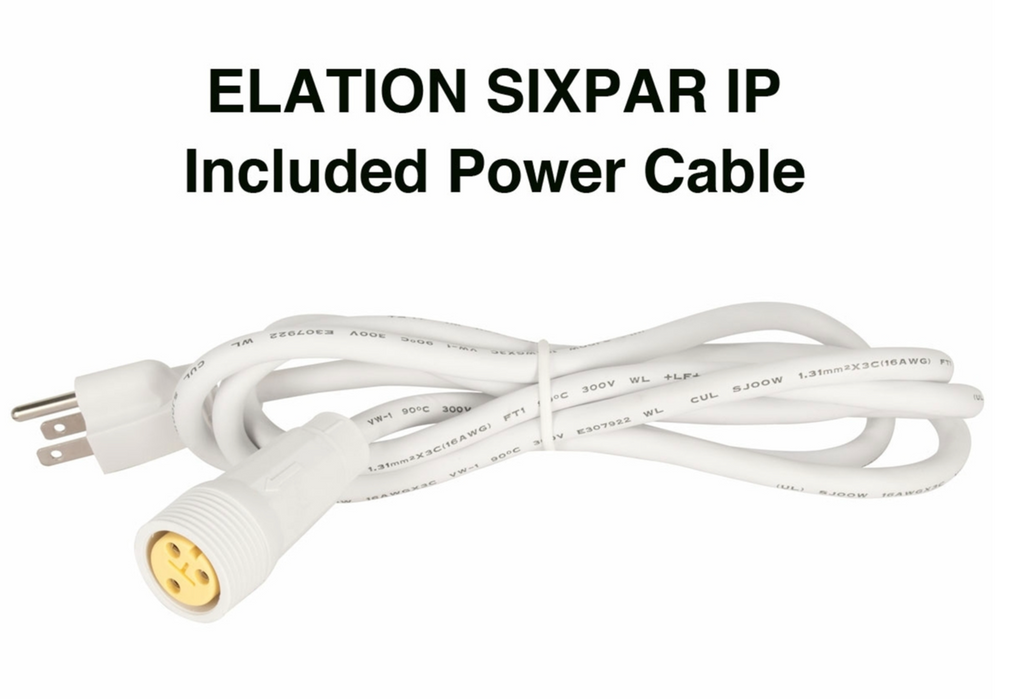

Male Edison to IP Female Power White Cable 6.6 ft. (2m)

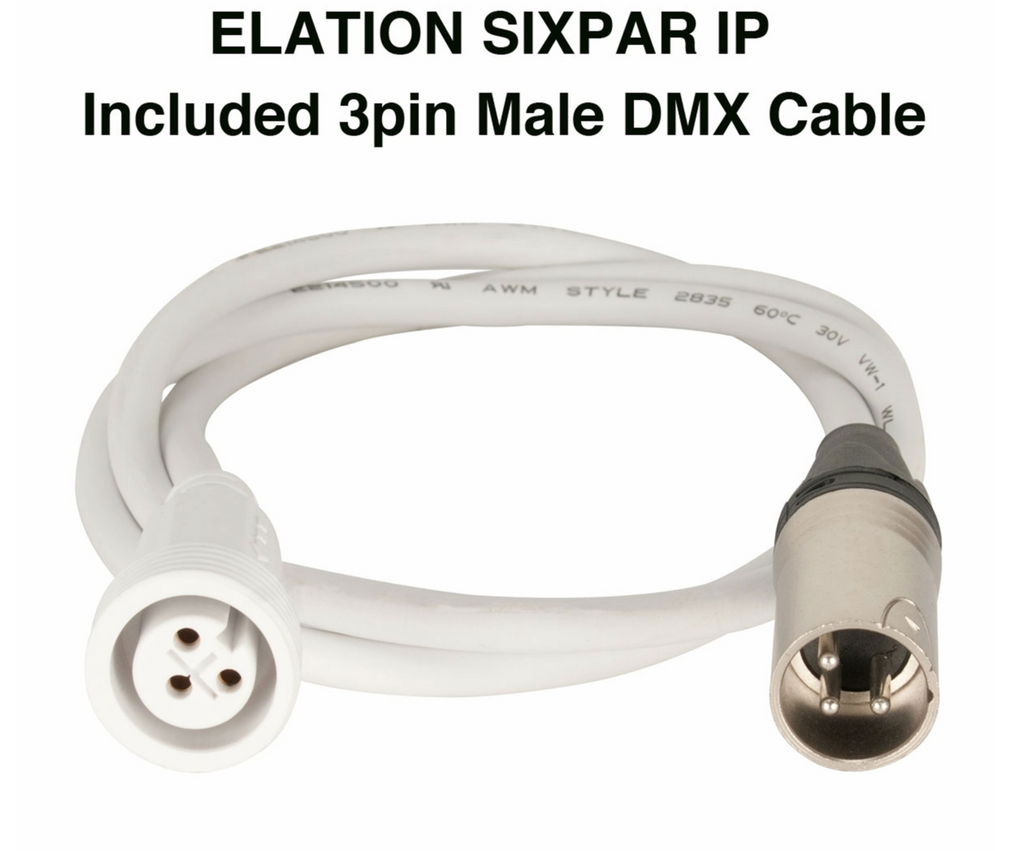

Male 3pin XLR to IP Female DMX Input White Cable 3.3 ft (1m)

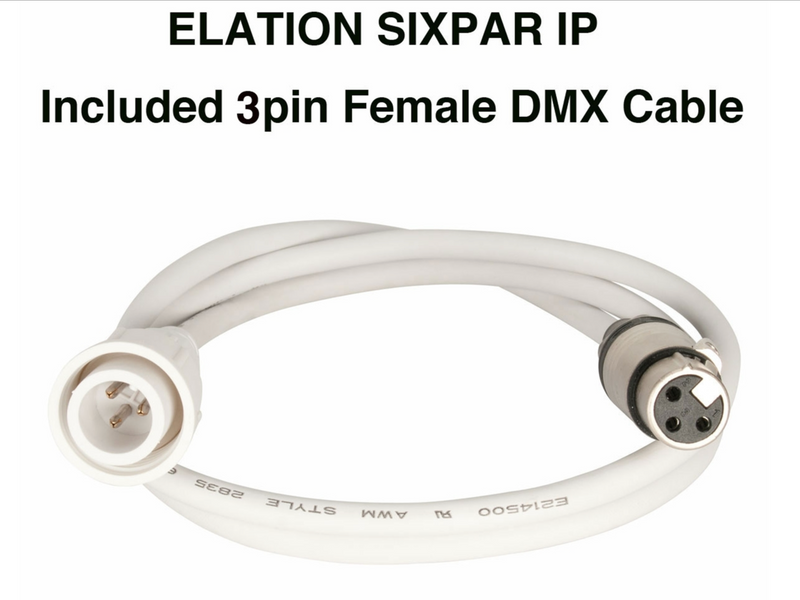

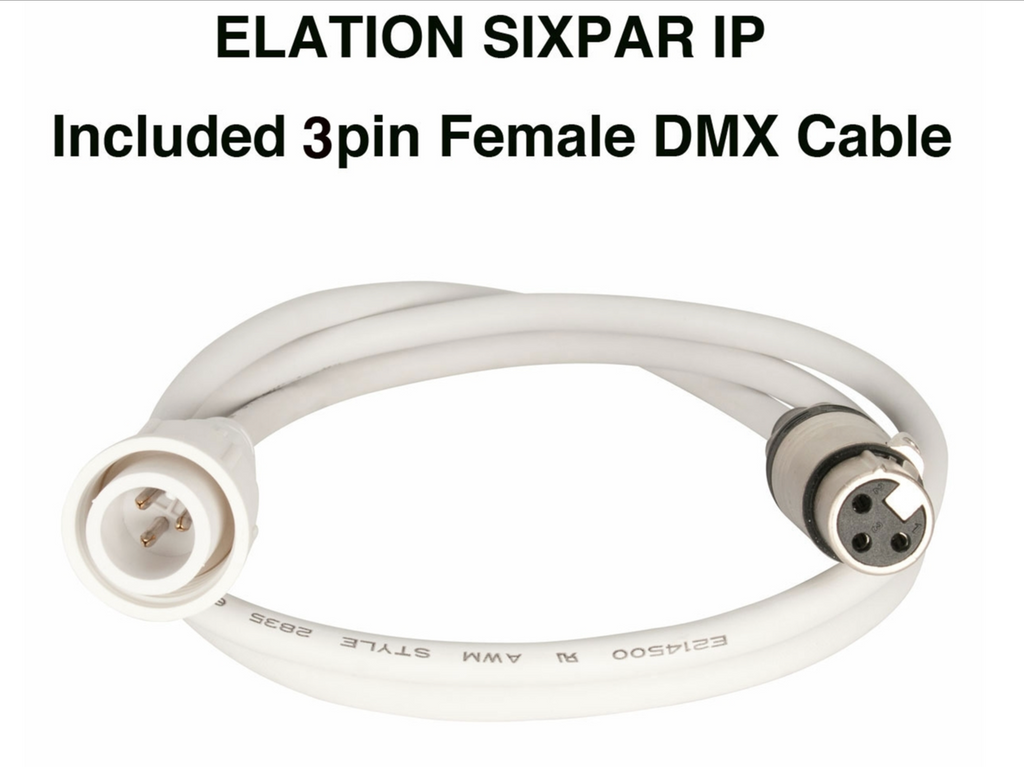

Female 3pin XLR to IP Male DMX Output White Cable 3.3 ft (1m)
Specifications and documentation subject to change without notice.
Featuring (18) 12W 6-in-1 RGBAW+UV LEDs producing a 23° beam angle, internal color and color chase macros, electronic strobe and variable dimming curve modes, manual and DMX-512 control, RDM (remote device management) support, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminum white marine grade coated exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
Features:
- IP65 Outdoor Rated Par Luminaire
- Special White Marine Grade Exterior Coating

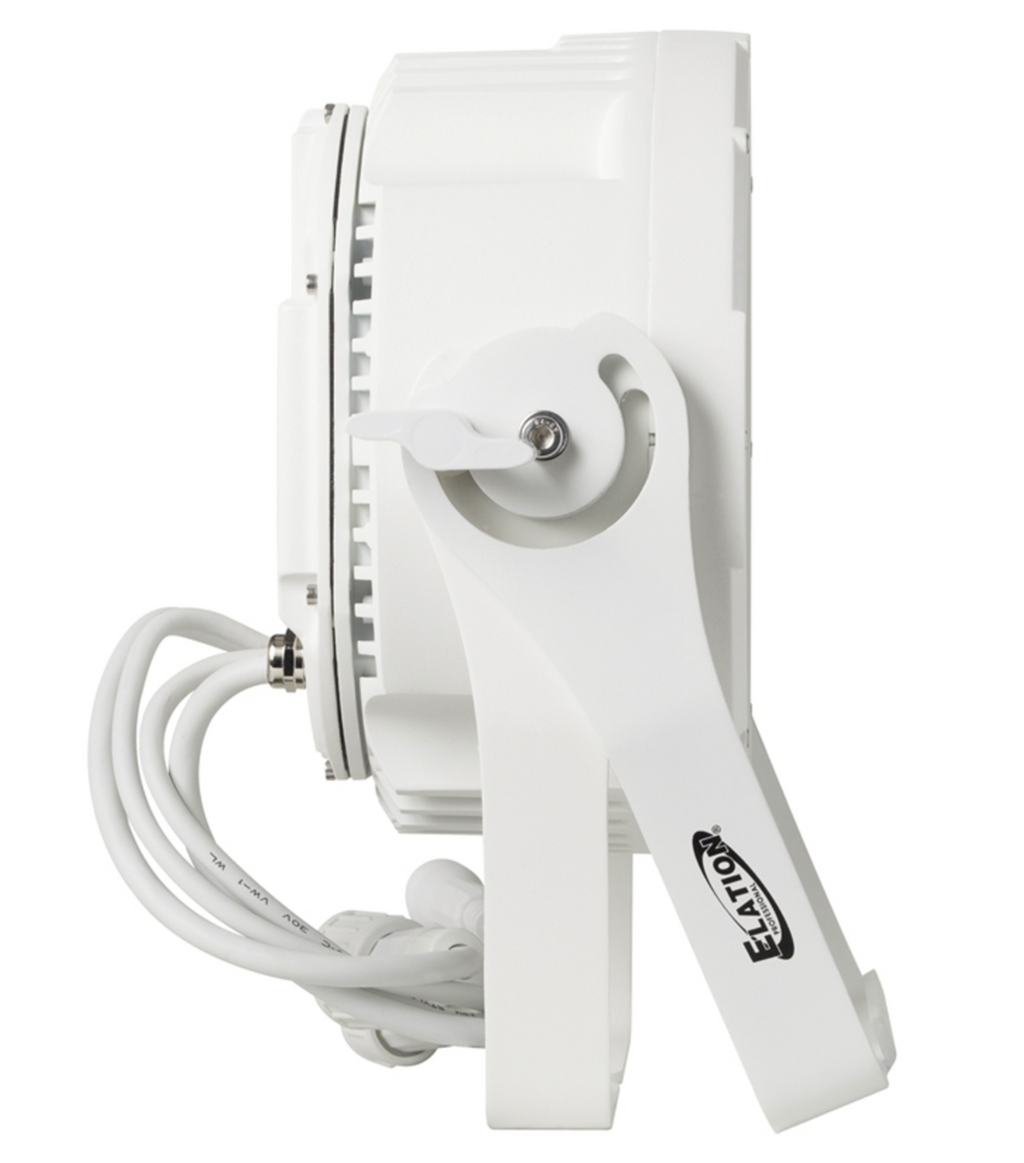

- Rugged Die-Cast Aluminum Exterior with Dual Yoke / Floor Stand
- (18) 12W 6-in-1 RGBAW+UV LEDs
- 23° Beam Angle
- 395nm UV Wavelength
- Electronic Strobe and Variable Dimming Curve Modes
- Manual and DMX-512 Control
- RDM (Remote Device Management) Support
- Multiple Unit Power Linking

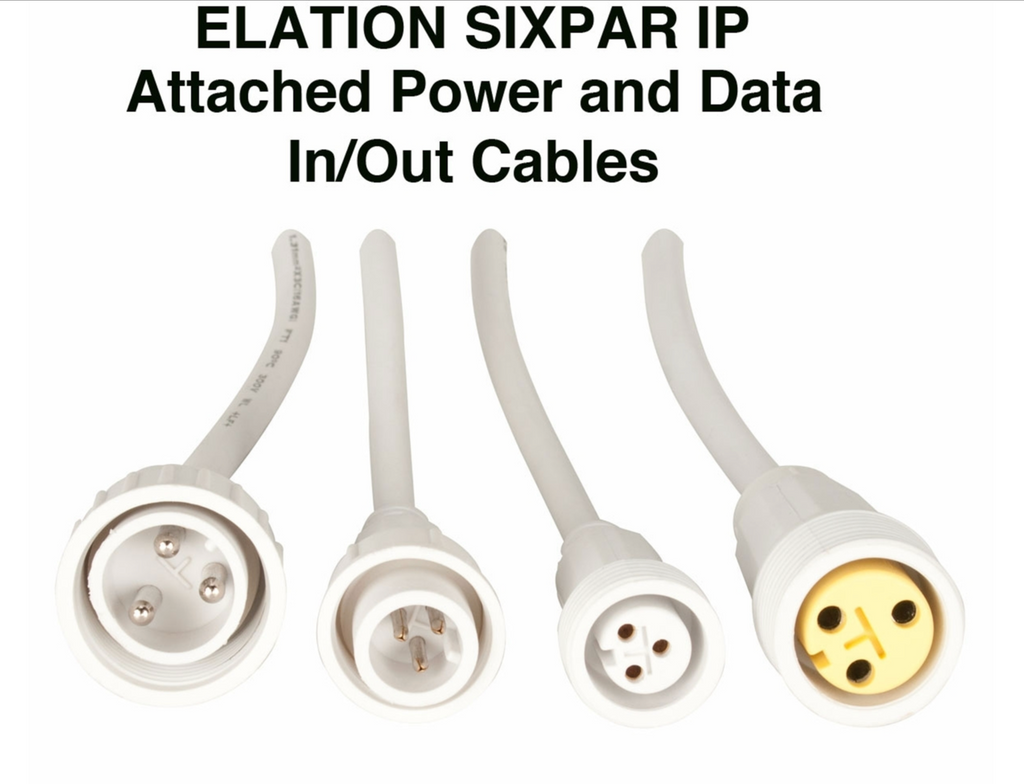

- Proprietary IP Rated Power and Data In/Out Cables Attached
- Optional Extended Length Proprietary IP Rated Power and Data Linking Cables and In/Out Adapters Available
Specifications:
SOURCE
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
24,500 LUX 2,276 FC @3.3' (1m) (15° Full On)
EFFECTS
Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros
CONTROL / CONNECTIONS
Manual and DMX-512 Control
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch LCD Menu Display
Proprietary IP Rated 3pin DMX In/Out Cables Attached
Proprietary IP Rated 3pin Power In/Out Cable Attached
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.4” (365mm)
Width: 4.9” (125mm)
Vertical Height: 14.4” (365mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
220W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS
Male Edison to IP Female Power White Cable 6.6 ft. (2m)
Male 3pin XLR to IP Female DMX Input White Cable 3.3 ft (1m)
Female 3pin XLR to IP Male DMX Output White Cable 3.3 ft (1m)
Specifications and documentation subject to change without notice.
