Description

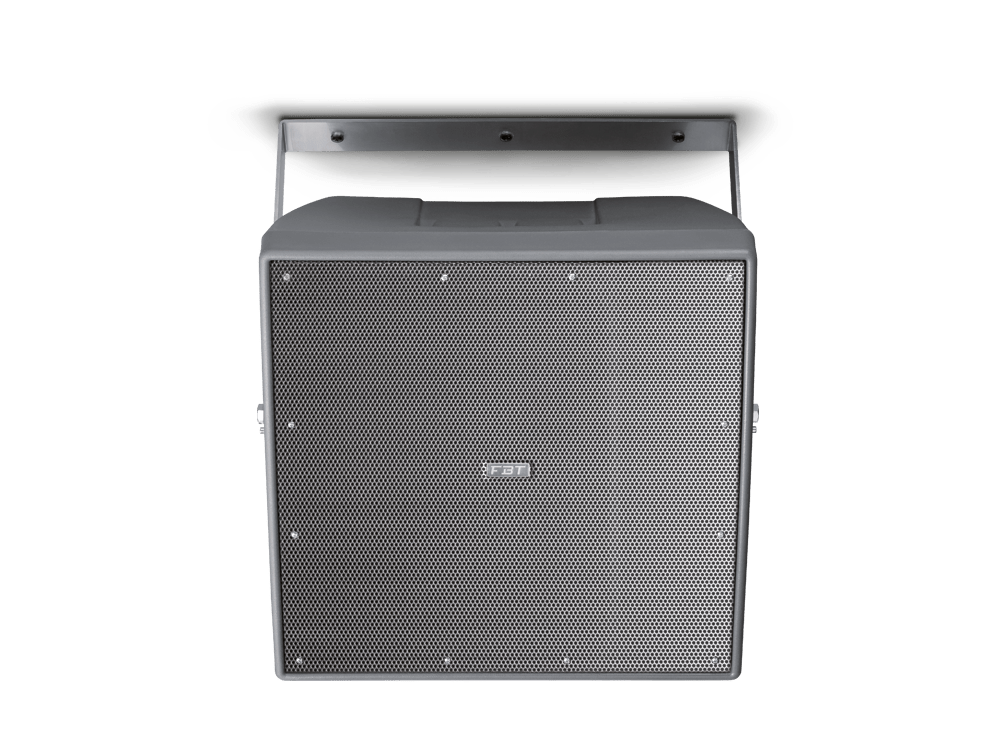

Shadow 114S is a high-performance weatherproof subwoofer specifically designed for outdoor installations requiring solid low-frequency reinforcement in a compact format. Its IP55-rated enclosure, made from rotational-molded polyethylene, is resistant to UV rays, water, and temperature fluctuations making it ideal for sports facilities, theme parks, and multi-purpose venues. Equipped with a powerful 14″ woofer with a 3″ voice coil, the Shadow 114S provides a frequency response from 60 Hz to 400 Hz and a peak SPL of 129.5 dB. An optional 100V transformer is available for high-impedance distributed systems, with a 300W power tap. The cabinet includes a 4-wire input cable for transformer tap selection and a stainless-steel U-bracket for secure wall mounting. With its omnidirectional dispersion and rugged construction, Shadow 114S delivers reliable low-end performance in any weather condition.
The version with a transformer for constant-voltage (100V) systems and a 300W selector (Shadow 114ST) is also available
Technical Specifications
| Code | 36196 (114S) - 37943 (114ST) |
| Configuration | 1 way |
| Recommended amplifier | 700 W RMS |
| Long Term power | 350 W |
| Short term power | 1400 W |
| Nominal impedance | 8 ohm |
| Frequency response | 60Hz - 400Hz -6dB |
| Low Frequency woofer | 14'' - 3'' coil |
| Maximum SPL cont/peak | 125.5 / 129.5 dB |
| Dispersion | omnidirectional HxV |
| Crossover Frequency | external |
| Input connector | 4 wire cable |
| Net Dimension (WxHxD) | 464 x 430 x 479 mm / 18.2 x 16.9 x 18.8 inch |
| Net Weight | 15.5 (17.5) Kg / 34.17 (38.58) |
| Transport Dimension (WxHxD) | 585 x 590 x 510 mm / 23 x 23.2 x 20.1 inch |
| Transport Weight | 20 (20.3) kg / 44.09 (44.7) lb |
