Description

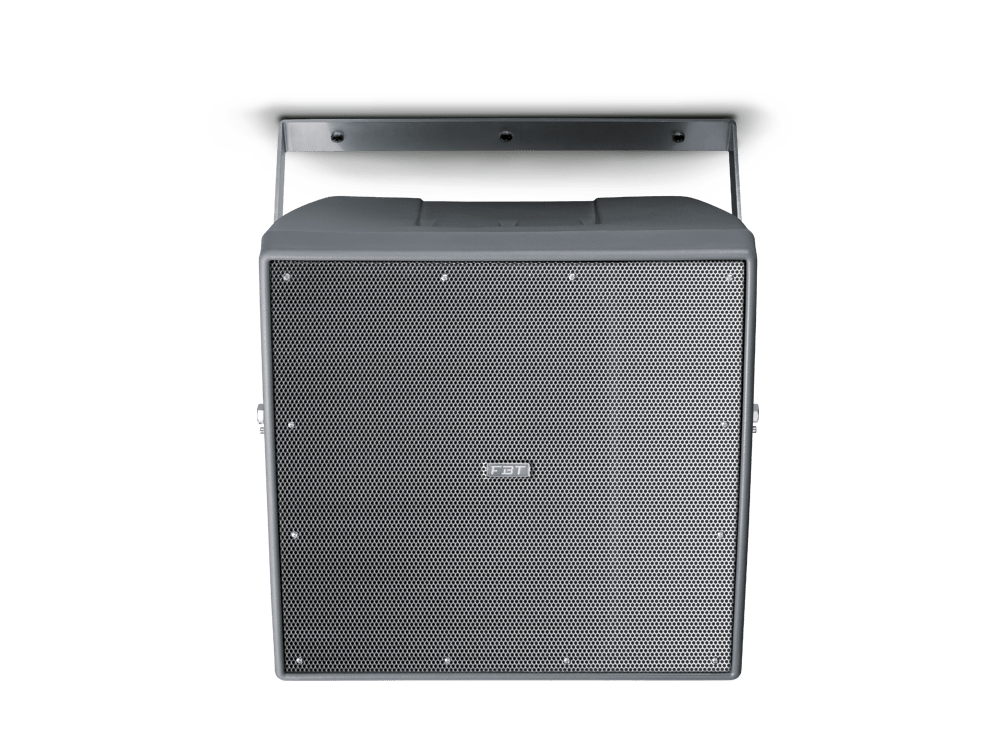

Shadow 112HC is a high-output, weather-resistant 2-way coaxial speaker specifically designed for horizontal installation in medium-scale outdoor or semi-outdoor applications. Rated IP55 and fully UV-protected, it is ideal for sports facilities, theme parks, and multi-purpose venues. The system incorporates a 12″ woofer with a 2.5″ voice coil and a 1″ HF driver with a 1.7″ coil. The cabinet is a single-piece rotational-molded polyethylene shell, reinforced with a multilayer water-stop steel grille and a stainless steel U-bracket for horizontal wall mounting.
With a frequency response from 95 Hz to 20 kHz and peak SPL of 132 dB, Shadow 112HC delivers full-range intelligibility and projection in harsh outdoor environments.
Shadow 112HCT includes a built-in 100V line transformer with selectable 200W and 100W power taps.
Technical Specifications
| Code | 36159 (112HC) - 37885 (112HCT) |
| Configuration | 2 way |
| Recommended amplifier | 600 W RMS |
| Long Term power | 300 W |
| Short term power | 1200 W |
| Nominal impedance | 8 ohm |
| Frequency response | 95Hz - 20KHz -6dB |
| Low Frequency woofer | 12'' - 2.5'' vc |
| High frequency driver | 1 - 1.7 coil inch |
| Sensitivity (@1W/1m) | 101 dB |
| Maximum SPL cont/peak | 128/132 dB |
| Dispersion | 90°x60° HxV |
| Crossover Frequency | 1.6 KHz |
| Recommended HP filter | 70hz - 24dboct |
| Input connector | 4 wire cable |
| Net Dimension (WxHxD) | 464 x 430 x 479 mm - 18.27 x 16.93 x 18.86 inch |
| Net Weight | 22.30 (23.60) Kg / 49.16 (52.02) lb |
