Description

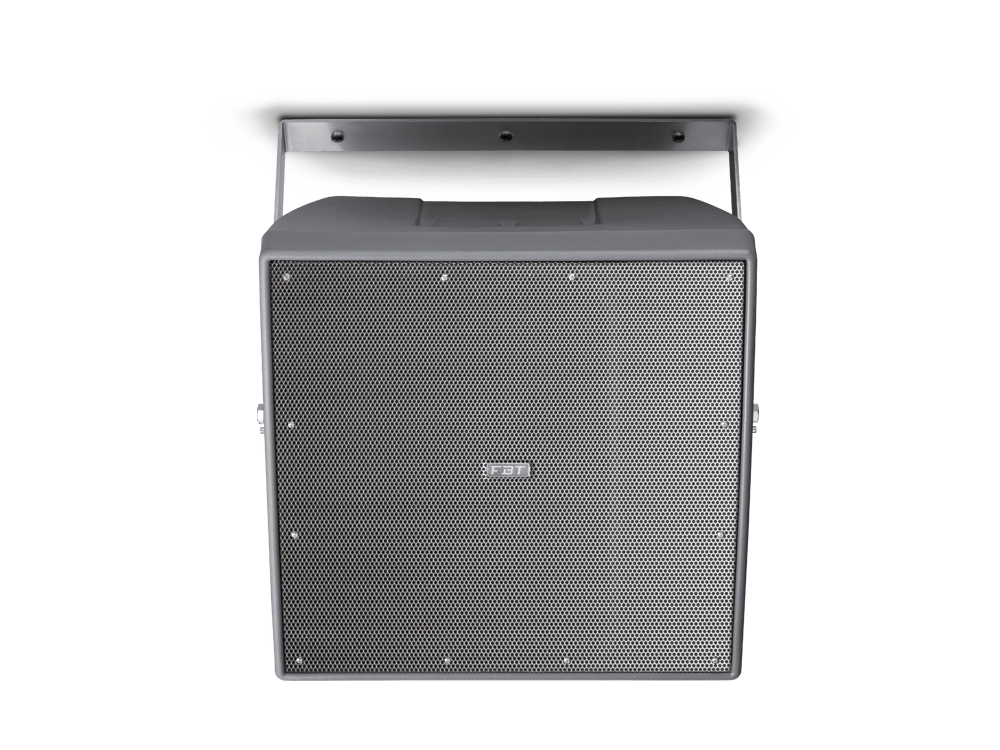

Shadow 112CT is a high-performance, weatherproof 2-way coaxial loudspeaker designed for outdoor installations where full-range audio reproduction, high output, and environmental resistance are essential. Rated IP55, it withstands prolonged exposure to humidity, UV, and temperature extremes. Ideal for sports facilities, theme parks and multi-purpose venues.
The system features a 12″ coaxial woofer with a 2.5″ voice coil and a 1″ HF driver with a 1.7″ coil mounted on a 90° conical waveguide. A built-in 100V line transformer offers 200W and 100W power taps selectable via 4-wire cable. The enclosure is rotational-molded polyethylene with a a stainless-steel water-stop grille and steel U-bracket for adjustable wall installation.
Delivering up to 128 dB SPL, Shadow 112CT combines rugged construction with clear, high-impact sound—ideal for medium-output distributed systems.
Technical Specifications
| Code | 36194 |
| Configuration | 2 way |
| Recommended amplifier | 600 W RMS |
| Long Term power | 300 W |
| Short term power | 1200 W |
| Nominal impedance | 8 ohm |
| Frequency response | 70Hz - 20Khz -6dB |
| Low Frequency woofer | 12 - 2.5 coil inch |
| High frequency driver | 1 - 1.7 coil inch |
| Sensitivity (@1W/1m) | 98 dB |
| Maximum SPL cont/peak | 124/128 dB |
| Dispersion | 90° conical HxV |
| Crossover Frequency | 1.6 KHz |
| Recommended HP filter | 50hz - 24dboct |
| Input connector | 4 wire cable |
| Net Dimension (WxHxD) | 464 x 430 x 479 mm -/ 18.2 x 16.9 x 18.8 inch |
| Net Weight | 18.2 Kg / 40.1 lb |
