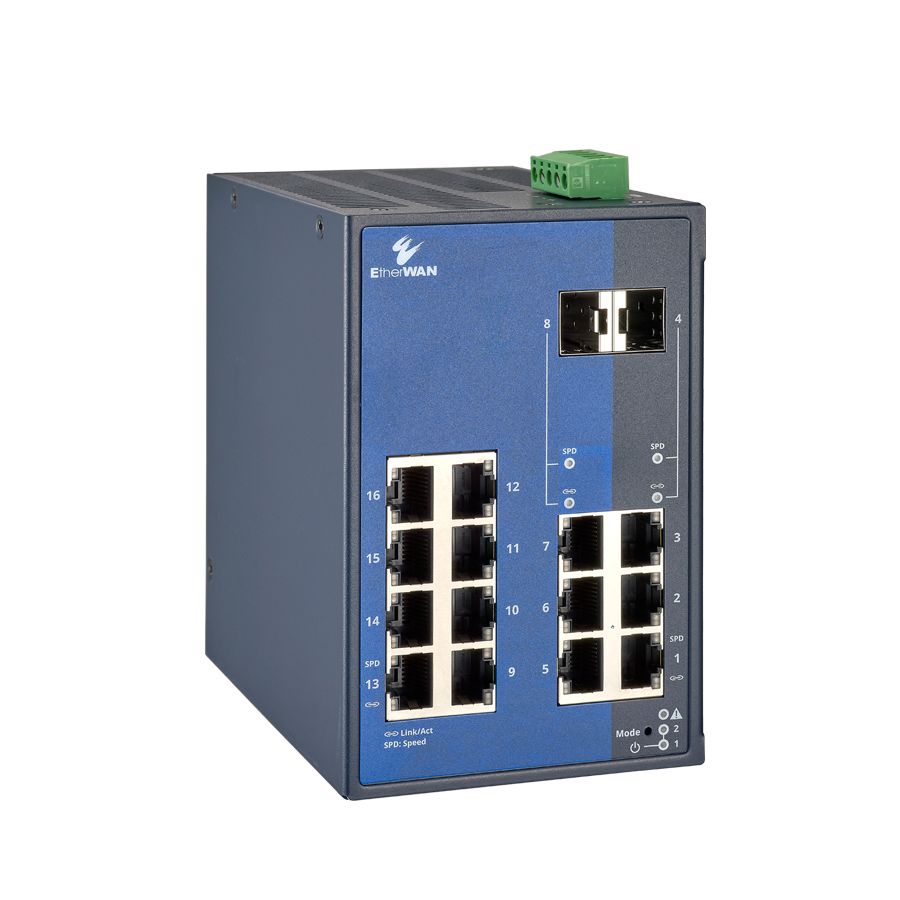

EtherWAN SG300-16, Hardened Managed 5 to 16-Port Fast/Gigabit Ethernet Switch

The SmartE series is a portfolio of hardened Layer 2 managed Ethernet switches. SmartE provides two mounting methods, DIN-rail and wall mounting, and comes in a fanless design that incorporates industrial grade components. This allows the SmartE to provide industrial-grade reliability and reliable operation in wide temperature ranges (-40 to 75 degrees C). By offering Layer 2 management features that are perfect for supporting network connectivity for industrial edge applications even in industrial and harsh environments. The SmartE Layer 2 Ethernet switches are available in both Fast Ethernet and Gigabit Ethernet configurations, offering 5 port, 8 port, or 16 port 10/100 or gigabit Ethernet copper ports, and 2 optional SFP fiber ports for network expansion, the SmartE series provides a reliable Layer 2 management network solution for critical applications. EtherWAN - "When Connectivity is Crucial."

Highlights

• Supports IEC 62439-2 Media Redundancy Protocol (MRP) manager/client
• Provides Layer 2 management features
• User friendly web-GUI
• Easy & fast deployment through a special mode button
• Dual rate SFP interface on gigabit models
• Hardened Grade for Non-Ventilated & Harsh Environments: Wide operating temperature -40 to 75°C (-40 to 167°F); Fanless design; High impact, shock, and electrical noise resistance
• Compliance: UL 61010 certified for safety
• Multiple Management Options: Web-based management (HTTP/HTTPS); Role-based user management; SNMP v1/v2/v3; Command-line interface (Telnet, SSH)
• Support: Complimentary Technical Support; Free Firmware Upgrades

Features

• Interface: CLI, Telnet, Web GUI, SSH
• Management: Firmware upgrade; Configuration backup; RMON (Remote Monitoring, SNMP only); Port mirroring; SNTP (Simple Network Time Protocol) synchronization; LLDP (Link Layer Discovery Protocol); IPv4; SNMP v1/v2c/v3; DHCP Option 82, DHCP Server/Client
• Security: MAC Address filtering; Enable/Disable port; Storm Control; System Logging; IEEE 802.1x LAN Access Control; IEEE 802.1x RADIUS Authentication; Complex password support; SSH for CLI and Telnet security; SSL and HTTPS for Web security
• Layer 2 Features: Auto-negotiation for port speed and duplex mode; Flow Control; IEEE 802.3x full duplex mode; Back-pressure half duplex mode
• Redundant Protocols: IEEE 802.1w RSTP; Large Tree Support; Fast Ring Detection; MRP (Manager/Client)
• VLANs: IEEE 802.1Q Tag VLANs
• Link Aggregation: Static Trunk (4 groups); IEEE 802.3ad LACP; IGMP Snooping v1/v2
• Software Properties and Performance - Total VLAN Entries: 32
• Software Properties and Performance - Jumbo Frame Size: 9K bytes (Gigabit Ethernet Models only)
• Quality of Service (QoS): Priority Queues: 8 queues per port; Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin) and strict mode

Specifications

• Interface - Ethernet: 10/100BASE-T(X): 5, 6, 8, 14, or 16 ports; 100BASE SFP: 0, or 2 ports; 10/100/1000BASE-T(X): 6, 8, 12, or 16 ports; 100/1000BASE SFP: 0, 2, or 4 ports
• Interface - Alarm Contact: 1 x Digital output, current capacity Typ. 100mA, Max. 0.7A (1minute)
• Interface - LED Indicators: Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red); Per Port: Link/Activity (Green; Orange when SFP link at Combo port), Speed (Off: 10Mbps; Green: 100Mbps; Orange: 1000Mbps)
• Interface - Mode Button: Exiting reset mode without changes; Resetting to the factory settings; Operating with a fixed IP address; Resetting the IP configuration; Operating in unmanaged mode
• Physical - Casing Material: Metal
• Physical - IP Rating: IP30
• Physical - Dimensions: 5, 8 ports: 45 x 125.5 x 130mm (W x D x H); 16 ports: 85 x 125.5 x 130mm (W x D x H)
• Physical - Weight: 8 ports, 388g; 16 ports, 676g
• Physical - Installation Type: DIN-Rail; Panel mounting (Optional)
• Technology - Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/100BASE-FX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3x Full duplex and flow control; IEEE 802.3ad LACP; IEEE 802.1p QoS; IEEE 802.1Q Tag VLANS; IEEE 802.1w RSTP; IEEE 802.1ab LLDP; IEEE 802.1x Port-based Network Access Control; IEC 62439-2 MRP (Media Redundancy Protocol)
• Technology - Forward/Filtering Rate: 14,880pps for 10Mbps; 148,880pps for 100Mbps; 1,488,000pps for 1000Mbps
• Technology - Processing Type: Store-and-Forward; Auto-Negotiation; Half-duplex back-pressure full-duplex flow control; Auto MDI/MDIX
• Technology - System Memory: 4M bits
• Technology - Address Table Size: 8K MAC
• Power - Input: 12-57VDC Redundant
• Power - Power Consumption: 8 ports: 8.55W Max; 16 ports: 11.4W Max
• Power - Protection: Reverse Polarity Protection
• Environmental - Operating Temp.: -40 to 75°C (-40 to 167°F)
• Environmental - Storage Temp.: -40 to 85°C (-40 to 185°F)
• Environmental - Relative Humidity: 10% to 95% (non-condensing)
• Environmental - MTBF: 8 ports: 2,937,277.25 hours; 16 ports: 2,255,206 hours
• Regulatory - ISO: Manufactured in ISO-9001 facility
• Regulatory - EMI: FCC Part 15B Class A; VCCI Class A; ICES-003; EN 61000-6-4
• Regulatory - EMS: EN 61000-3-2; EN 61000-3-3; EN 61000-6-2; EN 61000-4-2 (ESD); EN 61000-4-3 (Radiated RFI); EN 61000-4-4 (Burst); EN 61000-4-5 (Surge); EN 61000-4-6 (Induced RFI); EN 61000-4-8 (Magnetic Field)
• Regulatory - Safety: UL 61010
• Regulatory - Vibration: IEC 60068-2-6
• Regulatory - Shock: IEC 60068-2-27
• Regulatory - Free Fall: FED STD 101C Method 5007.1
• Warranty - Length: 3 Years
• Warranty - Details: www.etherwan.com/support/warranty-policy
• What's Included - Device: Ethernet switch
• What's Included - Installation: DIN-Rail bracket, screws
• What's Included - Documentation: Quick install guide
• Ordering - Gigabit Model SG300-08: 8-port 10/100/1000BASE-T(X)
• Ordering - Gigabit Model SG300-0602: 6-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP
• Ordering - Gigabit Model SG300-16: 16-port 10/100/1000BASE-T(X) (EOL)
• Ordering - Gigabit Model SG300-120202c: 12-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP Combo + 2-port 100/1000BASE SFP (EOL)
• Ordering - Fast Ethernet Model SF300-05: 5-port 10/100BASE-T(X)
• Ordering - Fast Ethernet Model SF300-08: 8-port 10/100BASE-T(X)
• Ordering - Fast Ethernet Model SF300-0602: 6-port 10/100BASE-T(X) + 2-port 100BASE SFP
• Ordering - Fast Ethernet Model SF300-16: 16-port 10/100BASE-T(X)
• Ordering - Fast Ethernet Model SF300-1402: 14-port 10/100BASE-T(X) + 2-port 100BASE SFP
• Ordering - Accessory: Hardened 100BASE SFP Modules; Hardened Gigabit SFP Modules; Panel Mounting Kit (KP-AA96-480, KP-S300)
