Description

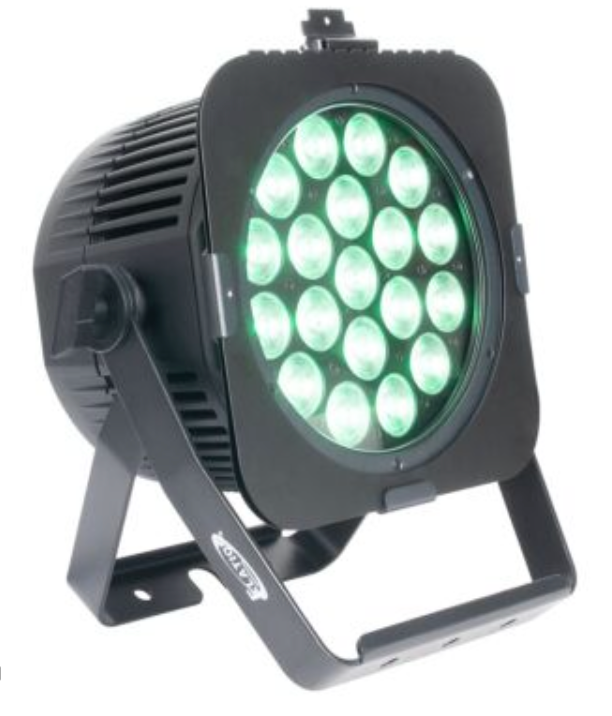

The SEVEN PAR 19IP™ is an IP65 outdoor rated seven color par wash luminaire with (19) 25W 7-in-1 RGBAW + Lime + UV LEDs (Red, Green, Blue, White, Amber, Lime, and a 395nm UV) producing up to 9,300 total output lumens and 90CRI. Features include individual hue, saturation, and intensity control, RGB + seven color 3 channel DMX mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX and RDM (Remote Device Management) protocol support, IP65 rated 5pin XLR and power in/out connections, dual adjustable yoke / floor stand, multiple unit power linking, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), and a rugged powder coated die-cast aluminum exterior. Gel frame and gel frame holder included, optional 4-leaf barn door available.
Features:
Specifications:
SOURCE
(19) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
9,300 Total Lumen Output | 90CRI
10,551 LUX 981 FC @6.6’ (2m) (Full ON)
EFFECTS
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Effects
COLOR
RGBAW + Lime + UV (395nm)
CONTROL / CONNECTIONS
(7) DMX Channel Modes (15 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) Protocol Support
IP Rated 5pin DMX and Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.0” (357mm)
Width: 14.6” (371mm)
Vertical Height: 11.2” (284mm)
Weight: 25.0 lbs. (11.3kg)
GEL FRAME
Length: 12" (305mm)
Vertical Height: 12" (305mm)
Inner Diameter: 9" (229mm)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
Features:
- IP65 Outdoor Rated Seven Color Par Wash Luminaire
- (19) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
- 9,300 Total Output Lumens | 90CRI
- Individual Hue, Saturation, and Intensity Control
- RGB + Seven Color 3 Channel DMX Mode
- Smooth Color Mixing
- 12 Internal Programs with Speed and Fade Control
- 64 Unique 7-Color Macros
- Selectable Dimming Curve Modes
- Adjustable LED Refresh Rate + Gamma Brightness
- Flicker Free Operation for TV and FILM
- DMX and RDM Protocol Support
- IP65 Rated 5pin XLR and Power In/Out
- Dual Adjustable Yoke / Floor Stand
- Multiple Unit Power Linking
- Rugged Powder Coated Die-Cast Aluminum Exterior
- Gel Frame and Gel Frame Holder Included
- Optional 4-Leaf Barn Door Available
Specifications:
SOURCE
(19) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
9,300 Total Lumen Output | 90CRI
10,551 LUX 981 FC @6.6’ (2m) (Full ON)
EFFECTS
Individual Hue, Saturation, and Intensity Control
RGB + Seven Color 3 Channel DMX Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable Dimming Curve Effects
COLOR
RGBAW + Lime + UV (395nm)
CONTROL / CONNECTIONS
(7) DMX Channel Modes (15 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) Protocol Support
IP Rated 5pin DMX and Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.0” (357mm)
Width: 14.6” (371mm)
Vertical Height: 11.2” (284mm)
Weight: 25.0 lbs. (11.3kg)
GEL FRAME
Length: 12" (305mm)
Vertical Height: 12" (305mm)
Inner Diameter: 9" (229mm)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
