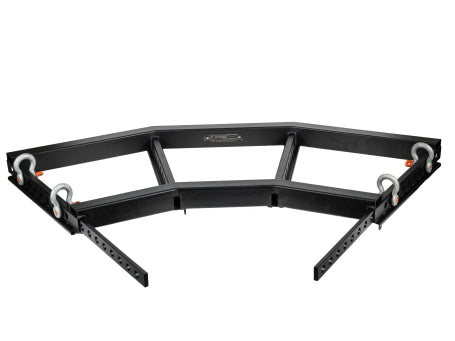

This 4-column flying bumper can safely handle two SA153 and one SA315S cabinets in each column, for a maximum of 12 cabinets at a safety factor of 7:1. Speaker cabinets are easily connected to the flying bumper with the same SALOCKBAR used for connecting cabinets to each other, and no additional rigging accessories are required. Two extension tilt bars are included for applications where extreme tilt is required. The extension bars are simply slid into the two central or outer main rails and secured in place with a 5/8" shackle (not included).
Features
- 4x Wide Column Flying Bumper
- Can Safely Handle 2x SA153 and 1x SA315S Cabinets in Each Column (12 Cabinet Max Hang)
- 2x Extension Tilt Bars Included
Specifications
| Max Load Capacity |
2000 lbs / 907 kg at 7:1 Safety Ratio |
| Max Cabinet Capacity |
4x column Wide Hang (Each Column = 2x SA153 + 1 xSA315S Max. Total Cabinet hang = 12) |
| Material / Construction |
10 Gauge Welded Tube Steel |
| Finish |
Black Powder Coat |
| Included Accessories |
Two Extension Tilt Bars |
| Required Shackle Size (Not Included) |
5/8" (Sample Crosby#1018473) |
| Overall Dimension DxWxH |
26" x 59.5" x 4" (66 cm x 151.13 cm x 10.16 cm) |
| Weight |
64lbs with the extension bars, 55lbs without extension tilt bars (29 kg with the extension bars, 24.94 kg without extension tilt bars) |
