Synergy is Yorkville Sound’s most powerful and flexible point source system. Offering world-class sound and unmatched directivity control, it is recommended for clubs, theatre installs, and touring productions.

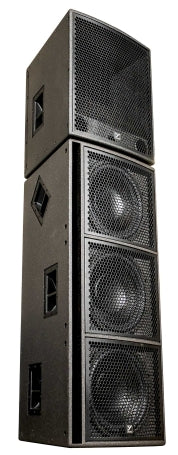

The SA315S features three 15-inch woofers and 6500 watts of program power. Combine it with the SA153 for a system that can scale to shows of any size, including arenas and outdoor festivals. Add the dual 18-inch SA218S or dual 21-inch SA221S for a 5-way system that will shake crowds with the lowest lows.
Features
- 13000 W Peak Power (6500 W Program)
- 3x 15” LF Woofers with 3” Voice Coils
- Bass Reflex Design
- Exceptionally High Output and Deep Bass
- Simple and Secure Rigging Hardware
- Made in Canada
Specifications
| System Type |
Powered Subwoofer |
| Power Rating |
13000 W Peak (6500 W Program) |
| Measured Max SPL (C-Weighted CM Max Hold) |
136 dB Peak (130 dB Continuous) |
| Frequency Response (Hz +/- 3dB) |
31 Hz - 100 Hz |
| Crossover Frequency |
100 Hz |
| Cabinet Configuration |
Bass Reflex |
| Driver Configuration |
3x 15" LF Woofer |
| LF Driver(s) |
15" Ceramic with 3" Voice Coil |
| LF Protection |
Excursion, Voice Coil Thermal (RMS) |
| MF Amplifier Type |
Class D |
| Cooling Scheme |
Convection |
| Power Cable |
Removable Locking powerCON® TRUE1 Input and Loop Thru Output |
| Power Consumption |
600 VA / 1200 VA |
| In / Out Connections |
1x XLR Input / 2x XLR Outputs |
| Input Sensitivity (Vrms Sine) |
Line In 1.4 at Centre, 0.56 at Max |
| Controls |
Thermal Limiter Advance for Power Consumption Management |
| Level Controls |
-∞ to +8 dB |
| Limiter |
Excursion, Thermal (RMS), Clipping |
| LED Indicators |
Power, Excursion Limit, Thermal (RMS) Limit, Input Clip, Activity |
| Bar Handles |
6 (3x Each Side) |
| Enclosure Materials |
Multi-ply 15 mm Birch Plywood |
| Standard Rigging Hardware |
Rail and Lockbar Rigging System (Top and Bottom) |
| Stacking Feature |
Interlocking UHMW Feet (Top and Bottom) |
| Covering / Finish |
Paint |
| Dimensions (DWH) |
24” x 21” x 51.5” (60.9 cm x 53.3 cm x 130.8 cm) |
| Weight |
236 lbs / 107 kg |
