RCF X-08, Passive 800W 2-Way 8" Speaker (IP55)

X 08 Two-Way Professional Speaker

X 08 is a two-way professional speaker designed for a wide range of fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the 8"woofer and the 1.75" voice coil PKX compression driver, it delivers powerful, clear sound with constant 100° x 100° coverage. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. A bracket for horizontal installation is included; a dedicated accessory is available for vertical installation. EN 54-24:2008 technical data available in the user manual.

Features

• 400 W RMS power handling
• 128 dB max SPL
• 70 - 20000 Hz frequency range
• 100° x 100° constant directivity coverage angle

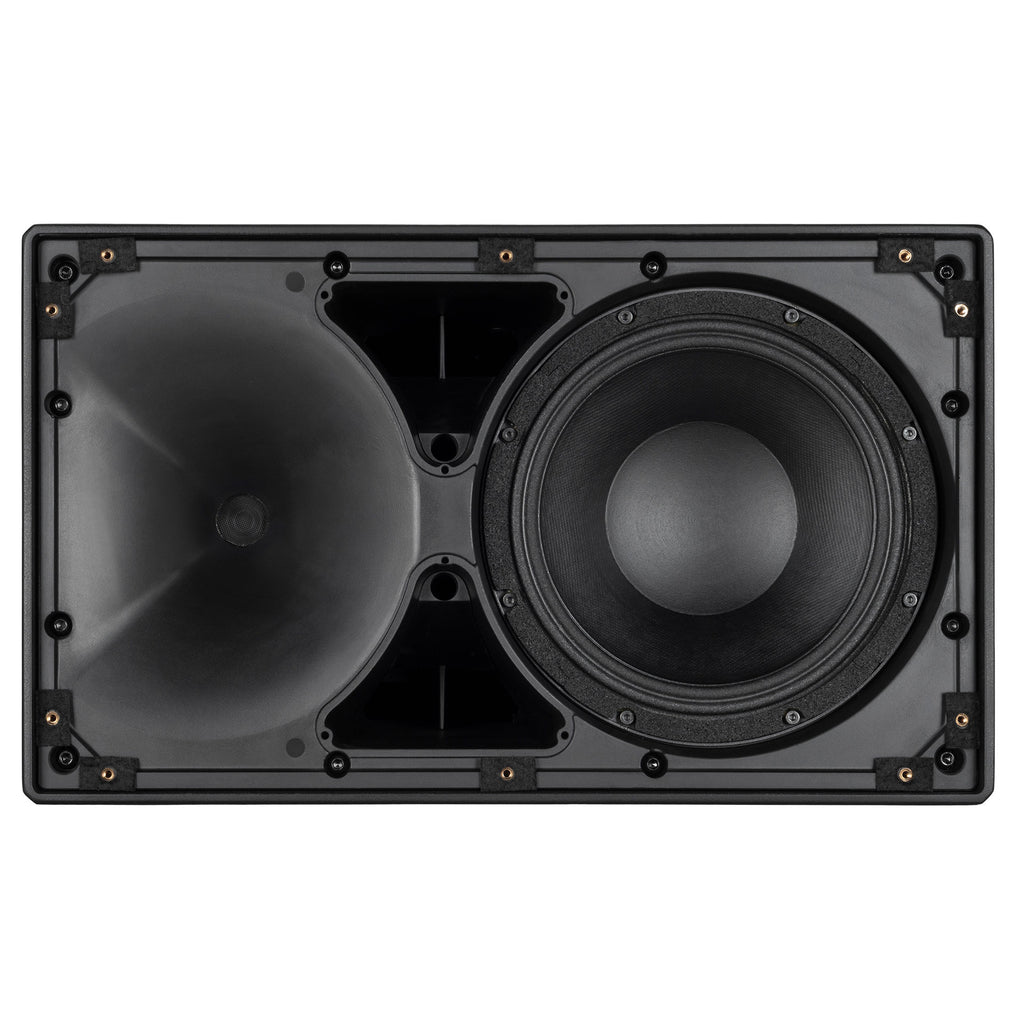

• 8" neo woofer, 2.5'' v.c.
• 1.75" v.c. PKX/Neo compression driver

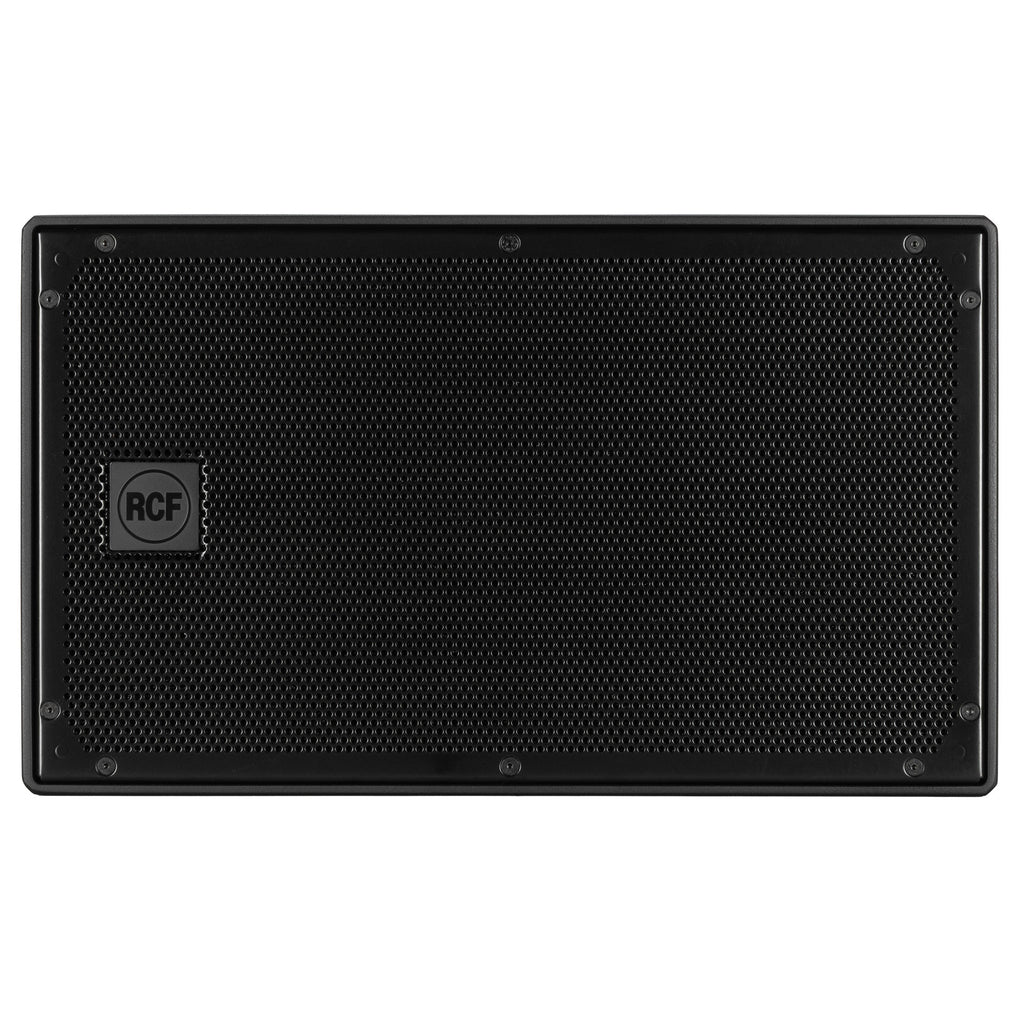

• Polyurethane cabinet / aluminum grille
• IP55 protection grade

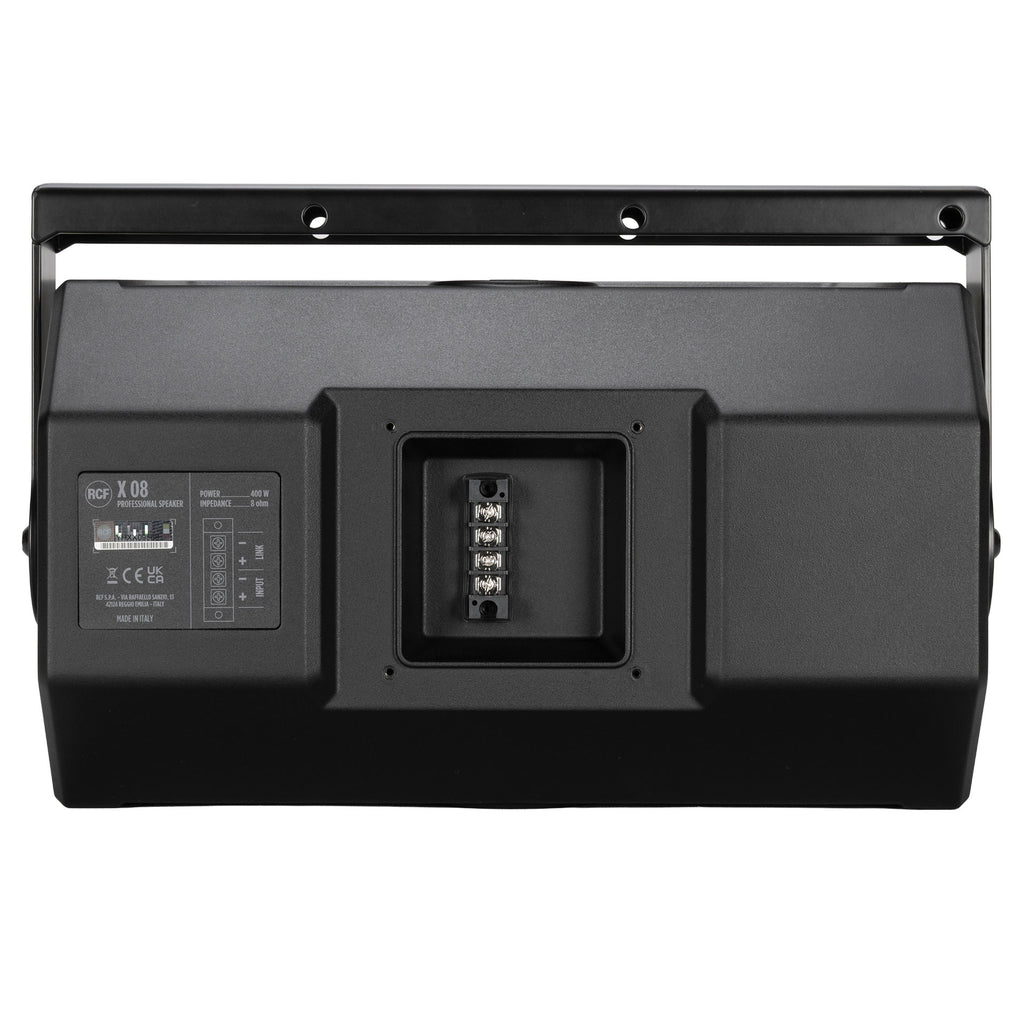

• 4 pole barrier strip terminals

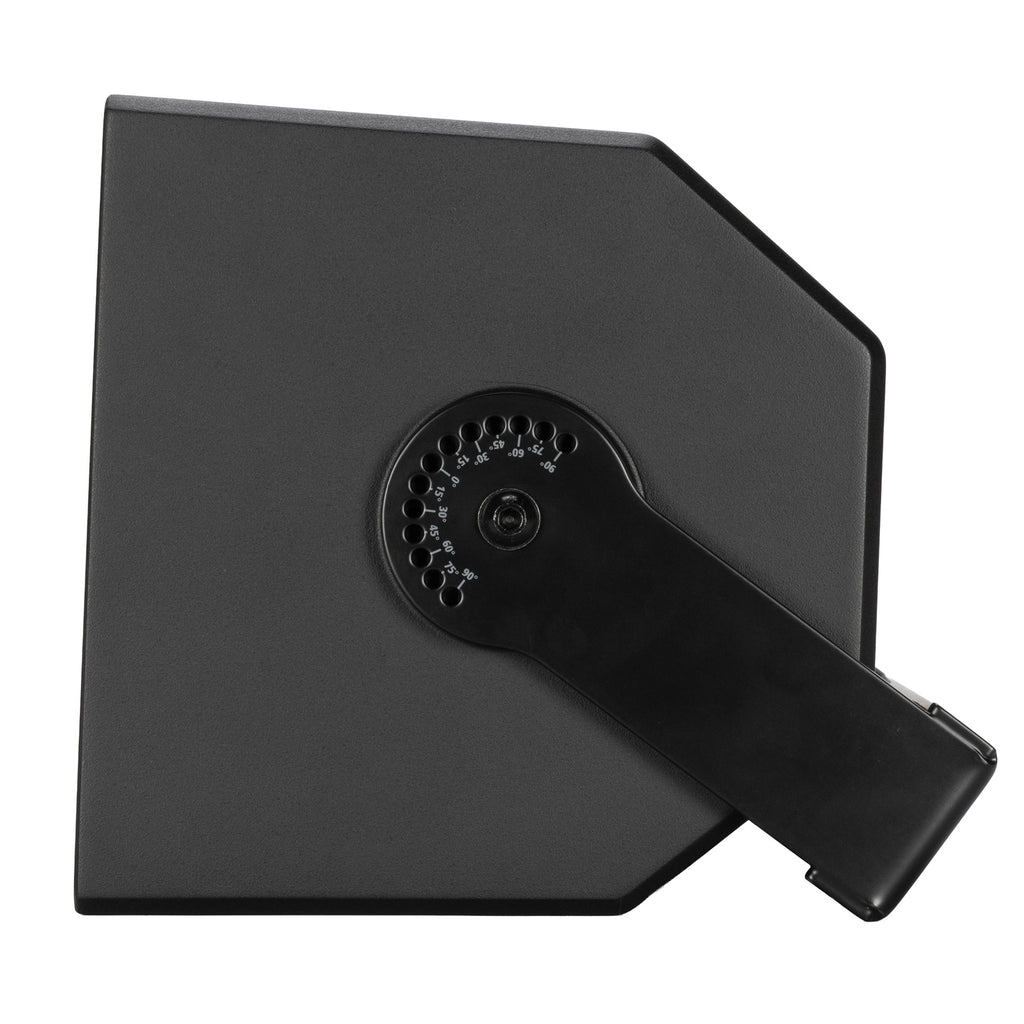

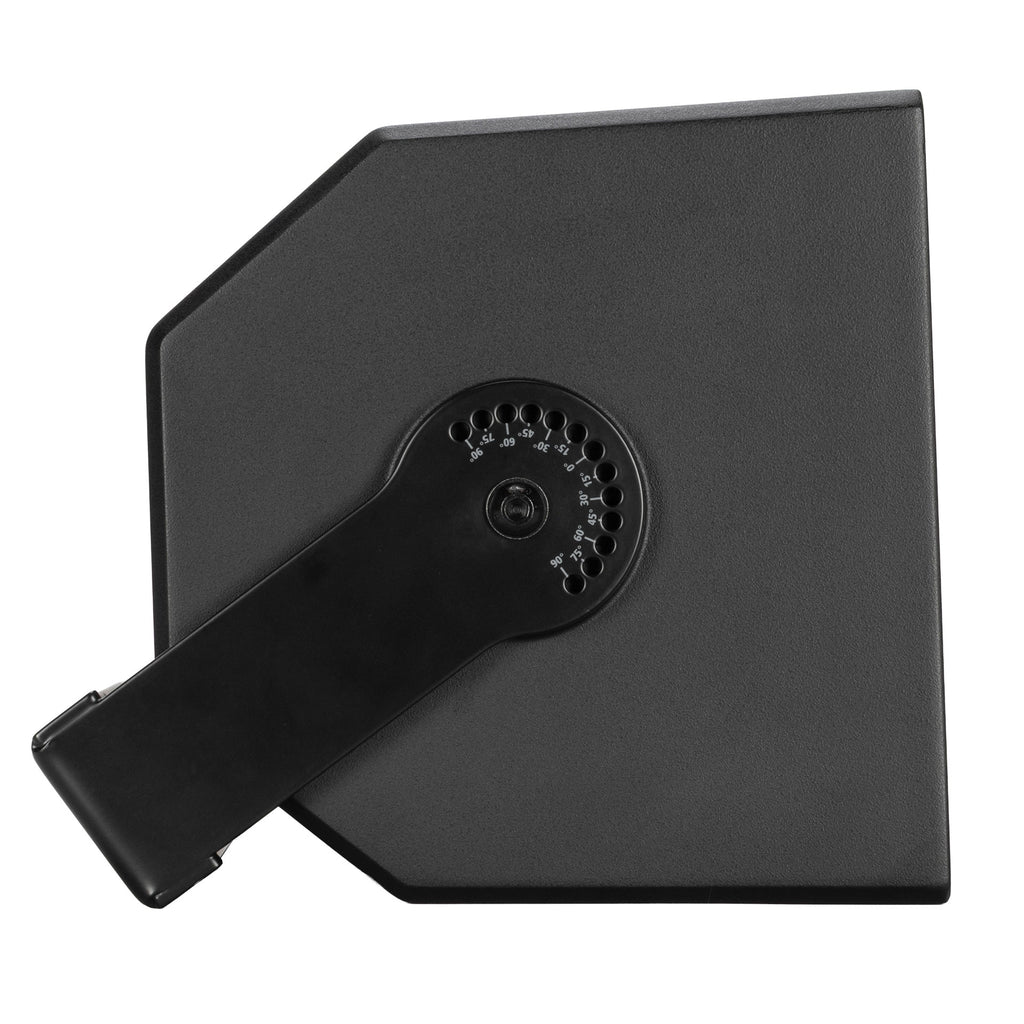

• Horizontal bracket included

All-weather Performance

Focusing on heavy-duty outdoor and indoor applications in large spaces, X Series speakers are capable of true, concert-level high performance in a compact and robust polyurethane enclosure, installed individually or coupled in array configurations. Featuring line array and point source speakers, all modules are equipped with RCF's best-in-class technologies, including Precision Transducers, horns, and crossovers for optimal coverage and sound clarity.

Il tuo browser non supporta il video HTML5.

Superior Transducers

Low Frequencies

RCF low-frequency transducers use high-flux neodymium magnets to deliver maximum current stability, reduced distortion, and excellent thermal efficiency. Each woofer undergoes a rigorous endurance signal tests to guarantee reliability under the most demanding conditions.

High Frequencies

The compression driver voice coil features high-performance materials, including neodymium magnets and PKX domes, for outstanding power handling, superior durability, and exceptionally natural sound reproduction across the spectrum.

TRW Waveguide

The new True Resistive Waveguide (TRW) is the result of extensive refinements in the design of the transducers, enclosure, and vented ports, developed together as part of a fully integrated system. Combined with FiRPHASE processing, the TRW enables the speaker to act as a single coherent source, delivering a precise and stable sound image. Acoustically, the waveguide behaves as a pure resistive load, free from resonances, significantly reducing high-frequency distortion typically associated with conventional horns.

LICC - Low Impedance Compensated Crossover

X Series features a high-level crossover network that features lower-than-conventional induction values. Its benefits include delay reduction, reduced phase shift, and superior transient response, all of which contribute to improved audio performance and stability.

• XPS SERIES
• 40-bit Floating-point
• Processing at 96 kHz
• Ready-to-Use
• Configurations and presets for RCF speakers
• 2U Rack Space
• for both touring and installed sound systems
• Flexible 32-bit Routing
• with analog, digital
• and Dante I/O
• Advanced Fault Protections
• for each amplifier channel and power supply

Versatility for Any Application

The single-piece cabinet is equipped with multiple inserts and a corrosion-treated steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing materia. All X series speakers meet IP55 standard requirements, suitable for indoor and outdoor applications.

Polyurethane: the ultimate in durability

Rigid structural polyurethane is a durable and stiff technopolymer, ideal for outdoor loudspeakers due to its excellent weather, UV, and corrosion resistance, impact and abrasion durability, and lightweight properties. Its sound-insulating and low-vibration qualities enhance audio performance. These attributes make it a robust and versatile choice for outdoor speakers, ensuring longevity and quality performance in various environmental conditions.

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs - complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.

Specifications

Acoustical specifications

Power section

Transducers

Input/Output section

Standard compliance

Physical specifications

Size / Weight

Shipping information
