RCF UP-2162, Class D 2 Channel Amplifier with Aux Input - 4 Ω, 70/100V, 2 x 160W

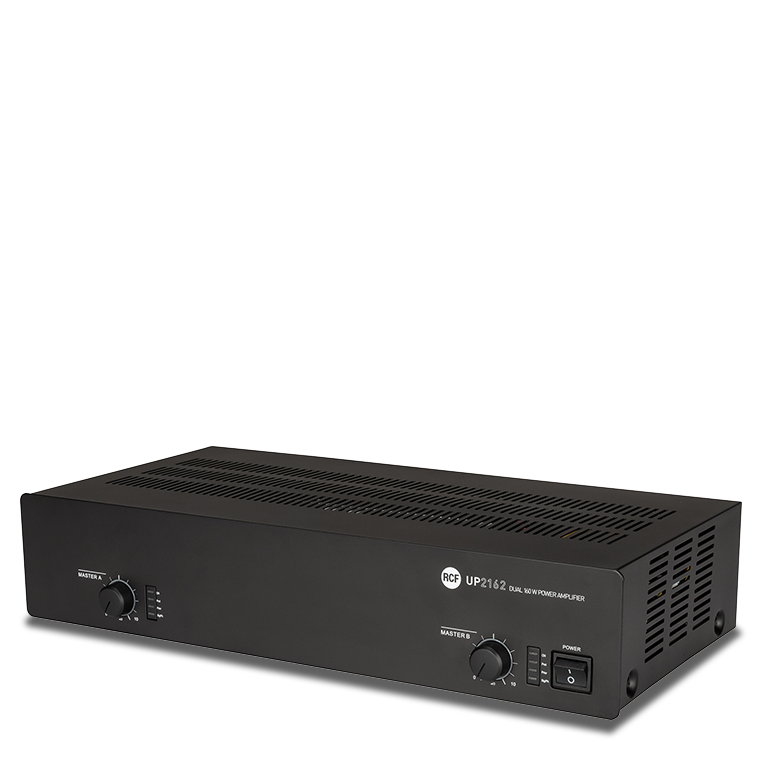

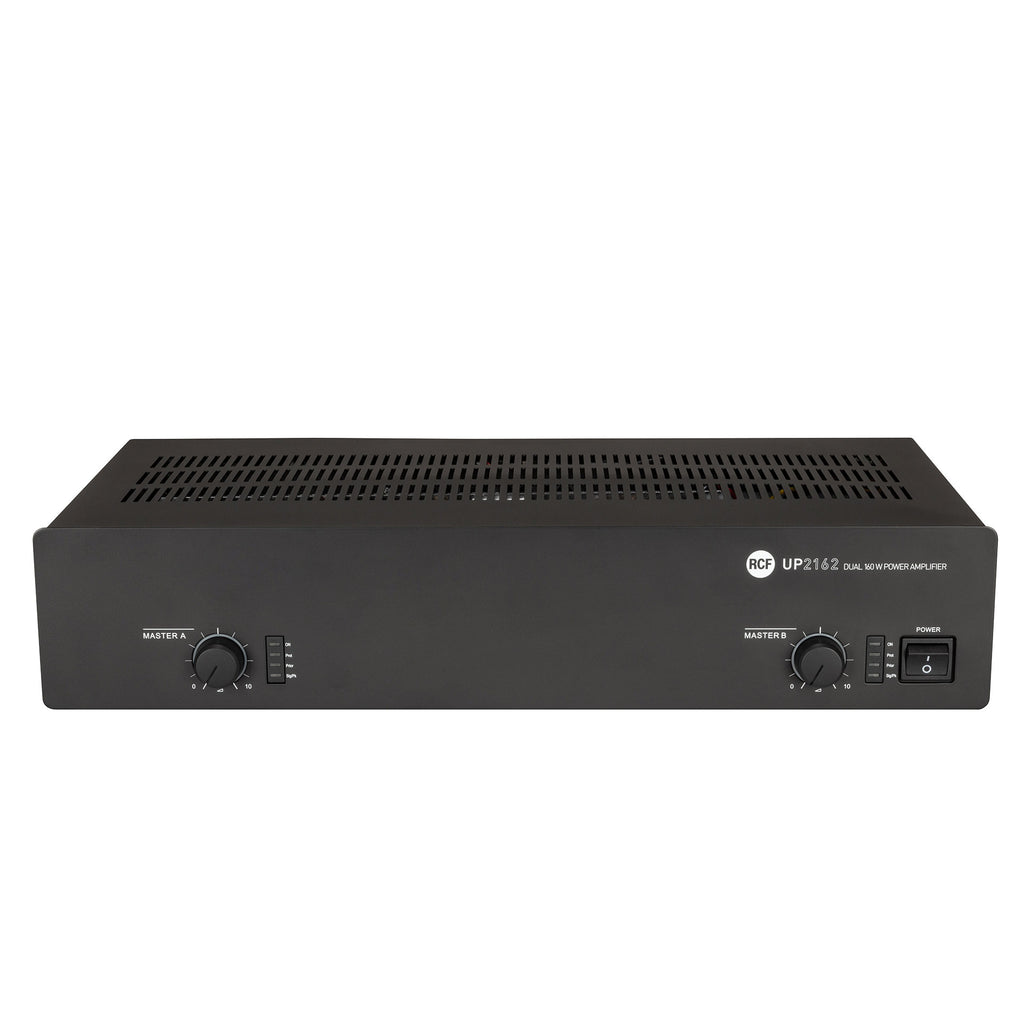

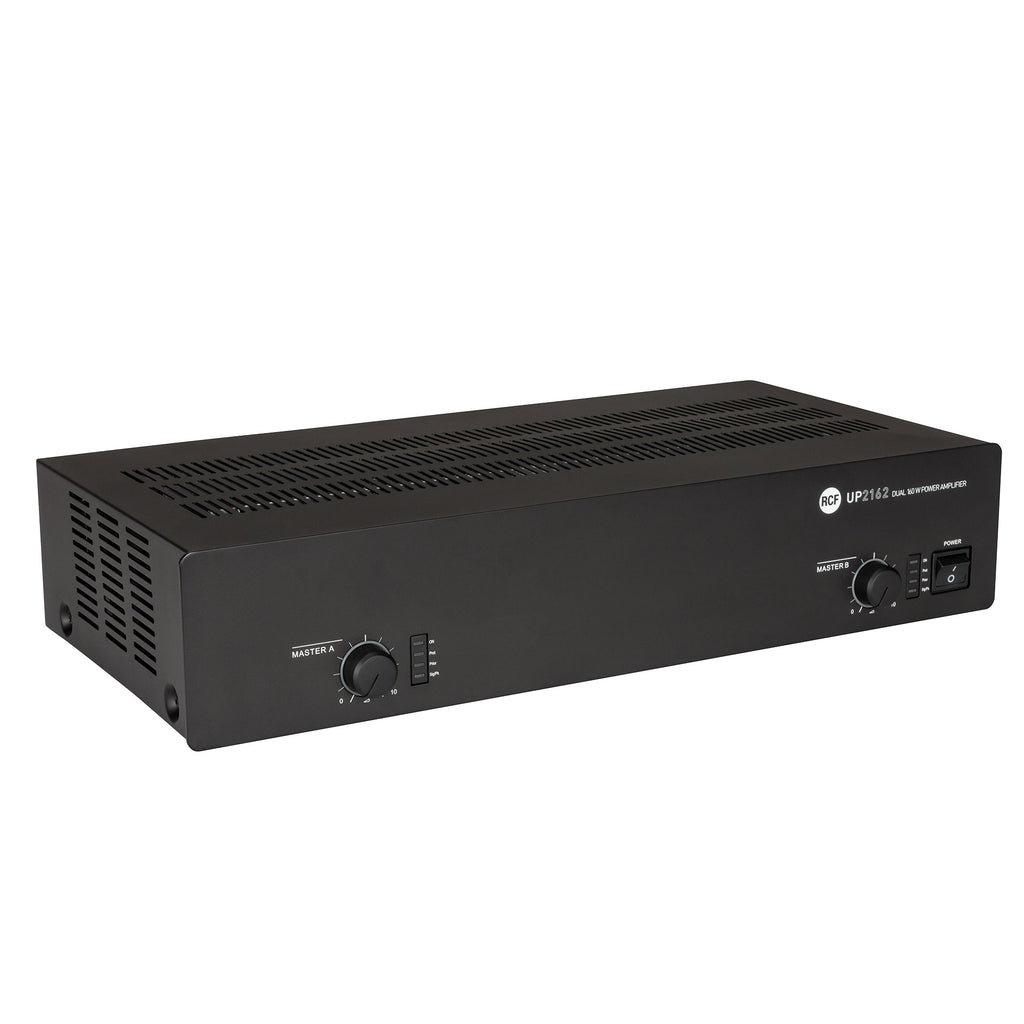

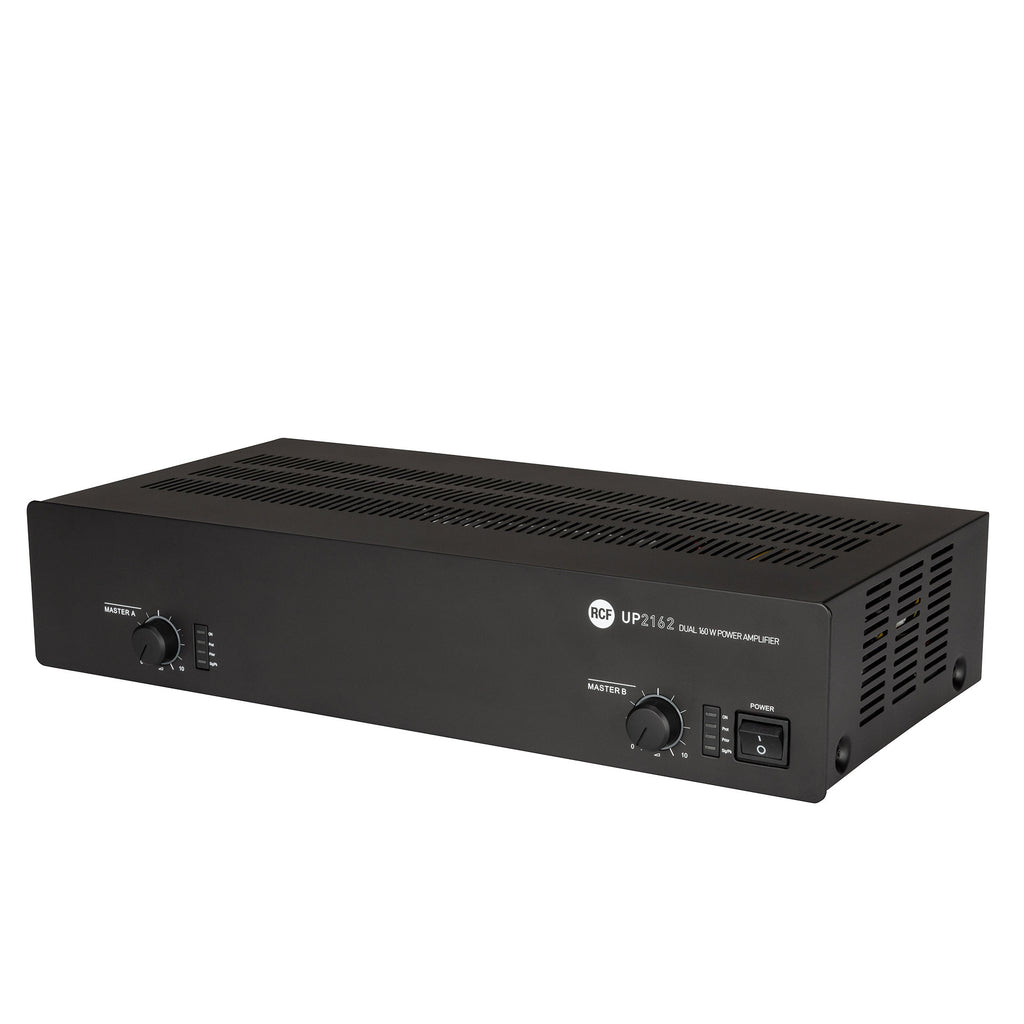

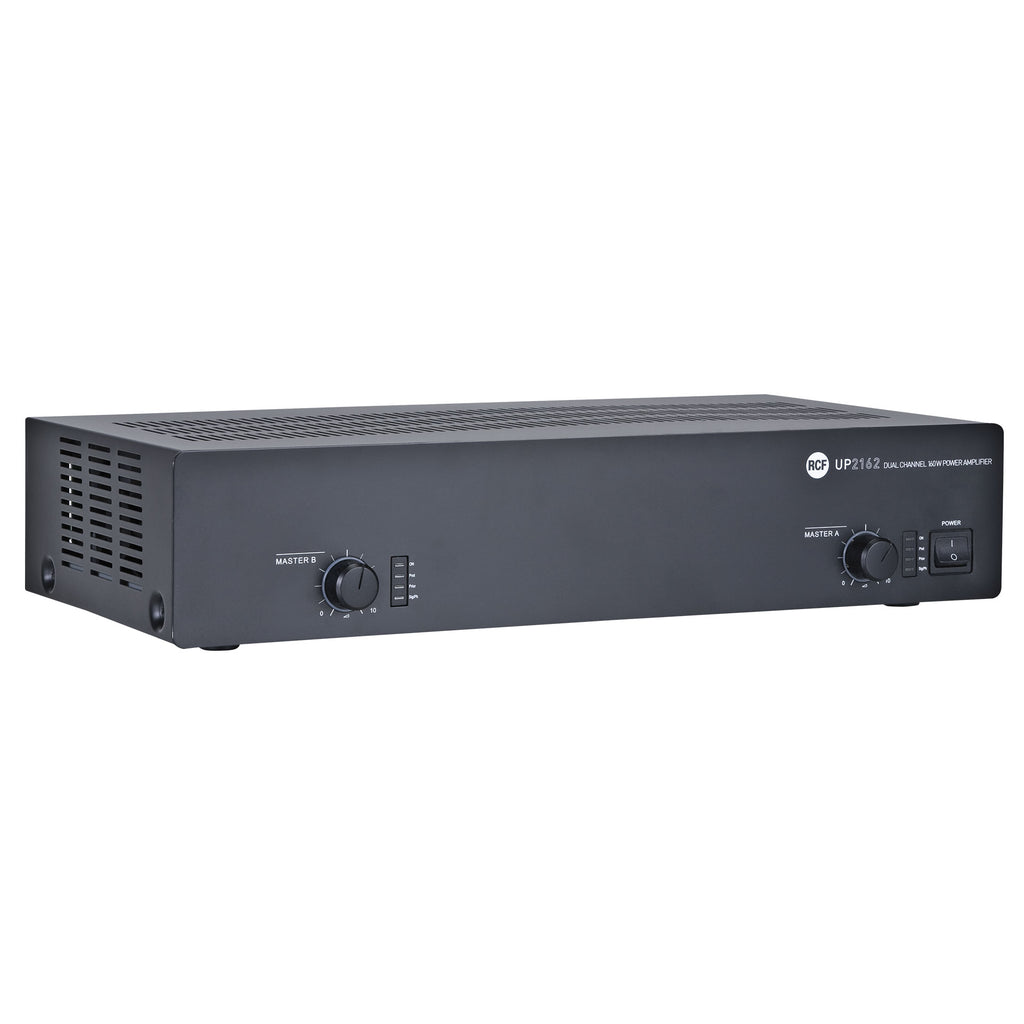

UP 2162 Power Amplifier

UP 2162 is a device with 2 separated and independent 160 W amplifiers, each having 2 audio inputs, of which one with priority function through a closing contact. Both the audio inputs are at ‘line’ level: for pre-amplified signals or music sources (e.g. CD players, tuners, etc.).The amplifier output is available either for low impedance loudspeakers (min. 4 O) or 100 - 70 V constant voltage line (for loudspeakers having 100 - 70 V transformers). The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offers a wide audio bandwidth quality.

Features

• Power Amplifier designed for the transmission of announcements and / or musical programmes

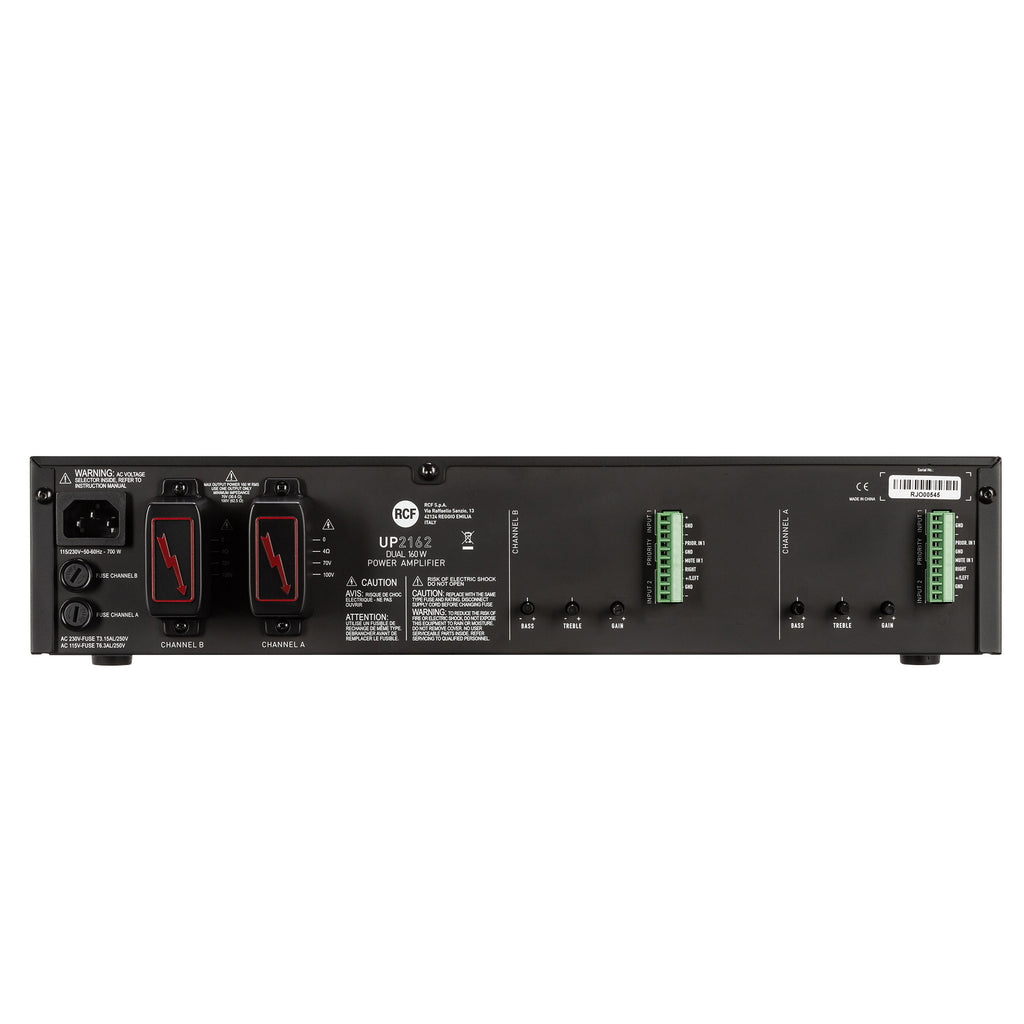

• Main input on removable connector
• AUX Input for music sources removable connector
• Controls for treble, bass and Gain on the AUX Input
• Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
• Output speaker available either for low impedance loudspeakers (min. 4 O) or 100 - 70 V constant voltage line

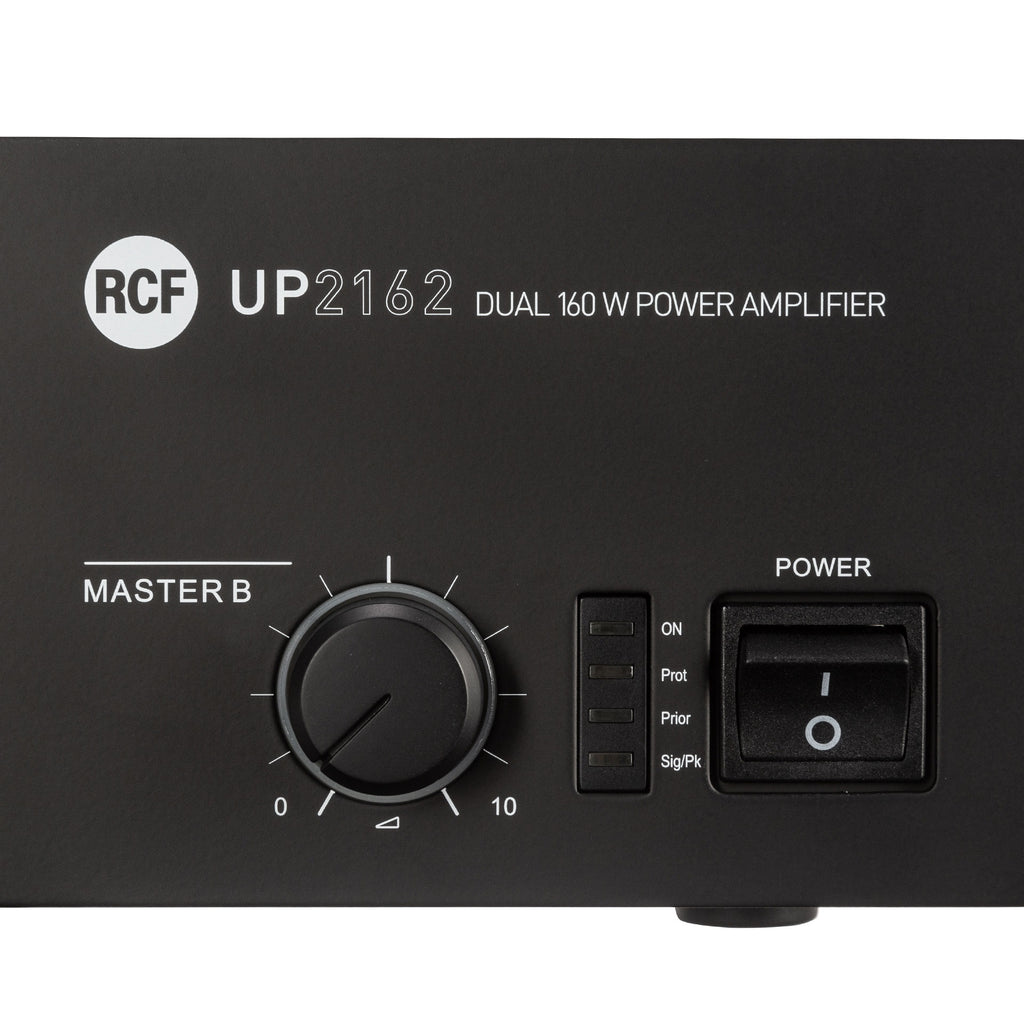

• Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)

Specifications

Amplifier specifications

Input section

Output section

Processing

Configuration and control

Protections

Power requirement

Standard compliance

Physical specifications

Size / Weight

Shipping information
