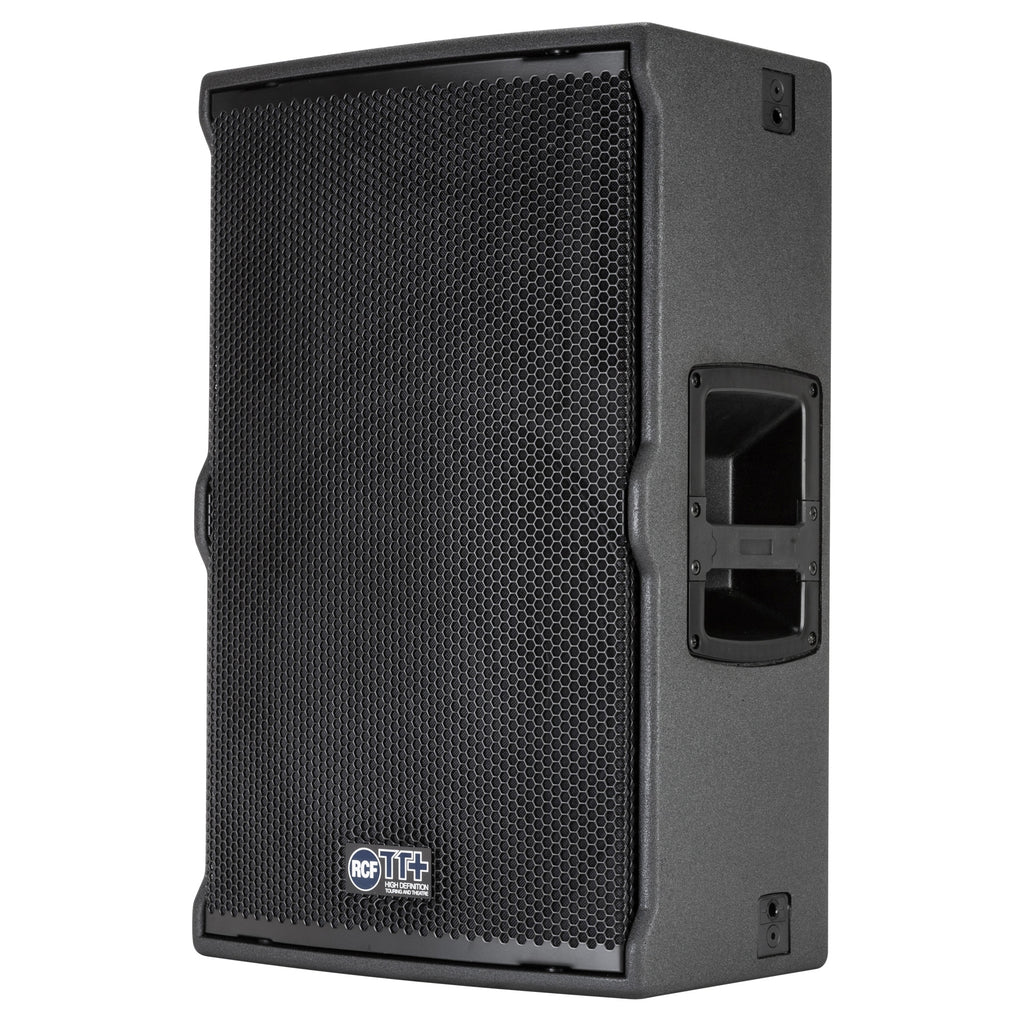

TT 25-A II Active High Output Two-Way Speaker

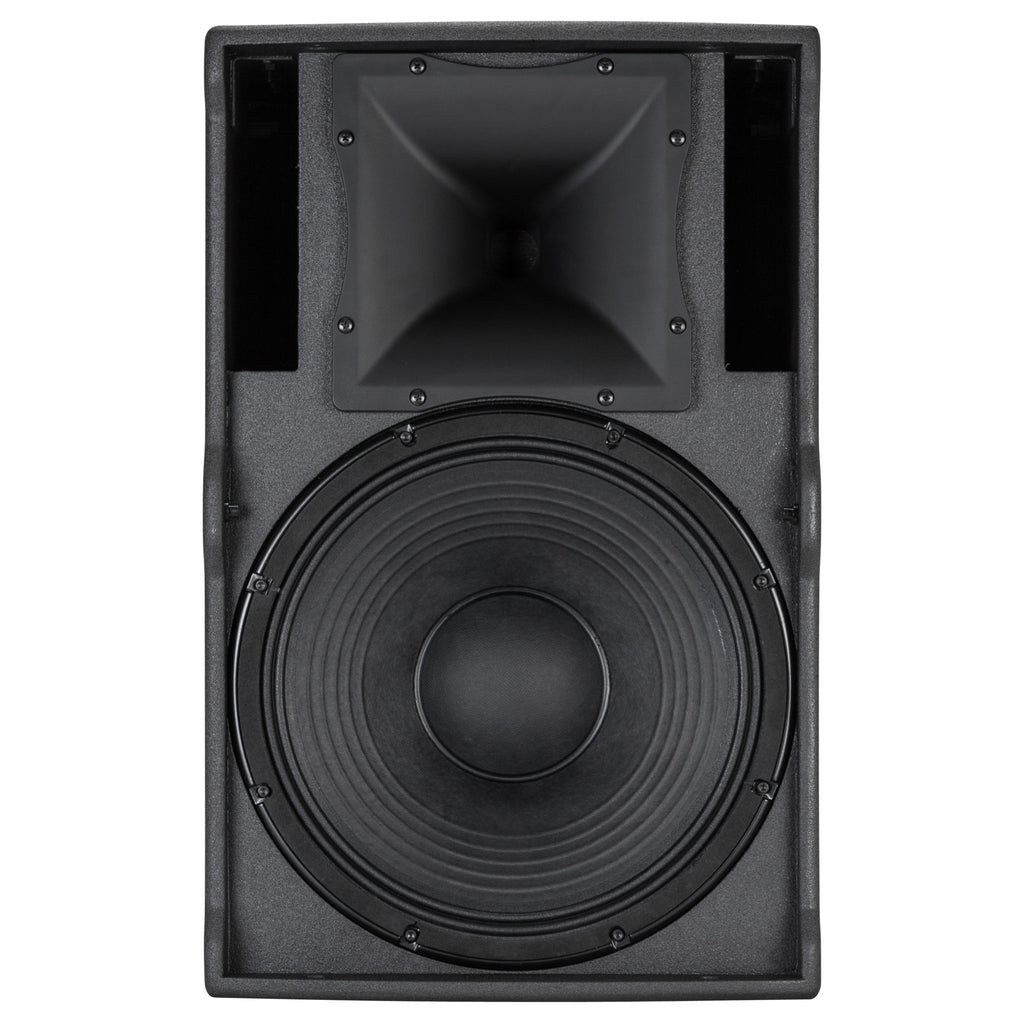

The TT25-A II is the most flexible and powerful tool in its class. TT25-A II offers very high output and dynamics, and extreme linearity and accuracy in a compact size. TT25-A II is a 2-way active system featuring a 15” neo woofer, 86 mm voice coil in a bass reflex configuration; 1,5” exit, 100 mm voice coil neo compression driver; 90° x 60° constant directivity horn, 90° rotating. The TT25-A II is the ideal professional speaker for sound reinforcement, live performances and events.
Features
- 1100 W Class D Amplifier
- 90 x 60 constant directivity coverage angle
- 15" neo woofer, 3.5" voice coil
- 1.5 " neo c. driver, 4.0" voice coil
- DSP Processing
- Onboard RDNet Control

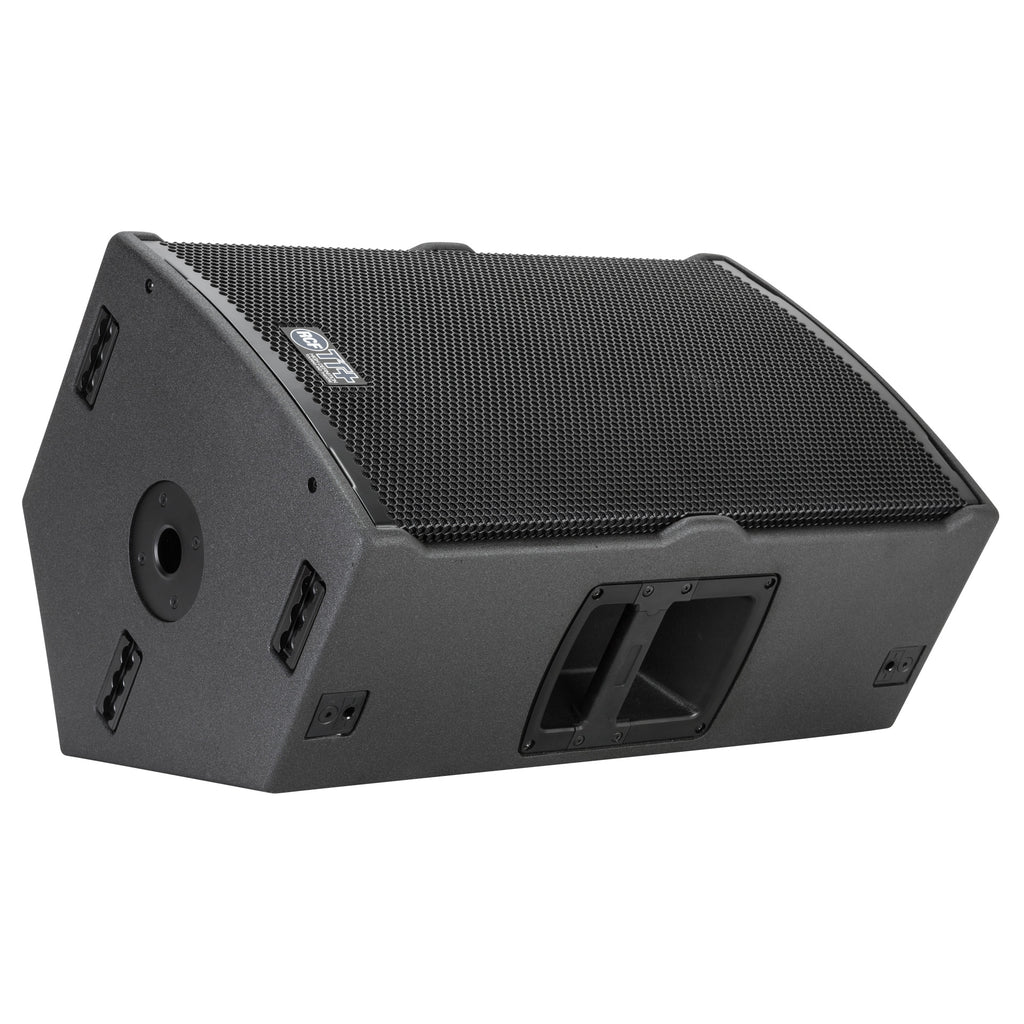

- Multifunctional cabinet
- Very high output
NETWORKED CONTROL AND MUCH MORE
RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.
Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.
New perspective on linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Specifications
Acoustical specifications
| Frequency Response |
50 Hz - 20000 Hz |
| Max SPL @ 1m |
134 dB |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
60° |
Transducers
| Compression Driver |
1 x 1.5'' neo, 4.0'' v.c |
| Woofer |
1 x 15'' neo, 3.5'' v.c |
Input/Output section
| Input signal |
bal/unbal |
| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
XLR, RDNet Ethercon |
| Input sensitivity |
-2 dBu/+4 dBu |
Processor section
| Crossover Frequencies |
750 Hz |
| Protections |
Thermal, HF |
| Limiter |
Fast Limiter |
| Controls |
Proces., 8 sel. presets |
| RDNet |
Onboard |
Power section
| Total Power |
2200 W Peak, 1100 W RMS |
| High frequencies |
600 W Peak, 300 W RMS |
| Low frequencies |
1600 W Peak, 800 W RMS |
| Cooling |
Convection |
| Connections |
Powercon IN/OUT |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |

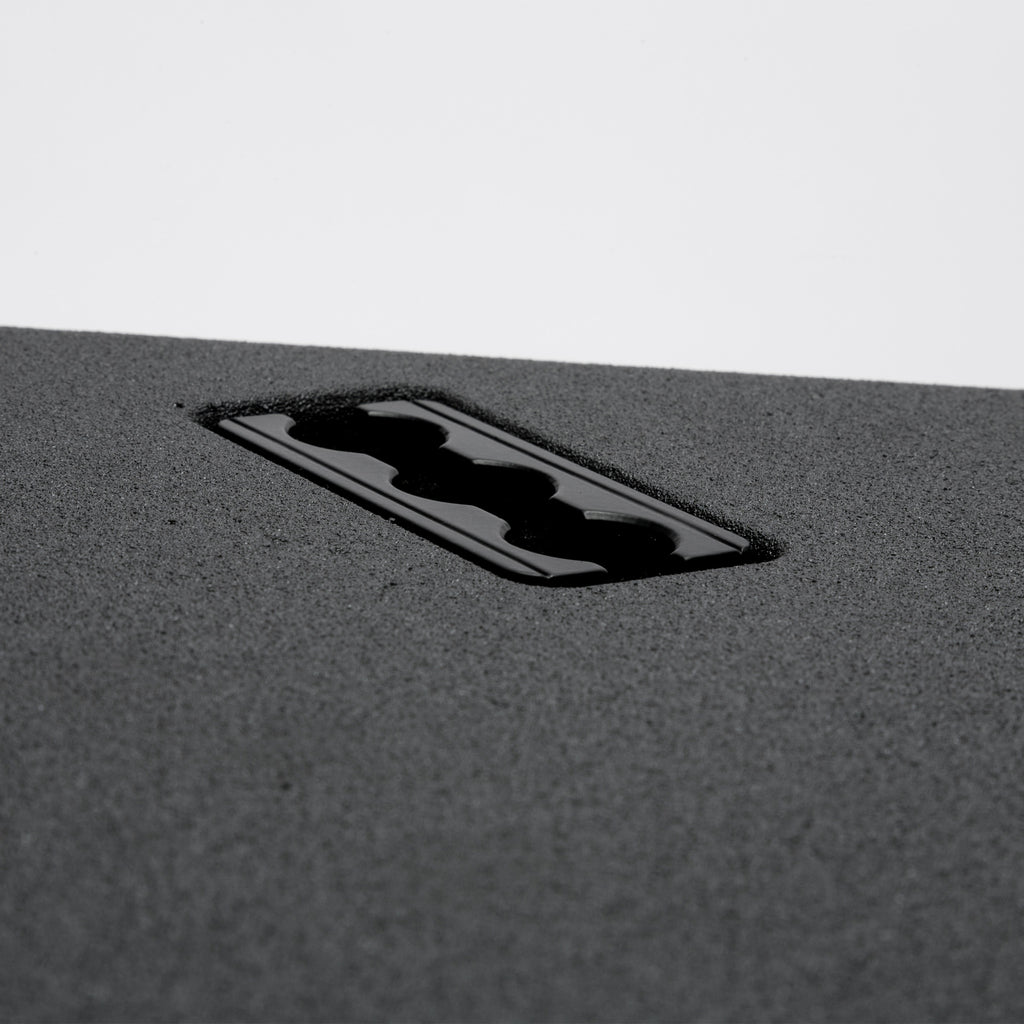

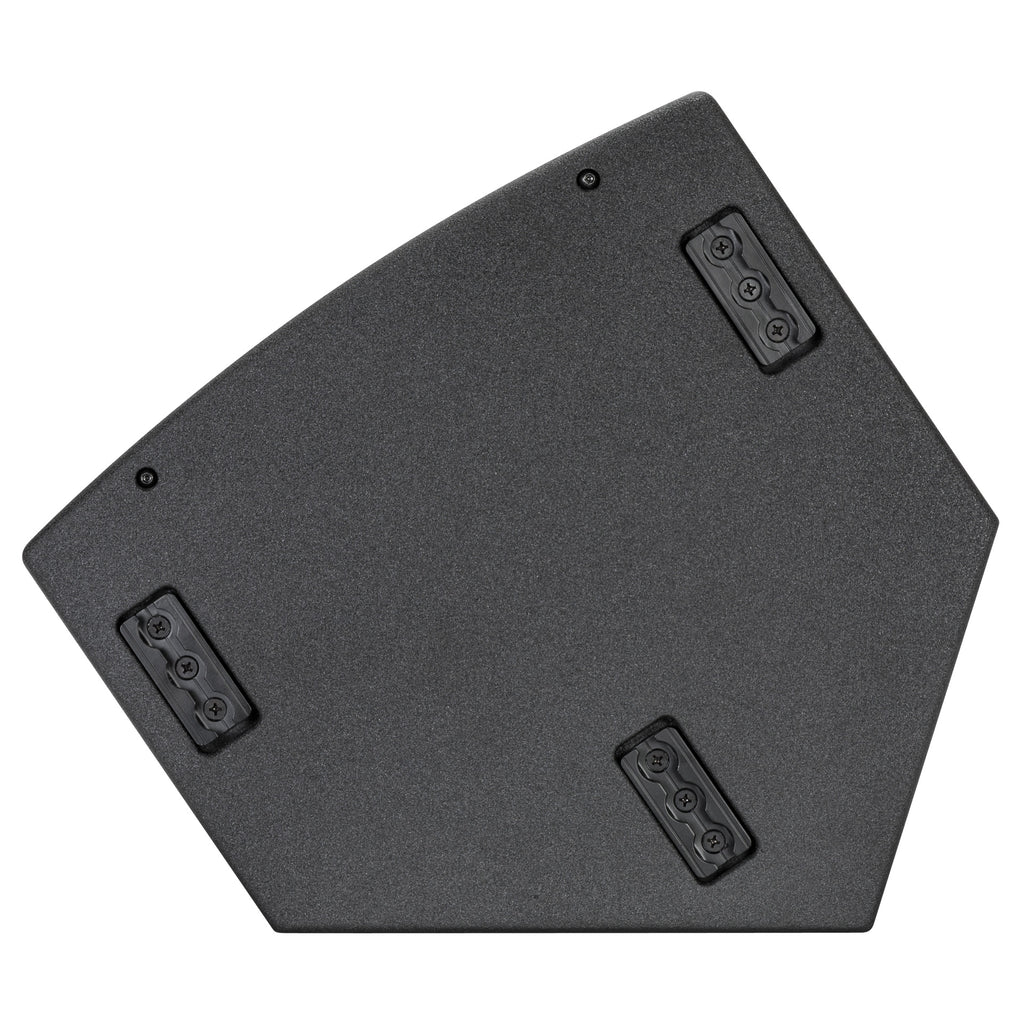

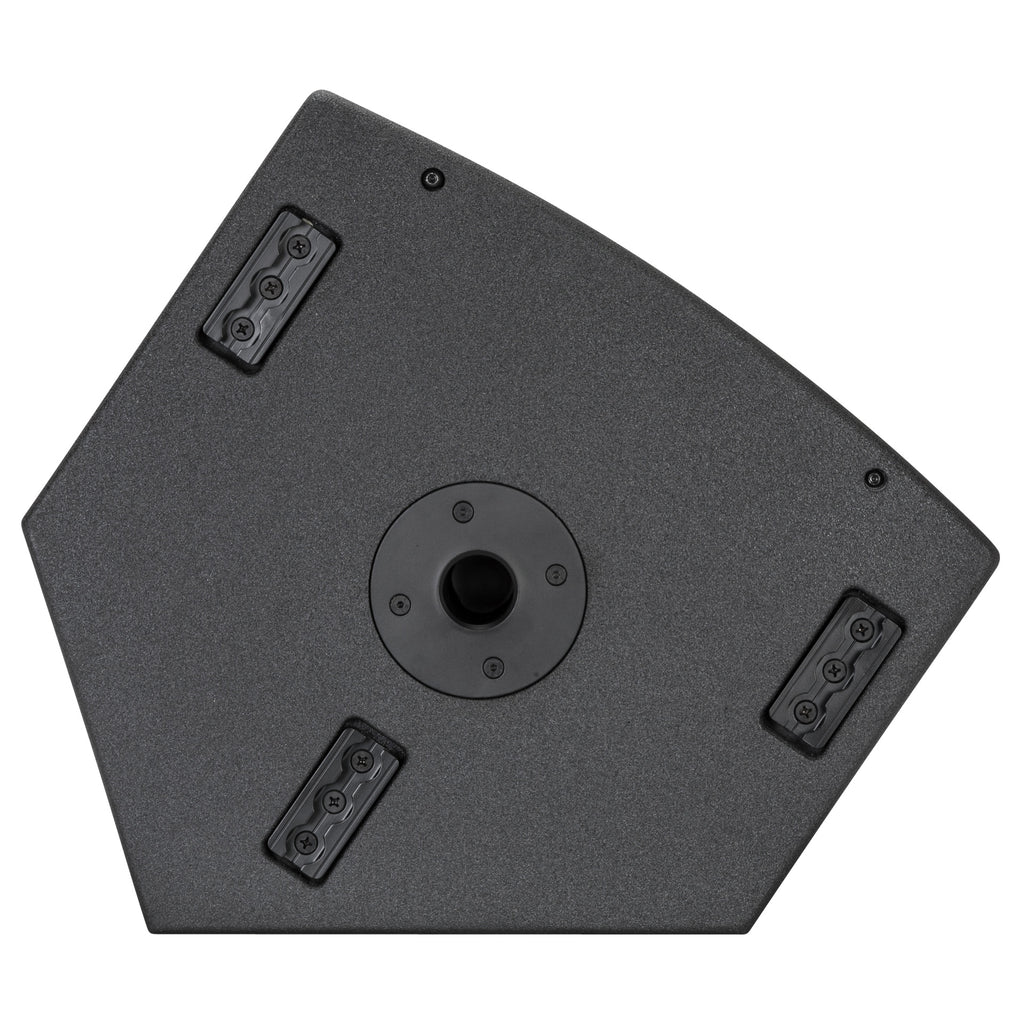

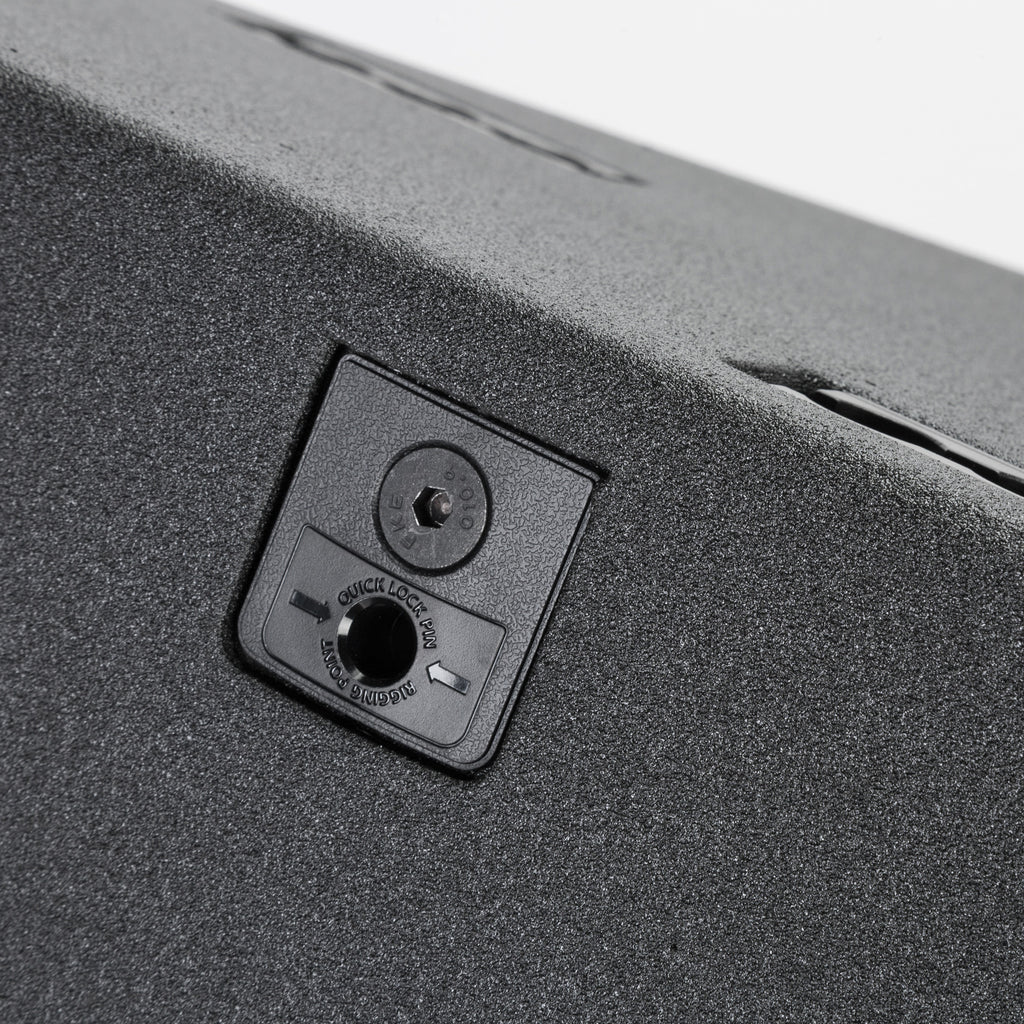

6xfly track, quick lock, pole mount |
| Handles |
2 on side |

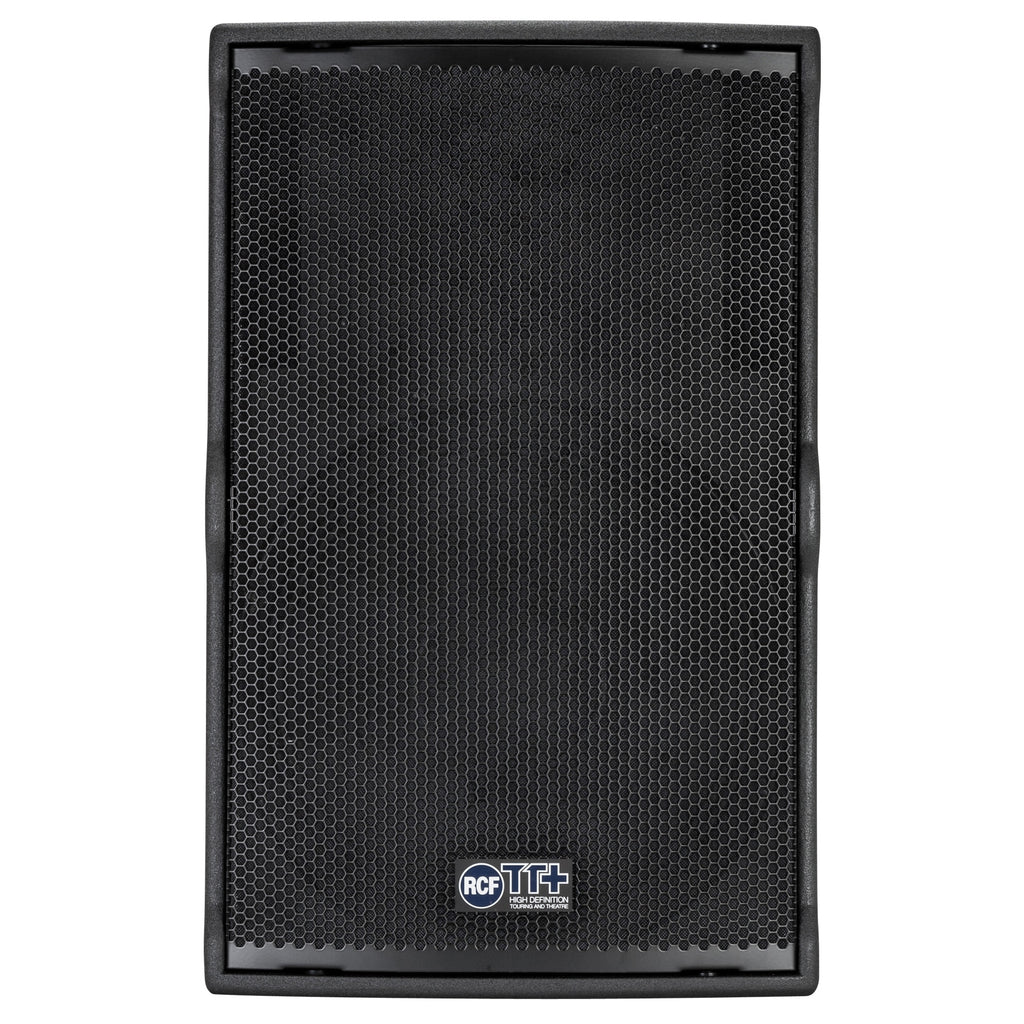

| Grille |
Steel |
| Color |
Black |
Size / Weight
| Height |
670 mm / 26.38 inches |
| Width |
425 mm / 16.73 inches |
| Depth |
425 mm / 16.73 inches |
| Weight |
26 kg / 57.32 lbs |
Shipping information
| Package Height |
715 mm / 28.15 inches |
| Package Width |
470 mm / 18.5 inches |
| Package Depth |
470 mm / 18.5 inches |
| Package Weight |
32.7 kg / 72.09 lbs |
