TRK PRO2 24-Bit 192kHz USB Audio Interface

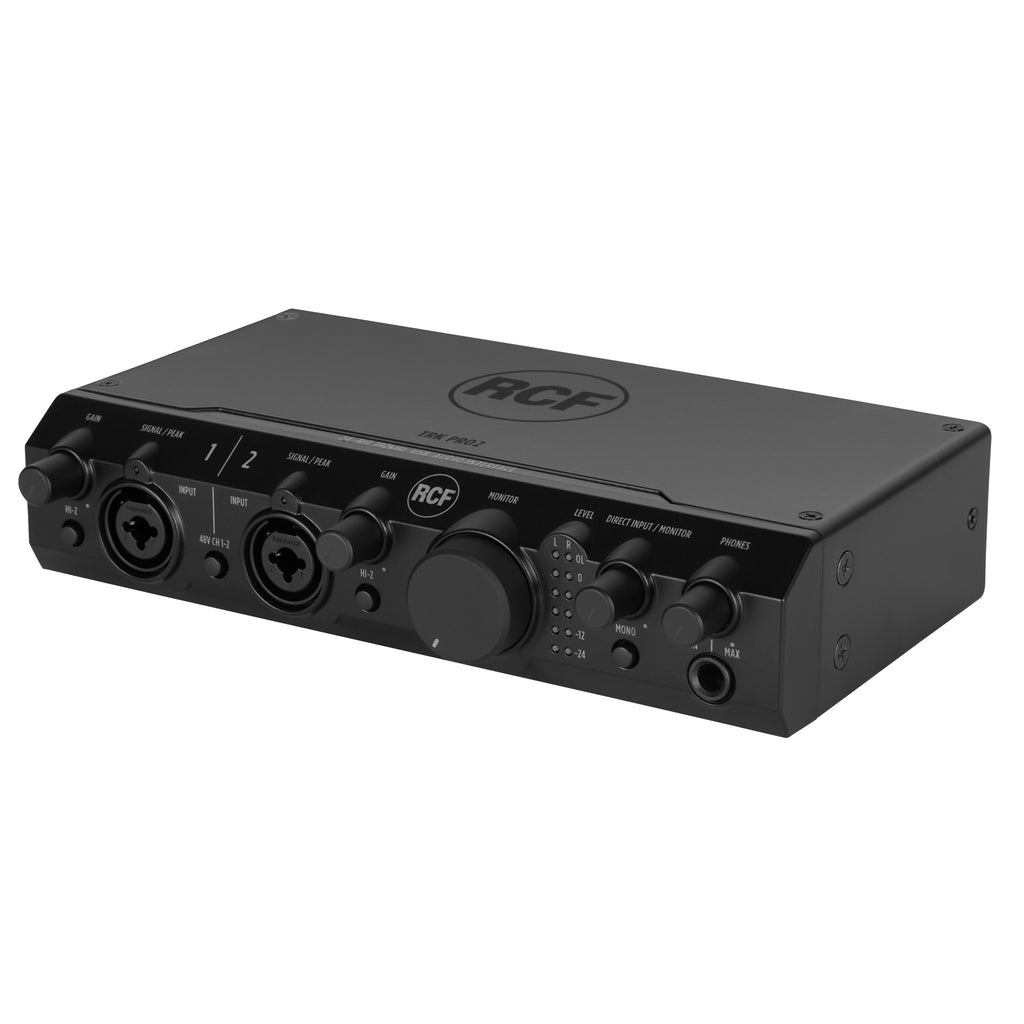

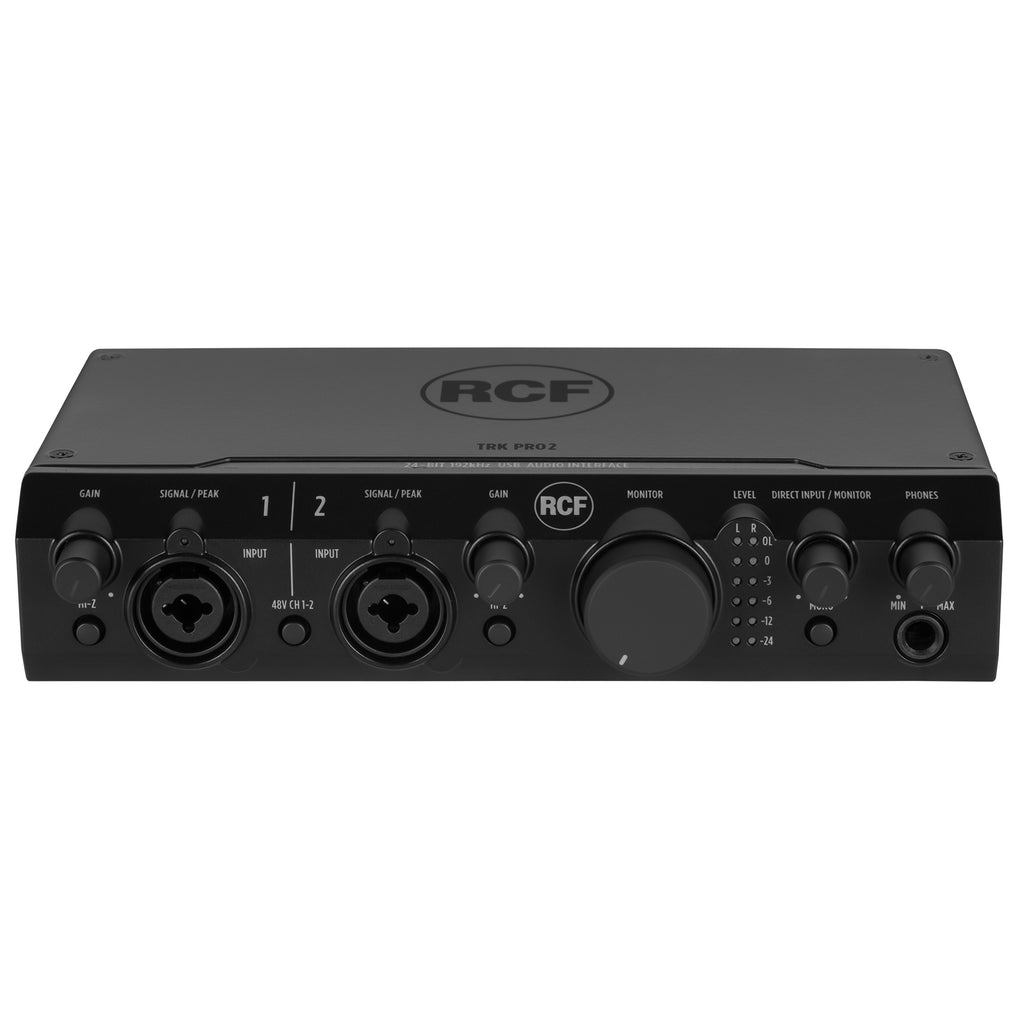

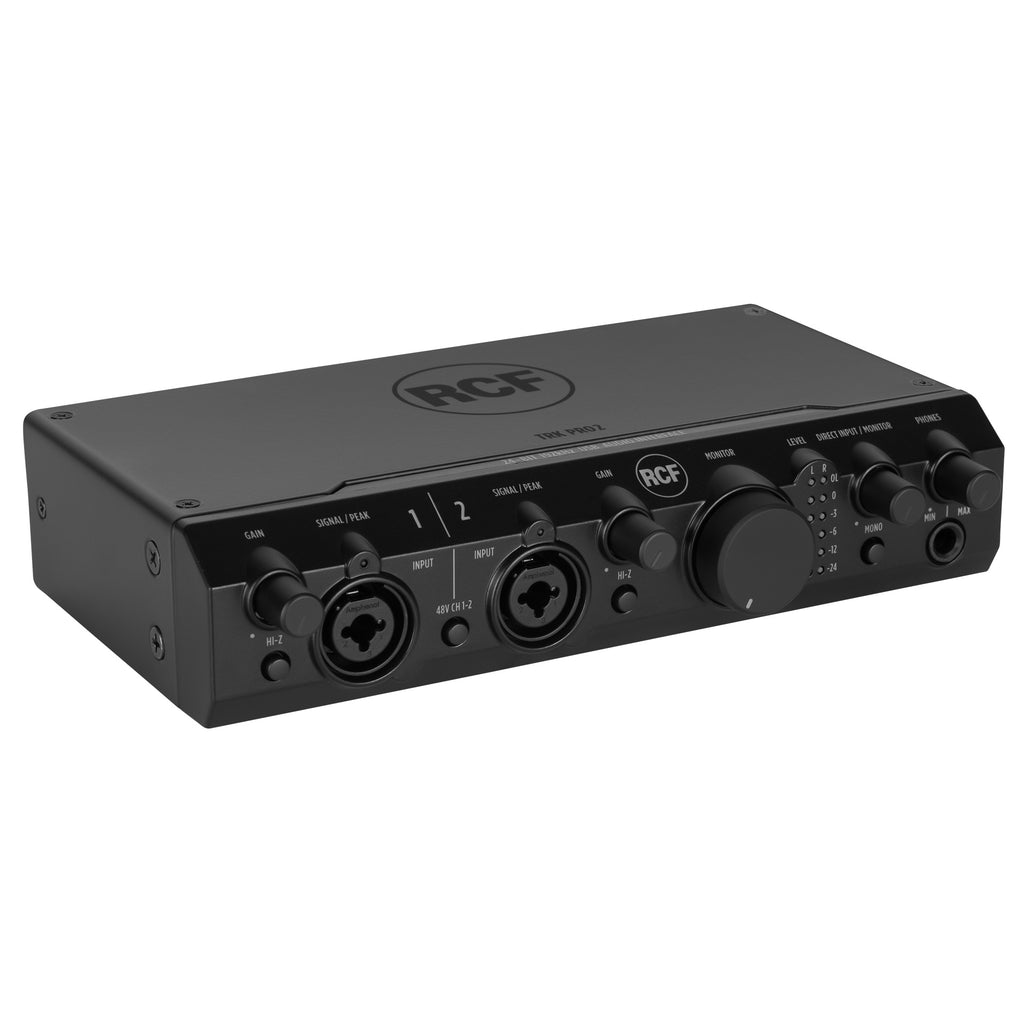

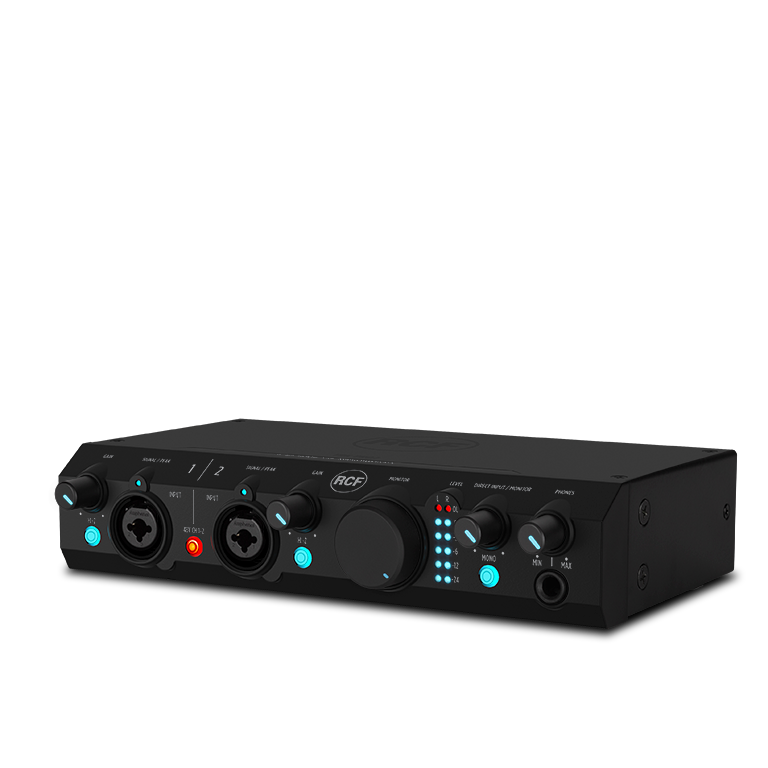

RCF TRK PRO2 hardware interface packs a robust and well-thought USB 2.0 studio-in-a-box with all the connectivity required for microphones, musical instruments, or line-level signals to a computer running macOS or Windows. The 2-channel internal linear preamp circuit allows the connection of 48V phantom-powered microphones and Hi-Z level instruments. Input signals can be routed to DAW (Digital Audio Workstation) at up to 24-bit, 192 kHz resolution; similarly, software monitoring and direct monitoring can be routed to the balanced outputs with variable mixing ratio. The interface can be connected to an amplifier and speakers, powered monitors, headphones, an analog mixer, or other analog audio devices.
Features
- 2 In 2 Out USB 2.0 Bus-Powered Audio Interface
- Up to 24-Bit/192kHz
- 2 Mic and Instrument/Line Combo input
- High-Quality Preamps

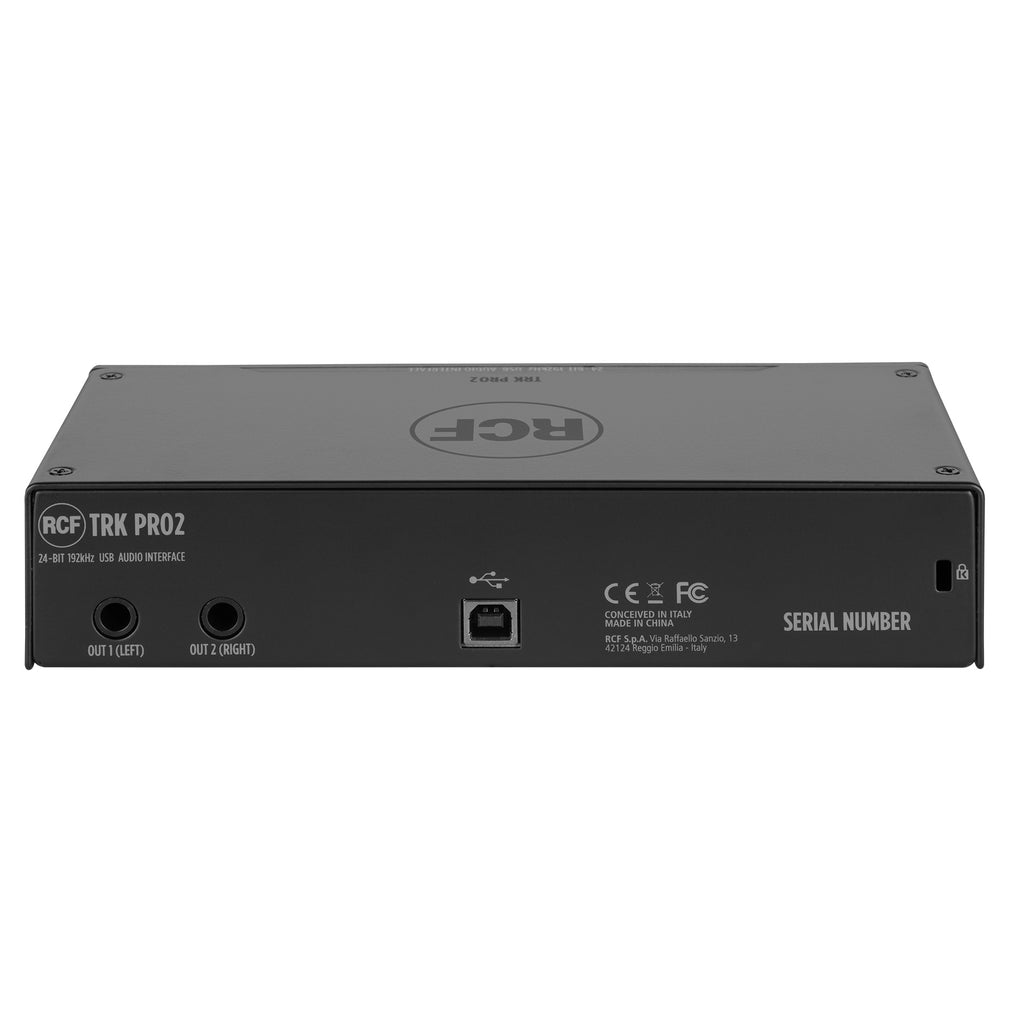

- Balanced Output
- Independent Headphone Volume Control
- Zero-latency monitoring
- Independent Gain Control with Signal-Peak LED
- Perfect for RDNet Measures

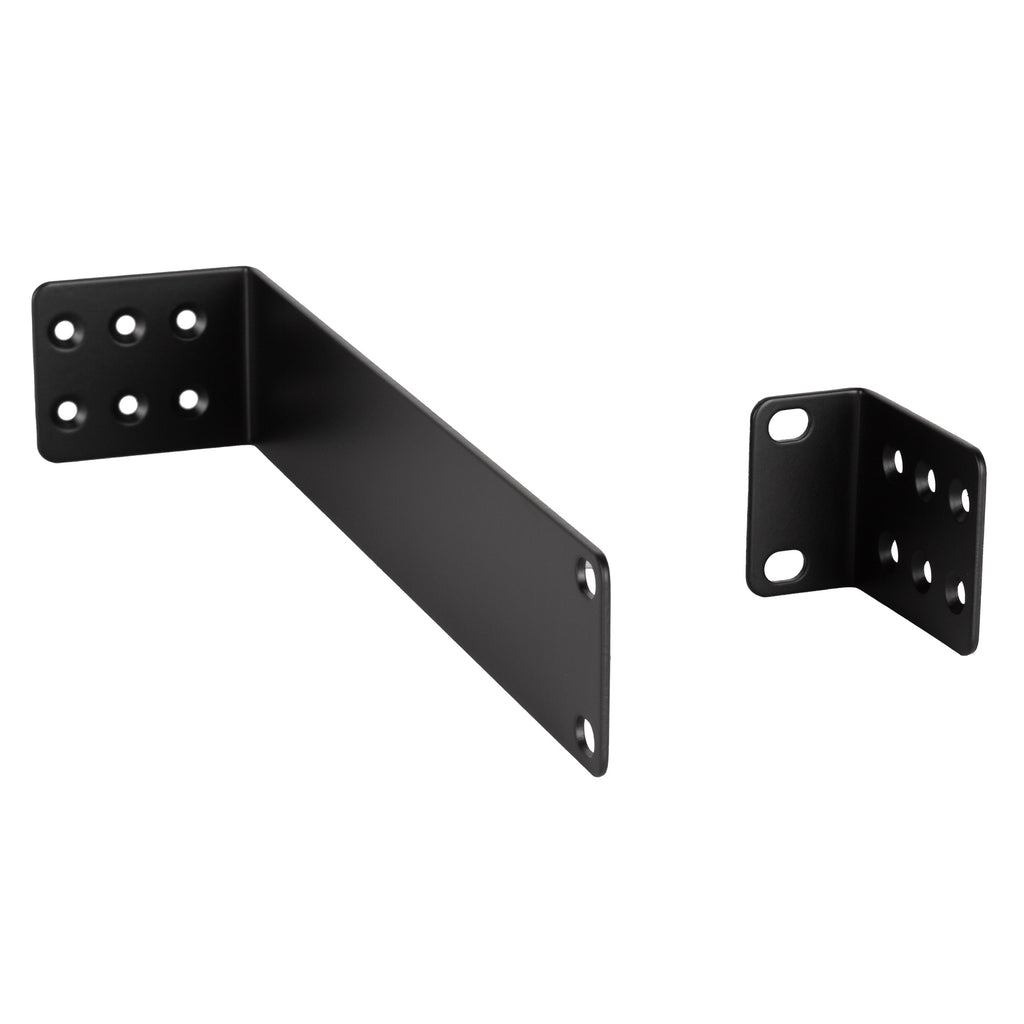

- Rack Mount Ears included
Specifications
General specifications
| MIC INPUT 1/2 (Balanced) |
Freq. Response: 20Hz-20kHz, +/-0.1dB THD+N: <0.0011%, -1dBFS, 20Hz-20kHz Noise EIN: < -120dB Dynamic Range: 107dB (A-weighted) Input Impedance: 3.5KOhm Gain Range: -9 dB ~ +47 dB Maximum Input Level: +9 dBu |
| LINE INPUT 1/2 (Balanced) |
Freq. Response: 20Hz-20kHz, +/-0.1dB THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz Dynamic Range: 107 dB (A-weighted) Input Impedance: 15 kOhm Gain Range: -20 dB ~ +36 dB Maximum Input Level: +20 dB |
| INSTRUMENT INPUT 1/2 (Unbalanced) |
Freq.Response: 20Hz-20kHz,+/-0.1dB THD+N: <0.0025%,-1dBFS,20Hz-20k Input Impedance:1MOhm Gain Range: -10 dB ~+46 dB Maximum Input Level: +10 dBu Dynamic Range: 107 dB (A-weighted) |
| ANALOG OUTPUT (Balanced) |
Maximum Output Level 0dBFS=12dBu Freq.Response: 20 Hz~20 kHz,+/-0.2 THD+N: <0.0012%, -1dBFS, 20Hz-20 kHz Dynamic range: 107 dB (A-weighted) |
| HEADPHONES OUTPUT (Unbalanced) |
Output Impedance: <10 Ohm Max Output Level: 500 Ohm - 114 mW |
| SUPPORTED SAMPLE RATES |
44.1 kHz, 48 kHz, 88.2 kHz,96 kHz, 176.4 kHz, 192 kHz |
| SUPPORTED BIT DEPTH |
16 Bit, 24 Bit |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Steel |
| Hardware |
Rack mount ears incuded |
| Color |
Black - RAL 9005 |
| Rack mounting |
1/2 19", 1U |
Size / Weight
| Height |
46 mm / 1.81 inches |
| Width |
210 mm / 8.27 inches |
| Depth |
125.8 mm / 4.95 inches |
| Weight |
0.85 kg / 1.87 lbs |
Shipping information
| Package Height |
80 mm / 3.15 inches |
| Package Width |
160 mm / 6.3 inches |
| Package Depth |
267 mm / 10.51 inches |
| Package Weight |
1.2 kg / 2.65 lbs |
