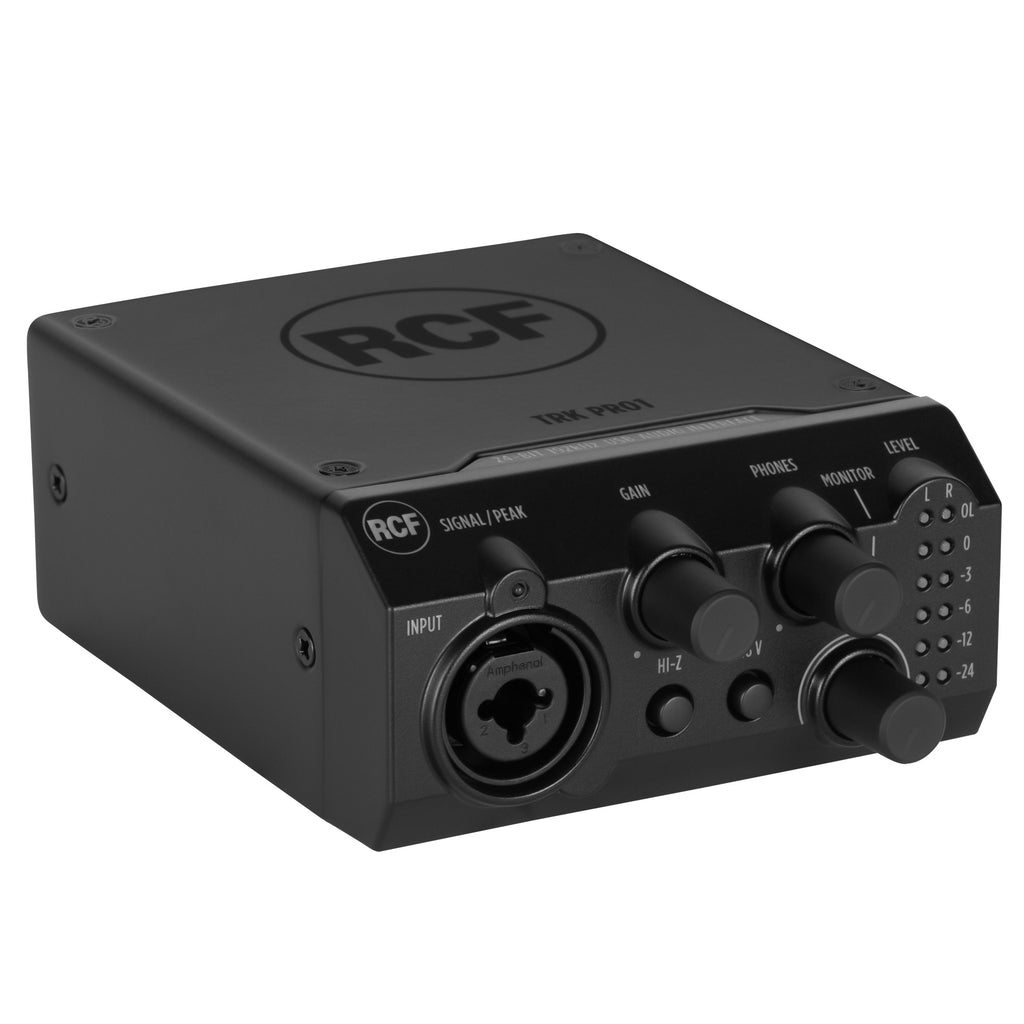

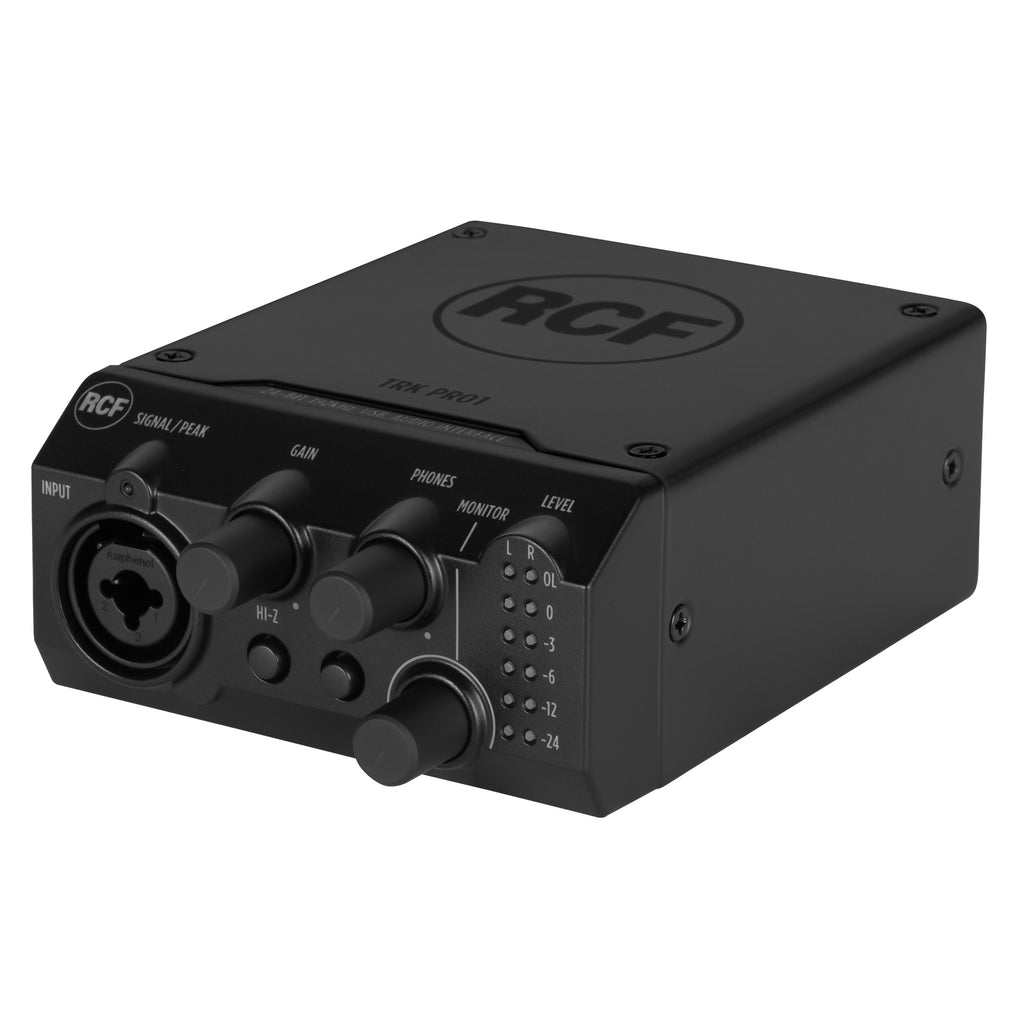

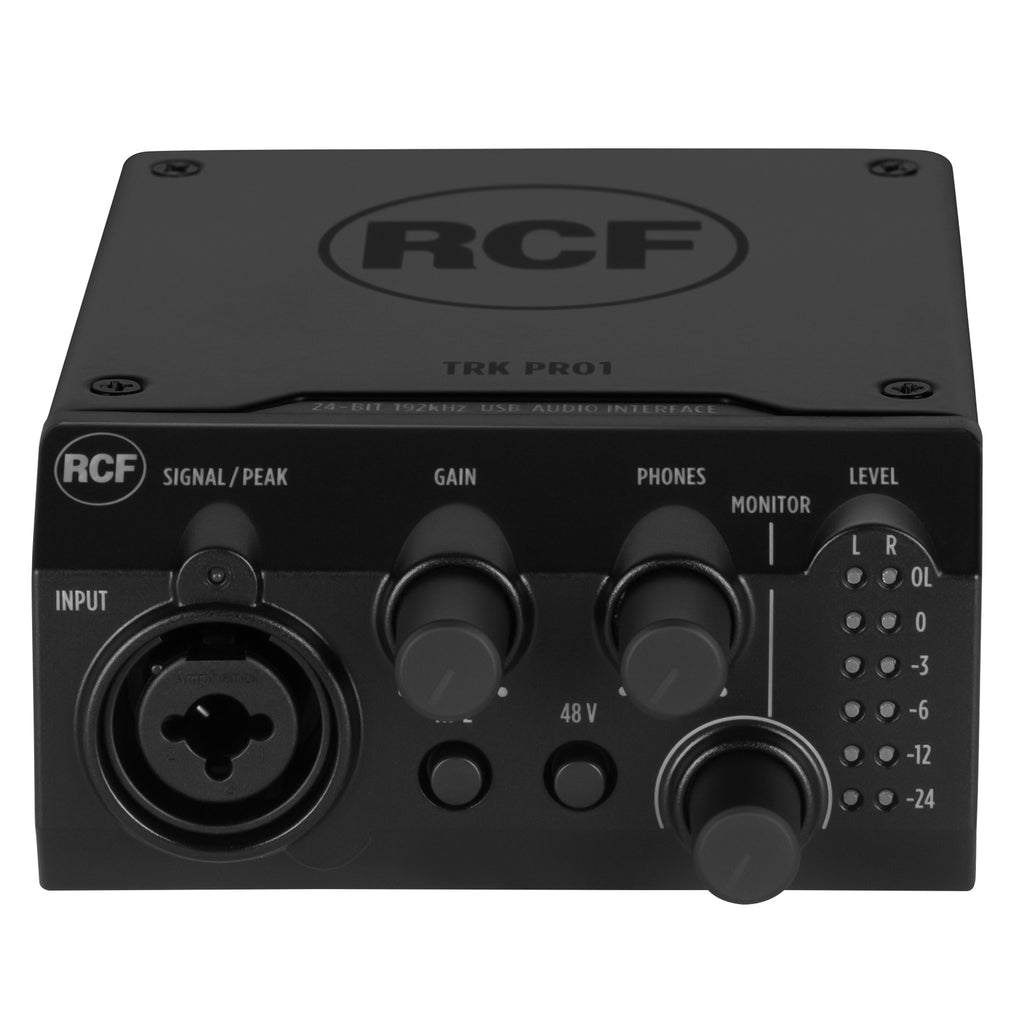

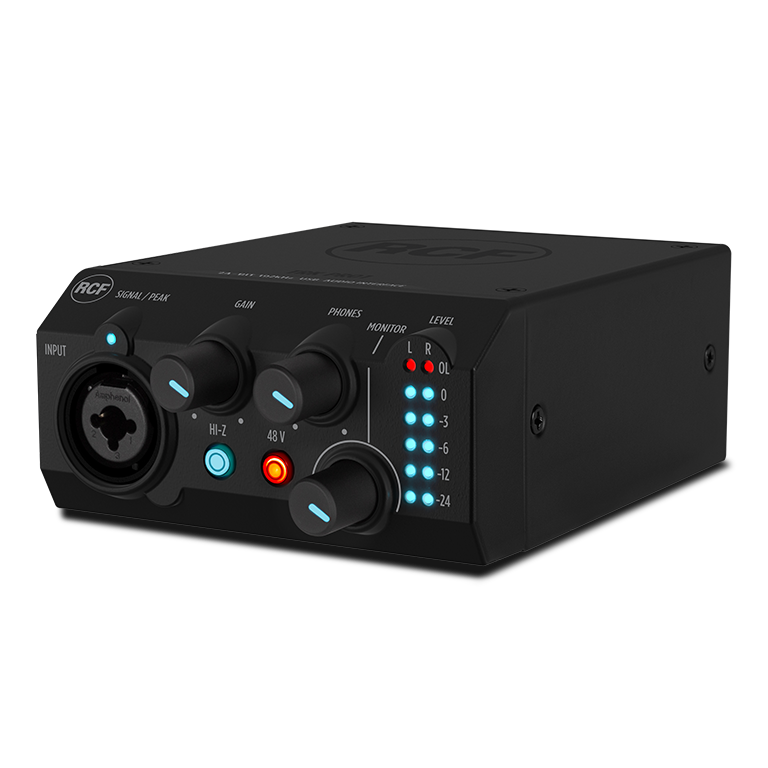

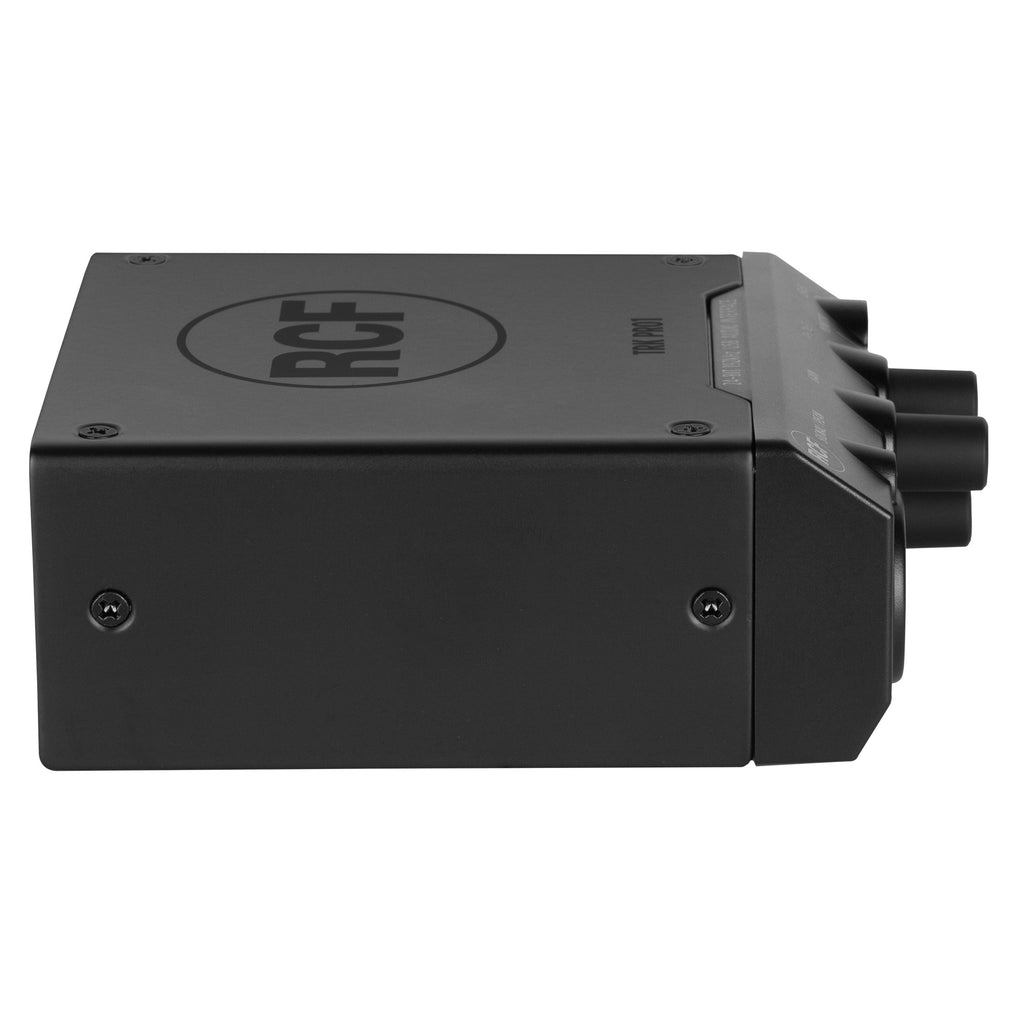

TRK PRO1 24-Bit 192kHz USB Audio Interface
RCF TRK PRO1 hardware interface packs a robust and well-thought USB 2.0 studio-in-a-box with all the connectivity required for microphones, musical instruments, or line-level signals to a computer running macOS or Windows. The internal linear preamp circuit allows the connection of 48V phantom-powered microphones and Hi-Z level instruments. The input signal can be routed to DAW (Digital Audio Workstation) at up to 24-bit, 192 kHz resolution. The interface can be connected to an amplifier and speakers, powered monitors, headphones, an analog mixer, or any other analog audio device.
Features
- 1 In 2 Out USB 2.0 Bus-Powered Audio Interface
- Up to 24-Bit/192kHz
- 1 Mic and Instrument/line Combo input
- High-quality preamp

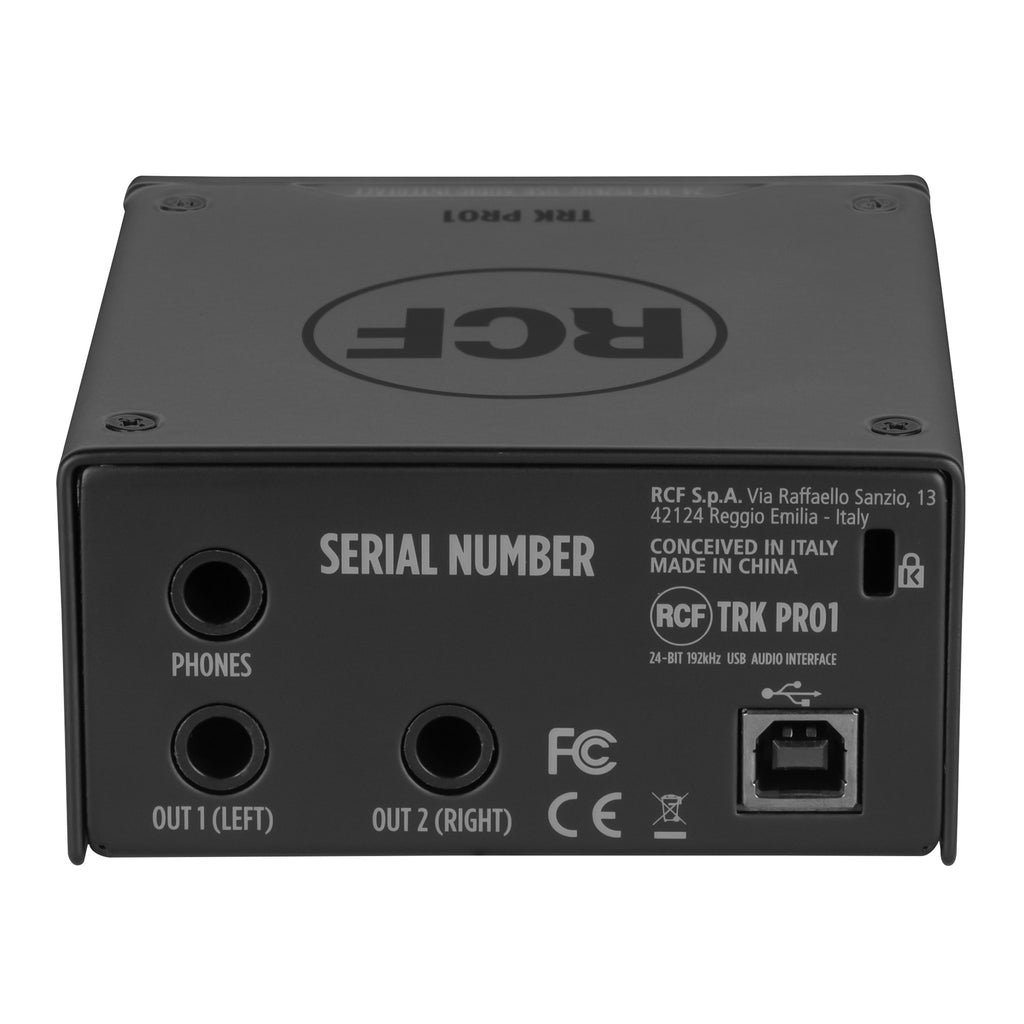

- Balanced Output
- Independent headphone volume control
- Robust Metal Case
- Perfect for RDNet Measures
- 48V Phantom Power Supply
- Independent Gain Control with Signal-Peak LED
Specifications
General specifications
| MIC INPUT (Balanced) |
Freq. Response: 20Hz-20kHz, +/-0.1 dB THD+N: <0.0011%, -1dBFS, 20Hz-20kHz Noise EIN: < -120dB Dynamic Range: 107dB (A-weighted) Input Impedance: 3.5KOhm Gain Range: -9 dB ~ +47 dB Maximum Input Level: +9 dBu |
| LINE INPUT (Balanced) |
Freq. Response: 20Hz-20kHz, +/-0.1dB THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz Dynamic Range 107 dB (A-weighted) Input Impedance: 15 kOhm Gain Range: -20 dB ~ +36 dB Maximum Input Level +20 dB |
| INSTRUMENT INPUT (Unbalanced) |
Freq.Response: 20Hz-20kHz, +/-0.1dB THD+N: <0.0025%, -1dBFS, 20Hz-20k Input Impedance: 1MOhm Gain Range: -10 dB ~+46 dB Maximum Input Level: +10 dBu Dynamic Range: 107 dB (A-weighted) |
| ANALOG OUTPUT (Balanced) |
Maximum Output Level 0dBFS=12dBu Freq.Response: 20 Hz~20 kHz, +/-0.2 THD+N <0.0012%, -1dBFS, 20 Hz-20 kHz Dynamic range: 107 dB (A-weighted) |
| HEADPHONES OUTPUT (Unbalanced) |
Output Impedance: <10 Ohm Max Output Level: 500 Ohm - 114 mW |
| SUPPORTED SAMPLE RATES |
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| SUPPORTED BIT DEPTH |
16 Bit, 24 Bit |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Steel |
| Color |
Black - RAL 9005 |
Size / Weight
| Height |
46 mm / 1.81 inches |
| Width |
91.4 mm / 3.6 inches |
| Depth |
125.8 mm / 4.95 inches |
| Weight |
0.5 kg / 1.1 lbs |
Shipping information
| Package Height |
80 mm / 3.15 inches |
| Package Width |
162 mm / 6.38 inches |
| Package Depth |
170 mm / 6.69 inches |
| Package Weight |
0.6 kg / 1.32 lbs |
