RCF SUB-S29 WP, Passive 12000W Dual 19" Bass Reflex Subwoofer (Weatherproof) (Must Sold With XPS Amp)

S 29 WP High-Power Weatherproof Subwoofer

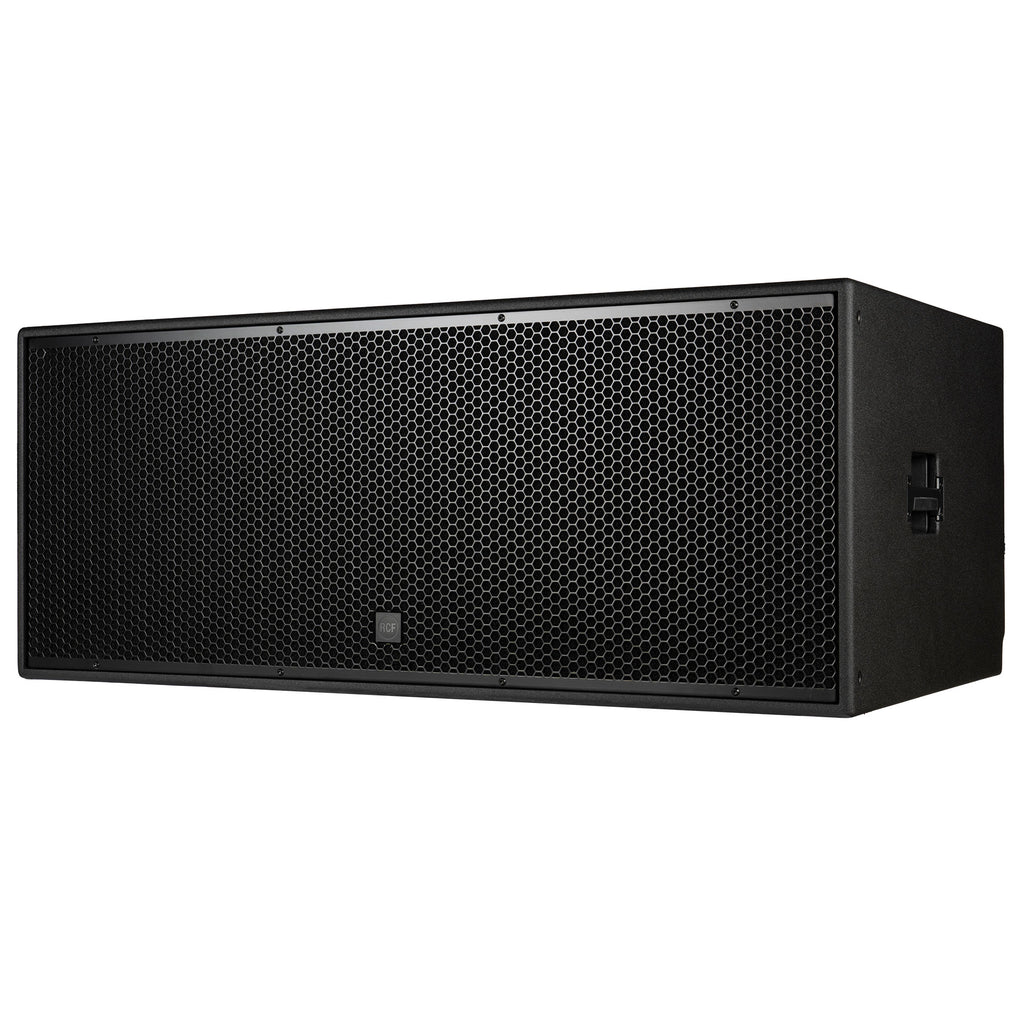

S 29 WP is a high-power dual 19” cone subwoofer suitable for high-powered outdoor applications. The bass-reflex design ensures an efficient acoustic response down to 25 Hz. The high-quality plywood cabinet is finished with a black, heavy-duty polyurea coating and protected by a powder-coated metal grille. An M20 pole mount adapter is provided on top of the cabinet, with handles on both sides. The enclosure can be ground-stacked and cardioid-arrayable for improved rear rejection. For enhanced weather resistance, the WP model features an acoustically transparent, water-repellent fabric discreetly embedded within the grille assembly and IP67 Amphenol Ecomate power connectors.

Features

• Up to 3000 W power handling
• 143 dB max SPL
• 25 ÷ 200 Hz frequency range
• 2 x 19" HyperVented Neodymium Woofer with 4’’ v.c.
• High-quality polyurea-coated multi-ply cabinet
• Steel grille with water-repellent protection
• Integrated M20 threaded pole mount on top
• 2 x Amphenol eco|mate IP 67 connectors

• XPS SERIES
• 40-bit Floating-point
• Processing at 96 kHz
• Ready-to-Use
• Configurations and presets for RCF speakers
• 2U Rack Space
• for both touring and installed sound systems
• Flexible 32-bit Routing
• with analog, digital
• and Dante I/O
• Advanced Fault Protections
• for each amplifier channel and power supply

Advanced Transducer Technology

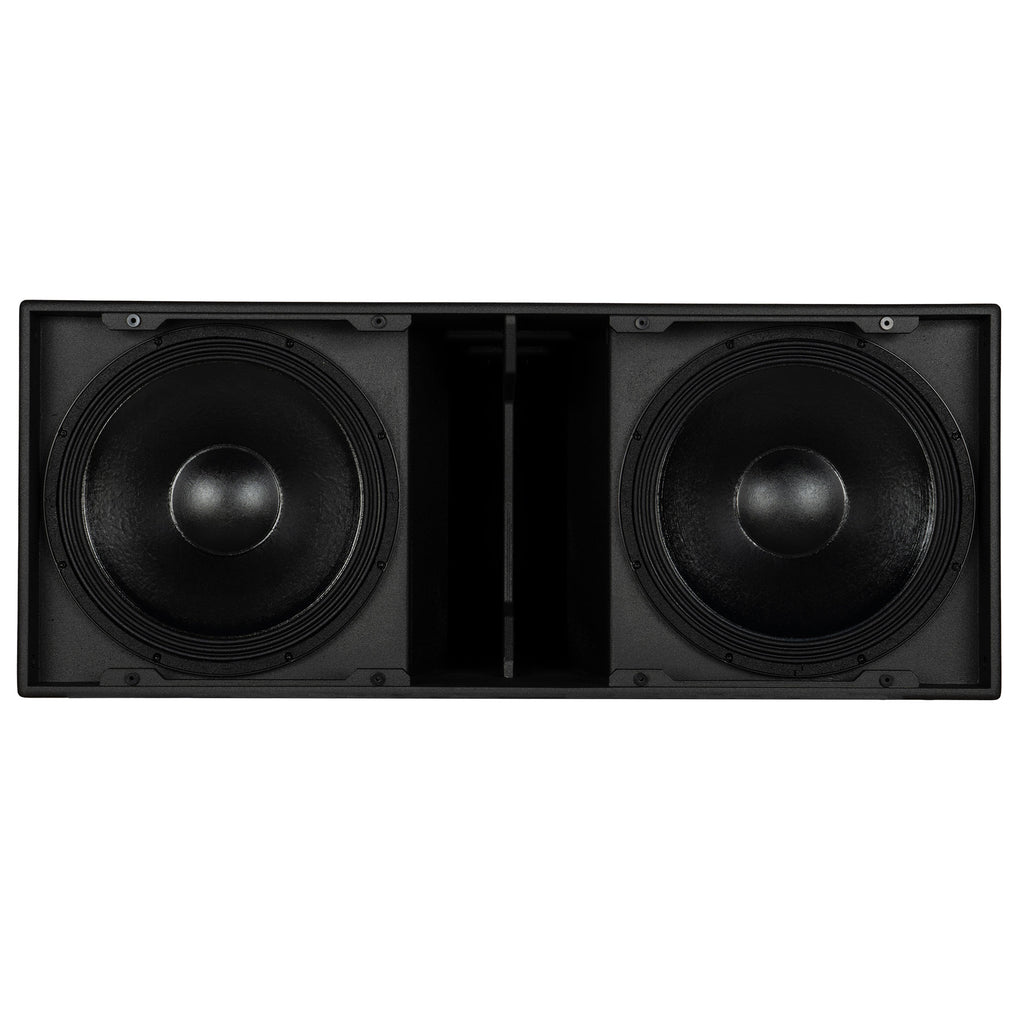

S Series subwoofers incorporate the latest transducer technology from our labs. The 19-inch cone size is the ideal balance between the traditional high-speed 18” and the slower 21” and inherits the best characteristics of the two sizes. Employing lightweight aluminum core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass (65mm/2.5" safe peak-to-peak) gains high power with fast acceleration. Despite their small and lightweight footprints, S 29 and S 19 produce powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.

Weatherproof. Impact-Resistant. Built to Last.

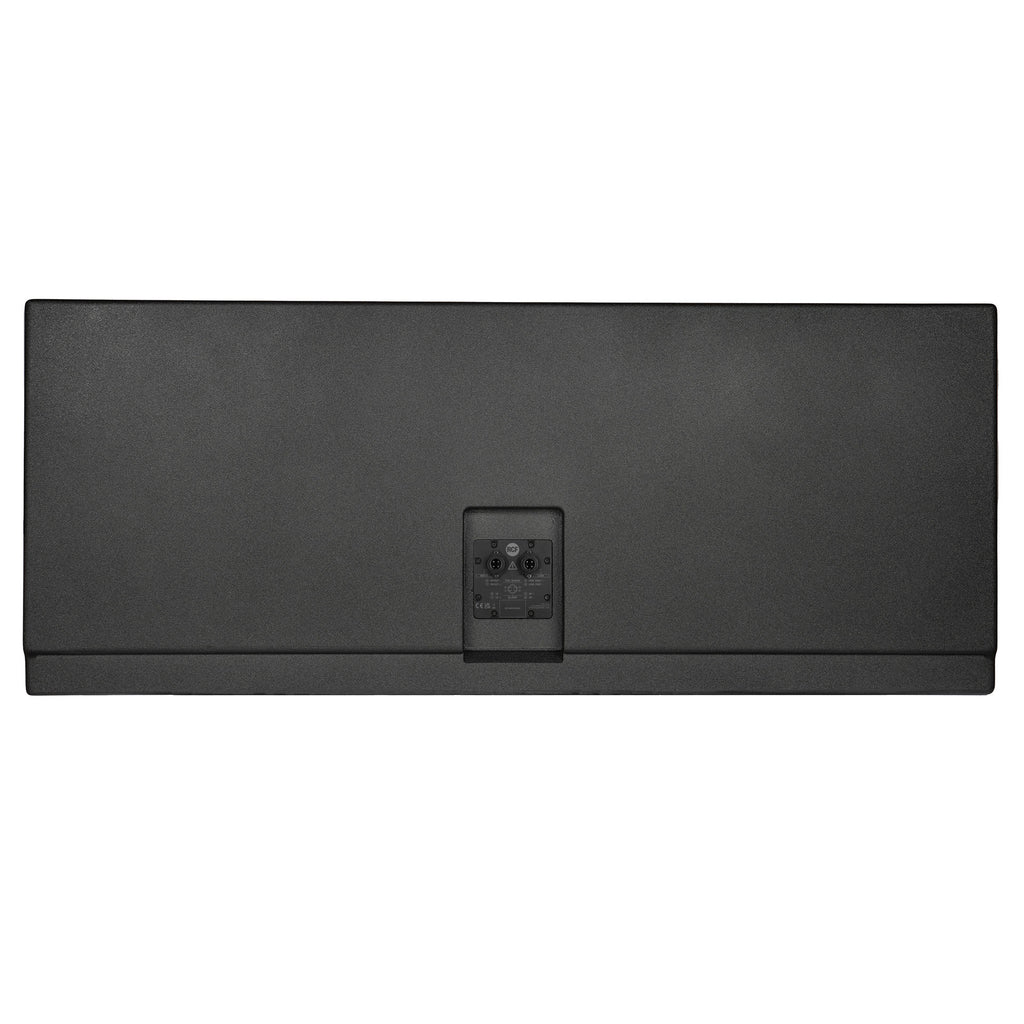

S Series enclosures are finished with a highly durable polyurea coating that provides excellent waterproofing and corrosion protection. The coating also withstands abrasion, impacts, mechanical stress, and its high elasticity maintains flexibility even in low temperatures. For enhanced weather resistance, the WP model features an acoustically transparent, water-repellent fabric seamlessly integrated into the powder-coated metal grille assembly, along with IP67-rated Amphenol eco|mate power connectors on the back panel.

Modular Suspension Kit

The modular Subwoofer Suspension Kit is engineered for extreme flexibility and safety in flown subwoofer configurations. Designed with high-strength steel components and compatible with various subwoofer models, the system supports secure suspension of up to 9 units while also enabling adaptability for cardioid configurations.

For specific part numbers, consult the Subwoofer Suspension Kit Reference Guide in the download section.

Please note that the kit for model S 29 WP is available exclusively for the Flyable version (please check package label).

DOWNLOAD GUIDE

Specifications

Acoustical specifications

Power section

Transducers

Input/Output section

Standard compliance

Physical specifications

Size / Weight

Shipping information
