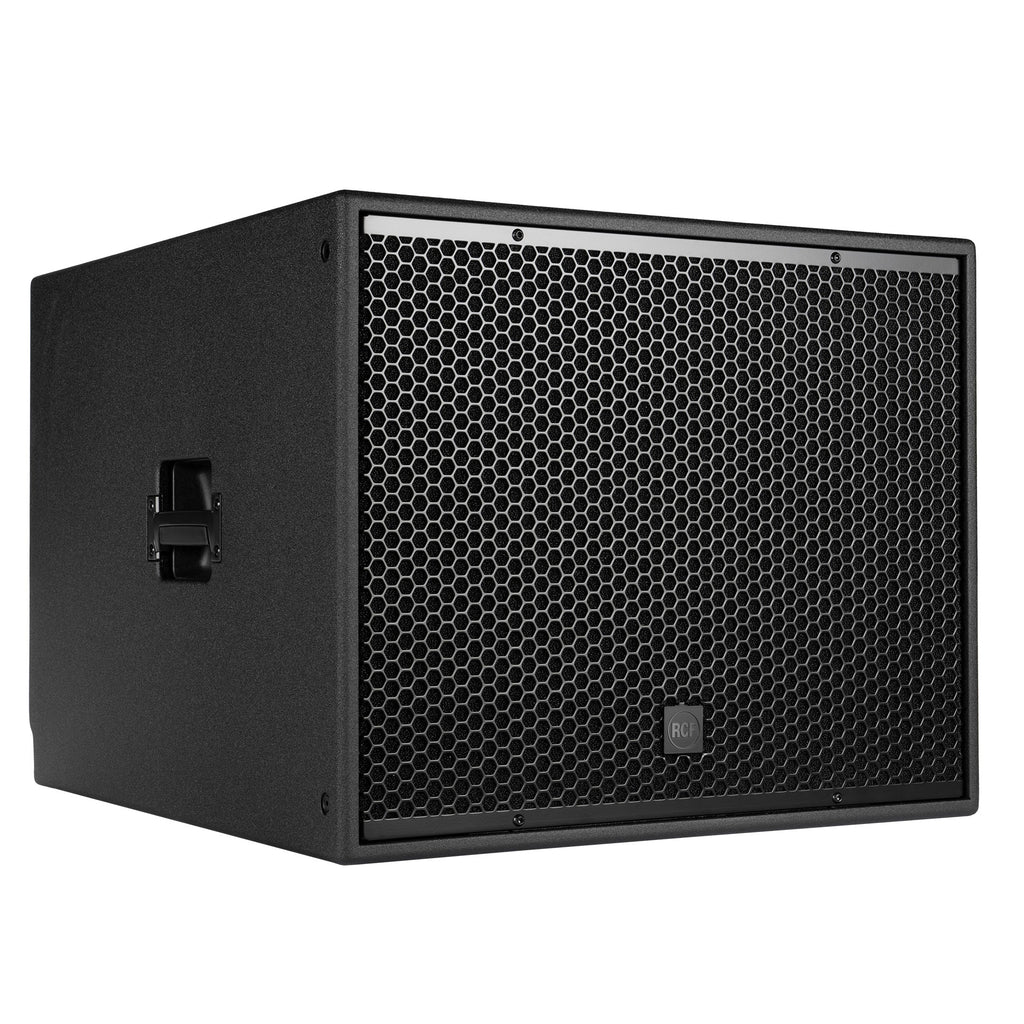

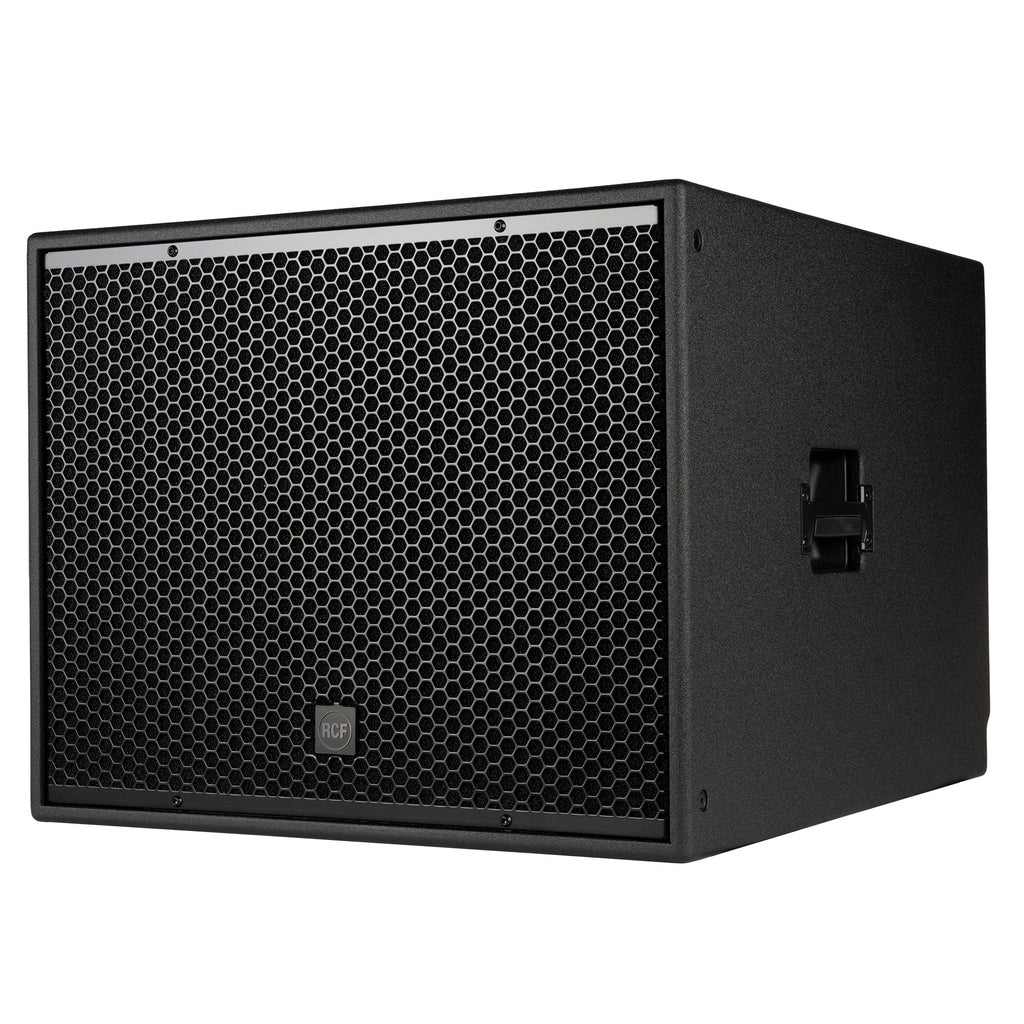

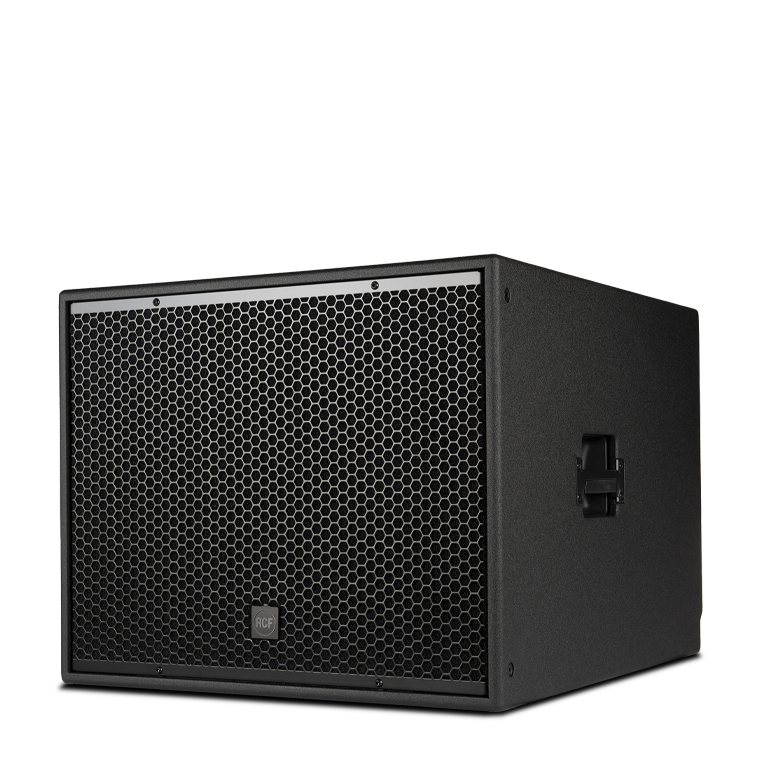

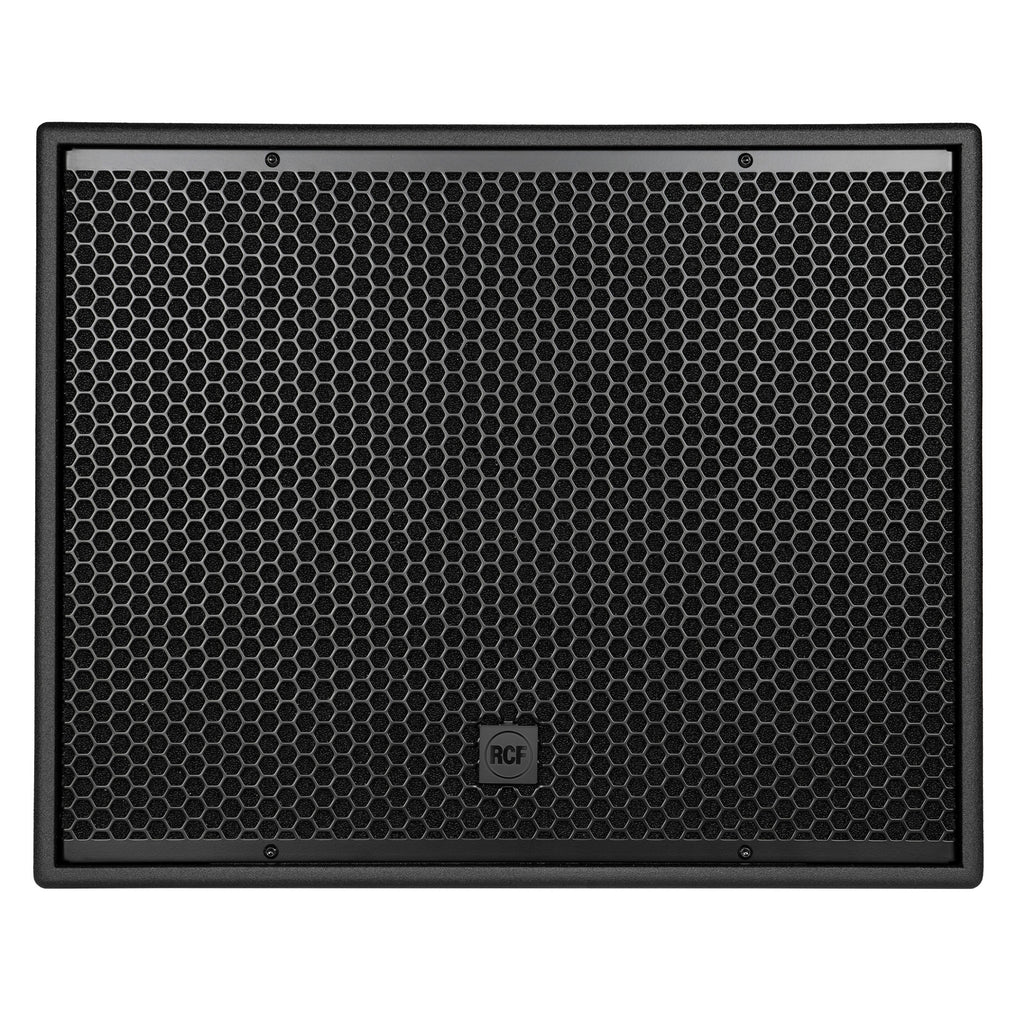

S 19 High-Power Bass Reflex Subwoofer

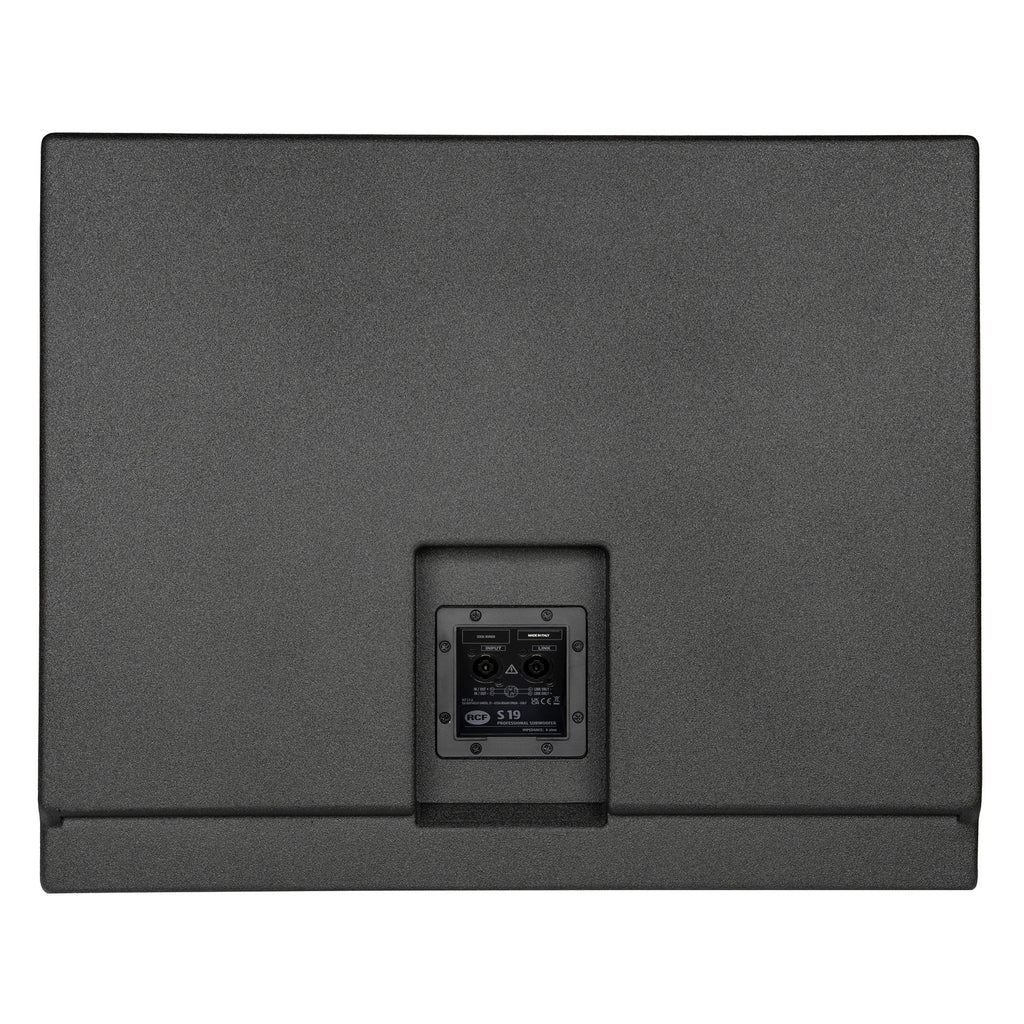

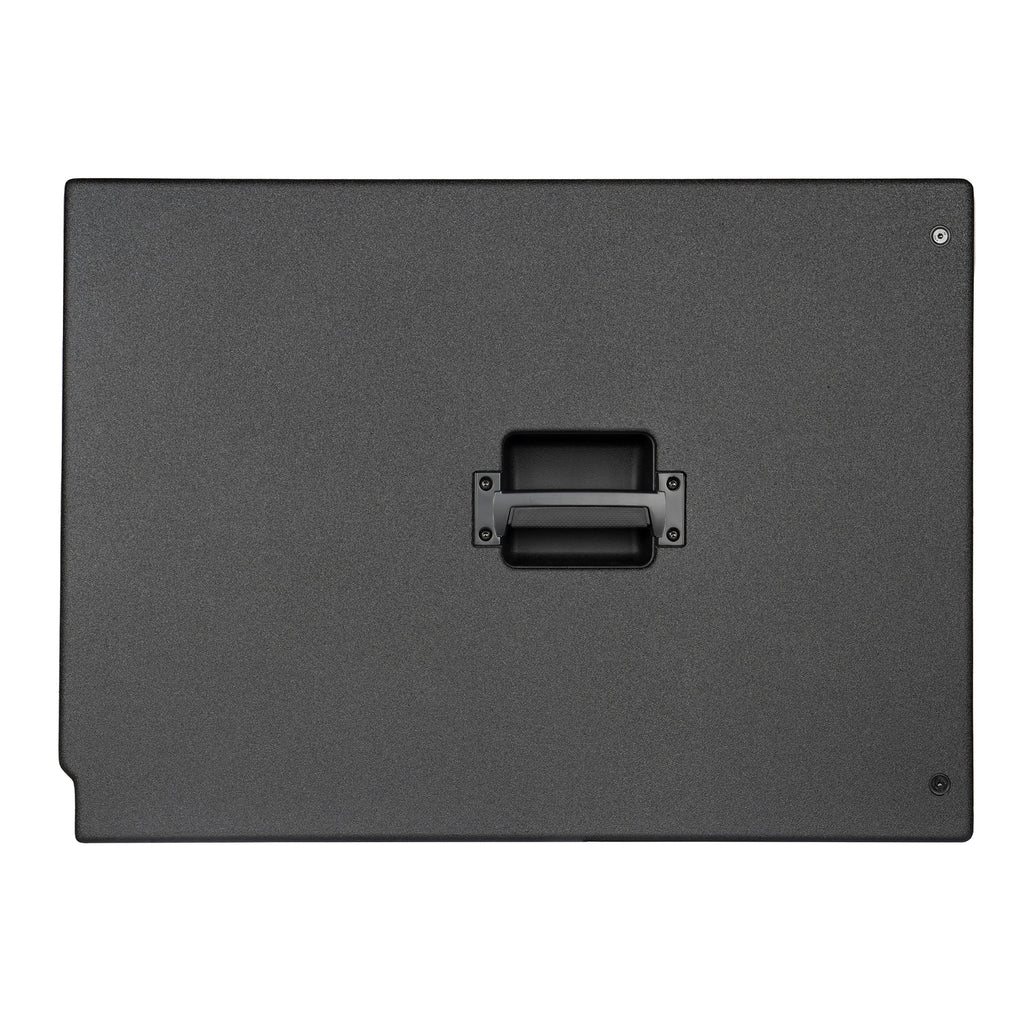

S 19 is a high-power single 19" subwoofer suitable for RCF Installed Sound systems. The bass-reflex design ensures an efficient acoustic response down to 30 Hz. The high-quality plywood cabinet is finished with a black, heavy-duty polyurea coating and protected by a powder-coated metal grille. The recessed input panel features two Speakon NL4 connectors, allowing a quick and safe connection. A M20 pole mount adaptor on top of the cabinet and handles on both sides are provided. Both models can be ground-stacked and are cardioid-arrayable for improved rear rejection.
Features
- Up to 1500 W power handling
- 139 dB max SPL
- 30 ÷ 200 Hz frequency range
- 19" HyperVented Neodymium Woofer with 4’’ v.c.
- High-quality polyurea-coated multi-ply cabinet
- Steel front grille with clothing
- Integrated M20 threaded pole mount on top
- Speakon NL4 connectors
- XPS SERIES
- 40-bit Floating-point
- Processing at 96 kHz
- Ready-to-Use
- Configurations and presets for RCF speakers
- 2U Rack Space
- for both touring and installed sound systems
- Flexible 32-bit Routing
- with analog, digital
- and Dante I/O
- Advanced Fault Protections
- for each amplifier channel and power supply
Advanced Transducer Technology
S Series subwoofers incorporate the latest transducer technology from our labs. The 19-inch cone size is the ideal balance between the traditional high-speed 18” and the slower 21” and inherits the best characteristics of the two sizes. Employing lightweight aluminum core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass (65mm/2.5" safe peak-to-peak) gains high power with fast acceleration. Despite their small and lightweight footprints, S 29 and S 19 produce powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.
Polyurea Coating
S Series enclosures are finished with a highly durable polyurea coating that provides excellent waterproofing and corrosion protection. The coating also withstands abrasion, impacts, mechanical stress, and its high elasticity maintains flexibility even in low temperatures. It also exhibits strong chemical resistance and does not emit any VOCs (volatile organic compounds), making it environmentally friendly and safe for human health.
Modular Suspension Kit
The modular Subwoofer Suspension Kit is engineered for extreme flexibility and safety in flown subwoofer configurations. Designed with high-strength steel components and compatible with various subwoofer models, the system supports secure suspension of up to 9 units while also enabling adaptability for cardioid configurations.
For specific part numbers, consult the Subwoofer Suspension Kit Reference Guide in the download section.
Please note that the kit for model S 19 is available exclusively for the Flyable version (please check package label).
download guide
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
30 Hz - 200 Hz |
| Max SPL @ 1m |
139 dB |
Power section
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
1500 W |
| Peak Power Handling |
6000 W PEAK |
Transducers
| Woofer |
1 x 19'' neo, 4.0'' v.c |
Input/Output section
| Input connectors |
Speakon® NL4 |
| Output connectors |
Speakon® NL4 |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plywood |
| Handles |
2 side |
| Pole mount/Cap |
M20 thread |
| Grille |
Steel with clothing |
Size / Weight
| Height |
534 mm / 21.02 inches |
| Width |
650 mm / 25.59 inches |
| Depth |
730 mm / 28.74 inches |
| Weight |
44 kg / 97 lbs |
Shipping information
| Package Height |
565 mm / 22.24 inches |
| Package Width |
680 mm / 26.77 inches |
| Package Depth |
760 mm / 29.92 inches |
| Package Weight |
48 kg / 105.82 lbs |
