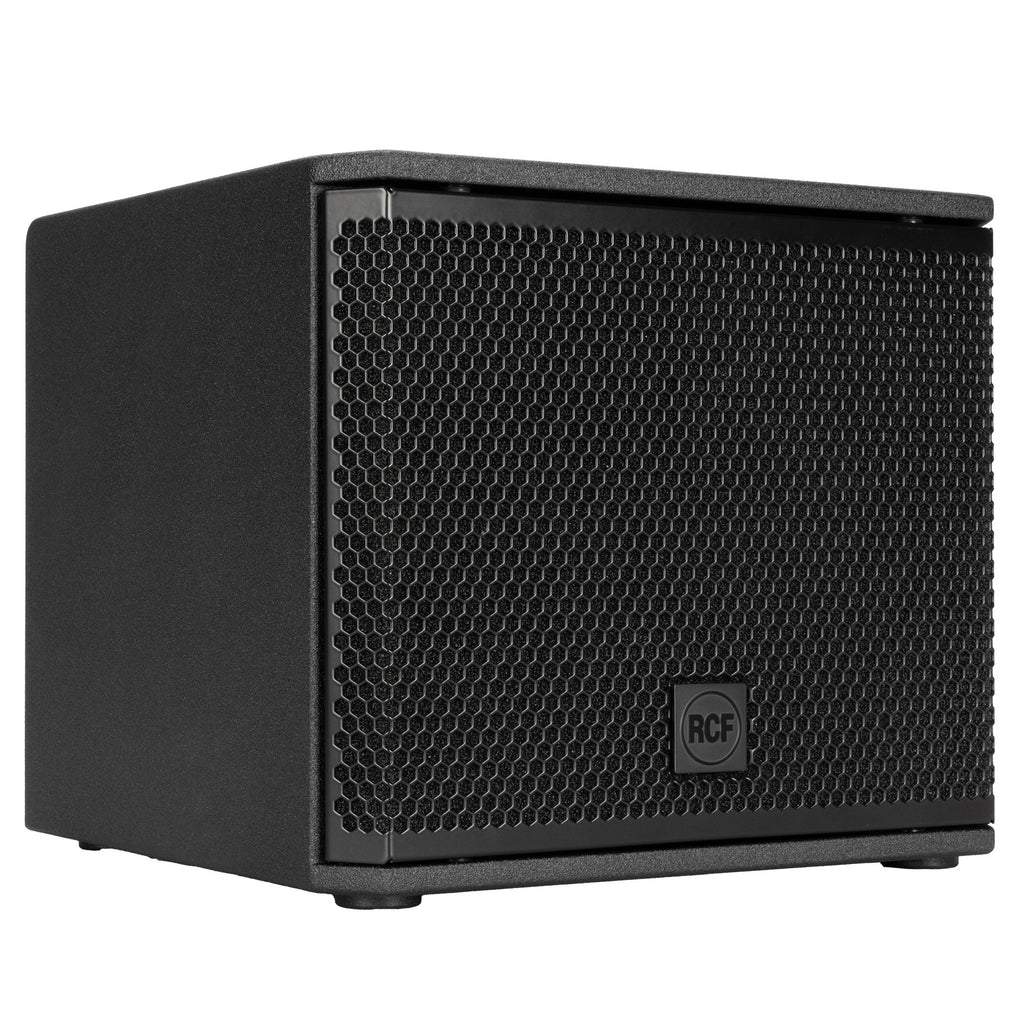

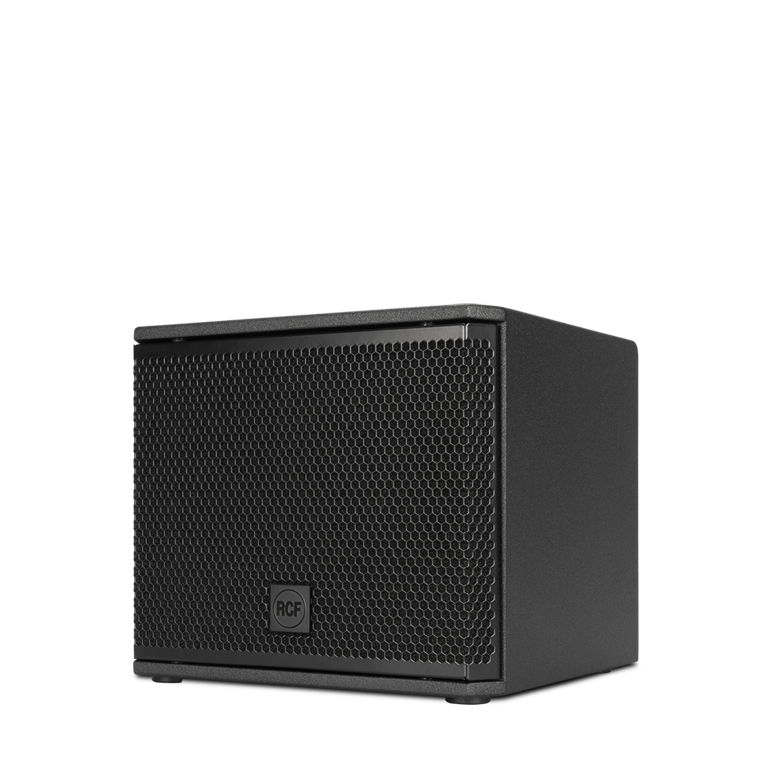

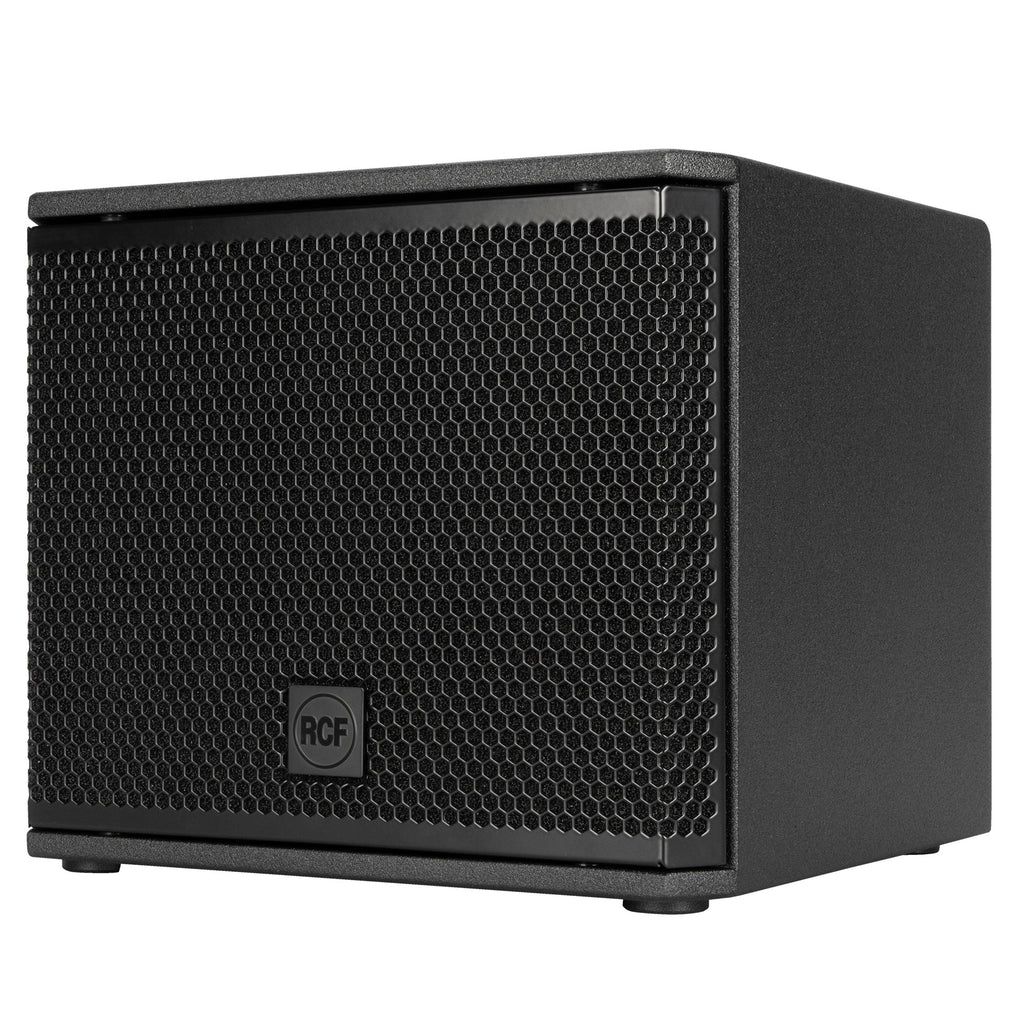

S 08 Bass Reflex Subwoofer
S 08 is a high-power, compact subwoofer system ideal for those installations where the physically small size and impact of an 8'' driver are desired. The extended frequency response reaches below 40 Hz, while the efficient design enables output levels far beyond what its compact dimensions would suggest. The system is suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and AV presentations. The low-frequency transducer is an 8” woofer with a 1,5” voice coil. Woofer design is the result of the latest refinements in RCF experience in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range.
Features
- 120W RMS power handling
- 110 dB max SPL
- 40 - 160 Hz frequency range
- 1 x 8" high-power woofer
- High-quality plywood cabinet
- Steel front grille with clothing
- 4 pole EUROBLOCK connector
Powerful lows
RCF subwoofers are the first choice of many sound engineers, due to their very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, and impressive size/weight to SPL output ratio. Your audience will enjoy an engaging immersive musical experience.
State of the art transducers
From 8” to 19” cone size, S Series low-frequency transducers are the result of the latest refinements in cone-transducer production, resulting in a fast and controlled reproduction of the bass frequency range.
Multipurpose sound
Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.
Improve the audio atmosphere
Music helps engagement and will improve the hospitality of your activity, especially if the perceived sound quality is higher. This is the aim of RCF SUB S Series - optimal performance in both background music and high-powered foreground audio.
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
40 Hz - 160 Hz |
| Max SPL @ 1m |
110 dB |
| System Sensitivity |
92 dB |
Power section
| Amplification |
Full Range |
| Nominal Impedance |
4 ohm |
| Power Handling |
120 W RMS |
| Peak Power Handling |
480 W PEAK |
Transducers

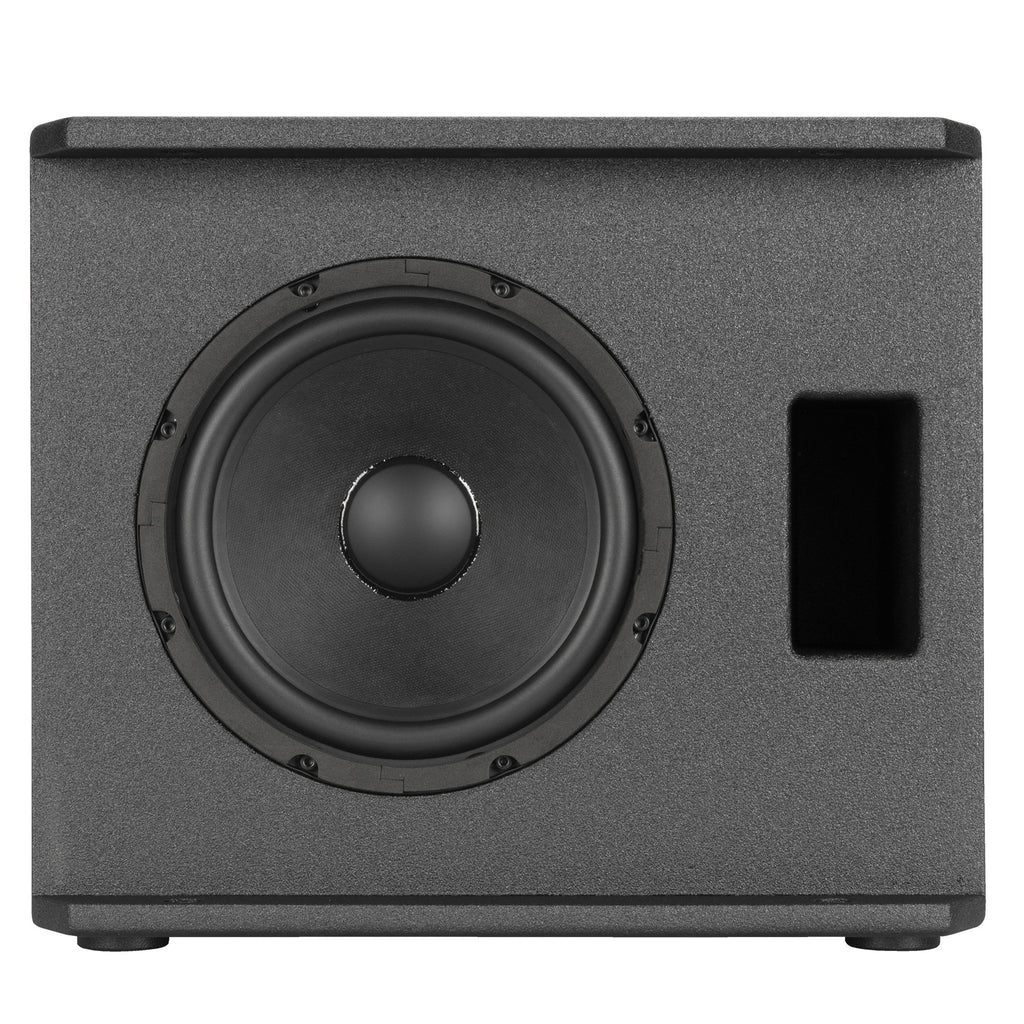

| Woofer |
1 x 8'', 1.5'' v.c |

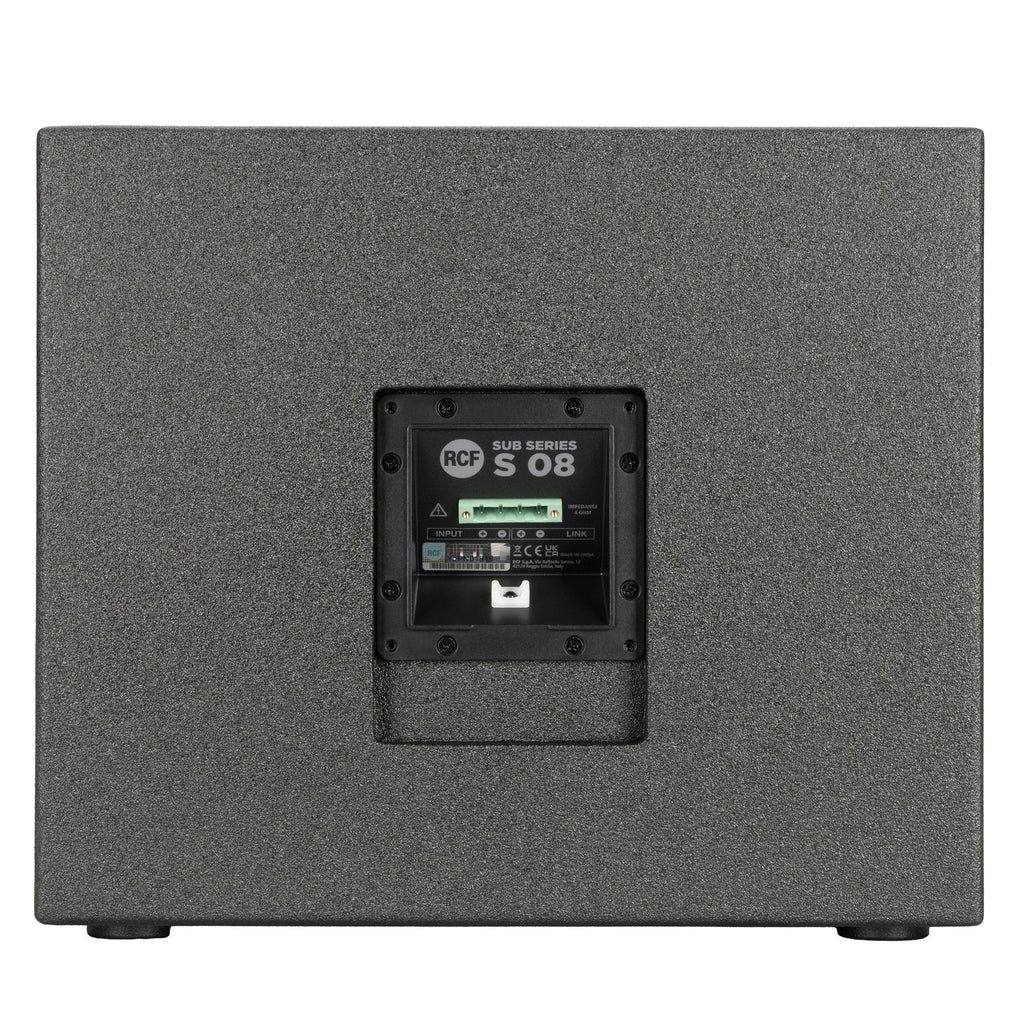

Input/Output section
| Input connectors |
Euroblock |
| Output connectors |
Euroblock |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plywood |

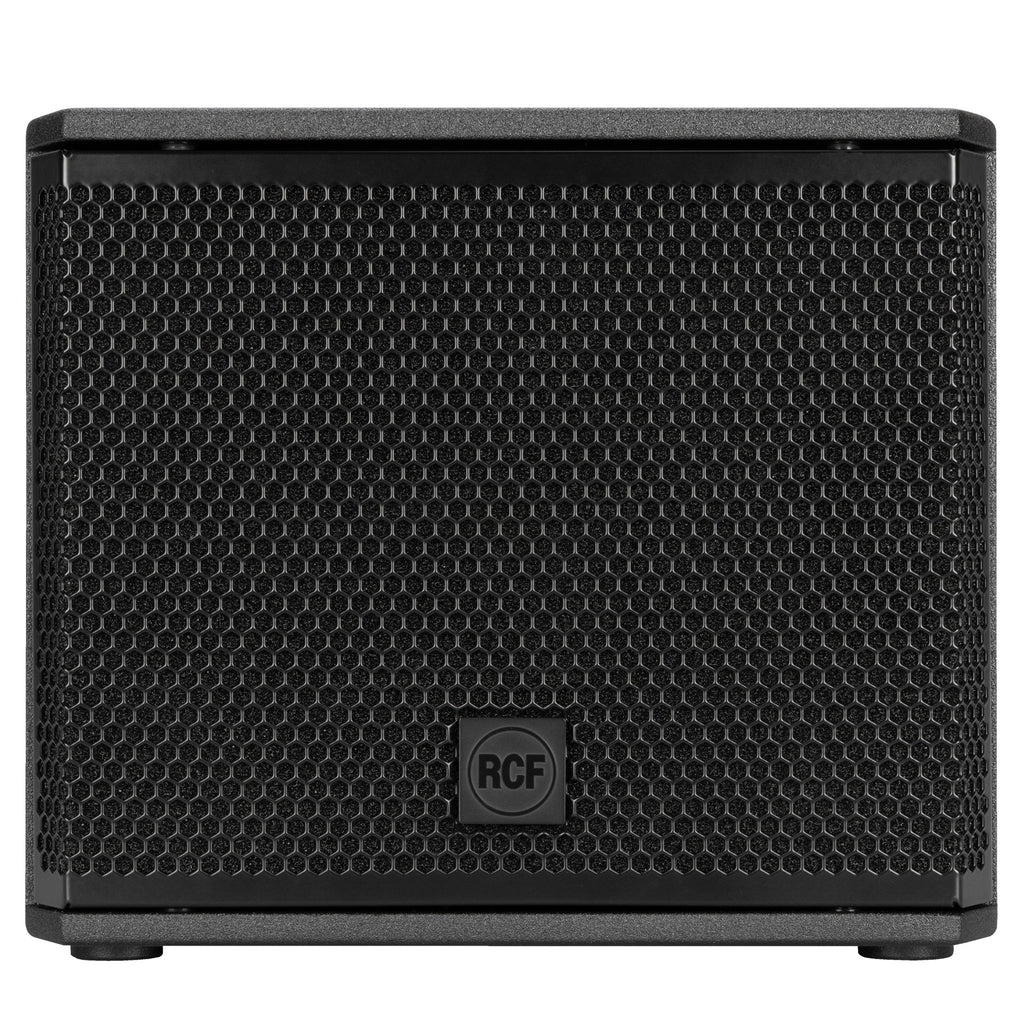

| Grille |
Steel with clothing |
| Color |
Black |
Size / Weight
| Height |
319 mm / 12.56 inches |
| Width |
370 mm / 14.57 inches |
| Depth |
337 mm / 13.27 inches |
| Weight |
8.7 kg / 19.18 lbs |
Shipping information
| Package Height |
367 mm / 14.45 inches |
| Package Width |
416 mm / 16.38 inches |
| Package Depth |
383 mm / 15.08 inches |
| Package Weight |
10.7 kg / 23.59 lbs |
