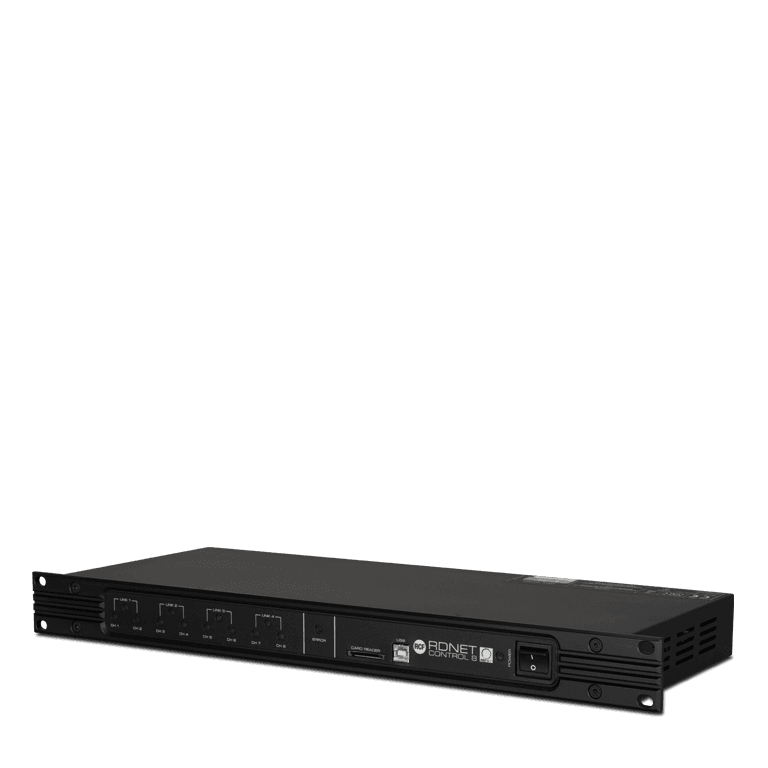

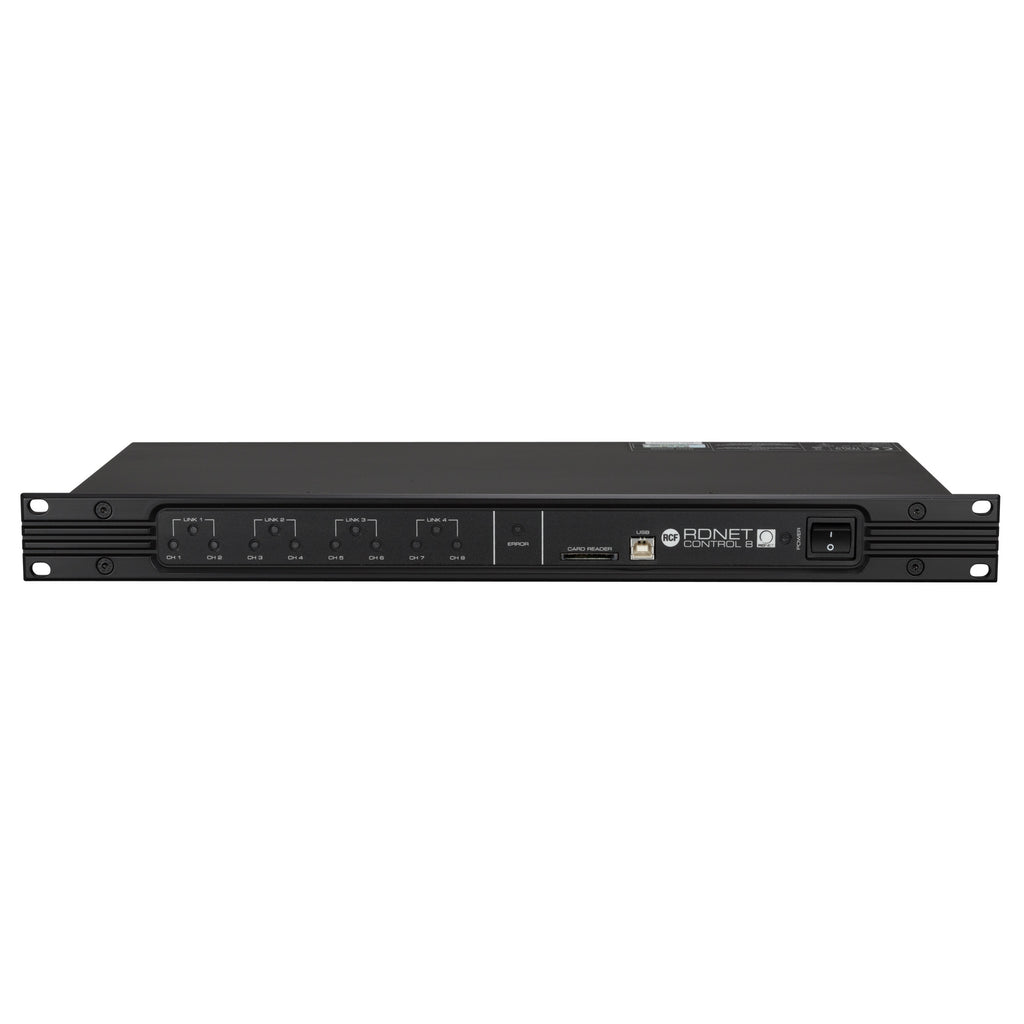

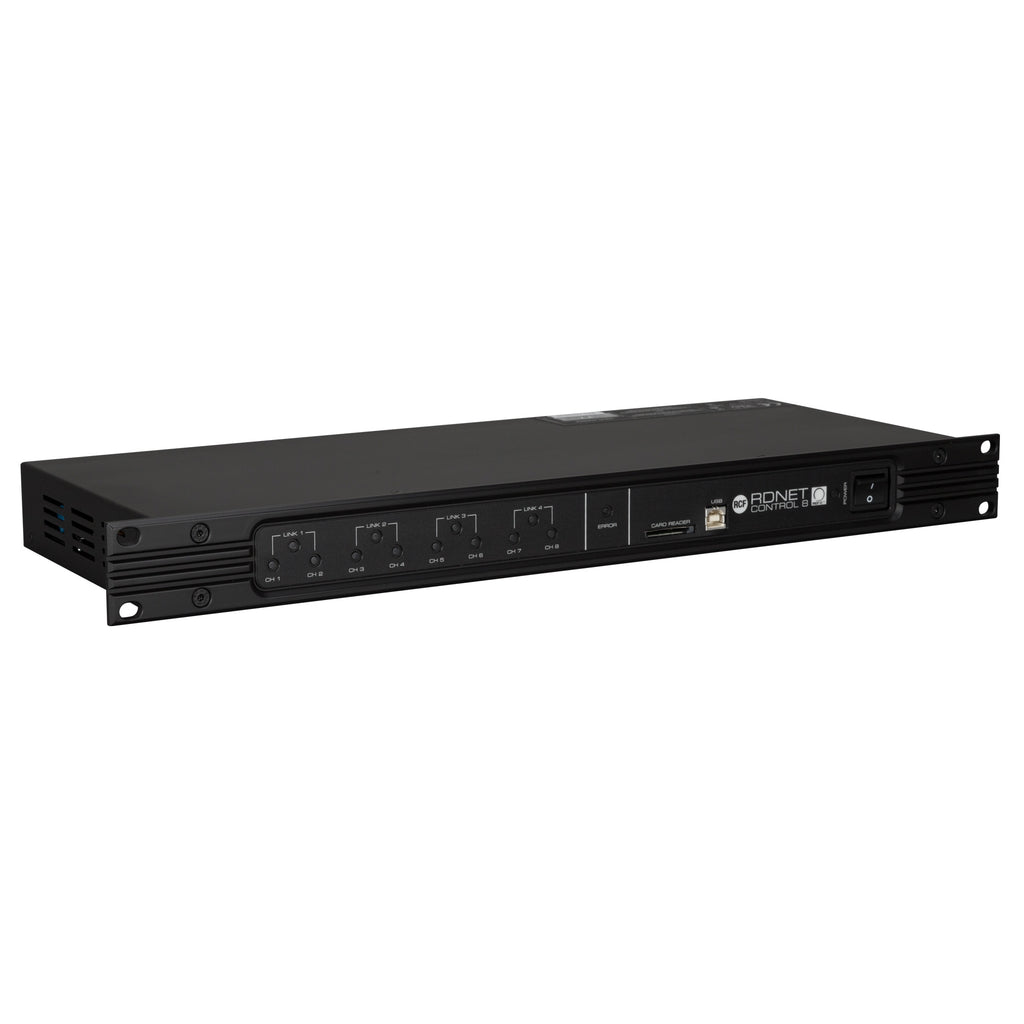

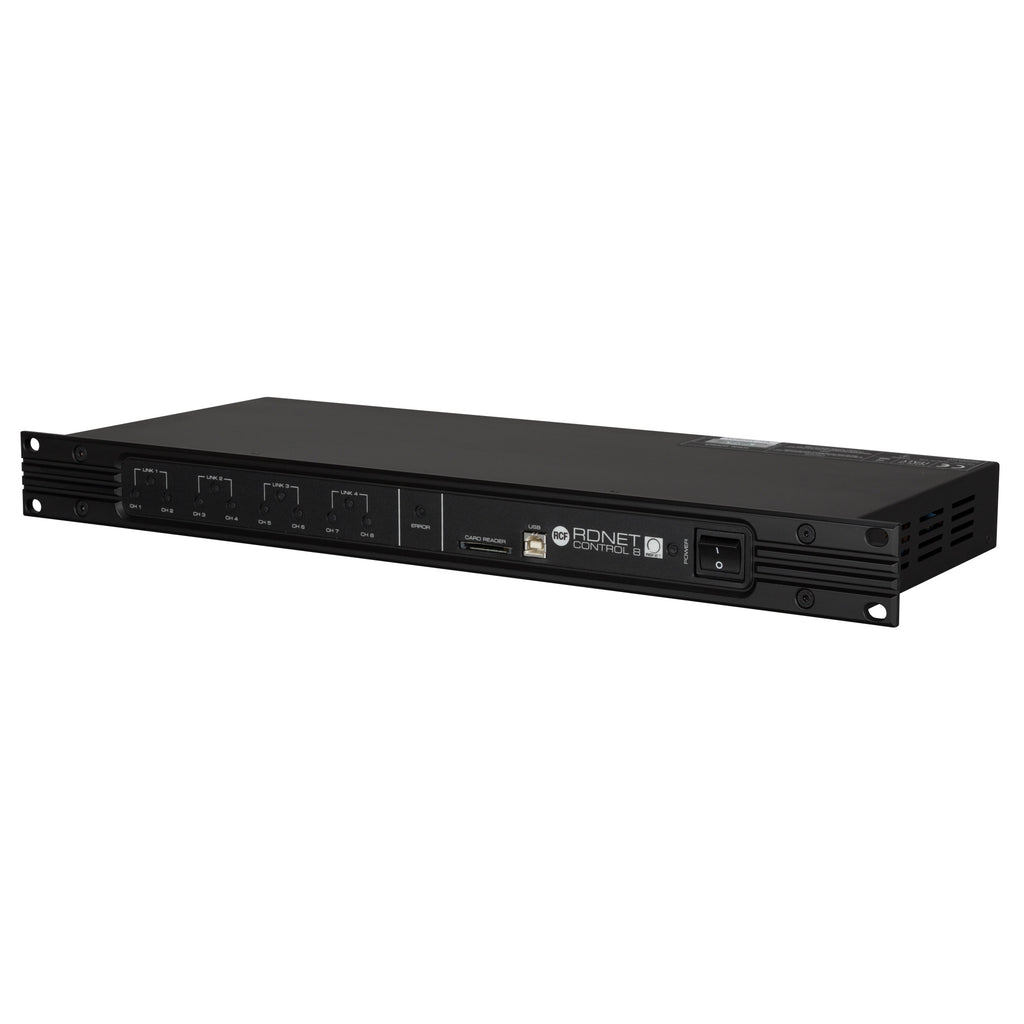

RCF RDNet-8, Control 8 Interface (8 Channel, 36 units per channel, 1sp rack)

RDNET CONTROL 8 8 Output Master Unit

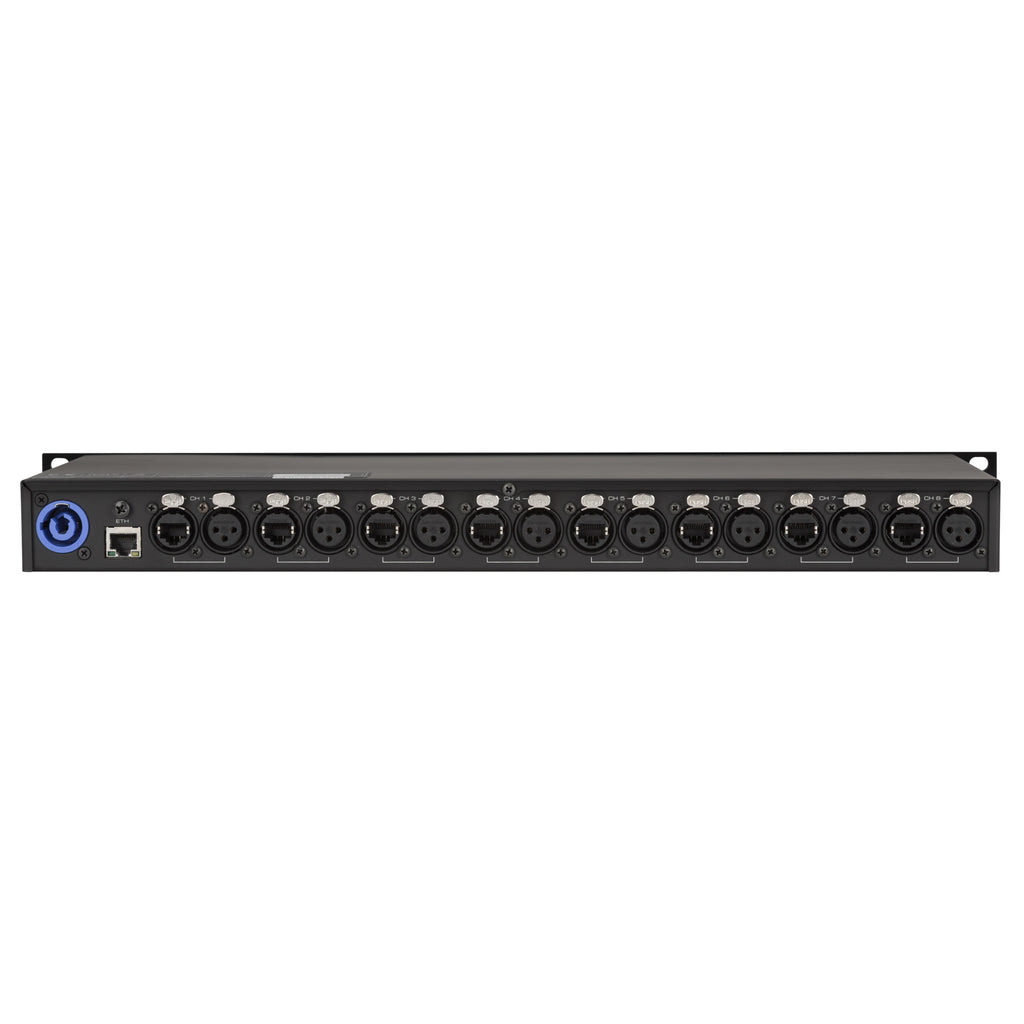

The RDNet Control 8 is a real-time monitor and control system able to manage up to 256 devices linked in a bus or up to 128 devices in a ring topology. All the data collected from the slaves are delivered to the sound engineer by USB in a local installation or by Ethernet from remote locations. The interface can be directly connected to the DSP on board of every TT+ line array module through the exclusive RDNet protocol making it possible to address in single cabinets or groups, specific presets or modification parameters in real-time. The key point of RDNet Control 8, in fact, is to ensure minimum refresh time (at least 5 per second) of all the system data performance, for example: RMS signals, compressor activity, temperature, fans speed, warnings, etc. Data transfer can be routed also through the provided xlr connectors enabling the control of the system on traditional multi-cored cables.

Features

• Ethernet (remote control) and USB (direct control) PC connection to RDNet
• Control up to 8 SUB-NETS of up to 32 Slave Devices
• All devices are cyclically scanned (“POLLING”) 10 times a second
• Auto detect device placement
• Controlling slave devices status and functions
• Monitoring and displaying faults and warnings sent from slave devices
• Storing subnet user filters configuration in a removable memory card

Specifications

General specifications

Standard compliance

Physical specifications

Size / Weight

Shipping information
