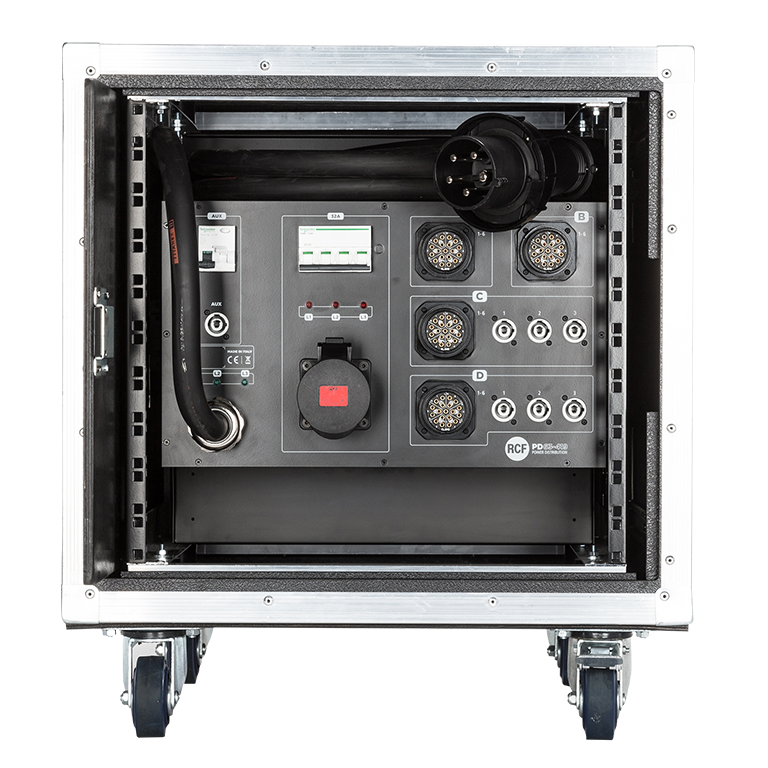

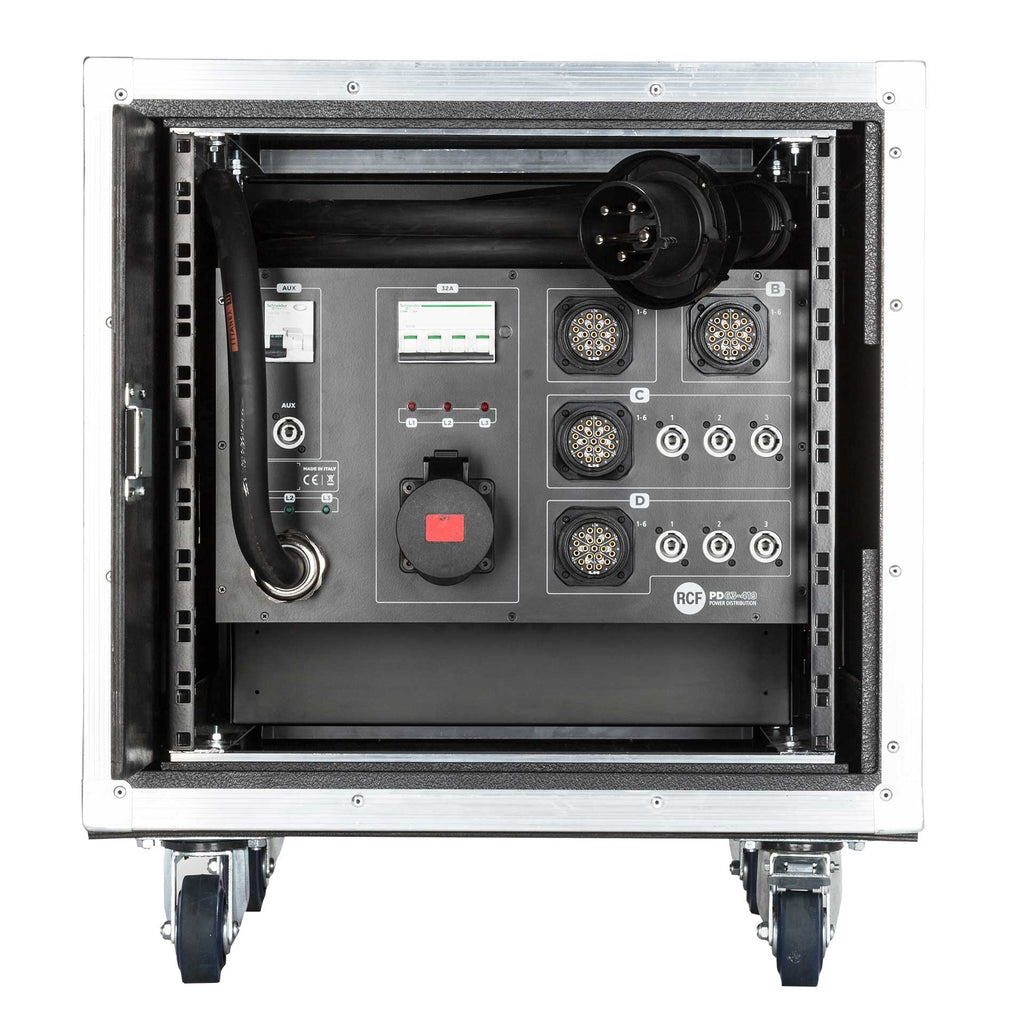

PR 63 Power Rack
The Power Rack PR-63 features the PD 63 A-419 power distribution with a 63 A Cekon power input with 5 m fixed cable. The three-phase power is distributed in a 32 A Cekon output, 4 x LKS19 output, 6 x Powercon output, 1 Powercon auxiliary output to power the CR 16-ND Control Rack. All outputs are equipped with individual RCBOs (Residual Current-operated Circuit-Breaker with Overcurrent protection) for maximum reliability. In case of damage, only the faulty output is missed while the rest of the system continues to function.
Features
- 63 Ampere Cekon power input with 5 m cable
- 32 Cekon outputs
- 4 x LKS 19 outputs
- 6 x Powercon outputs + 1 Powercon auxiliary output
- 24 x individual power line RCBOs
- 32 Ampere and Auxiliary individual front RCBOs
- Tour Grade flight case construction
Specifications
General specifications
| Power Input Connectors |
63 Ampere Cekon with 5 m Cable |
| Outuputs Connector |
32 Cekon, 4 x LKS 19 |
| Powercon Outputs |
6 + 1 Auxiliary |
| Individual Power line RCBOs |
24 |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Weight |
65.8 kg / 145.06 lbs |
Shipping information
| Package Height |
570 mm / 22.44 inches |
| Package Width |
610 mm / 24.02 inches |
| Package Depth |
630 mm / 24.8 inches |
| Package Weight |
68.2 kg / 150.36 lbs |
