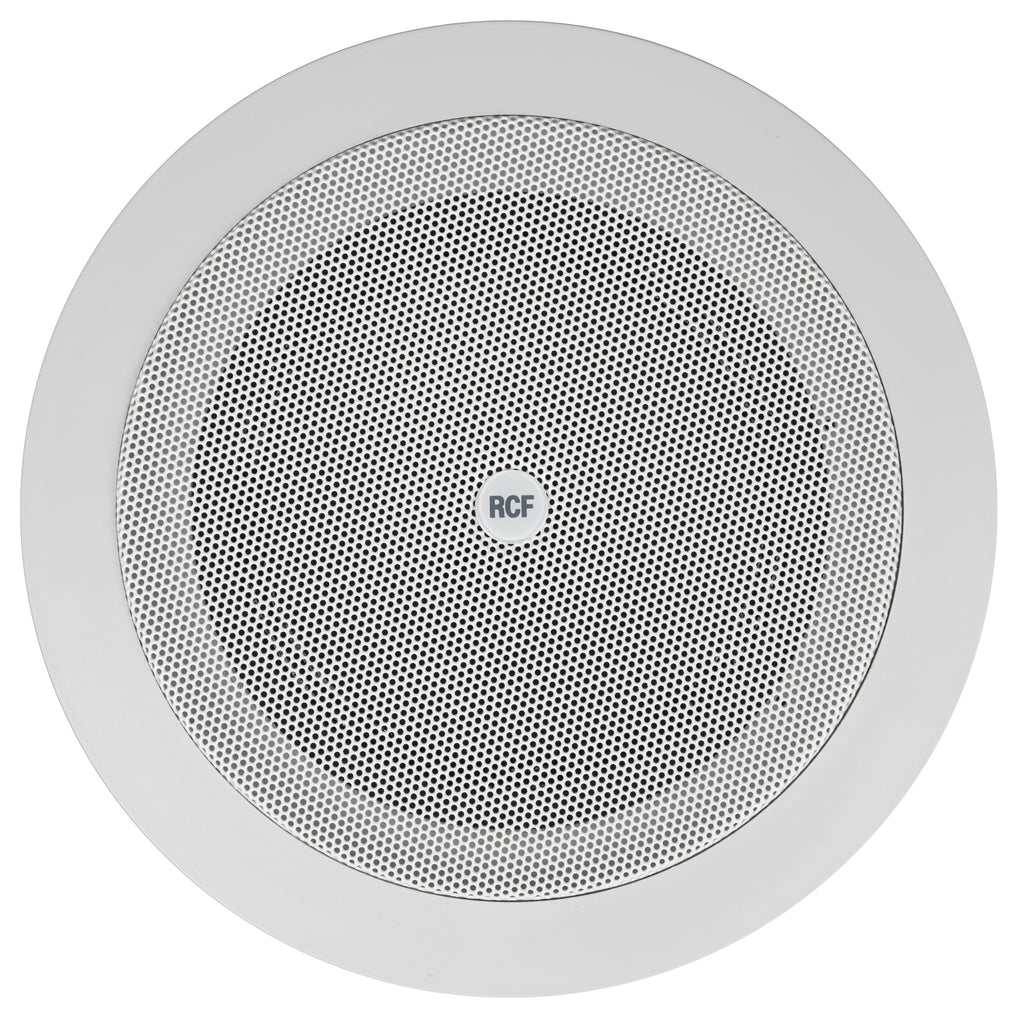

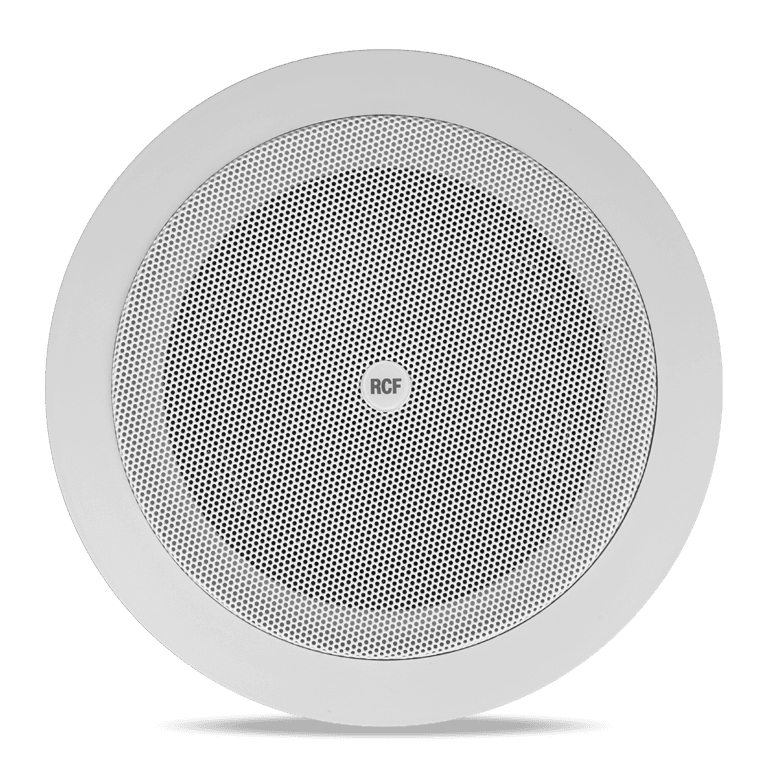

PLP 50EN Ceiling Speaker with Plastic Fire Dome

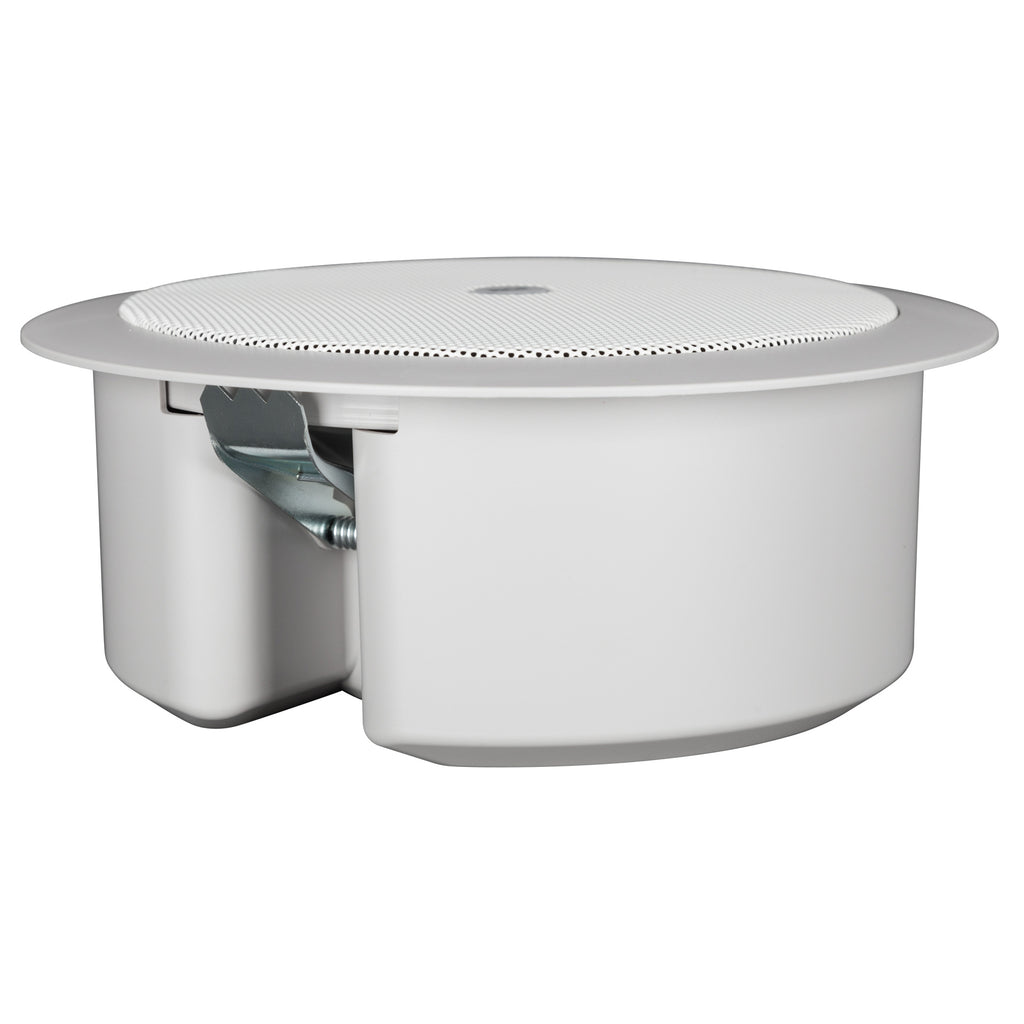

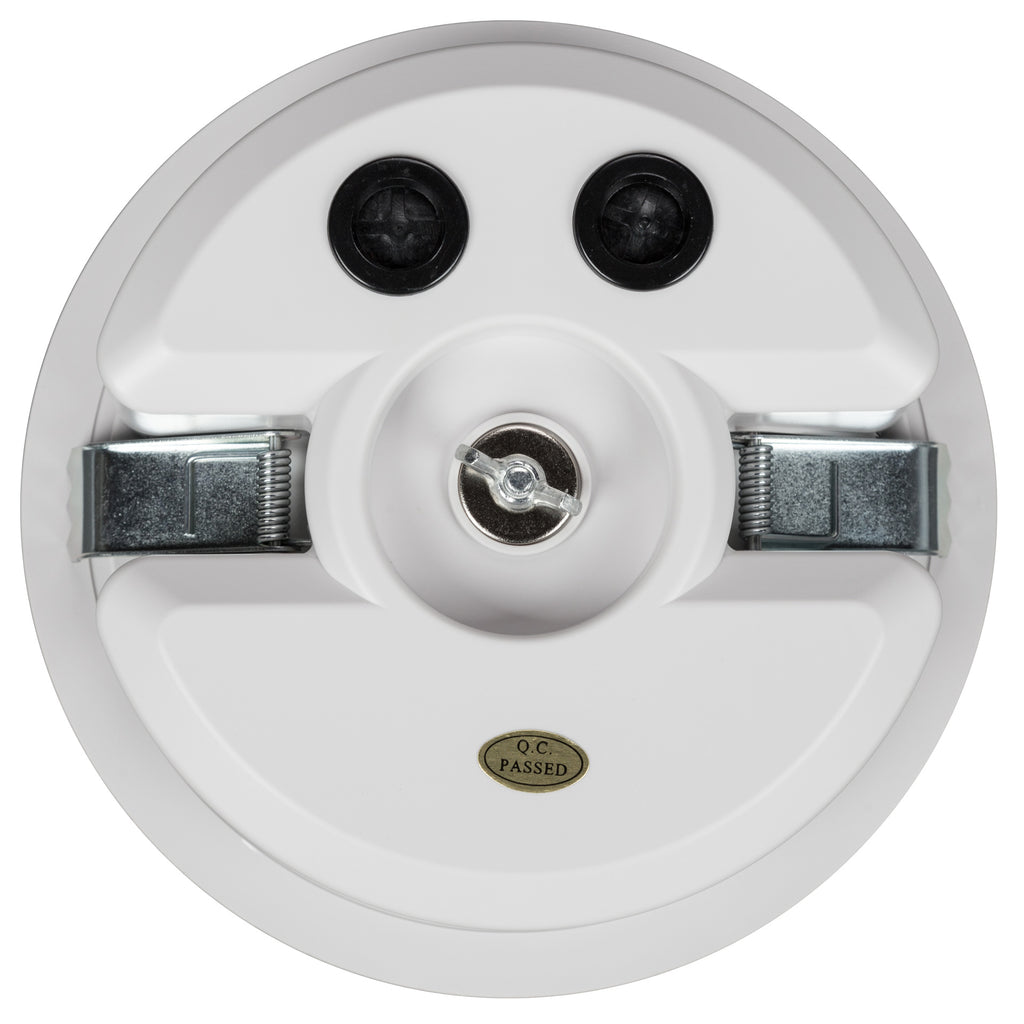

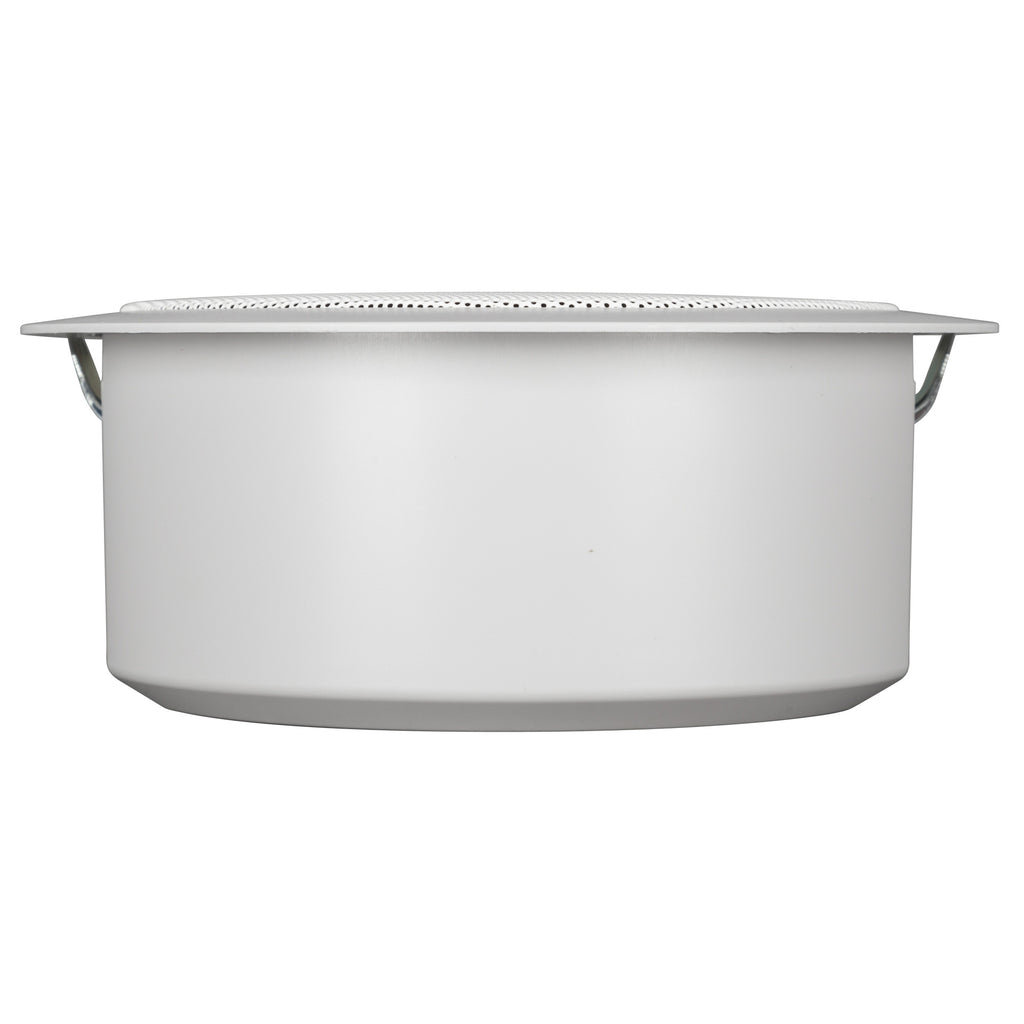

PLP 50EN is a ceiling speaker featuring a flameproof plastic back can, designed for recess installation into ceilings or panels. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.
Features
- 5" fullrange transducer.
- Power selectable (100 V): 6 W - 3 W - 1.5 W.
- 93 dB sensitivity.
- Colour white RAL 9016.
- Plastic frame and back can, steel grille.
- In/out ceramic terminal block.
- Thermal fuse protection.
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
130 Hz - 15000 Hz |
| Max SPL @ 1m |
101 dB |
| Max SPL @ 4m |
89 dB |
| Coverage angle |
165° |
| System Sensitivity |
93 dB |
| System Sensitivity 1W @ 4m |
81 dB |
Power section
| Amplification |
Full Range |
| Power Handling |
6 W |
| Peak Power Handling |
24 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
Transducers
Input/Output section
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Ceramic screw terminals |
| Constant Voltage Transformer |
100 V |
| Power selection 1 |
6 W - 1667 ohm |
| Power selection 2 |
3 W - 3333 ohm |
| Power selection 3 |
1.5 W - 6667 ohm |
Standard compliance
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
0068-CPR-051/2017 |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Plastic back cover |
| Grille |
Steel |
| Color |
White - RAL 9016 |
Size / Weight
| Depth |
71 mm / 2.8 inches |
| Recessed Depth |
66 mm / 2.6 inches |
| Diameter |
175 mm / 6.89 inches |
| Cut out diameter |
149 mm / 5.87 inches |
| Weight |
0.66 kg / 1.46 lbs |
Shipping information
| Package Height |
110 mm / 4.33 inches |
| Package Width |
190 mm / 7.48 inches |
| Package Depth |
180 mm / 7.09 inches |
| Package Weight |
0.66 kg / 1.46 lbs |
