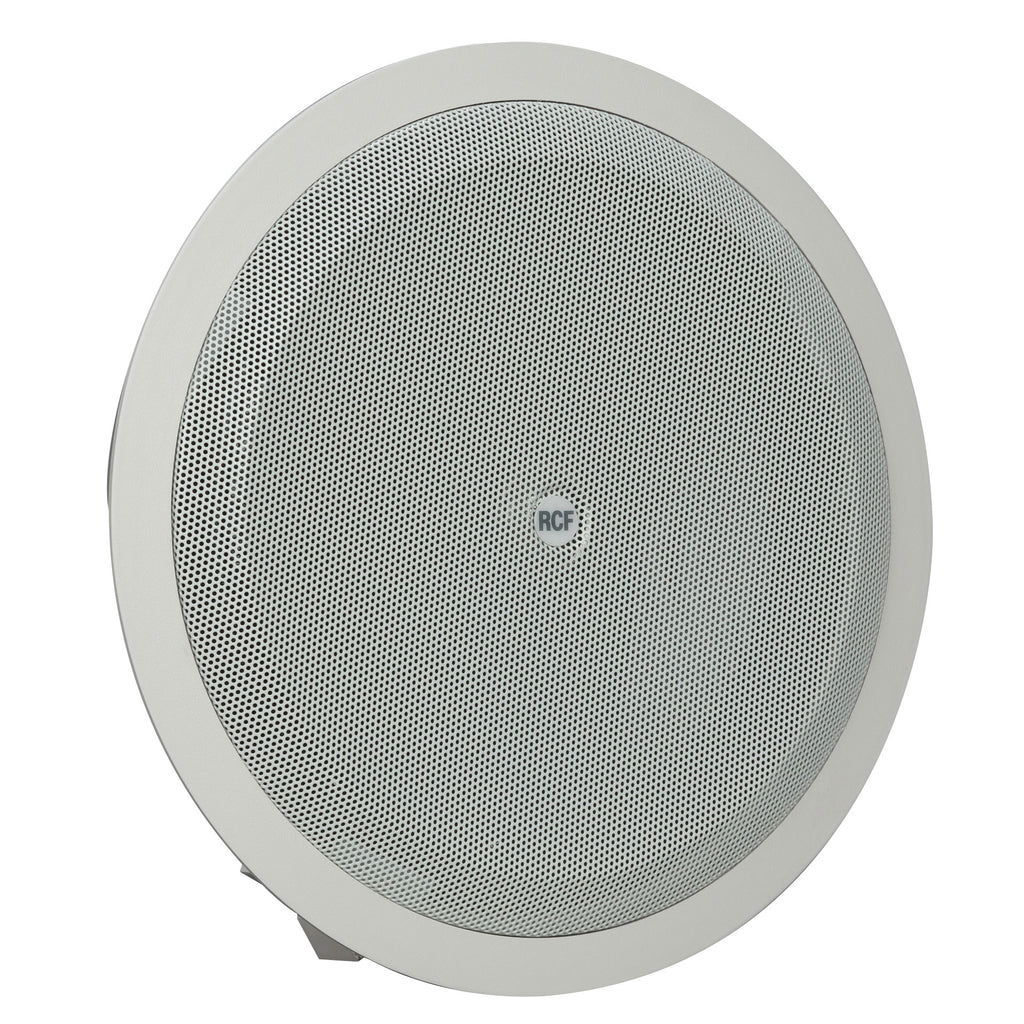

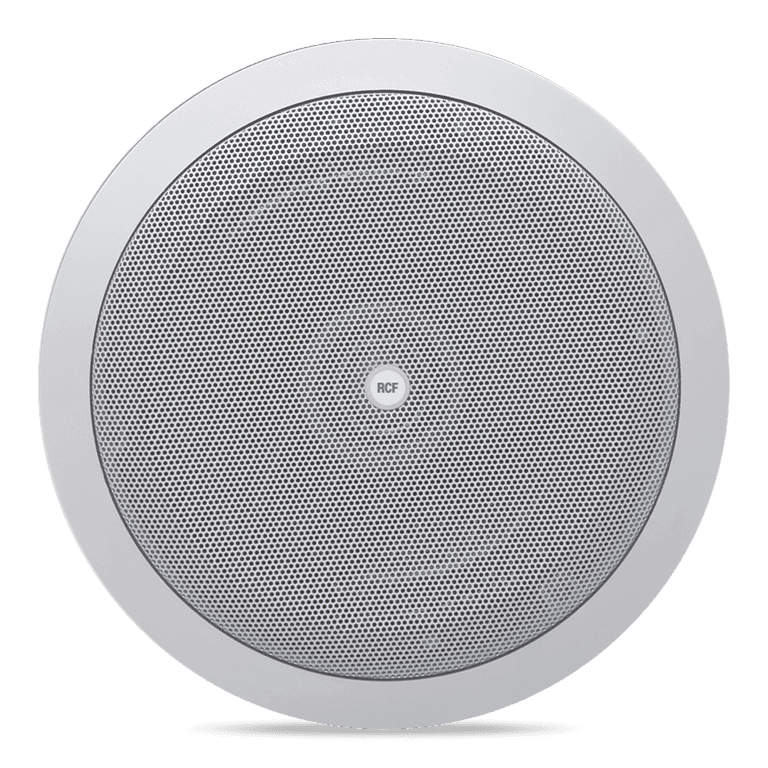

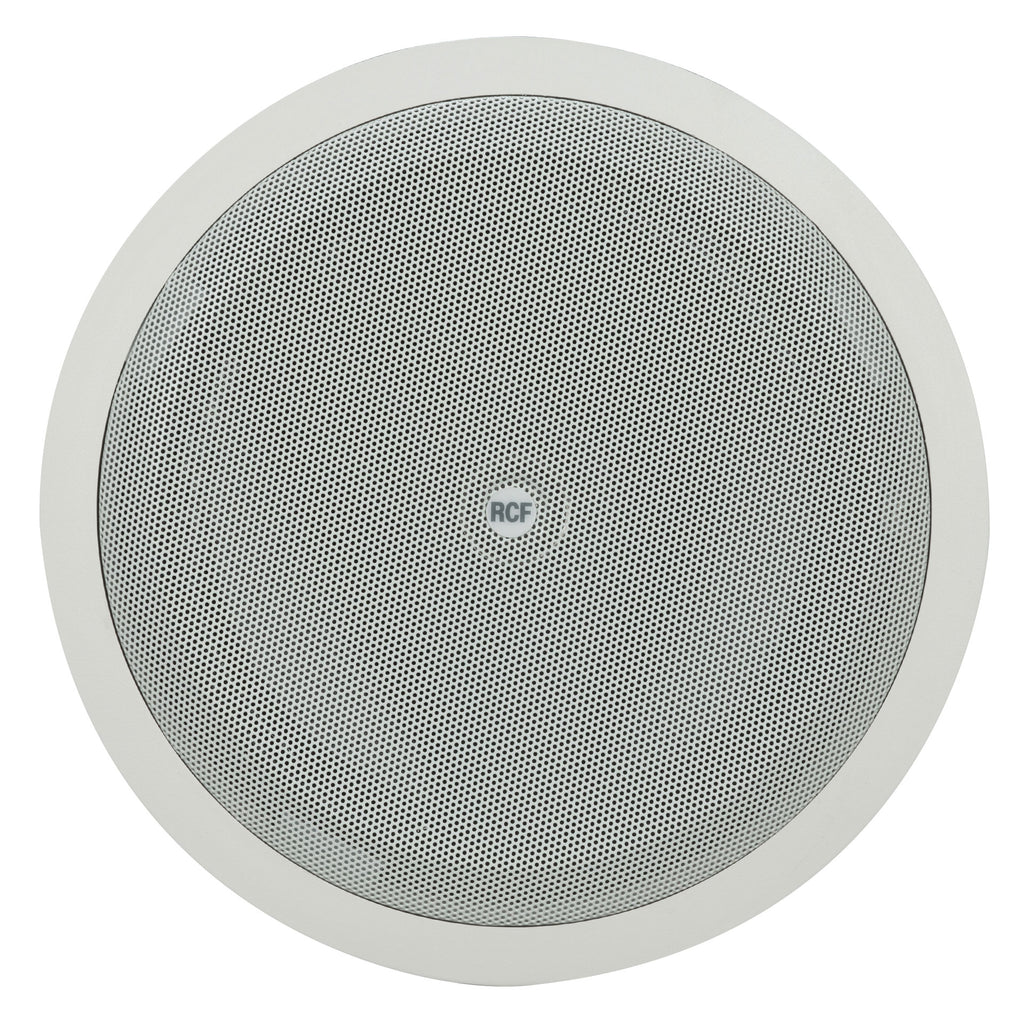

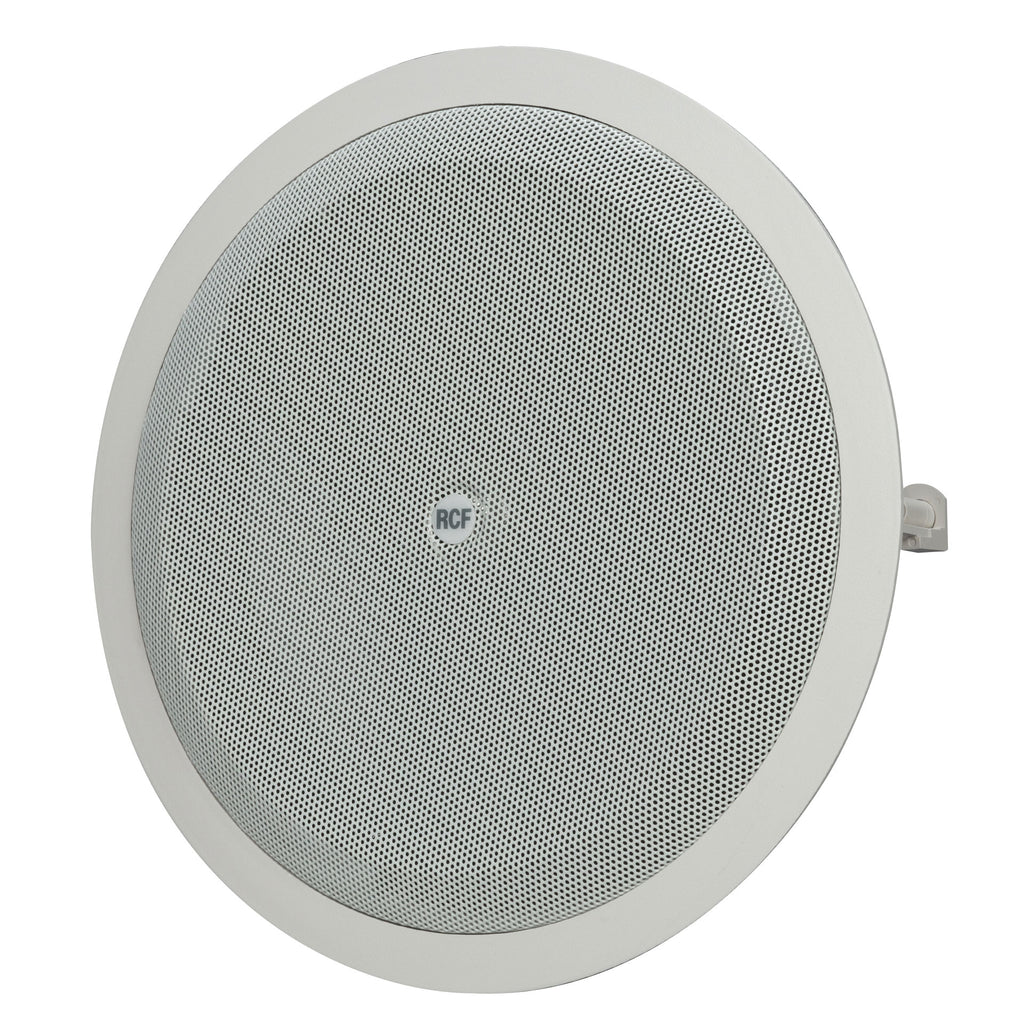

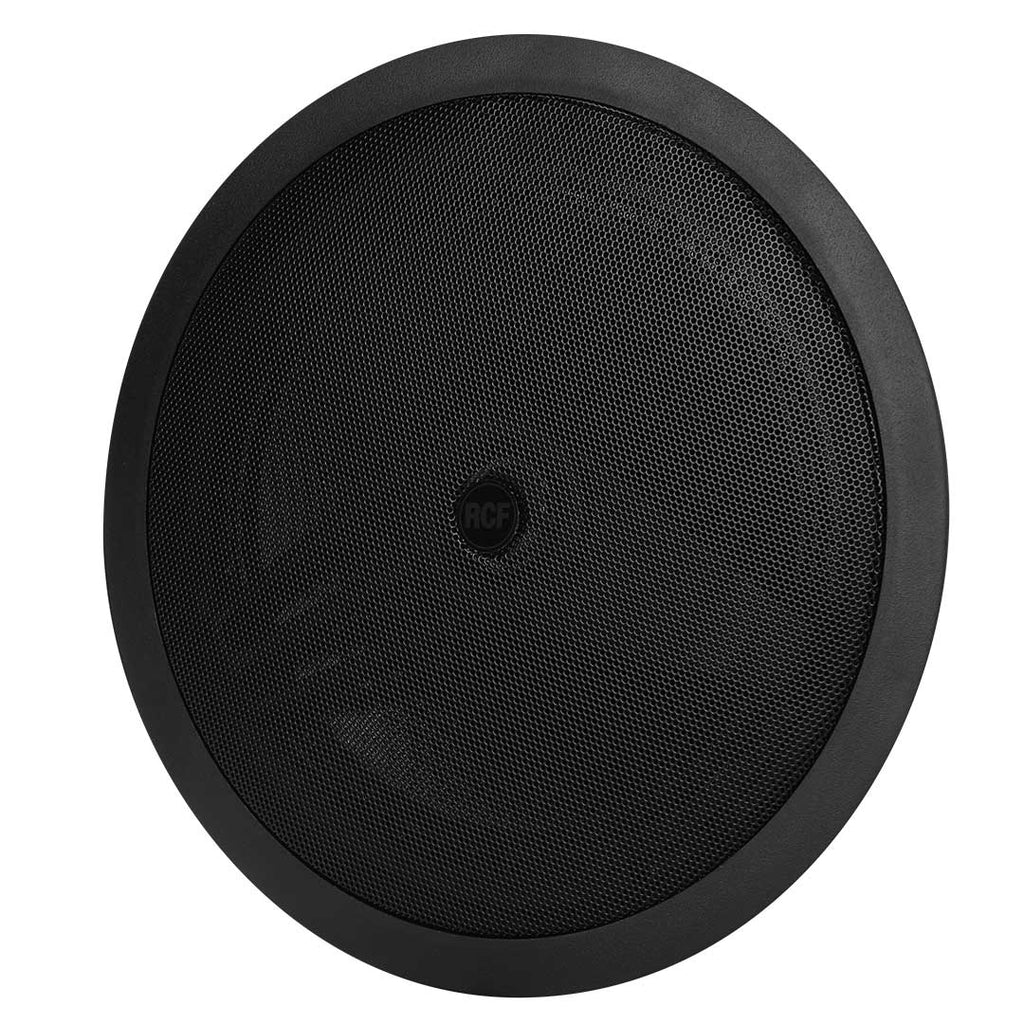

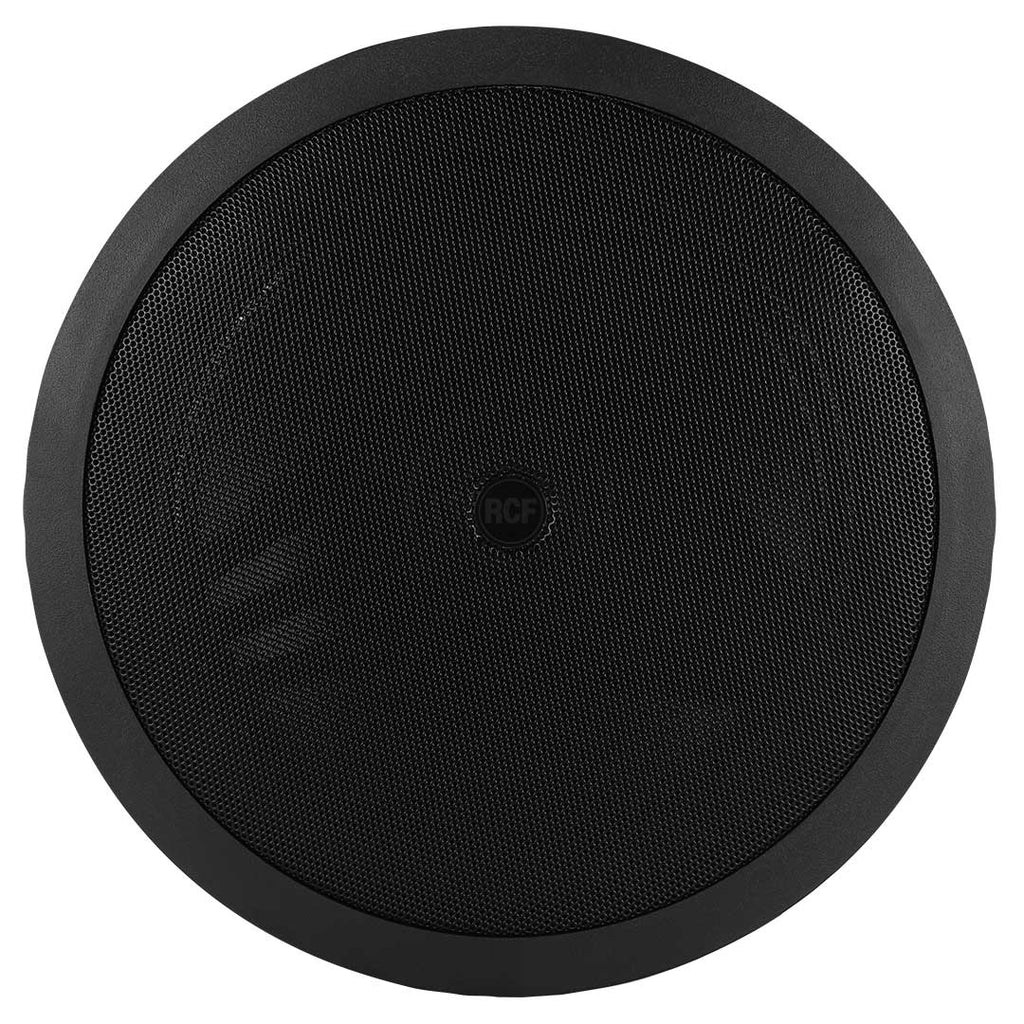

PL 8X Coaxial Ceiling Speaker

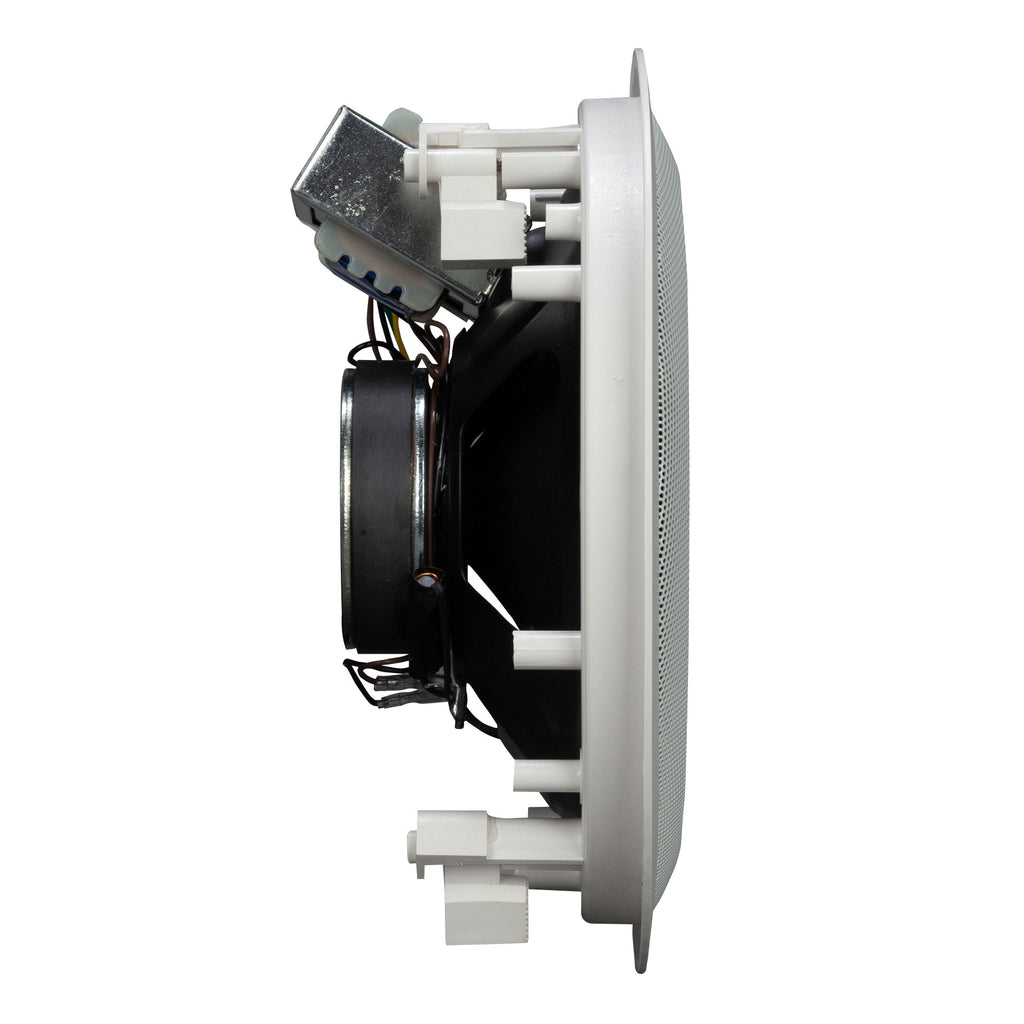

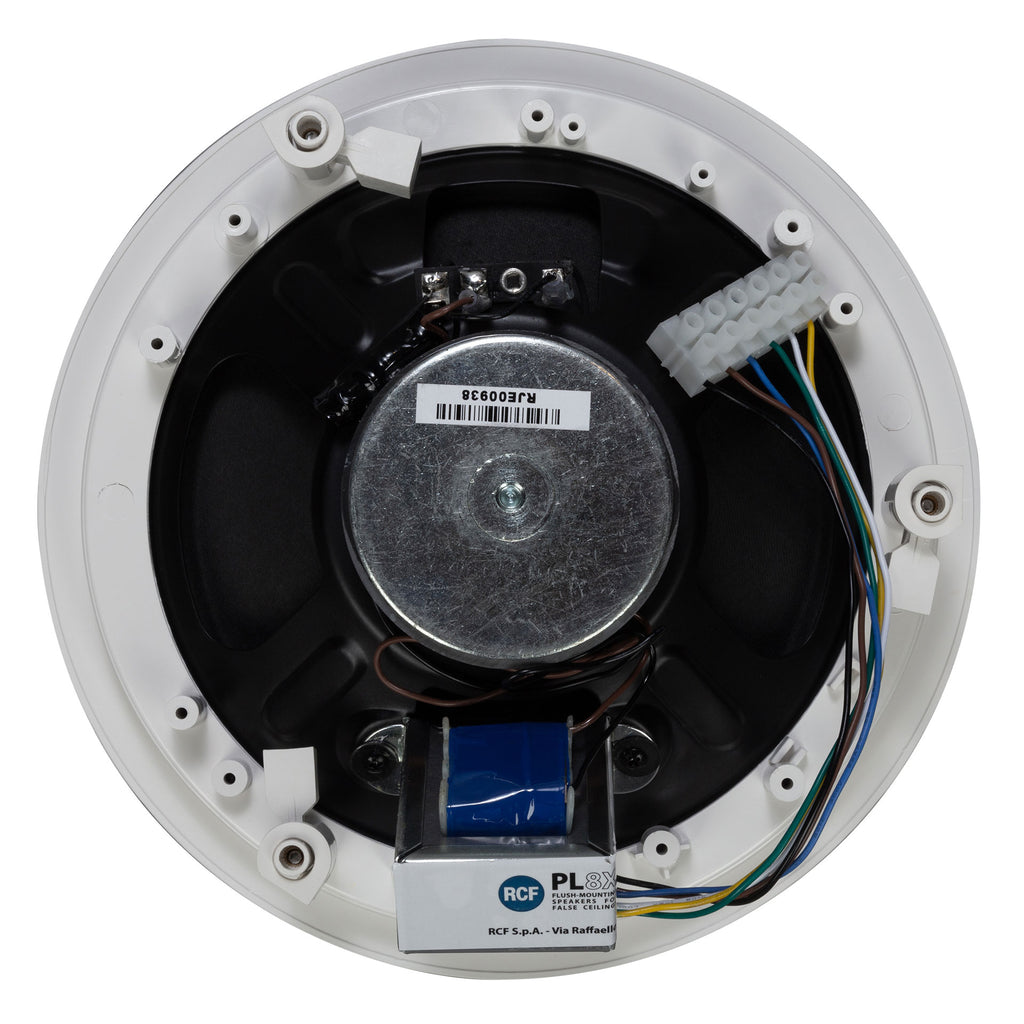

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Features
- 8" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 20 W - 10 W - 5 W - 2.5 W
- 93 dB sensitivity

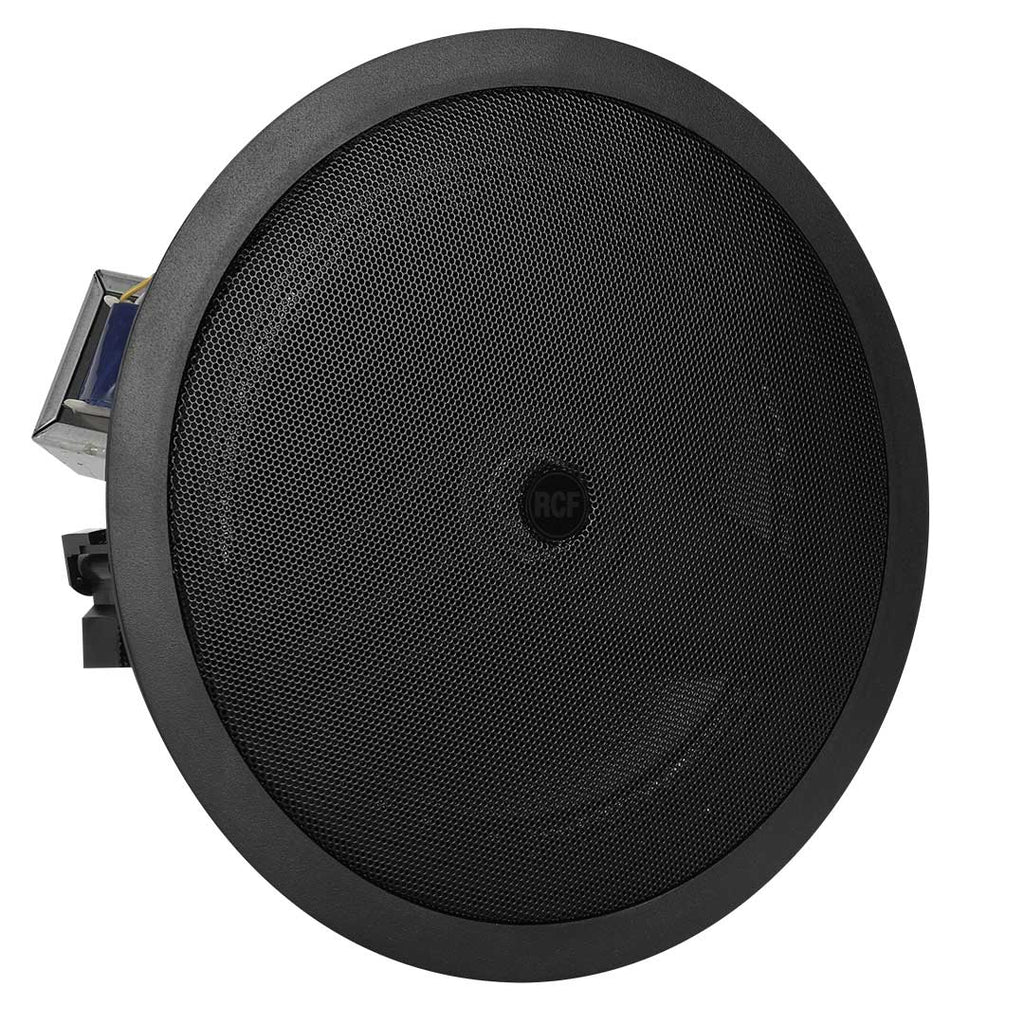

- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
60 Hz - 20000 Hz |
| Max SPL @ 1m |
109 dB |
| Coverage angle |
80° |
| System Sensitivity |
93 dB |
Power section
| Amplification |
Full Range |
| Power Handling |
20 W RMS |
| Peak Power Handling |
80 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Transducers
| Dome Tweeter |
1.0'' |
| Woofer |
8'' |
Input/Output section
| Input connectors |
Screw Terminals |
| Output connectors |
Screw Terminals |

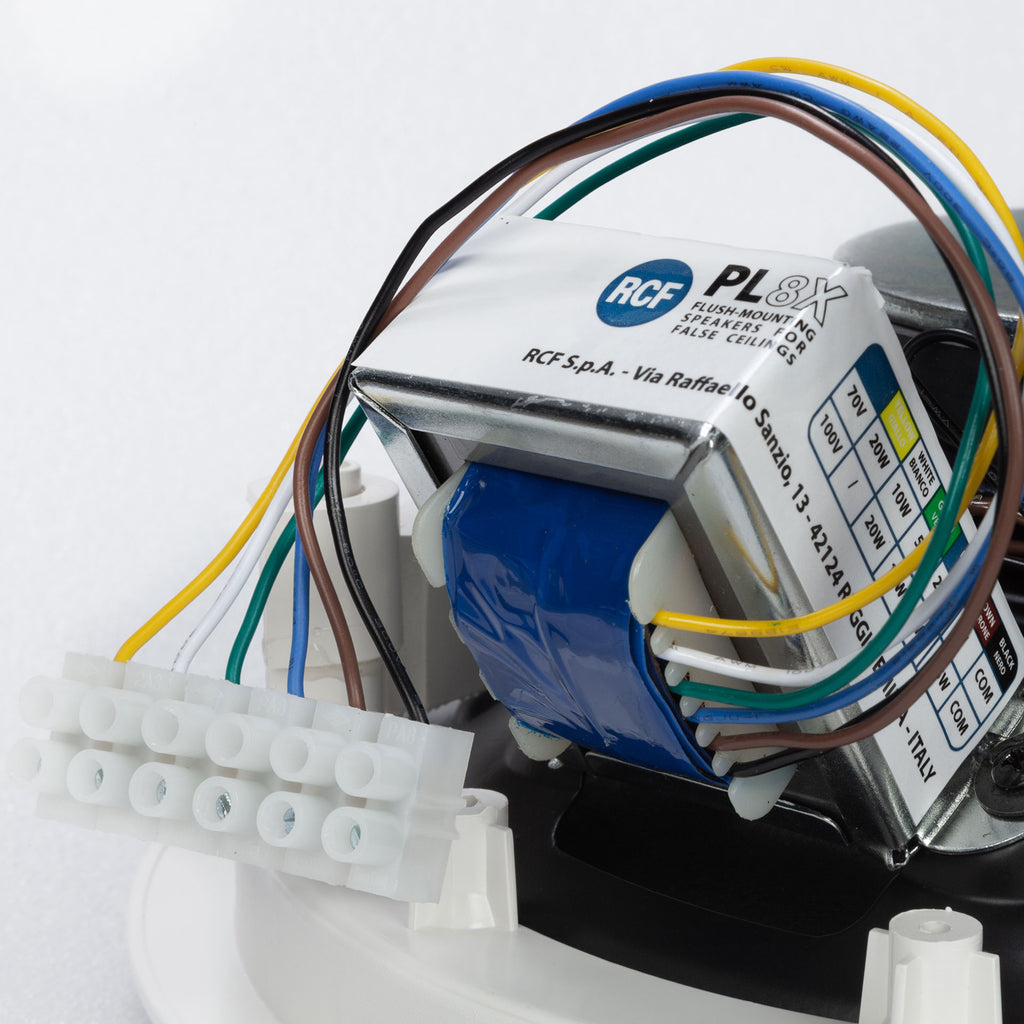

| Constant Voltage Transformer |
70/100 V |
| Power selection 1 |
20 W - 500 ohm |
| Power selection 2 |
10 W - 1000 ohm |
| Power selection 3 |
5 W - 2000 ohm |
| Power selection 4 |
2.5 W - 4000 ohm |
Standard compliance
| IP protection grade |
IP 44 |
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Plastic Material |
| Grille |
Aluminium |
| Color |
White - RAL 9003, Black - RAL 9005 |
Size / Weight
| Depth |
88 mm / 3.46 inches |
| Recessed Depth |
80 mm / 3.15 inches |
| Diameter |
247 mm / 9.72 inches |
| Cut out diameter |
224 mm / 8.82 inches |
| Weight |
1.23 kg / 2.71 lbs |
Shipping information
| Package Height |
280 mm / 11.02 inches |
| Package Width |
280 mm / 11.02 inches |
| Package Depth |
130 mm / 5.12 inches |
| Package Weight |
2.09 kg / 4.61 lbs |
