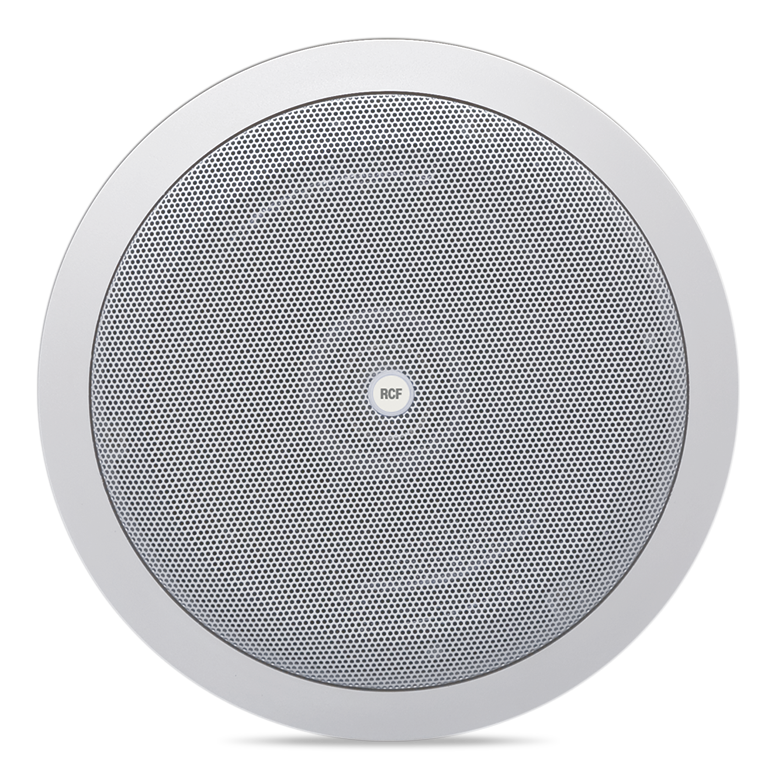

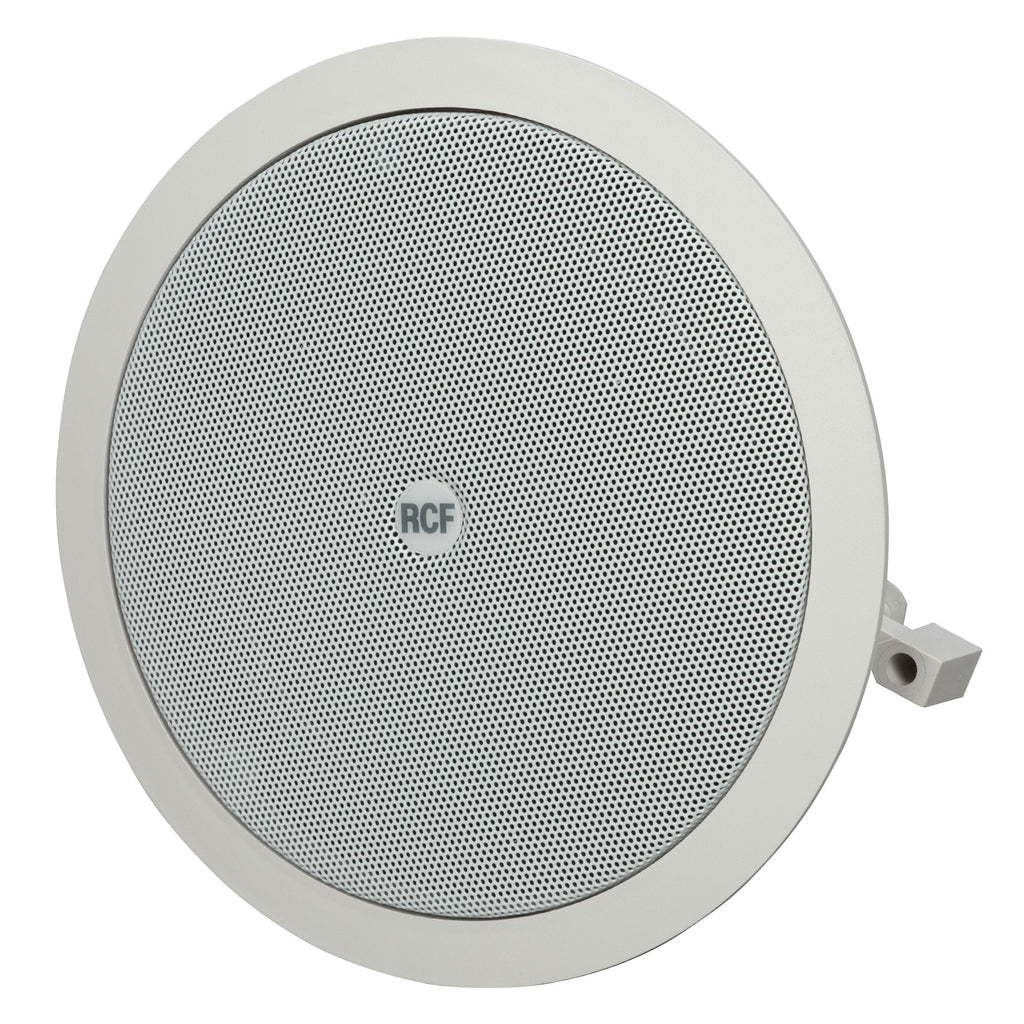

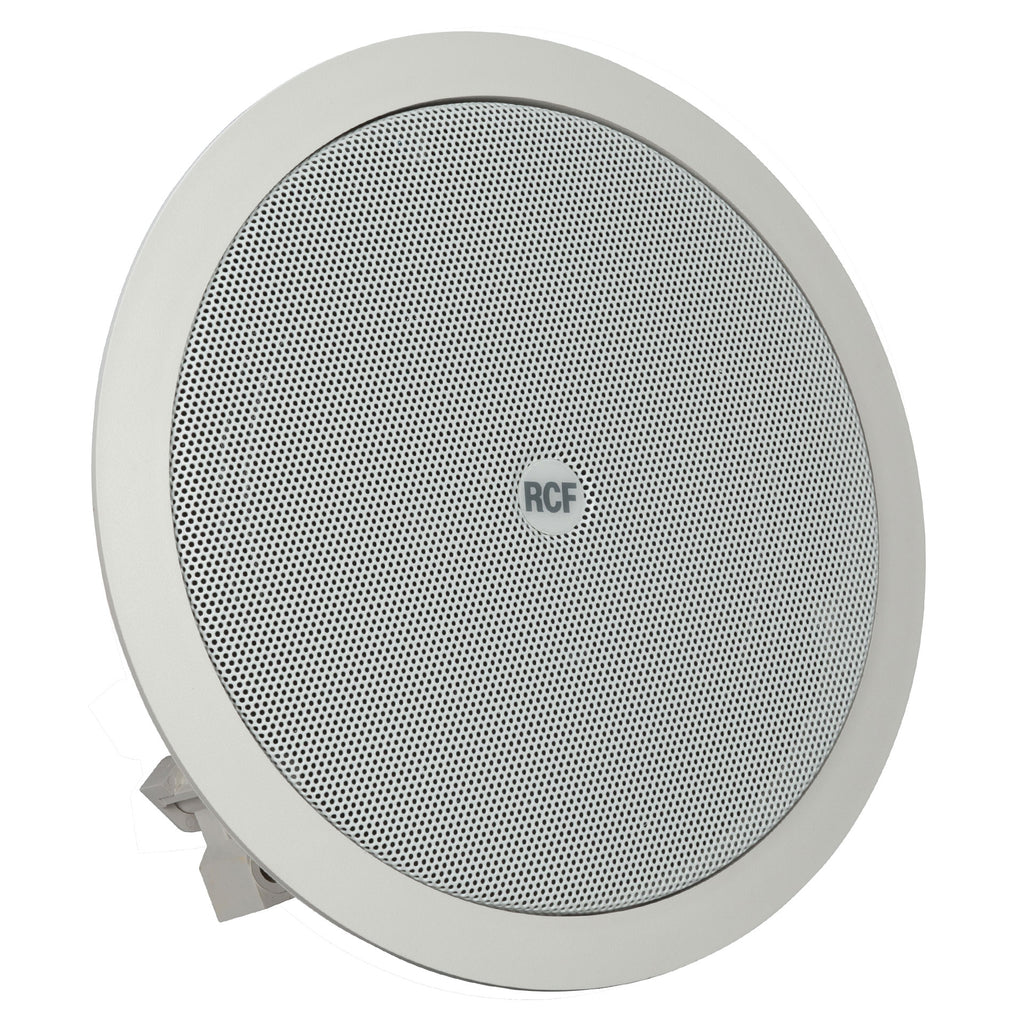

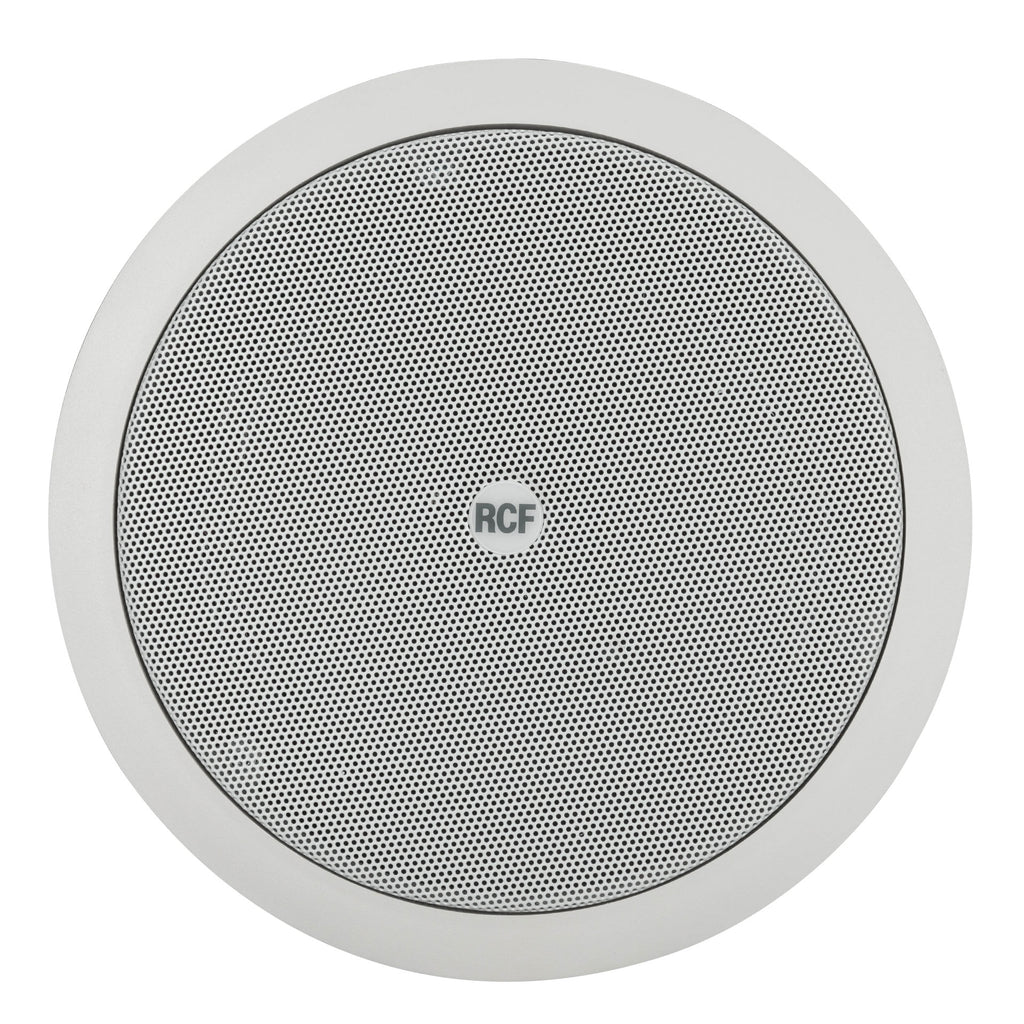

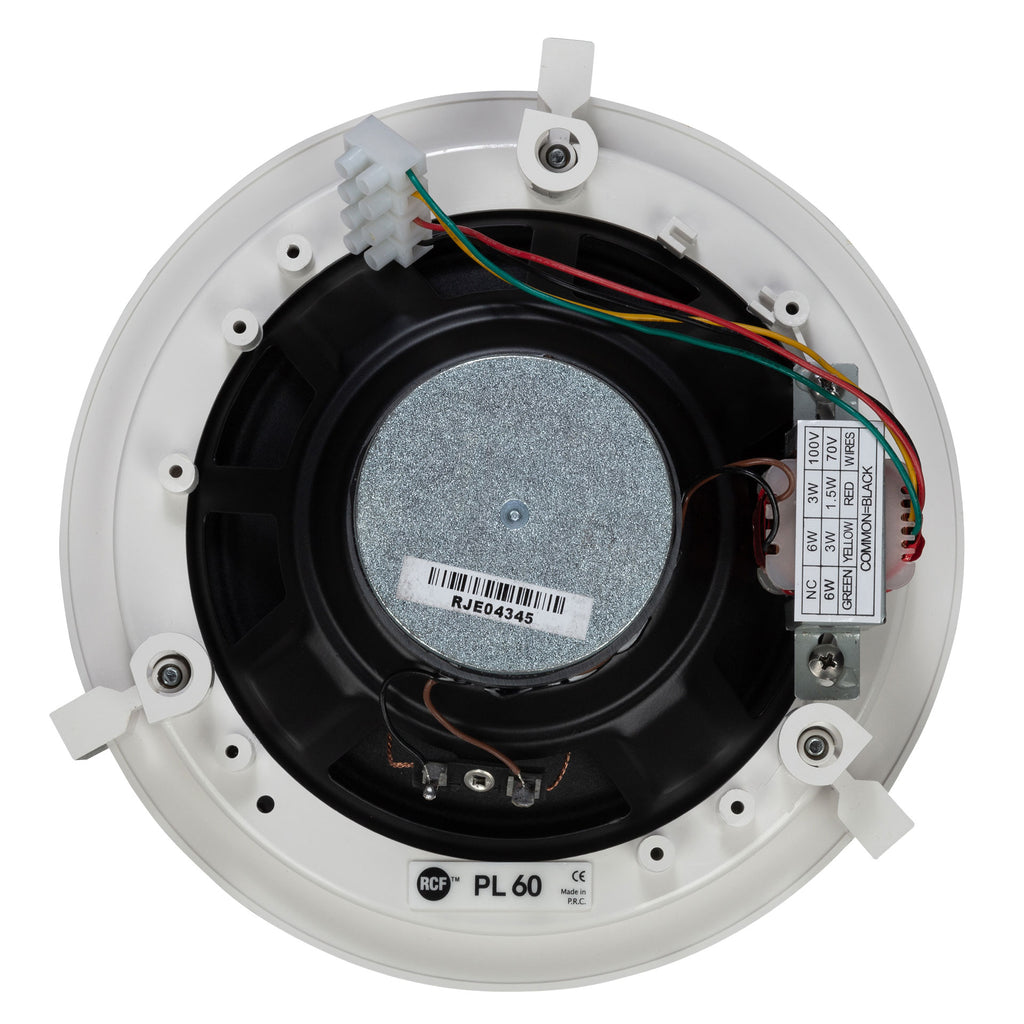

PL 60 High Efficency Ceiling Speaker
The PL60 is a ceiling speaker with an elegant design, intended for recess installation in false ceilings or panels. It is ideal for the reproduction of announcements and background music and features a multiplesocket line transformer for use with constant voltage systems.
Features

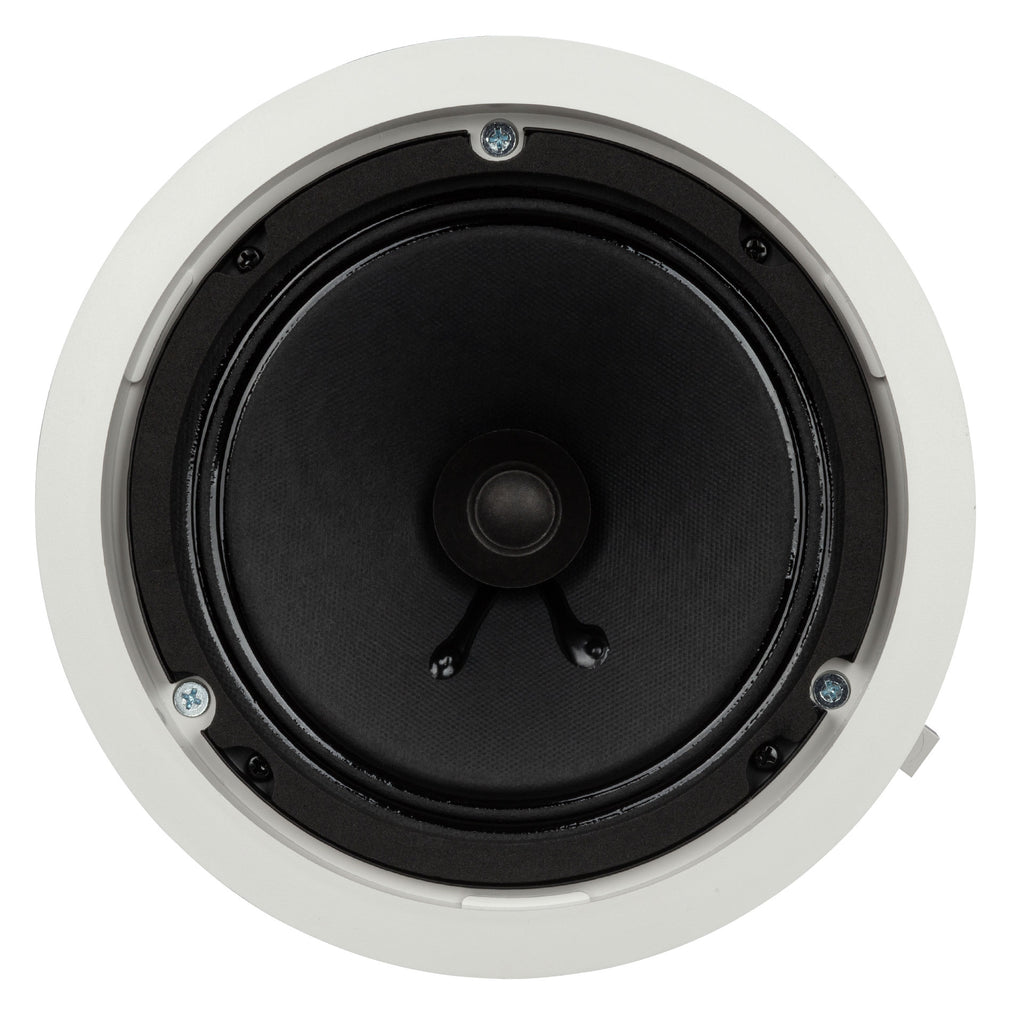

- 6" fullrange transducer
- Power selectable (70 V / 100 V): 6 W - 3 W - 1.5 W
- 91 dB sensitivity
- Colour white RAL 9003
- Plastic frame, steel grille
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
90 Hz - 20000 Hz |
| Max SPL @ 1m |
107 dB |
| Coverage angle |
90° |
| System Sensitivity |
91 dB |
Power section
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
6 W |
| Peak Power Handling |
24 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Transducers
Input/Output section
| Input connectors |
Screw Terminals |
| Output connectors |
Screw Terminals |

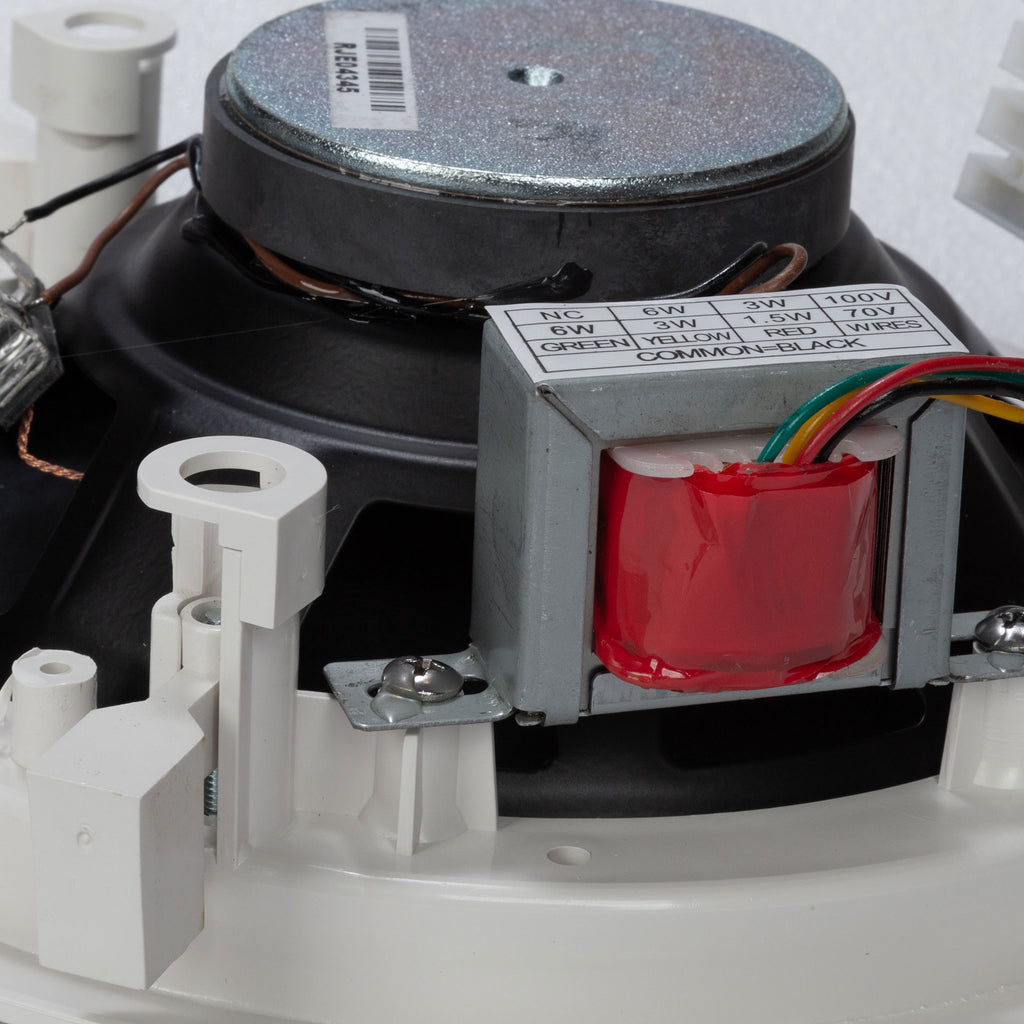

| Constant Voltage Transformer |
70/100 V |
| Power selection 1 |
6 W - 1667 ohm |
| Power selection 2 |
3 W - 3333 ohm |
| Power selection 3 |
1.5 W - 6667 ohm |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Plastic Material |
| Grille |
Steel |
| Color |
White - RAL 9003 |

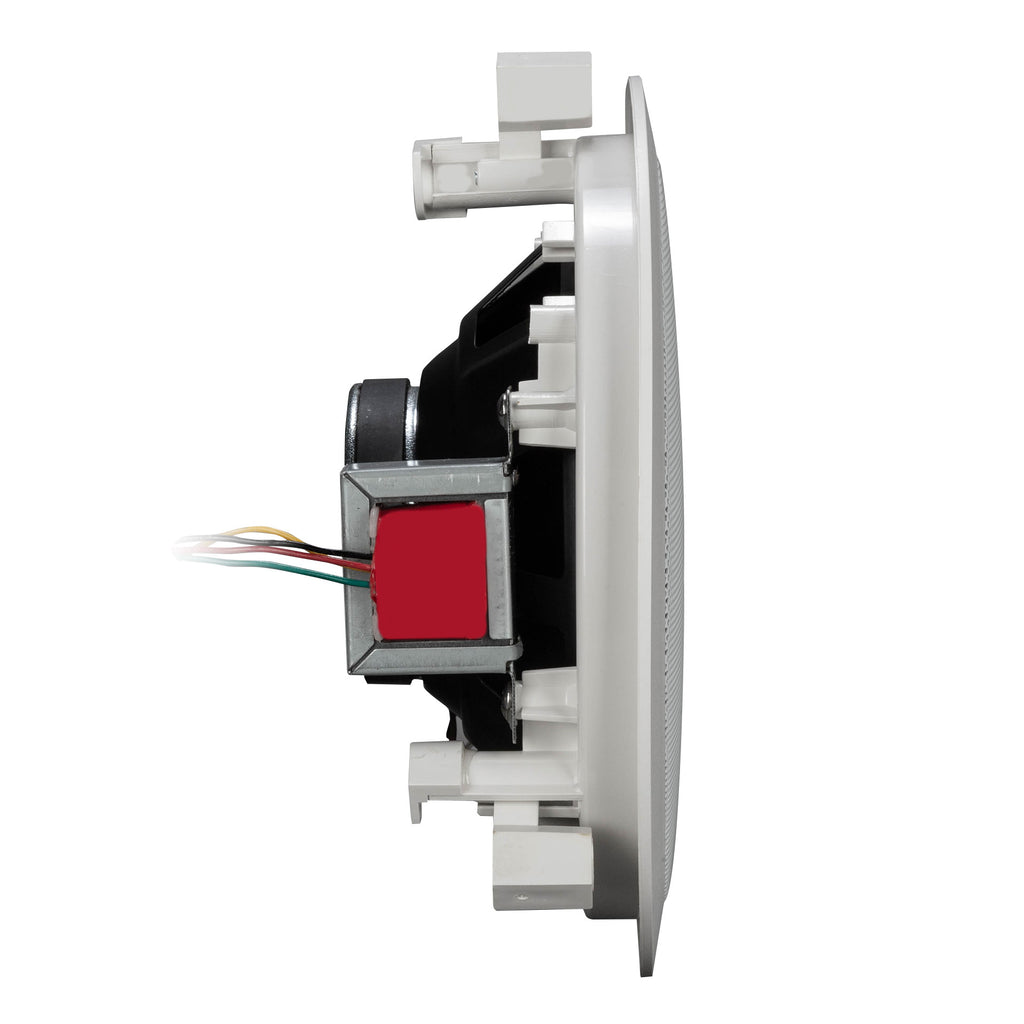

Size / Weight
| Depth |
75 mm / 2.95 inches |
| Recessed Depth |
69 mm / 2.72 inches |
| Diameter |
204 mm / 8.03 inches |
| Weight |
0.34 kg / 0.75 lbs |
Shipping information
| Package Height |
105 mm / 4.13 inches |
| Package Width |
240 mm / 9.45 inches |
| Package Depth |
235 mm / 9.25 inches |
| Package Weight |
1.07 kg / 2.36 lbs |
