RCF P5228, Passive 2000W Dual 8" 2-Way Weatherproof Speaker (IP55)

P 5228-L Weatherproof Two-Way Speaker

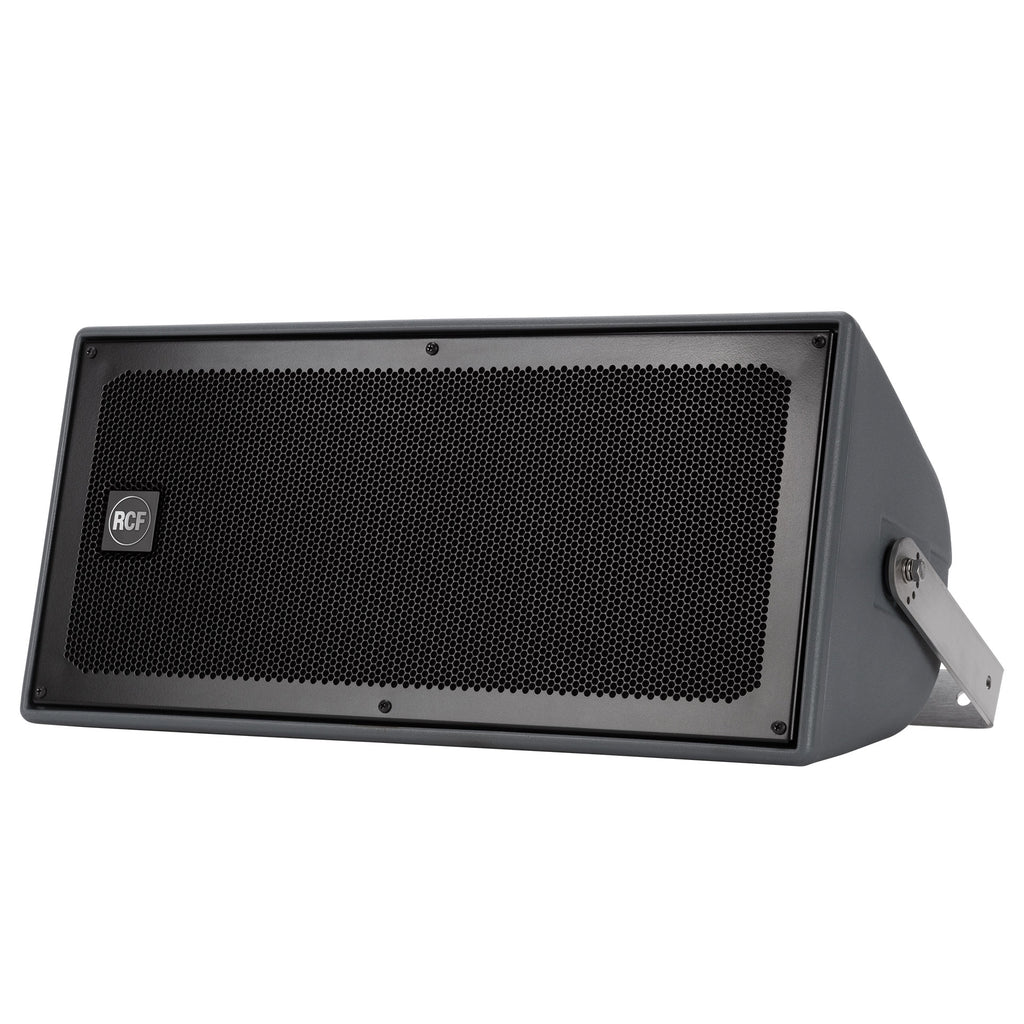

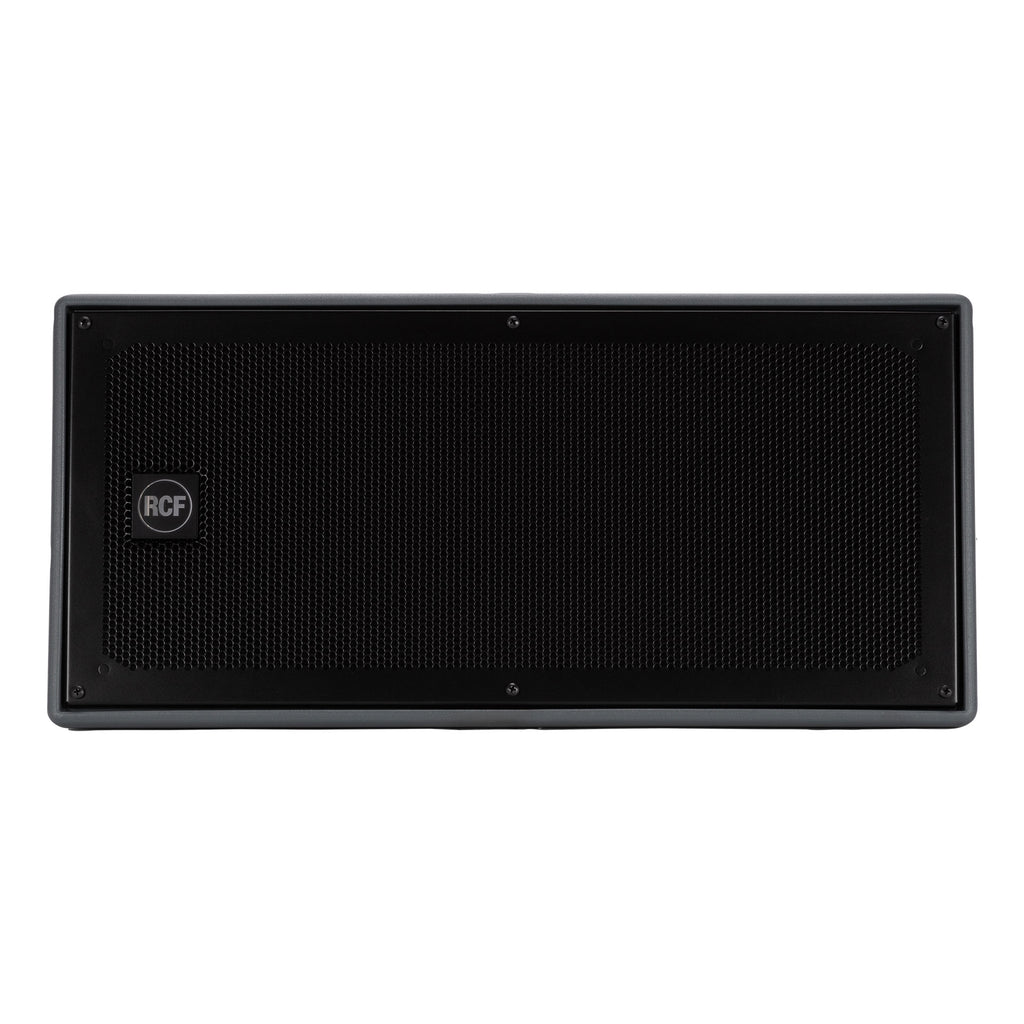

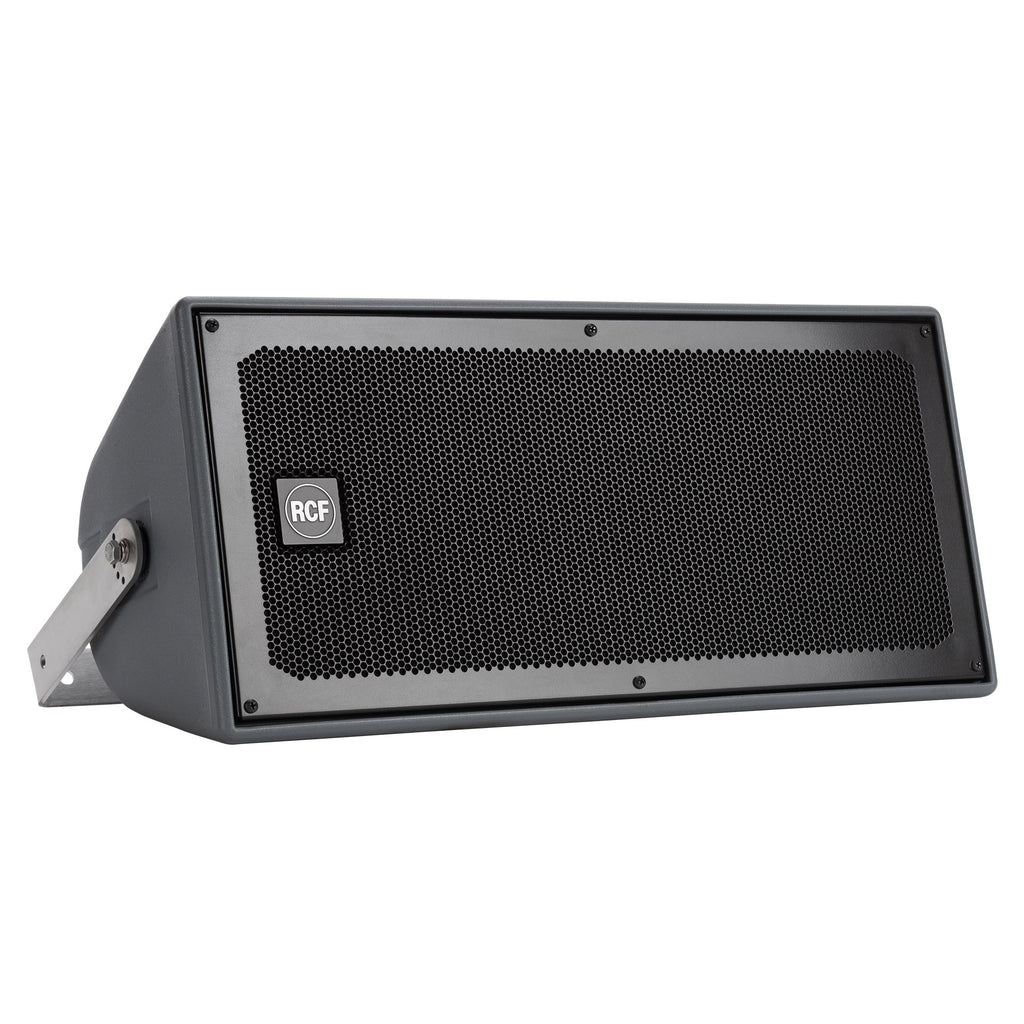

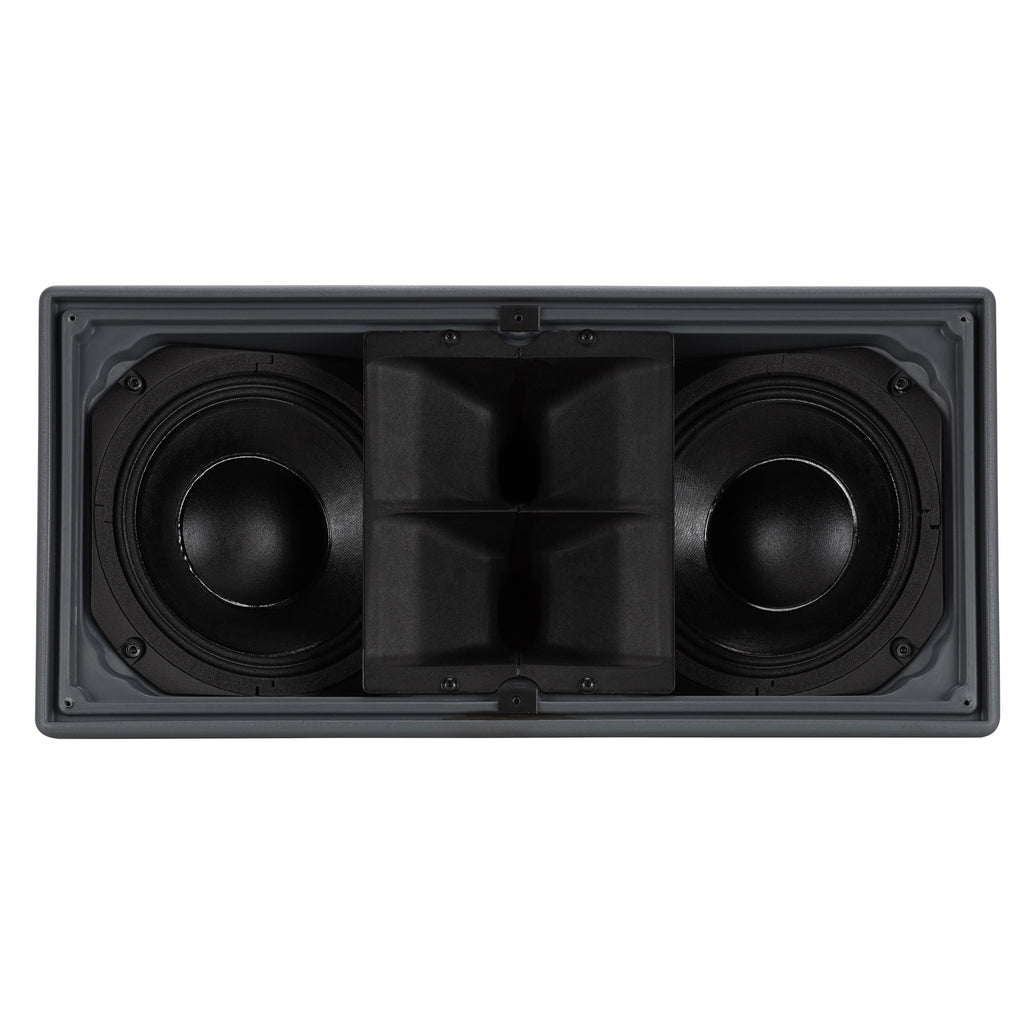

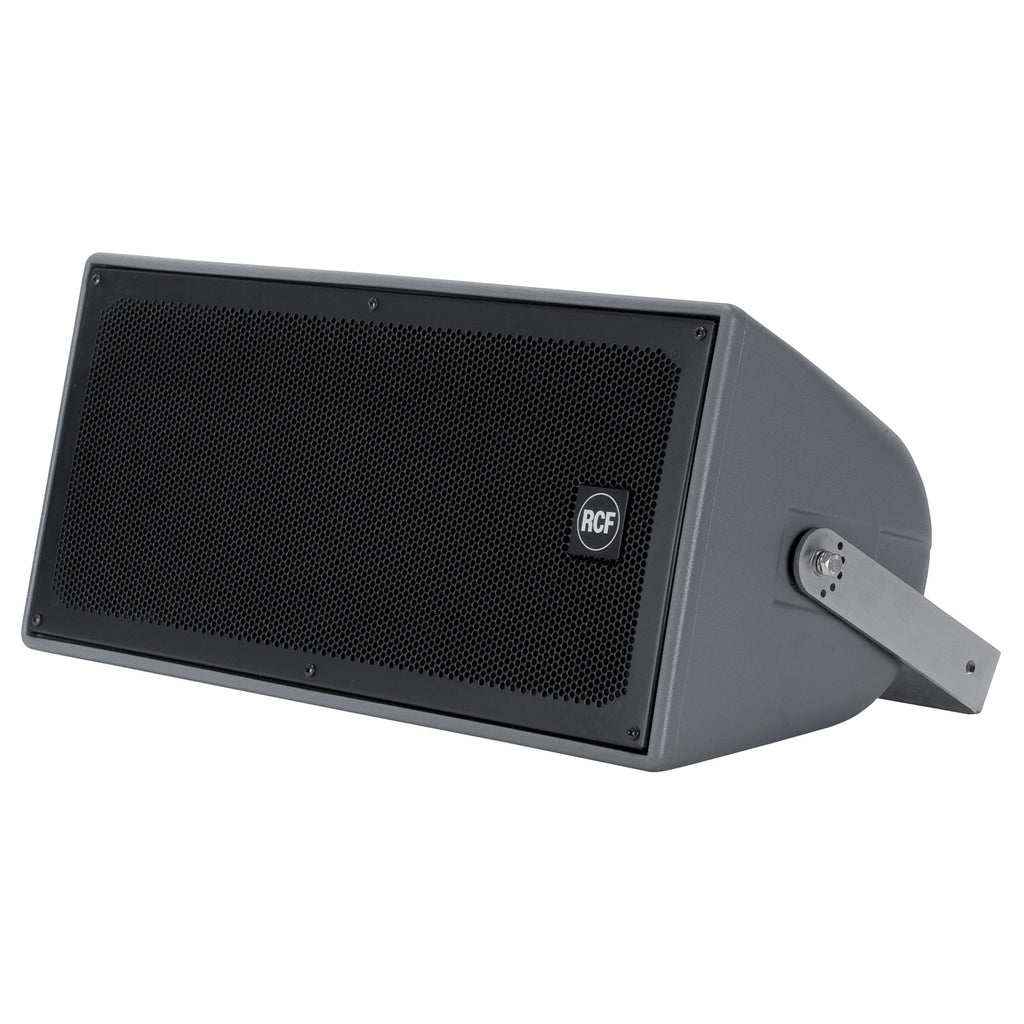

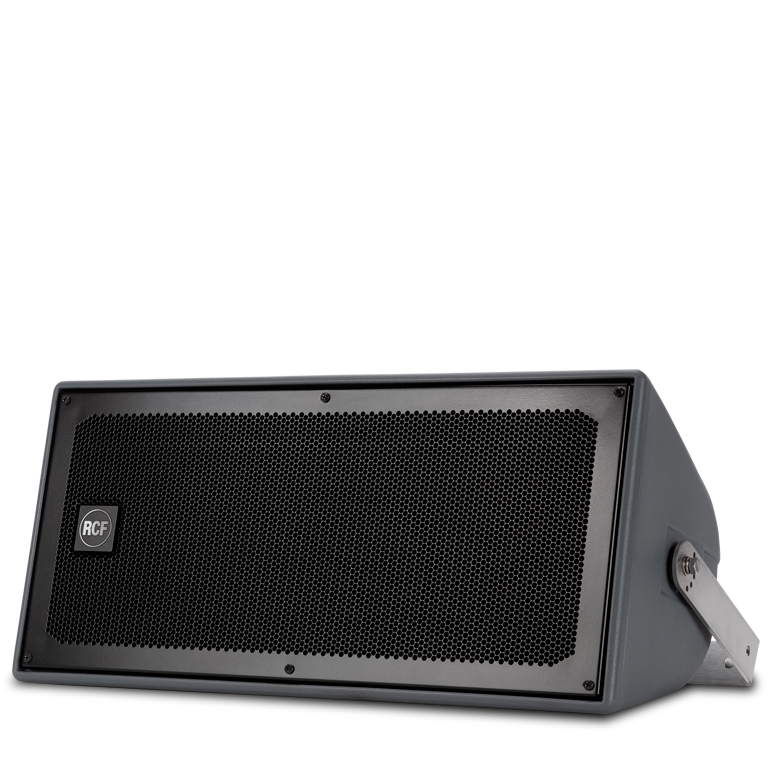

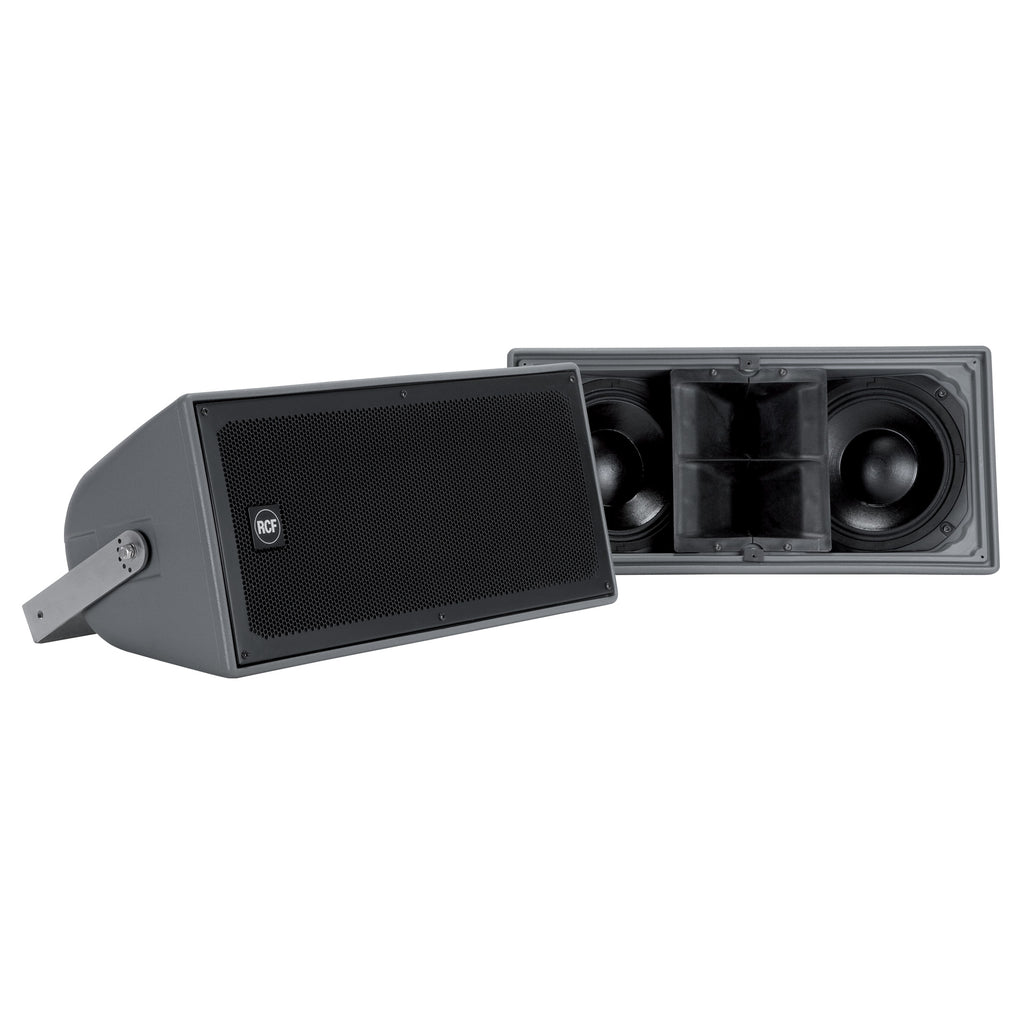

The P 5228-L is a weatherproof full range, two-way speaker, suitable for a variety of professional applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF Precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, highly controlled 20° vertical coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion with consistent directivity. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material and has a rotatable logo plate.

Features

• 500 W RMS power handling
• 131 dB max SPL
• 80 Hz ÷ 20000 Hz frequency range
• 2 x 8" neodymium woofer, 2.5" v.c.
• 2 x 1.75" v.c. neodymium compression driver
• 90° x 20° constant directivity
• Weatherproof IP55 cabinet with UV protection
• Aluminum grille
• AISI 316L stainless steel bracket
• Amphenol IP67 4 pole input connector

All-weather performance

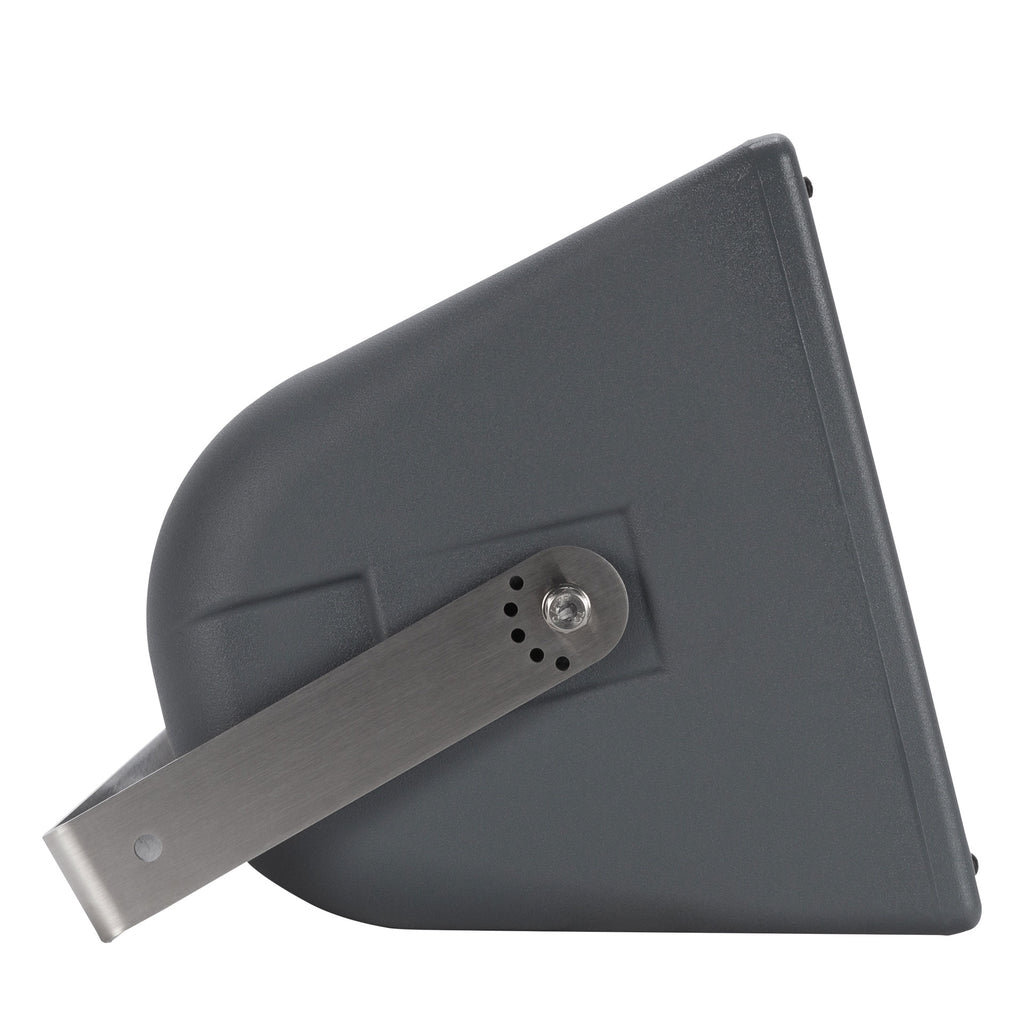

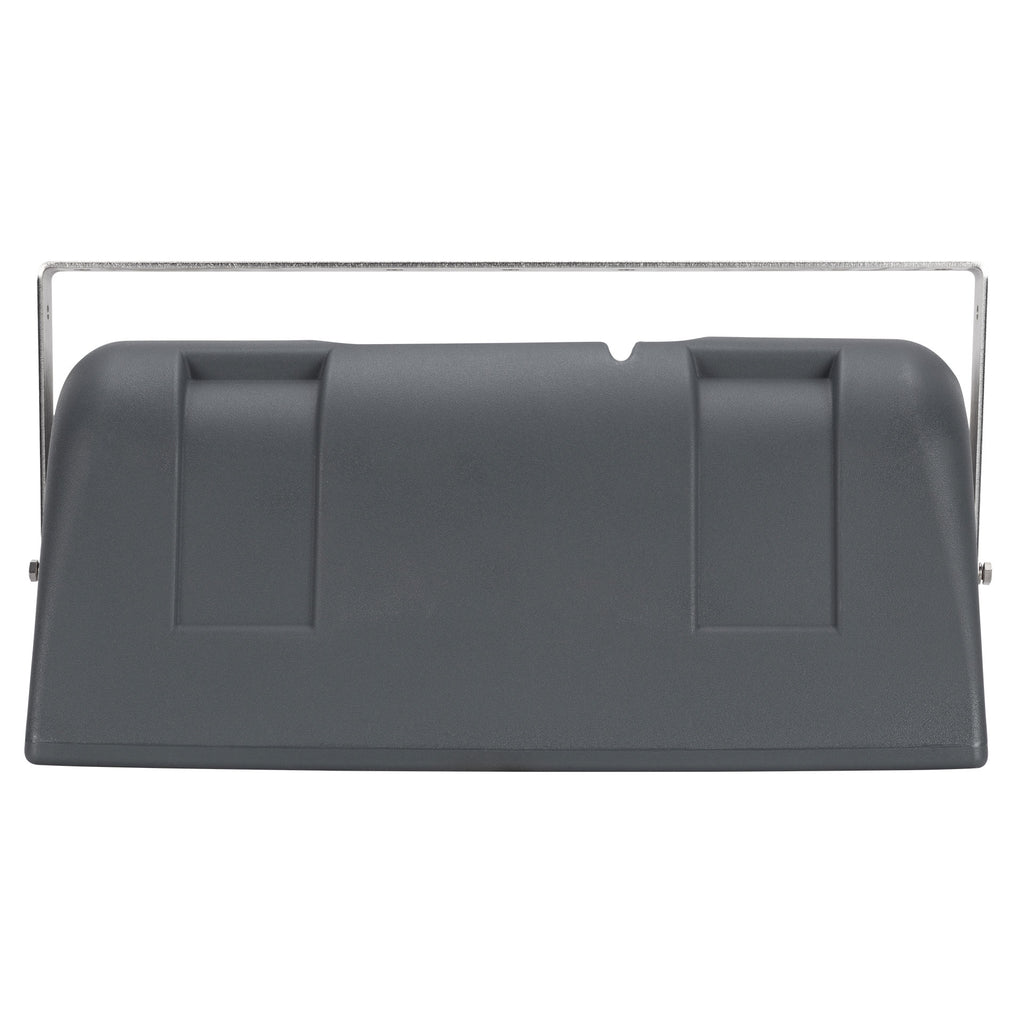

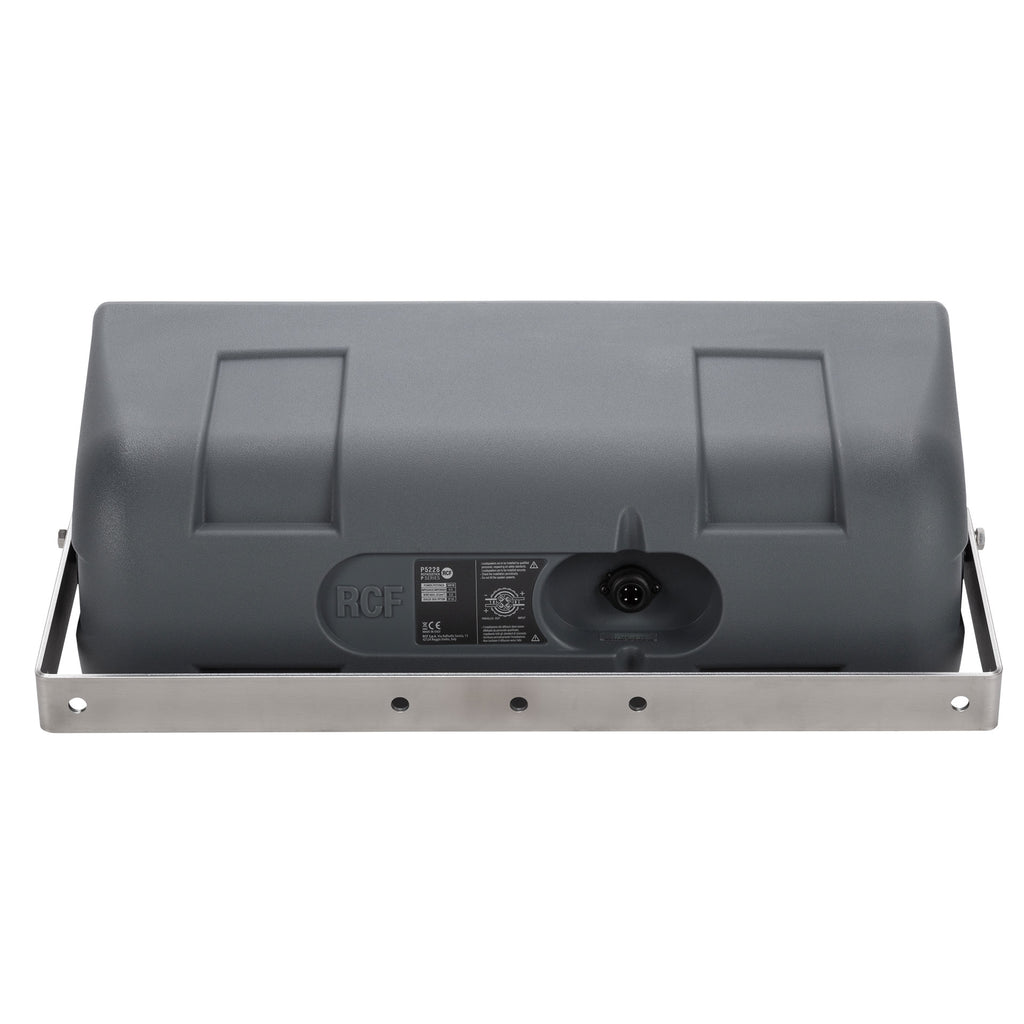

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.

Versatility for any application

Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.

LICC - Low Impedance Compensated Crossover

The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.

CMD - Coverage Matching Design

RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity.

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs - complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.

contact us

Specifications

Acoustical specifications

Power section

Transducers

Input/Output section

Standard compliance

Physical specifications

Size / Weight

Shipping information
