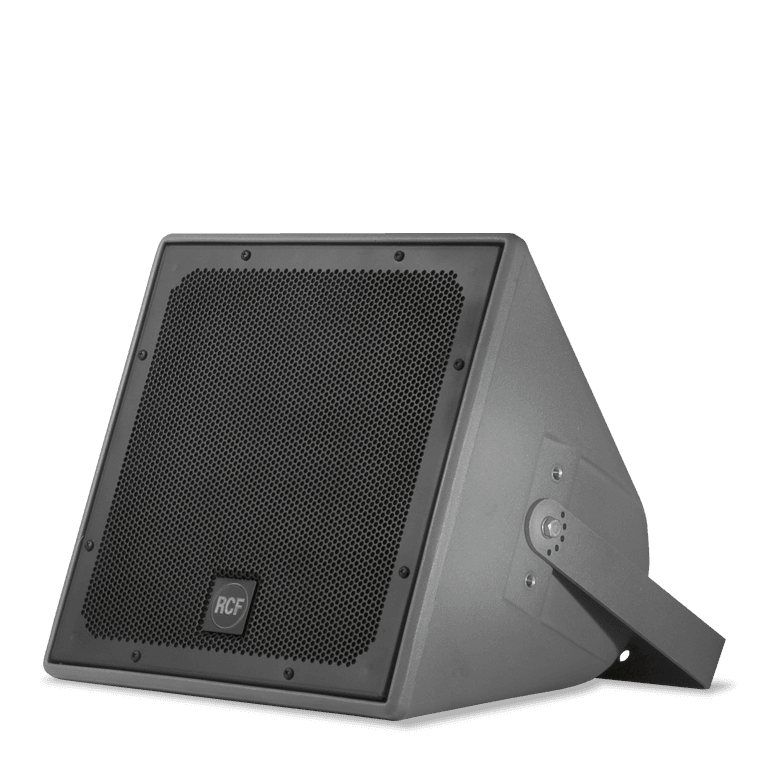

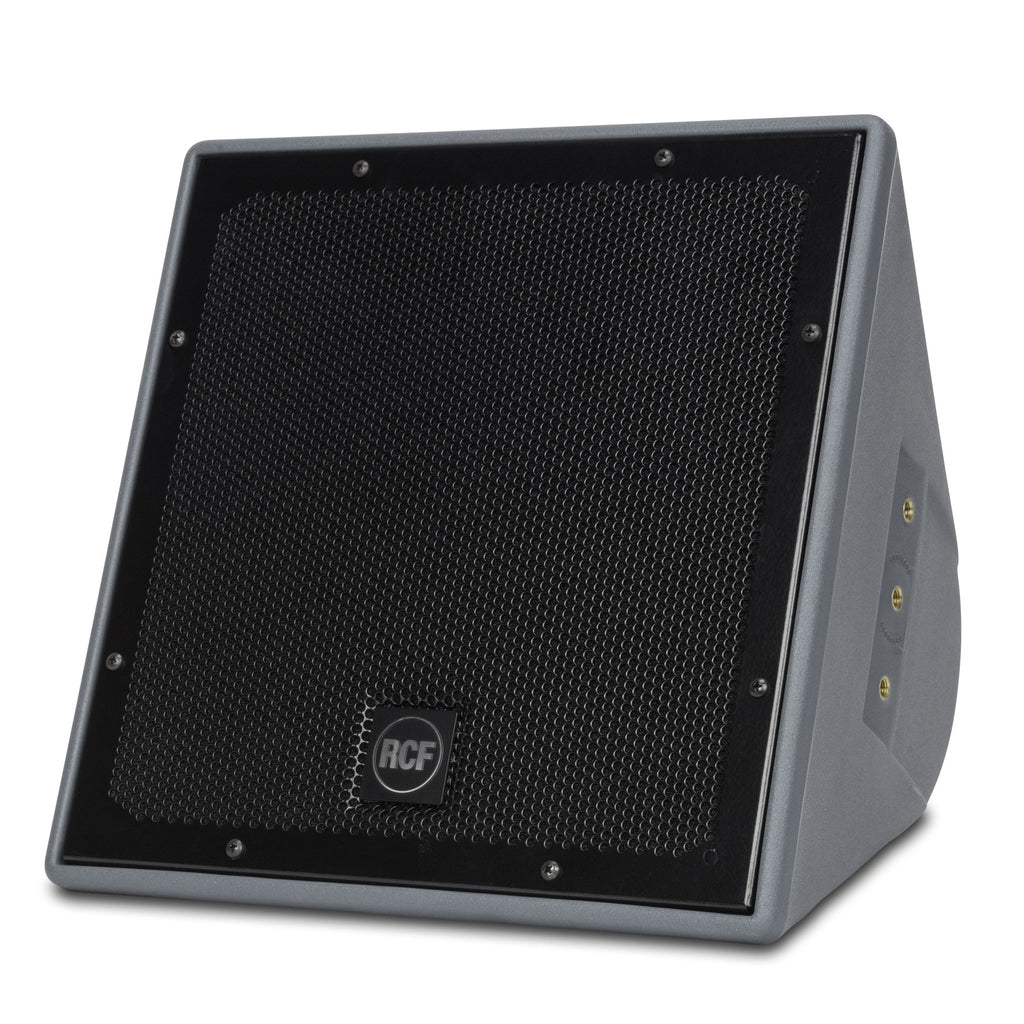

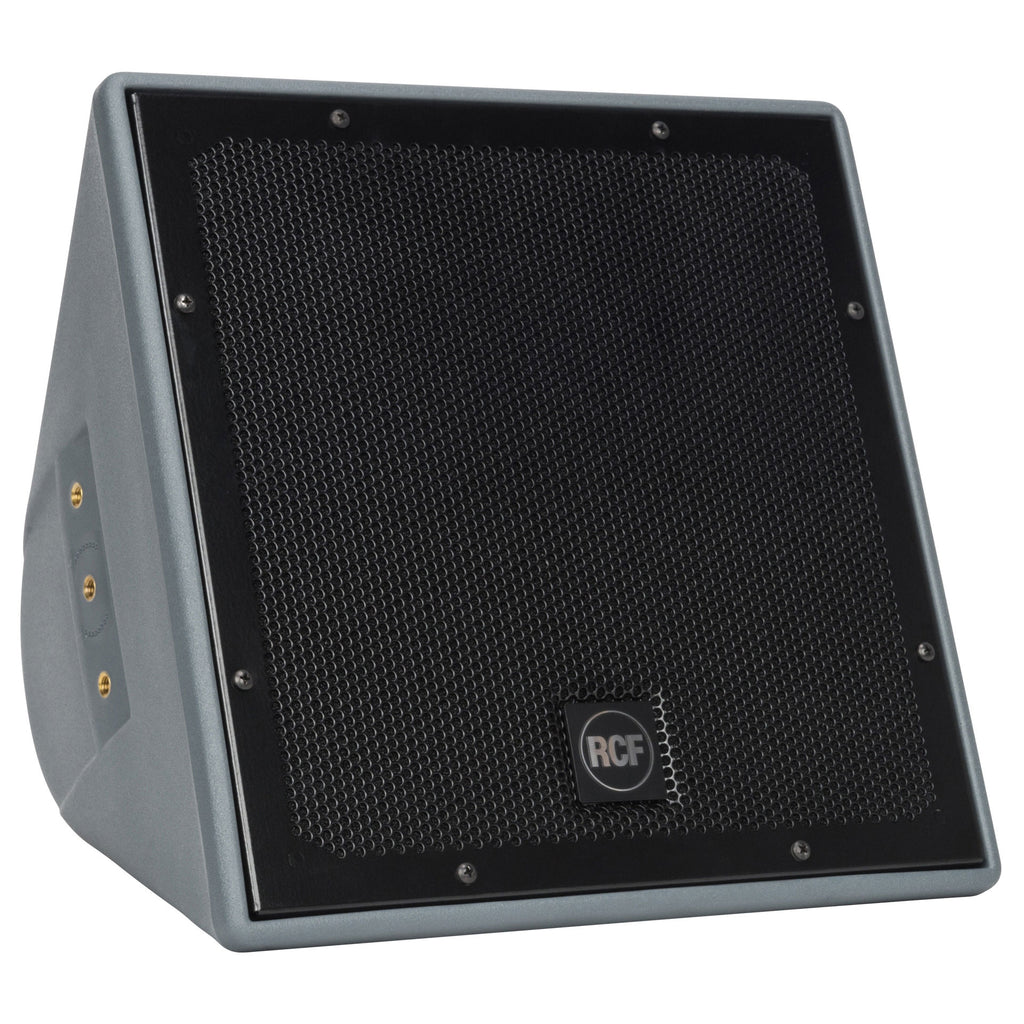

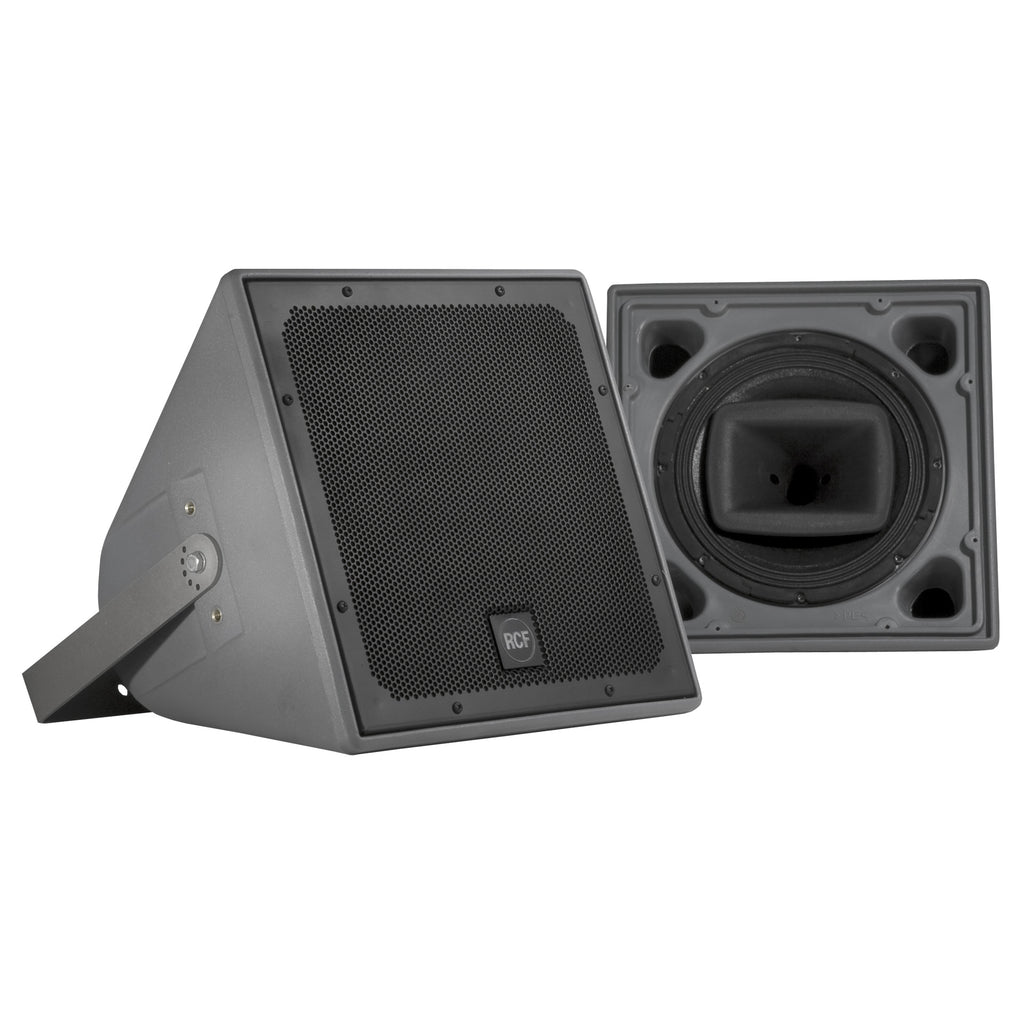

P 2110T Weatherproof Coaxial Two-Way Speaker

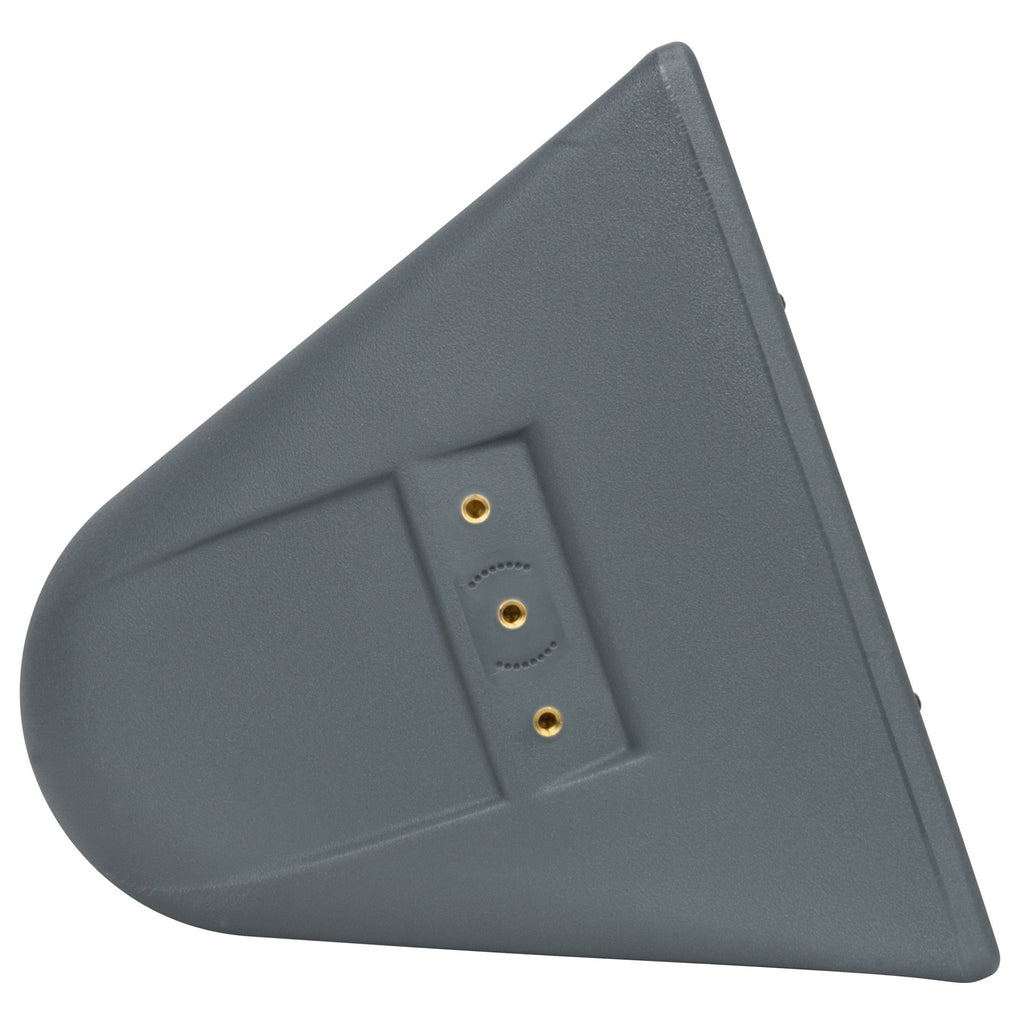

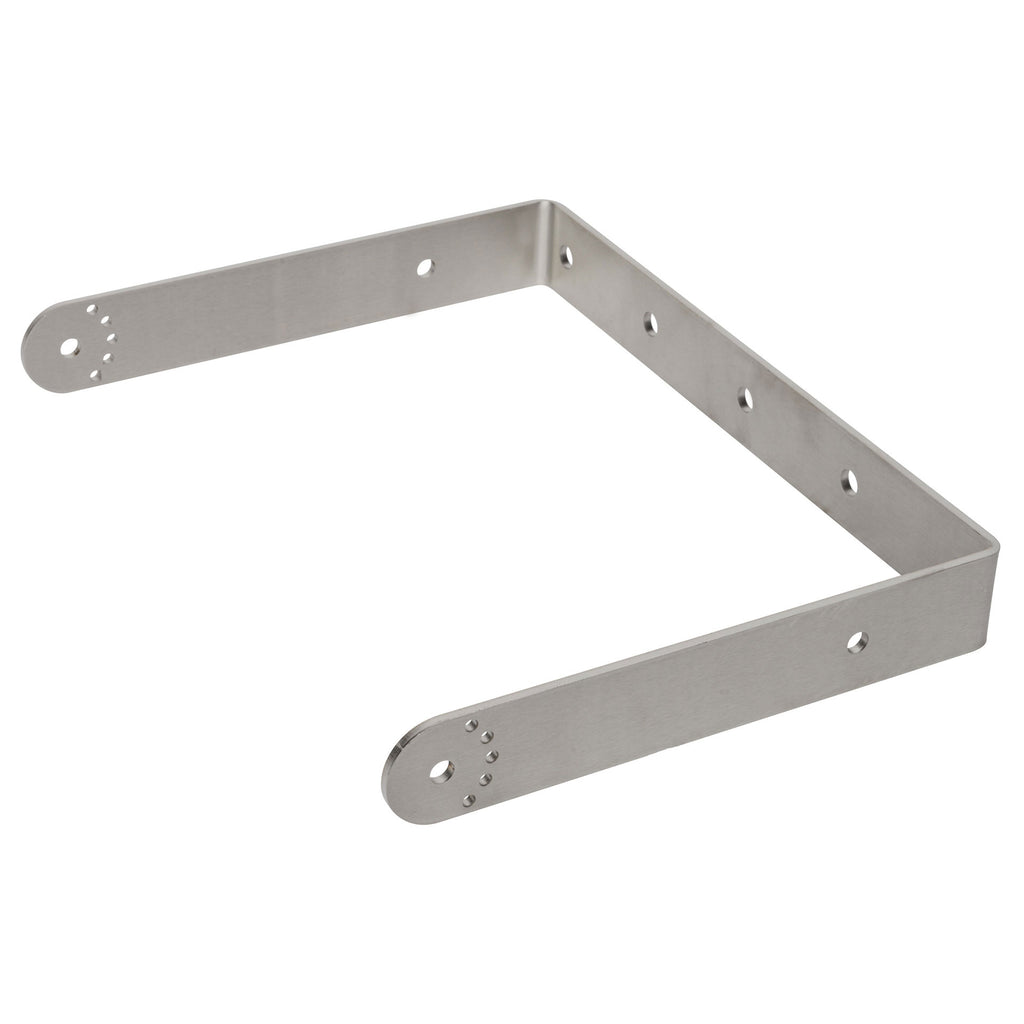

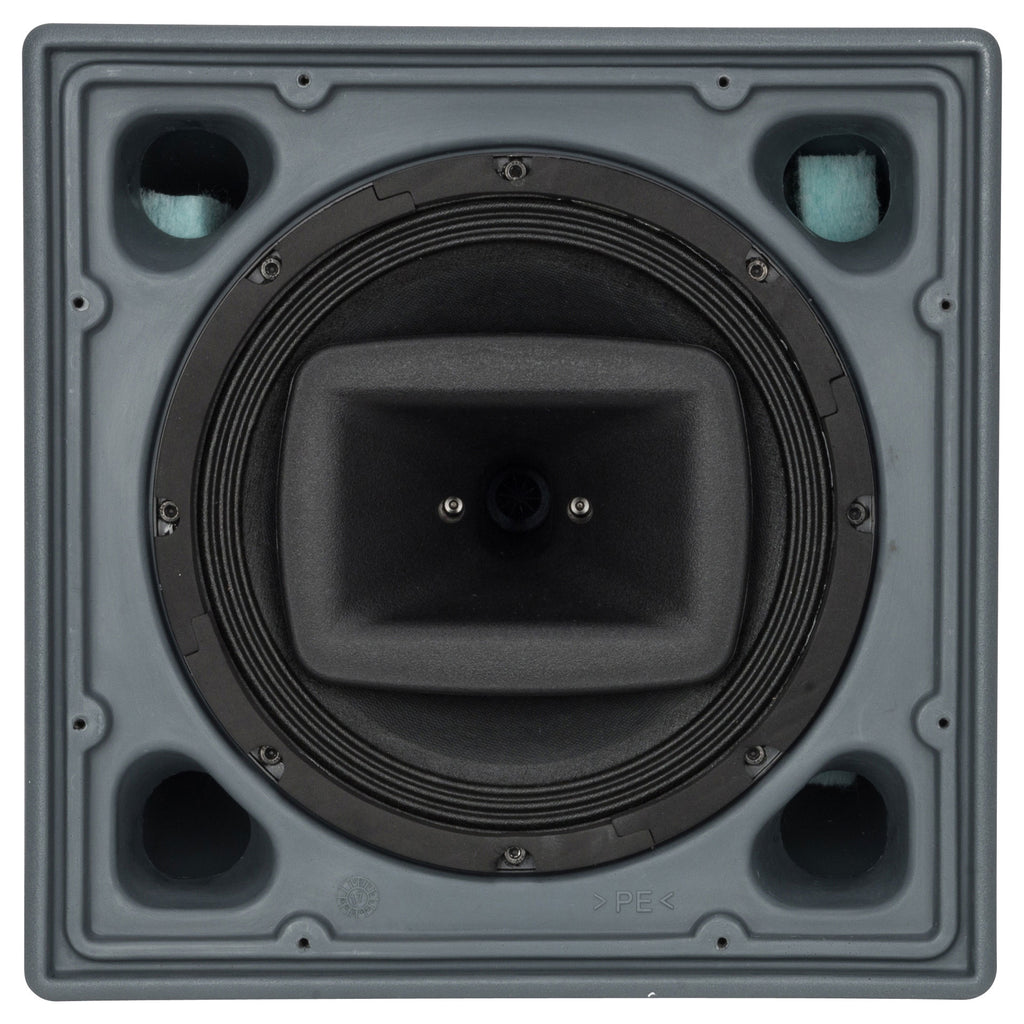

The P 2110T is a weatherproof full-range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 10” woofer with a 2.5” voice coil. The high-frequency section combines a 1” RCF Precision compression driver with a 1.5” diaphragm assembly centrally-mounted in the throat of the LF driver, and loaded on a constant directivity CMD horn for smooth, wide dispersion. The P 2110T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements. Included are M10 brass inserts (12 x) and one durable corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and a rotatable logo plate.
Features
- 200 W RMS power handling
- 124 dB max SPL
- 95 Hz ÷ 20000 Hz frequency range
- 10" woofer, 2.5" v.c.
- 1.5" v.c. compression driver
- 90° x 40° constant directivity
- Weatherproof IP55 cabinet with UV protection
- Aluminum grille
- AISI 316L stainless steel bracket
- Built in 100V line transformer
- XPS SERIES
- 4 x 4000 W
- Class D continuous power
- at 2.7 Ohms
- 40-bit Floating-point
- Processing at 96 kHz
- Ready-to-Use
- Configurations and presets
- for RCF speakers
- 2U Rack Space
- for both touring and installed sound systems
- Flexible 32-bit Routing
- with analog, digital
- and Dante I/O
- Advanced Fault Protections
- for each amplifier channel and power supply
- Configuration Example
- Bi-Amp Two-Way Line Array
- 6 x 15" Speakers (P 2110T)
- Medium Size Venues, Sports Facilities, and Nightclubs
All-weather performance

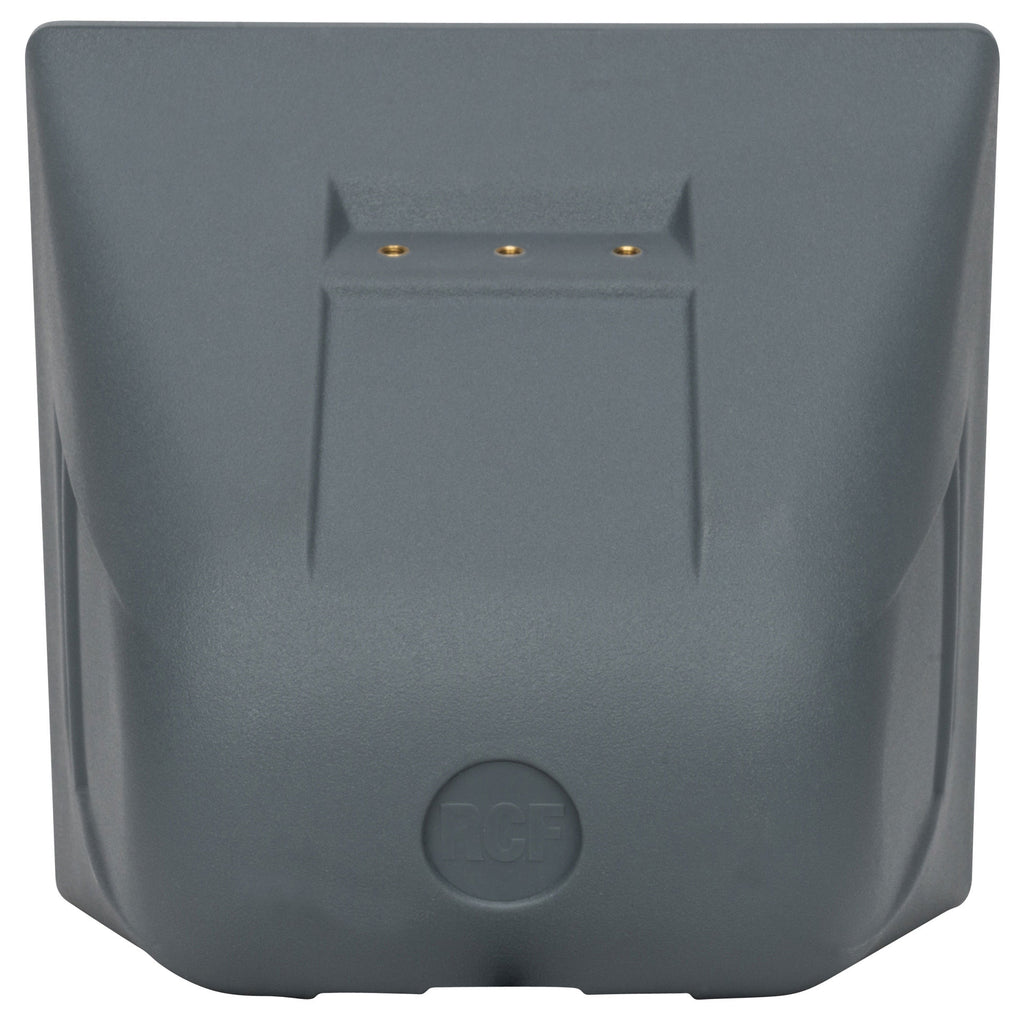

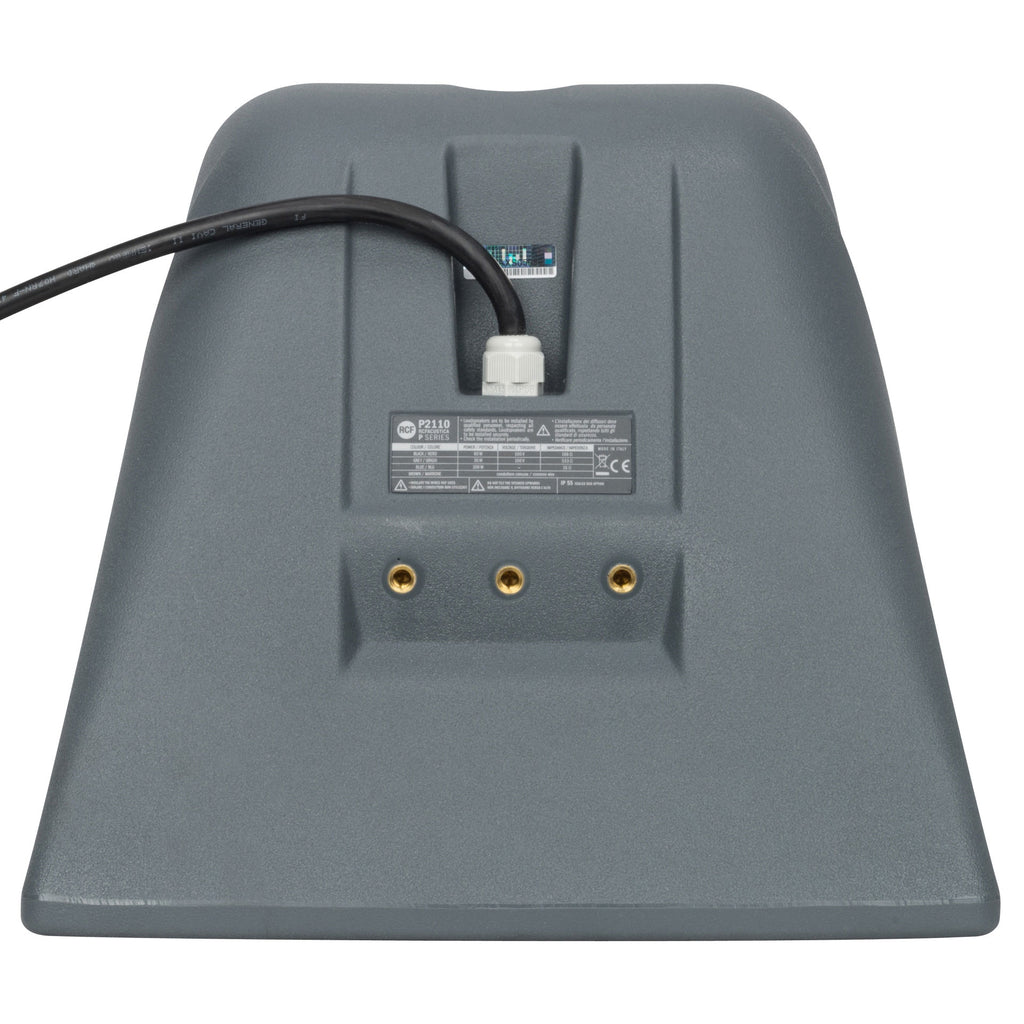

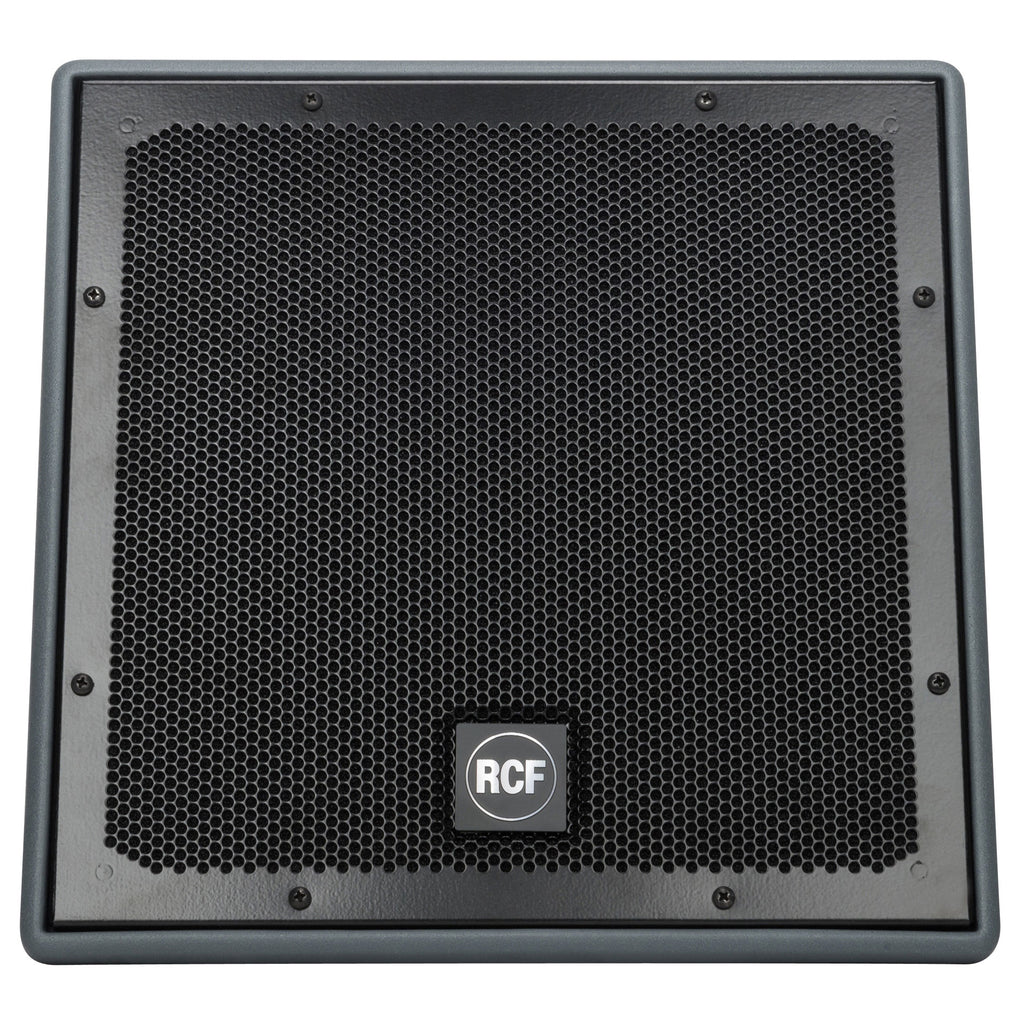

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.
Versatility for any application
Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.
LICC - Low Impedance Compensated Crossover
The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.
CMD - Coverage Matching Design
RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity.
Customization without boundaries
Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs - complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
contact us
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
95 Hz - 20000 Hz |
| Max SPL @ 1m |
124 dB |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
40° |
| Directivity index Q |
11 |
| System Sensitivity |
95 dB |
Power section
| Amplification |
Full Range |
| Nominal Impedance |
16 ohm |
| Power Handling |
200 W |
| Peak Power Handling |
800 W PEAK |
| Protections |
Dynamic active mosfet |
| Crossover Frequencies |
2000 Hz |
Transducers
| Compression Driver |
1.0'', 1.5'' v.c |
| Woofer |
Coaxial 10'', 2.5'' v.c |
Input/Output section
| Input connectors |
Neoprene Cable |
| Constant Voltage Transformer |
100 V |
| Power selection 1 |
60 W - 167 ohm |
| Power selection 2 |
30 W - 333 ohm |
| Power selection 3 |
15 W - 667 ohm |
Standard compliance
| IP protection grade |
IP 55 |
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
PE Low Density |
| Hardware |
12 x M8 inserts + U-brackets and pair of spacers |
| Grille |
Aluminum with water-repellent protection |
| Color |
Grey - RAL 7011 |
Size / Weight
| Height |
350 mm / 13.78 inches |
| Width |
350 mm / 13.78 inches |
| Depth |
320 mm / 12.6 inches |
| Weight |
13.4 kg / 29.54 lbs |
Shipping information
| Package Height |
400 mm / 15.75 inches |
| Package Width |
370 mm / 14.57 inches |
| Package Depth |
370 mm / 14.57 inches |
| Package Weight |
16.3 kg / 35.94 lbs |
