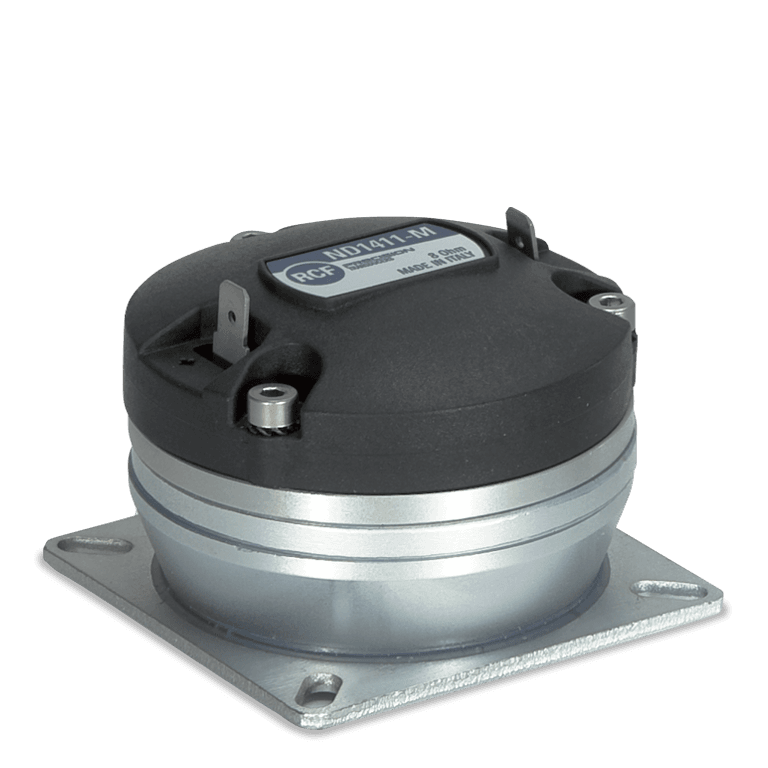

ND1411-M Driver
The ND1411-M is a high performance 1.5-inch diaphragm compression driver with a 1-inch exit throat featuring a single pieces, low compression, radial phase plug. The diaphragm and suspension are precision formed from 0.1mm thick Mylar. The ND1411-M is a very compact size, versatile driver for professional applications.
Features
- 1.5-inch Diaphragm, 1-inch Exit Throat
- 50W continuous program power handling
- Frequency range: 1500Hz - 20kHz
- Optimized geometry radial phase plug
- Very compact size for array applications
- Neodymium magnet assembly
- High power handling in only 70mm overall diameter
Specifications
General specifications
| Exit Throat Diameter |
1.0 inch / 25 mm |
| Related Impedance |
8 ohm |
| Program Power (watt) |
50 W |
| Power handling capacity |
25 W |
| Sensitivity |
109 dB |
| Frequency range |
1500 - 20000 Hz |
| Diaphragm Material |
Mylar |
| Suspension Material |
Mylar |
| Suspension Design |
Radial |
| Minimum Impedance (ohm) |
7.00 ohm |
| Voice Coil Diameter |
1.5 inch / 38 mm |
| Voice Coil Winding Material |
Edgewound Aluminum |
| Voice Coil Former Design |
Straight - Nomex |
| Number of layers |
1 |
| Kind of layers |
outside |
| Flux Density |
1.7 T |
| Phase Plug Design |
10 radial slots |
| Phase Plug Material |
PP Composite |
| Magnetics |
Neodymium |
Thiele - small parameters
| Bl factor (Bl) (T x m) |
4.40 T x m |
Mounting information
| Overall diameter |
69 mm / 2.72 inches |
| Overall height |
51 mm / 2.01 inches |
| Mounting |
4 x 6 mm threaded holes at 90° |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Weight |
0.69 kg / 1.52 lbs |
Shipping information
| Package Height |
65 mm / 2.56 inches |
| Package Width |
95 mm / 3.74 inches |
| Package Depth |
97 mm / 3.82 inches |
| Package Weight |
0.72 kg / 1.59 lbs |
