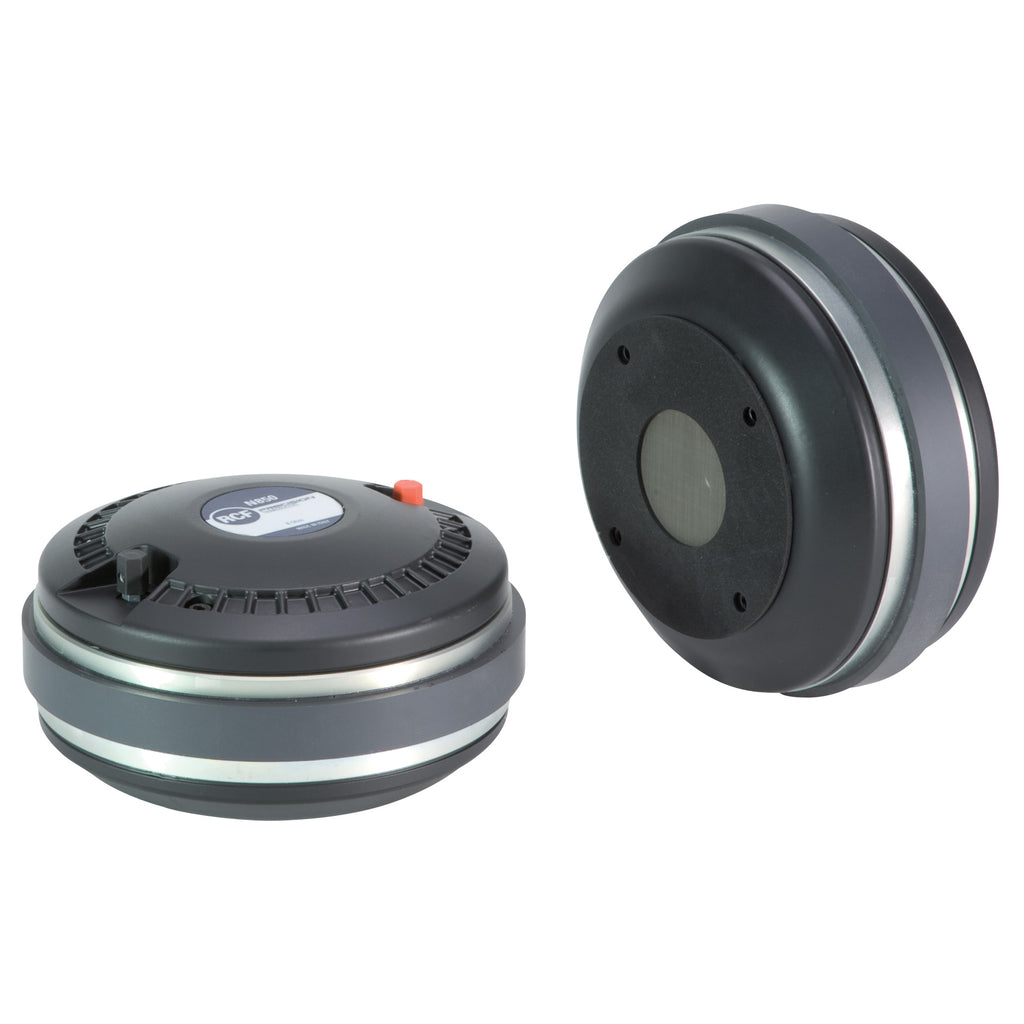

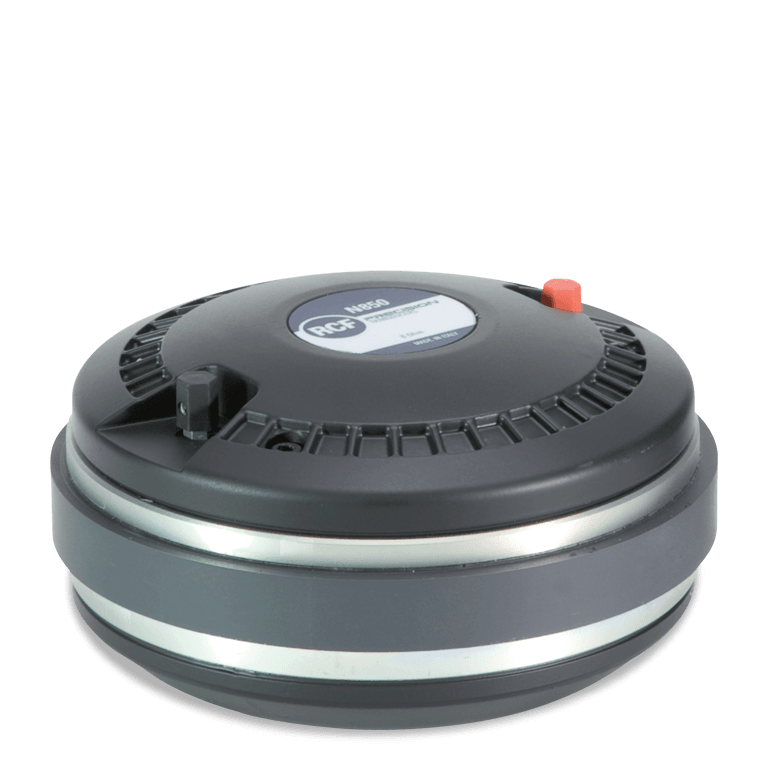

N850 Driver
The N850 is a high quality 3-inch diaphragm compression driver with a 2-inch exit throat. The diaphragm is precision formed from 0.05mm thick pure titanium. The suspension is based on Mylar vented design. The front aluminium adaptor guarantee a very smooth transition from the phase plug to 2-inch output interface.
Features
- 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
- 180W continuous program power handling
- Frequency range: 500Hz - 20kHz
- 3-slot optimized geometry phase plug
- Aluminium rear cover and front adaptor
- Copper inductance ring for extended response
- Vented suspension system
Specifications
General specifications
| Exit Throat Diameter |
2.0 inch / 51 mm |
| Related Impedance |
8 ohm |
| Program Power (watt) |
180 W |
| Power handling capacity |
90 W |
| Sensitivity |
109 dB |
| Frequency range |
500 - 20000 Hz |
| Diaphragm Material |
Pure Titanium |
| Suspension Material |
Mylar |
| Suspension Design |
Radial |
| Minimum Impedance (ohm) |
8.80 ohm |
| Voice Coil Diameter |
3.0 inch / 76 mm |
| Voice Coil Winding Material |
Edgewound Aluminum |
| Voice Coil Former Design |
Straight - Kapton |
| Number of layers |
1 |
| Kind of layers |
outside |
| Flux Density |
1.8 T |
| Phase Plug Design |
3 slot |
| Phase Plug Material |
PP Composite |
| Magnetics |
Ceramic |
| Voice Coil Demodulation Ring |
Copper |
Mounting information
| Overall diameter |
180 mm / 7.09 inches |
| Overall height |
95 mm / 3.74 inches |
| Mounting |
4 x 6 mm threaded holes at 90° |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
Shipping information
| Package Height |
114 mm / 4.49 inches |
| Package Width |
203 mm / 7.99 inches |
| Package Depth |
205 mm / 8.07 inches |
| Package Weight |
7 kg / 15.43 lbs |
