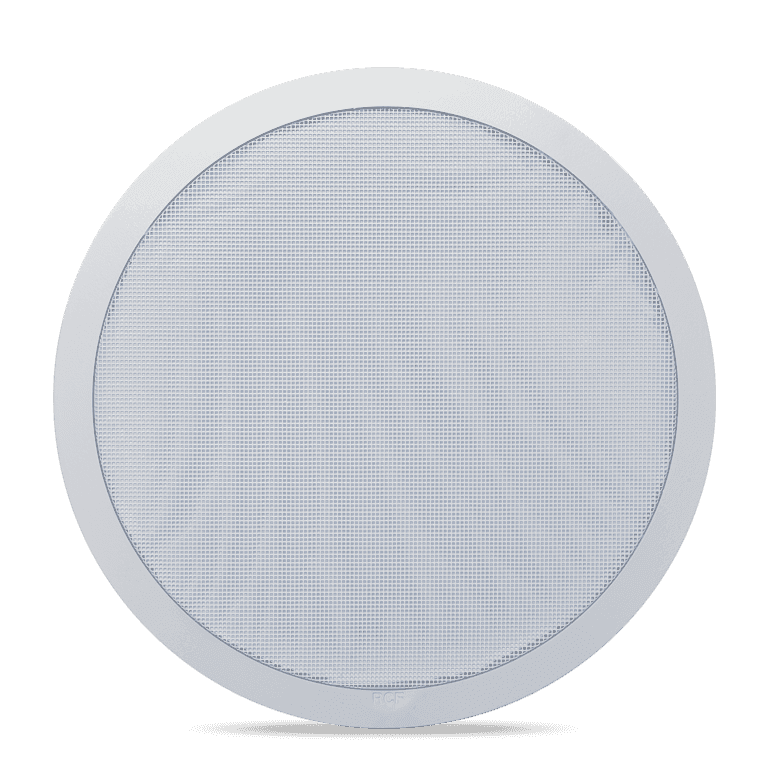

MQ 50C Two-Way Ceiling Speaker

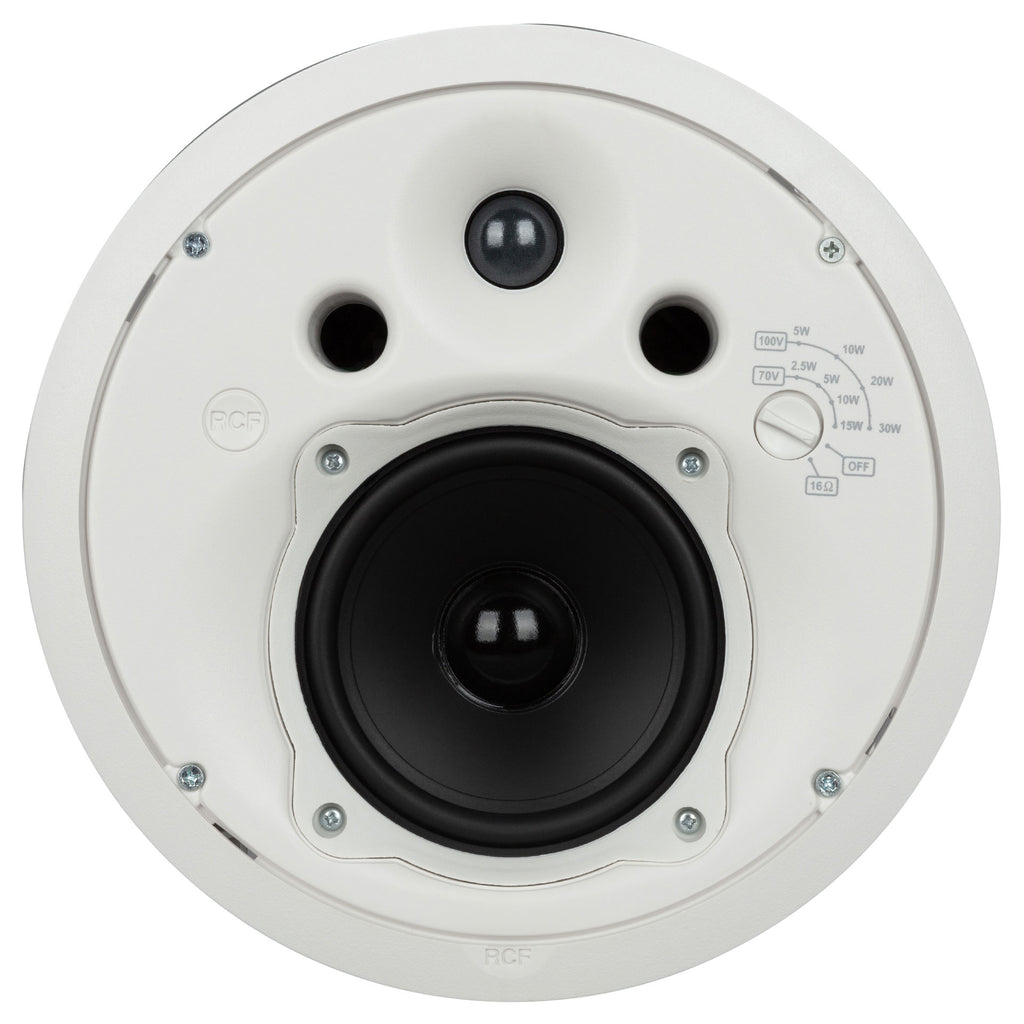

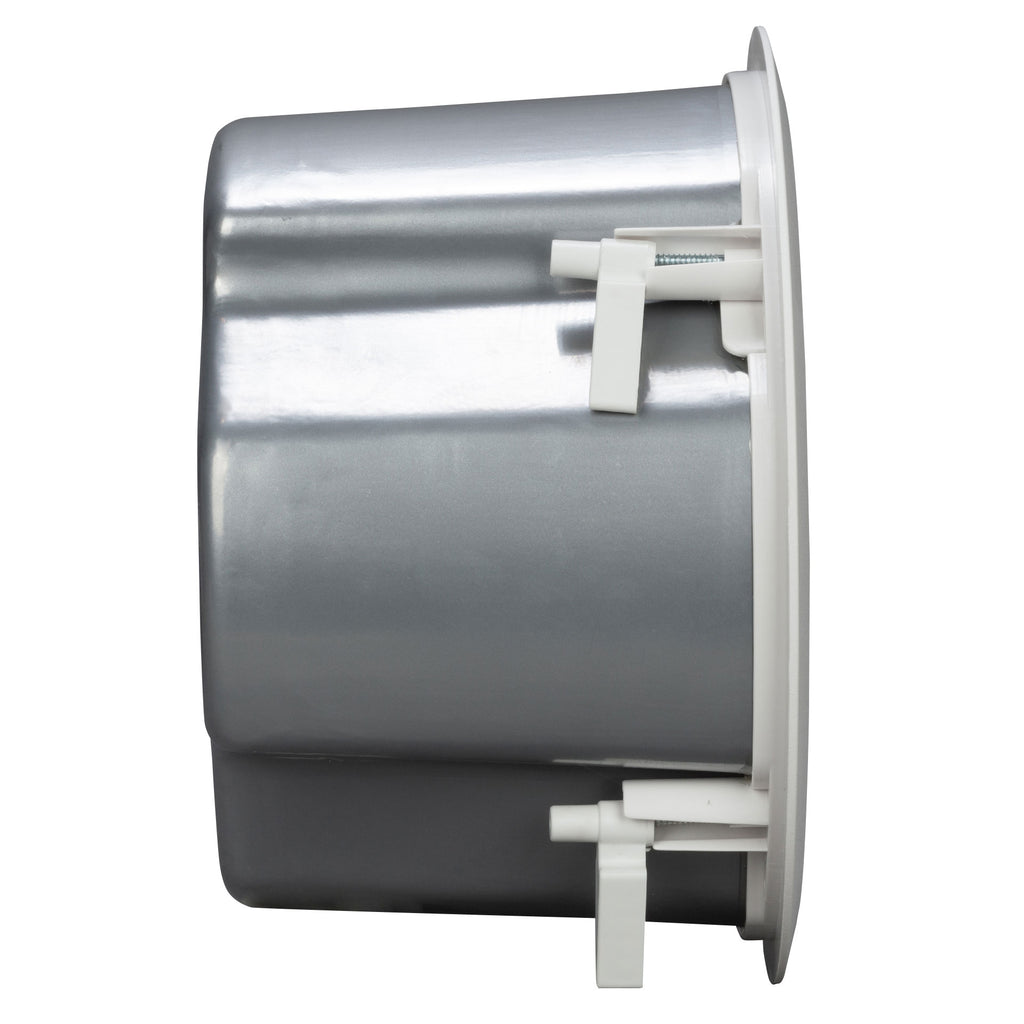

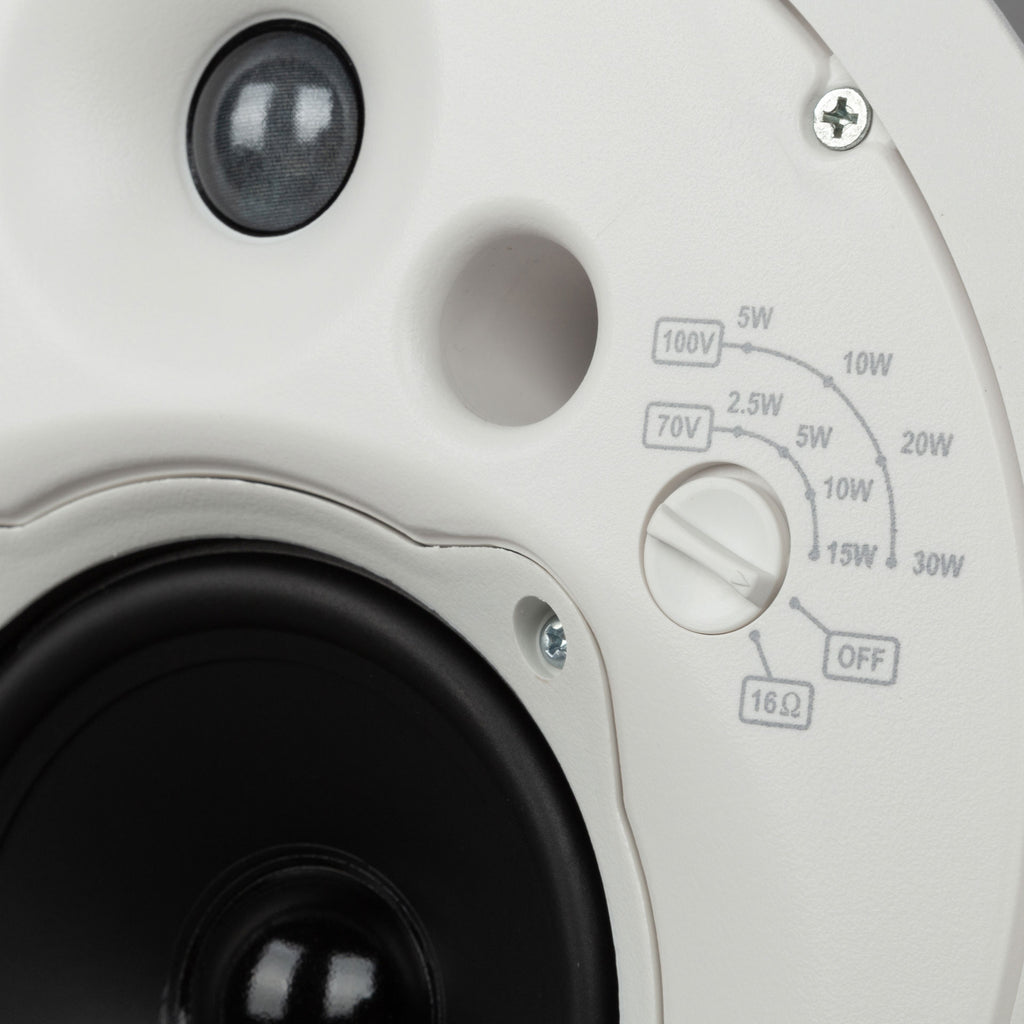

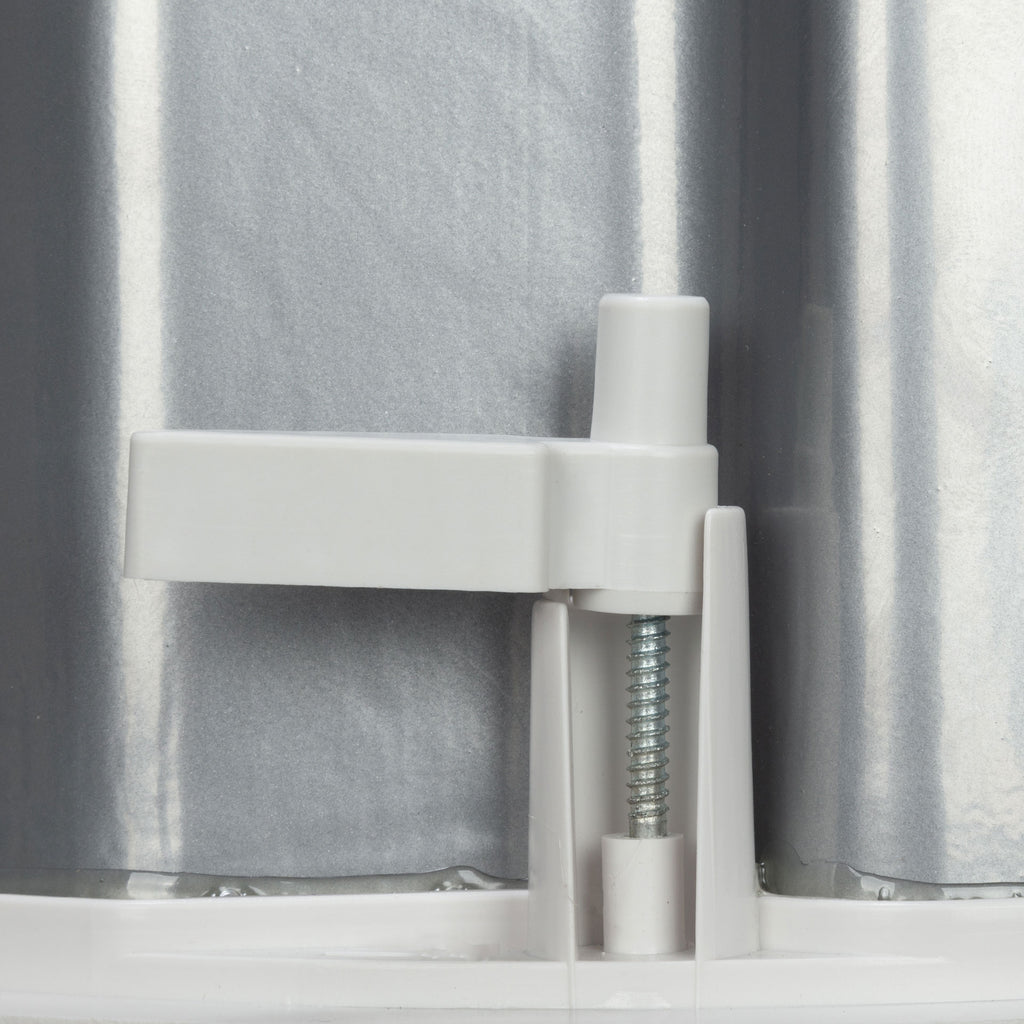

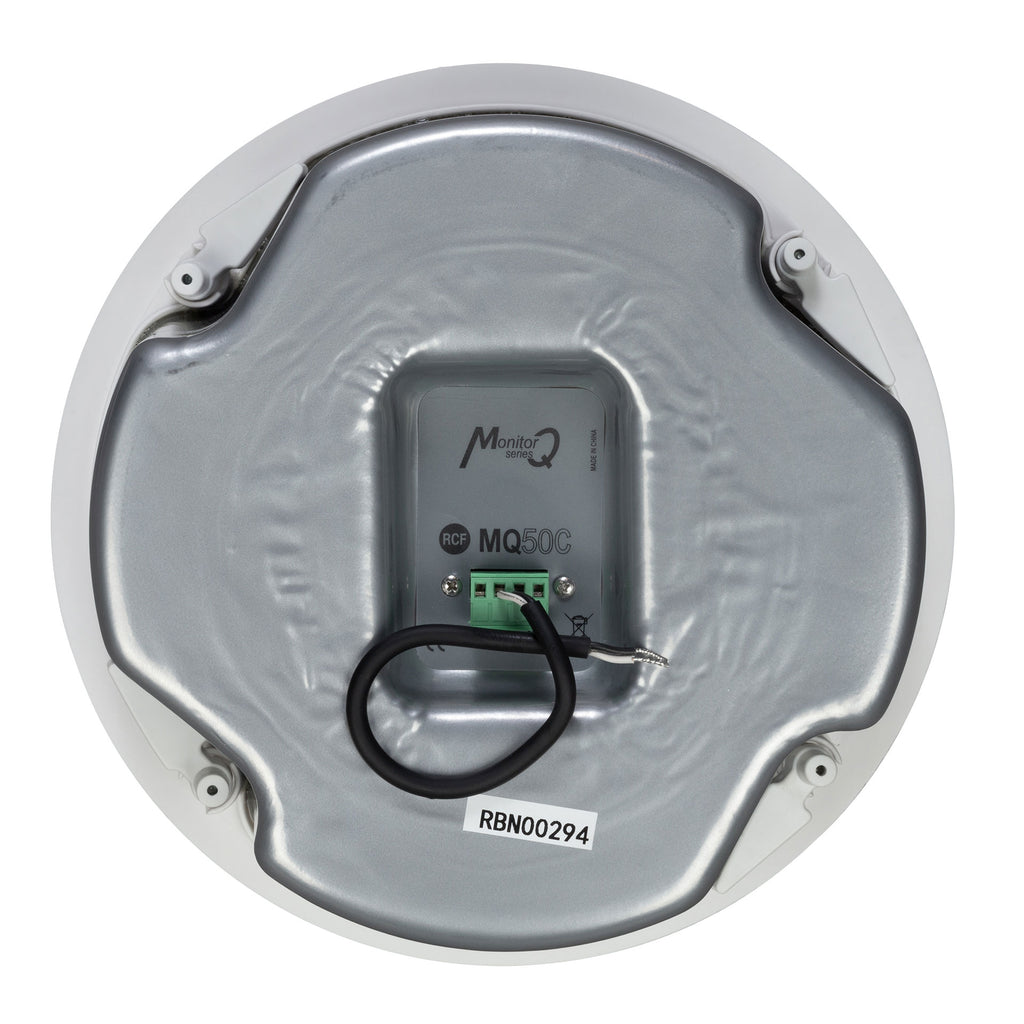

Compact design, light weight and limited depth makes the MQ 50C a 2-way ceiling speakers ideal for use in any background and foreground music system where a good sound is required. The woofer is a high-excursion, PP coated paper cone with rubber surround design mounted in a tuned enclosure. The fabric dome tweeter is loaded on a constant Q wave guide to provide natural and smooth sound reproduction on a wide dispersion angle. Installation of MQ 50C is fast and efficient thanks to the built-in rotating hooks. No additional brackets or rings or other supports are required: thanks to its lightweight construction the speaker can be mounted as a conventional ceiling speakers. Connections are made on four poles Euroblock connector. Power value can be selected with a rotary switch, accessible behind the grill.
Features
- 5" woofer with 1" dome tweeter
- Power selectable (100 V): 30 W - 20 W - 10 W - 5 W
- 91 dB sensitivity
- Colour white RAL 9016 and black RAL 9005

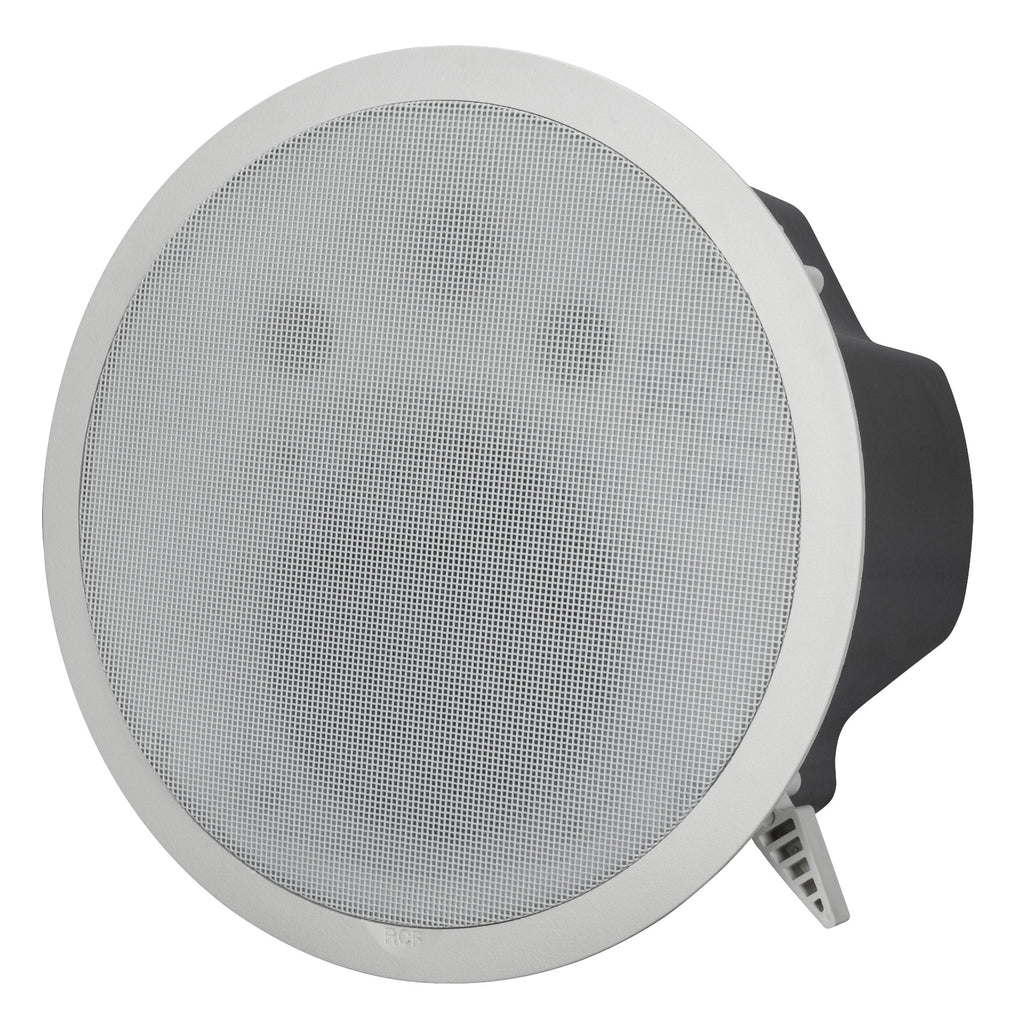

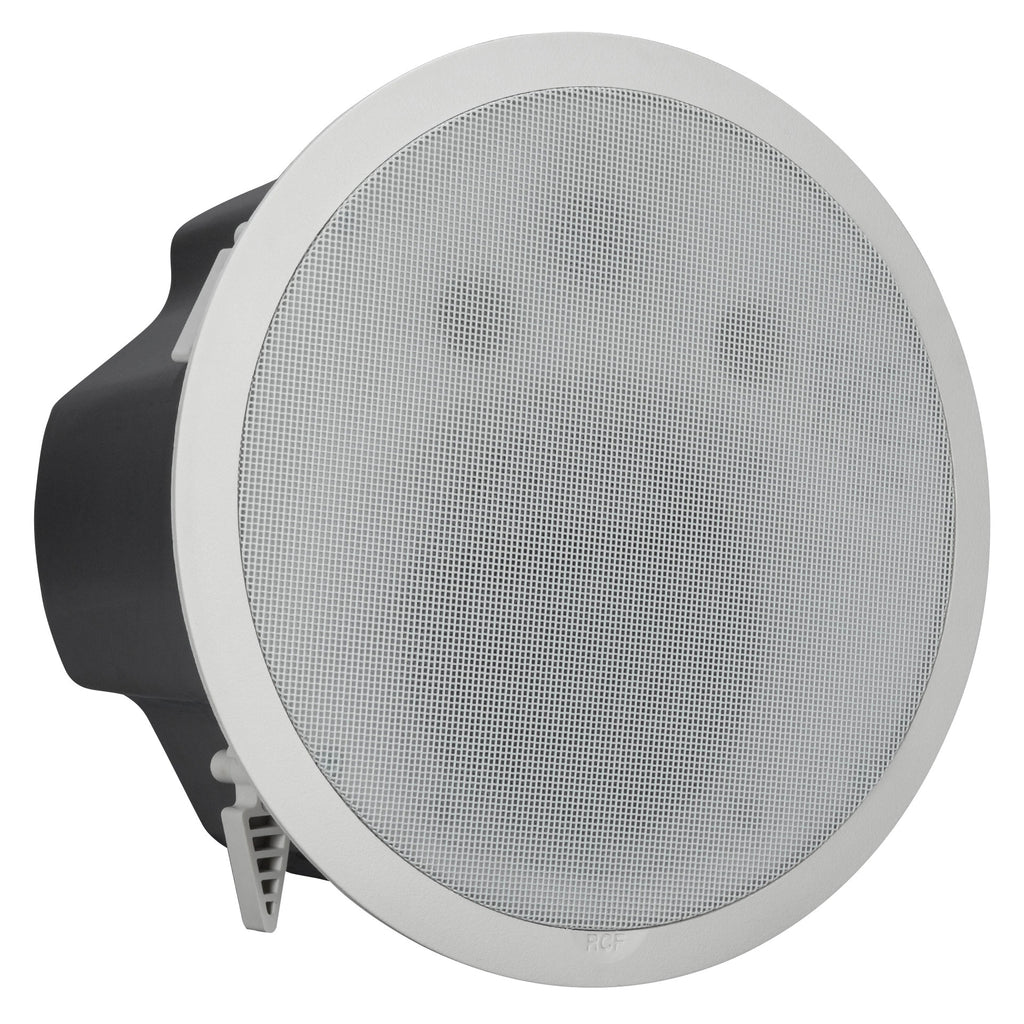

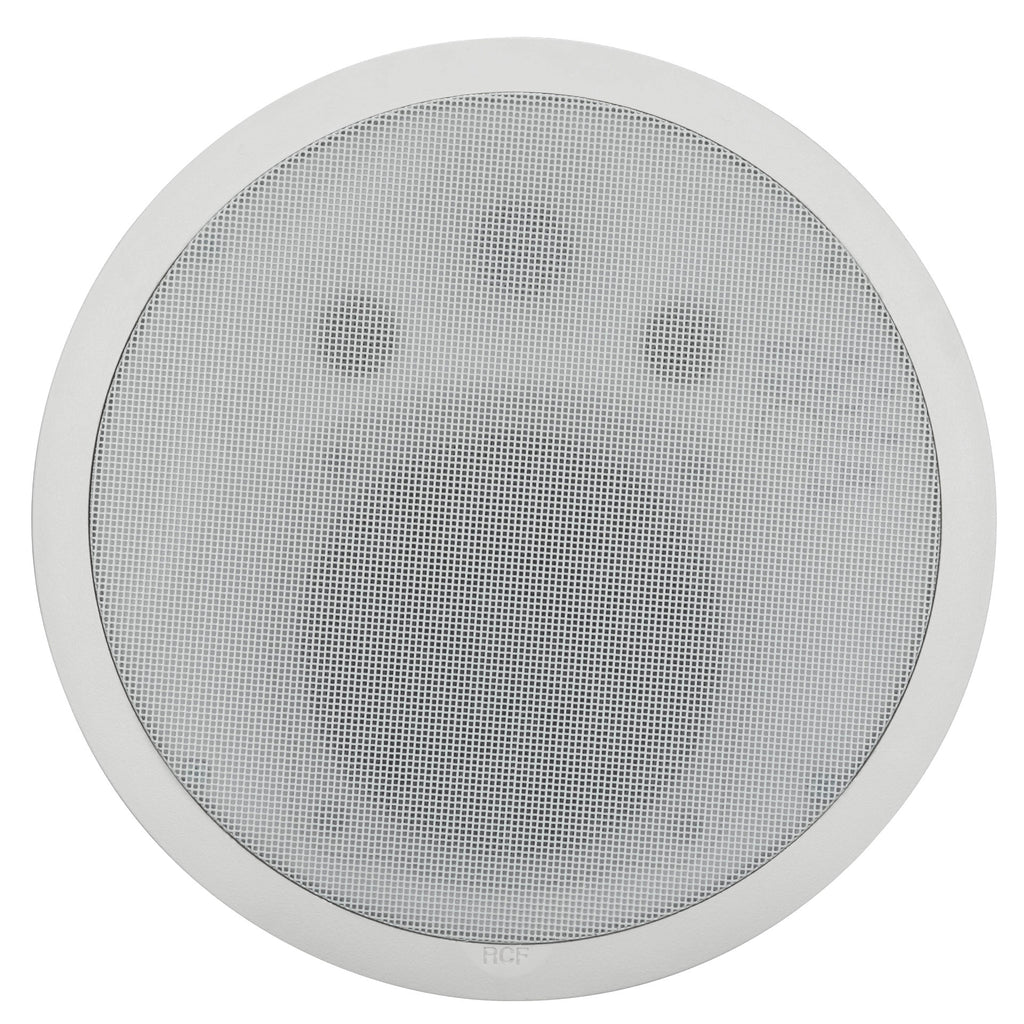

- Self-extinguishing plastic frame and back can, steel grille
- In/out euroblock connectors
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
112 dB |
| Coverage angle |
120° |
| System Sensitivity |
91 dB |
Power section
| Amplification |
Full Range |
| Nominal Impedance |
16 ohm |
| Power Handling |
60 W |
| Peak Power Handling |
240 W PEAK |
| Crossover Frequencies |
3000 Hz |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Transducers
| Dome Tweeter |
1 x 1.0'' neo |
| Woofer |
1 x 5.0'' neo |
Input/Output section
| Input connectors |
Euroblock |
| Output connectors |
Euroblock |
| Constant Voltage Transformer |
100 V |
| Power selection 1 |
30 W - 333 ohm |
| Power selection 2 |
20 W - 500 ohm |
| Power selection 3 |
10 W - 1000 ohm |
| Power selection 4 |
5 W - 2000 ohm |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Plastic Material |
| Grille |
Steel |
| Color |
White - RAL 9016, Black - RAL 9005 |
Size / Weight
| Depth |
156 mm / 6.14 inches |
| Recessed Depth |
140 mm / 5.51 inches |
| Diameter |
266 mm / 10.47 inches |
| Cut out diameter |
245 mm / 9.65 inches |
| Weight |
2.1 kg / 4.63 lbs |
Shipping information
| Package Height |
235 mm / 9.25 inches |
| Package Width |
310 mm / 12.2 inches |
| Package Depth |
310 mm / 12.2 inches |
| Package Weight |
2.99 kg / 6.59 lbs |
