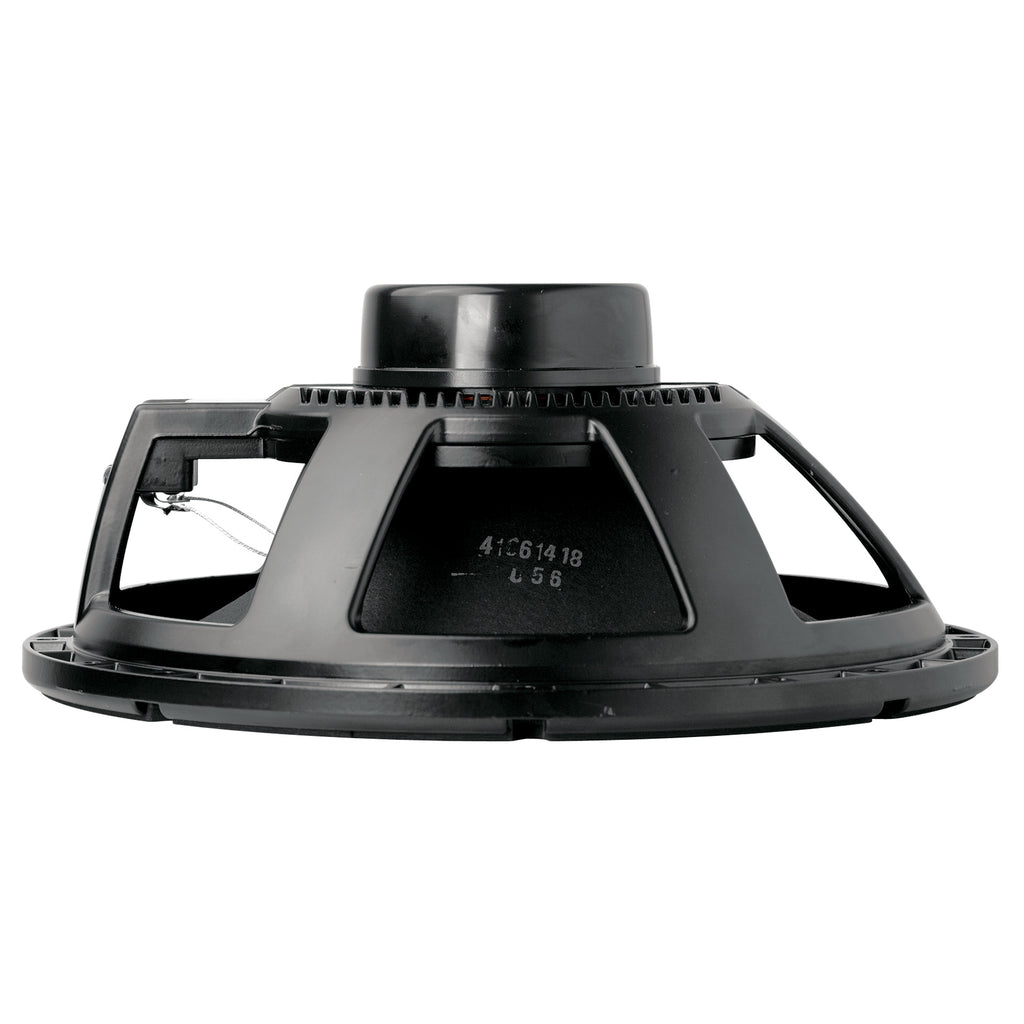

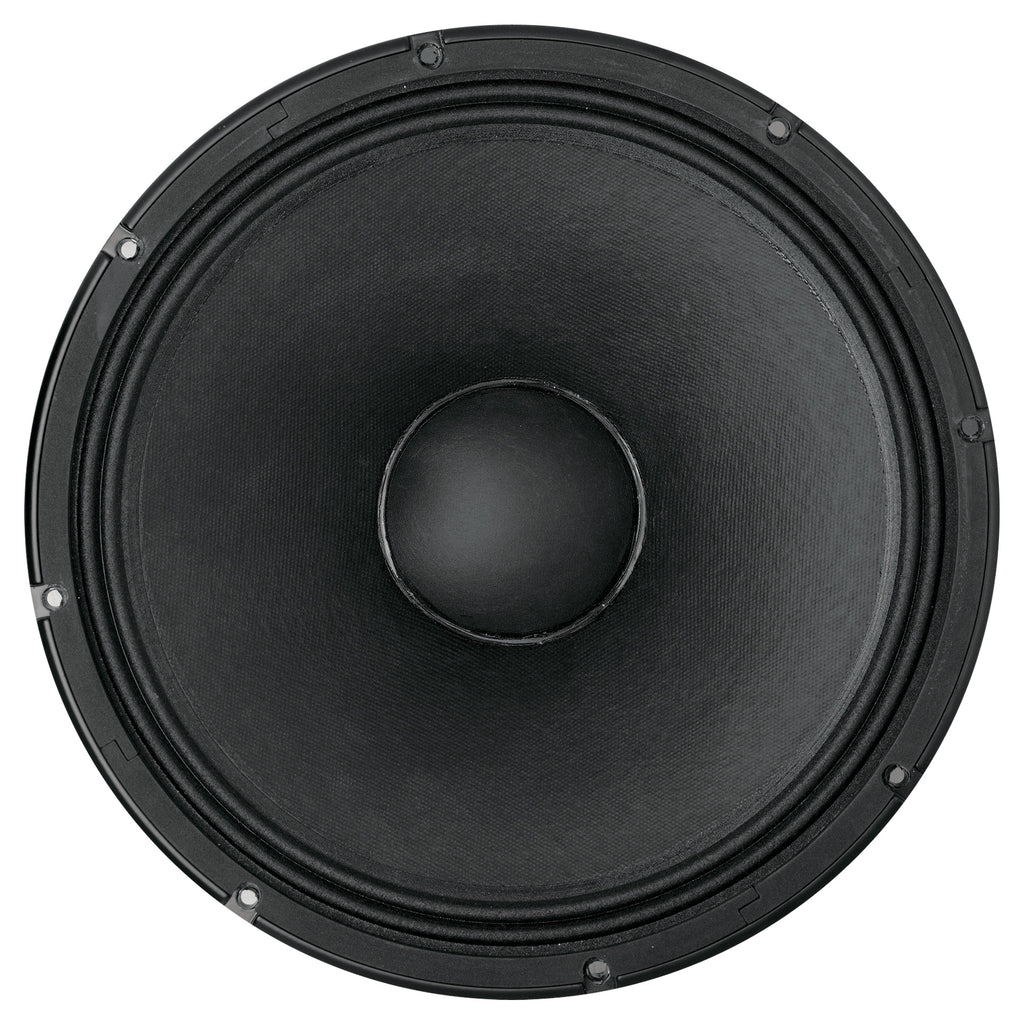

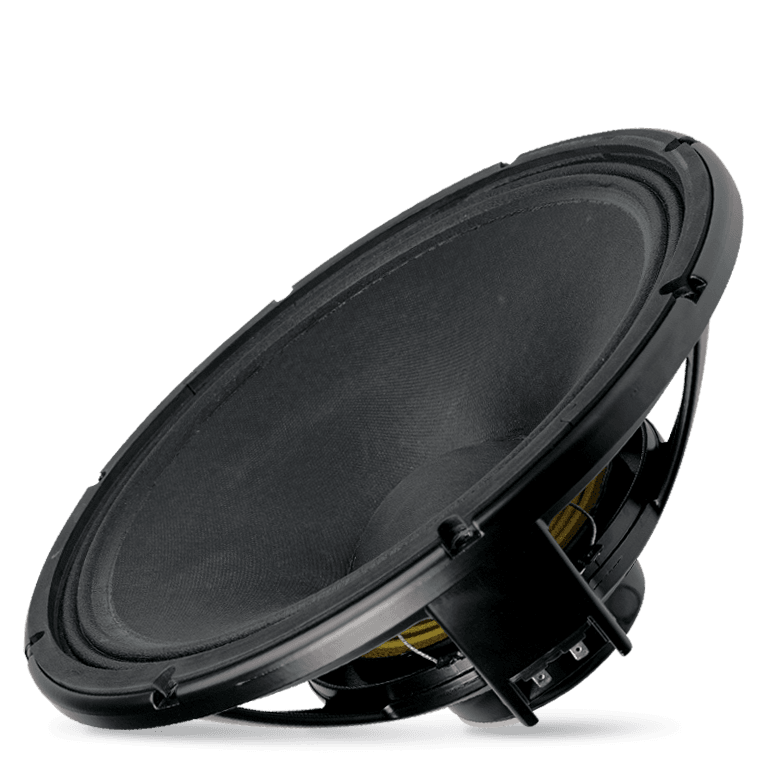

MB15N351 Mid - Bass
This MB15N351 is designed to provide an excellent linearity in the frequency response with low distortion. The transducer is built around a very stronger neodymium magnetic structure and a new 3,5” voice coil, this combination provides to increase the power handling especially in comparison a standard 3" voice coil. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation for minimize the power compression at the higher power handling.
Features
- 3.5-inch, inside/outside copper voice coil
- 1300W continuous program power handling
- 100 dB Sensitivity
- 40 Hz - 3 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Dual spider design with silicon based dampening control
Specifications
General specifications
| Nominal Diameter |
15 inch / 381 mm |
| Rated Impedance |
8 ohm |
| Program Power (watt) |
1300 W |
| Power handling capacity |
650 W |
| Sensitivity |
100.0 dB |
| Frequency range |
40 - 3000 Hz |
| Effective piston diameter |
330 mm / 12.99 inch |
| Max. Excursion Before Damage |
39 mm / 1.54 inch |
| Minimum Impedance (ohm) |
6.8 ohm |
| Voice Coil Diameter |
3.5 inch / 89 mm |
| Voice Coil Winding Material |
Copper |
| Voice Coil Length |
17 mm / 0.67 inch |
| Number of layers |
2 |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
11 mm / 0.43 inch |
| Cone Design |
Curved |
| Surround Material |
Polycotton |
| Surround Design |
M-roll |
| Magnets |
Neodymium |
| Dual-force air ventilation |
Yes |
| Spider |
03 |
Thiele - small parameters
| Resonance frequency (Fs) |
42 Hz |
| DC resistance (Re) (ohm) |
5.60 ohm |
| Mechanical factor |
4.00 Qms |
| Electrical factor |
0.24 Qes |
| Total factor |
0.22 Qts |
| Bl factor (Bl) (T x m) |
22.50 T x m |
| Effective moving mass (Mms) |
80.0 g |
| Equivalent Cas air loaded (Vas) |
191.0 liters |
| Effective piston area (Sd) |
0.090 m2 |
| Max. linear excursion (Xmax) |
6 mm |
| Voice coil inductance @ 1kHz (Le1k) |
1.65 mH |
| Half-space efficency (Eff) |
5.68% |
Mounting information
| Overall diameter |
393 mm / 15.47 inches |
| Bolt circle diameter |
371-376 mm / 14.61-14.8 inch |
| Bolt hole diameter |
7 mm / 0.28 inch |
| Front mount baffle cut-out |
354 mm / 13.94 inch |
| Rear mount baffle cut-out |
354 mm / 13.94 inch |
| Volume occupied by the driver |
3.8 liters / 0.15 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
180 mm / 7.09 inches |
| Diameter |
393 mm / 15.47 inches |
| Weight |
5.16 kg / 11.38 lbs |
Shipping information
| Package Height |
230 mm / 9.06 inches |
| Package Width |
440 mm / 17.32 inches |
| Package Depth |
440 mm / 17.32 inches |
| Package Weight |
6.52 kg / 14.37 lbs |
