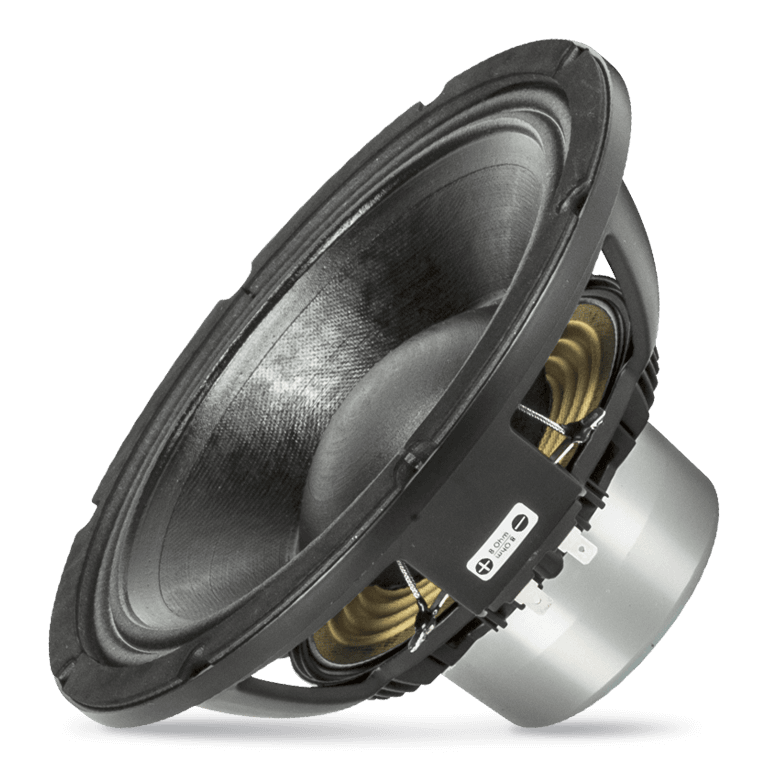

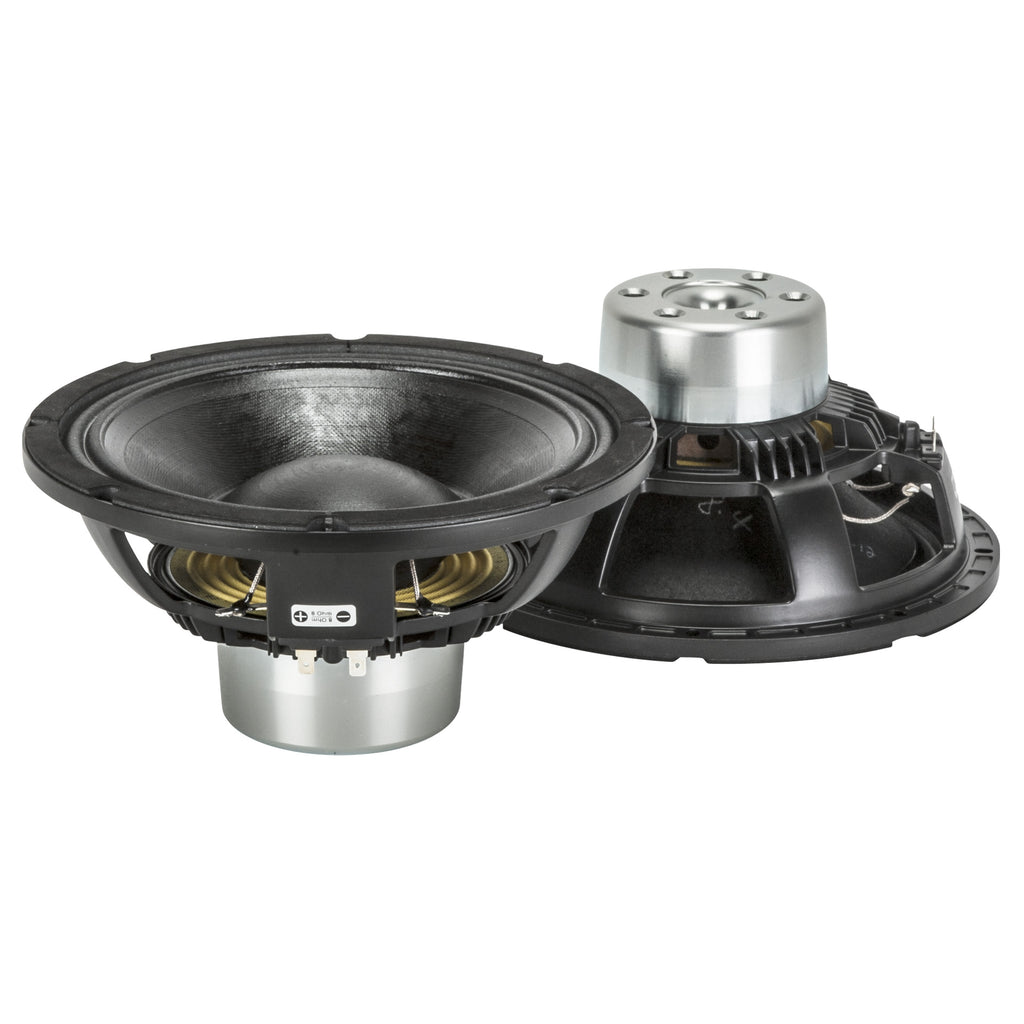

MB10N305 Mid - Bass
The MB10N305 is a hypervented neo, high linearity mid-bass. The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special airforced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.
Features
- 3-inch, fibreglass inside/outside aluminium voice coil
- 1000W continuous program power handling
- 97.5 dB Sensitivity
- 55 Hz - 3.5 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- M-roll surround and exponential cone geometry
Specifications
General specifications
| Nominal Diameter |
10 inch / 254 mm |
| Rated Impedance |
8 ohm |
| Program Power (watt) |
1000 W |
| Power handling capacity |
500 W |
| Sensitivity |
97.5 dB |
| Frequency range |
55 - 3500 Hz |
| Effective piston diameter |
210 mm / 8.27 inch |
| Max. Excursion Before Damage |
34 mm / 1.34 inch |
| Minimum Impedance (ohm) |
6.9 ohm |
| Voice Coil Diameter |
3.0 inch / 76 mm |
| Voice Coil Winding Material |
Aluminum |
| Voice Coil Length |
14 mm / 0.55 inch |
| Number of layers |
1 |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
10 mm / 0.39 inch |
| Cone Design |
Curved |
| Surround Material |
Polycotton |
| Surround Design |
M-roll |
| Magnets |
Neodymium |
| Hypervented magnetic structure |
Yes |
| Spider |
01 |
Thiele - small parameters
| Resonance frequency (Fs) |
60 Hz |
| DC resistance (Re) (ohm) |
5.60 ohm |
| Mechanical factor |
4.00 Qms |
| Electrical factor |
0.24 Qes |
| Total factor |
0.23 Qts |
| Bl factor (Bl) (T x m) |
18.50 T x m |
| Effective moving mass (Mms) |
37.0 g |
| Equivalent Cas air loaded (Vas) |
31.0 liters |
| Effective piston area (Sd) |
0.040 m2 |
| Max. linear excursion (Xmax) |
5 mm |
| Voice coil inductance @ 1kHz (Le1k) |
0.90 mH |
| Half-space efficency (Eff) |
2.90% |
Mounting information
| Overall diameter |
260 mm / 10.24 inches |
| Bolt circle diameter |
241-246 mm / 9.49-9.69 inch |
| Bolt hole diameter |
6 mm / 0.24 inch |
| Front mount baffle cut-out |
234 mm / 9.21 inch |
| Rear mount baffle cut-out |
234 mm / 9.21 inch |
| Volume occupied by the driver |
1.4 liters / 0.06 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
126 mm / 4.96 inches |
| Diameter |
260 mm / 10.24 inches |
| Weight |
3.2 kg / 7.05 lbs |
Shipping information
| Package Height |
169 mm / 6.65 inches |
| Package Width |
289 mm / 11.38 inches |
| Package Depth |
289 mm / 11.38 inches |
| Package Weight |
3.8 kg / 8.38 lbs |
