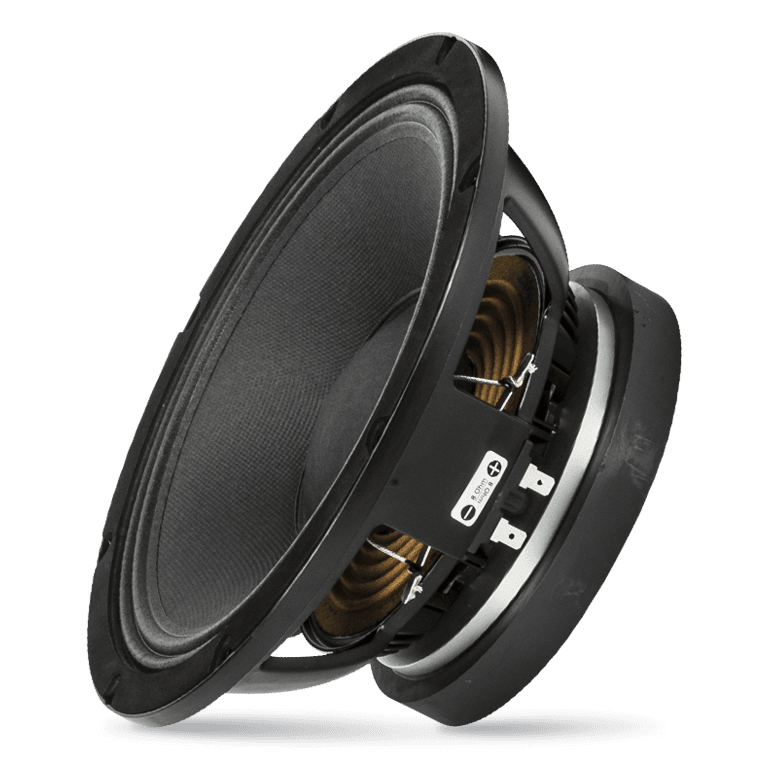

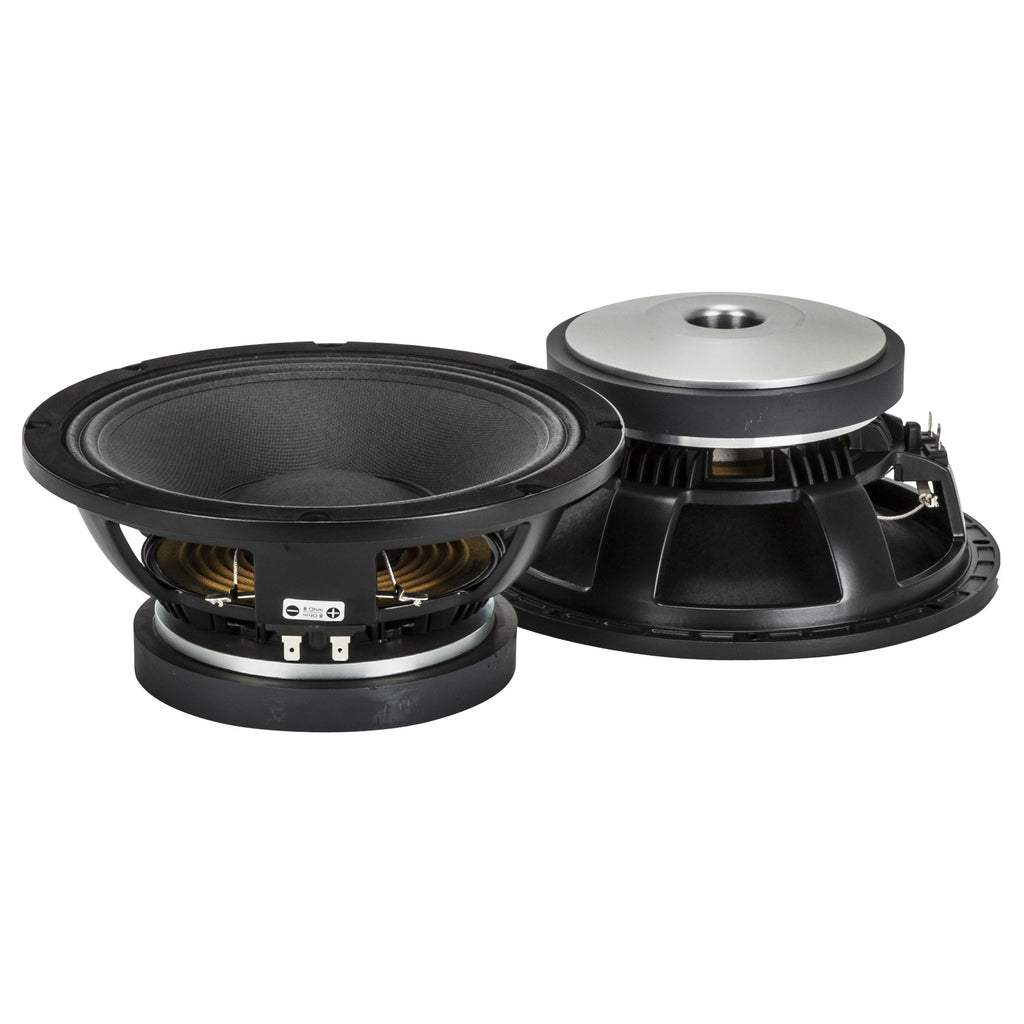

MB10G251 Mid - Bass
The MB10G251 is designed to provide an excellent frequency response linearity with very low distortion. A strong magnetic structure guarantee dynamic and precision. M-roll surround and spider design offer great linearity and precise reproduction.
Features
- 2.5-inch, fibreglass former, aluminum voice coil
- 600 Watt continuous program power handling
- 98.5 dB Sensitivity
- 55 Hz - 3.0kHz Frequency range
- M-roll surround and exponential cone geometry
Specifications
General specifications
| Nominal Diameter |
10 inch / 254 mm |
| Rated Impedance |
8 ohm |
| Program Power (watt) |
600 W |
| Power handling capacity |
300 W |
| Sensitivity |
98.5 dB |
| Frequency range |
55 - 3000 Hz |
| Effective piston diameter |
210 mm / 8.27 inch |
| Max. Excursion Before Damage |
40 mm / 1.57 inch |
| Minimum Impedance (ohm) |
6.4 ohm |
| Voice Coil Diameter |
2.5 inch / 63 mm |
| Voice Coil Winding Material |
Aluminum |
| Voice Coil Length |
18 mm / 0.71 inch |
| Number of layers |
2 |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
8 mm / 0.31 inch |
| Cone Design |
Curved |
| Surround Material |
Polycotton |
| Surround Design |
M-roll |
| Magnets |
Ceramic |
| Spider |
01 |
Thiele - small parameters
| Resonance frequency (Fs) |
76 Hz |
| DC resistance (Re) (ohm) |
5.20 ohm |
| Mechanical factor |
8.00 Qms |
| Electrical factor |
0.35 Qes |
| Total factor |
0.34 Qts |
| Bl factor (Bl) (T x m) |
14.90 T x m |
| Effective moving mass (Mms) |
33.0 g |
| Equivalent Cas air loaded (Vas) |
24.0 liters |
| Effective piston area (Sd) |
0.040 m2 |
| Max. linear excursion (Xmax) |
7 mm |
| Voice coil inductance @ 1kHz (Le1k) |
0.50 mH |
| Half-space efficency (Eff) |
2.71% |
Mounting information
| Overall diameter |
260 mm / 10.24 inches |
| Bolt circle diameter |
241-246 mm / 9.49-9.69 inch |
| Bolt hole diameter |
6 mm / 0.24 inch |
| Front mount baffle cut-out |
232 mm / 9.13 inch |
| Rear mount baffle cut-out |
232 mm / 9.13 inch |
| Volume occupied by the driver |
1.2 liters / 0.05 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
Size / Weight
| Height |
123 mm / 4.84 inches |
| Diameter |
260 mm / 10.24 inches |
| Weight |
5 kg / 11.02 lbs |
Shipping information
| Package Height |
180 mm / 7.09 inches |
| Package Width |
290 mm / 11.42 inches |
| Package Depth |
290 mm / 11.42 inches |
| Package Weight |
5.5 kg / 12.13 lbs |
